At a Glance
- >(4) U-Bolts – 3" inside width (inside measure), 6-1/2" length, 1/2" diameter
- >(2) 3" U-Bolt Plates
- >(8) 1/2"-20 Hex Nuts
- Brand: R & P Carriages
- SKU: UBK-5200-R
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |
Product Details
(4) 3" Round Axle U-Bolts – 6-1/2" Length – 1/2" Dia – 5200 lb / 6000 lb Axle Kit
Part Number: UBK-5200-R
U-bolt mounting kit for common 3" diameter round trailer axles typically used on 5200 lb to 6000 lb axle applications. Designed to secure the axle to leaf springs. U-bolts, plates, and nuts included.

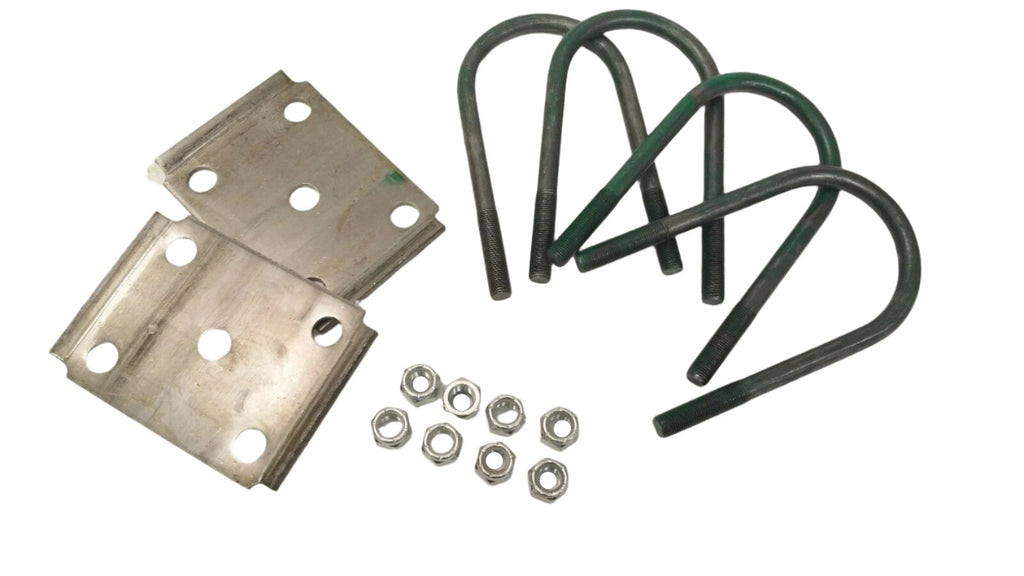

Kit Includes

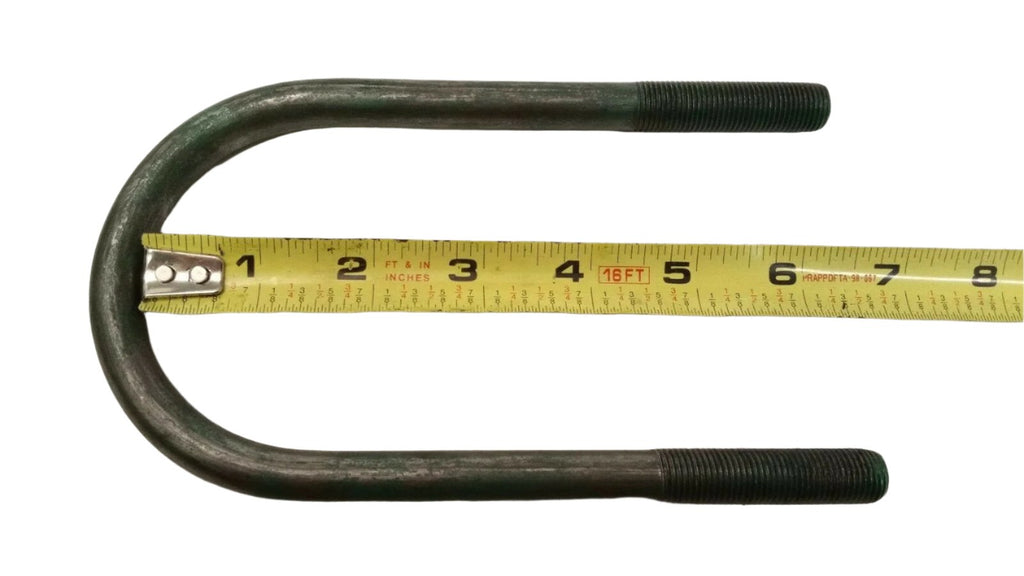

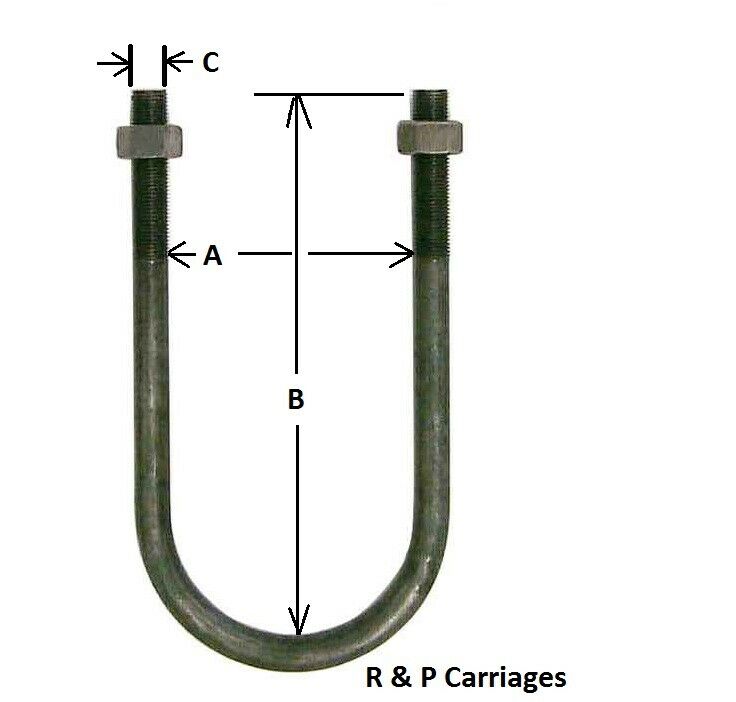

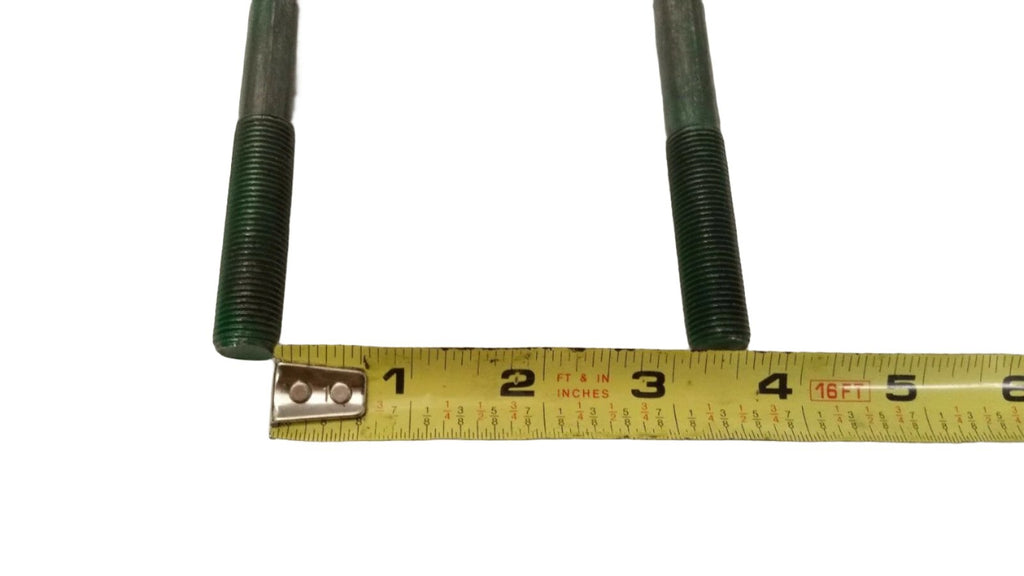

- (4) U-Bolts – 3" inside width (inside measure), 6-1/2" length, 1/2" diameter

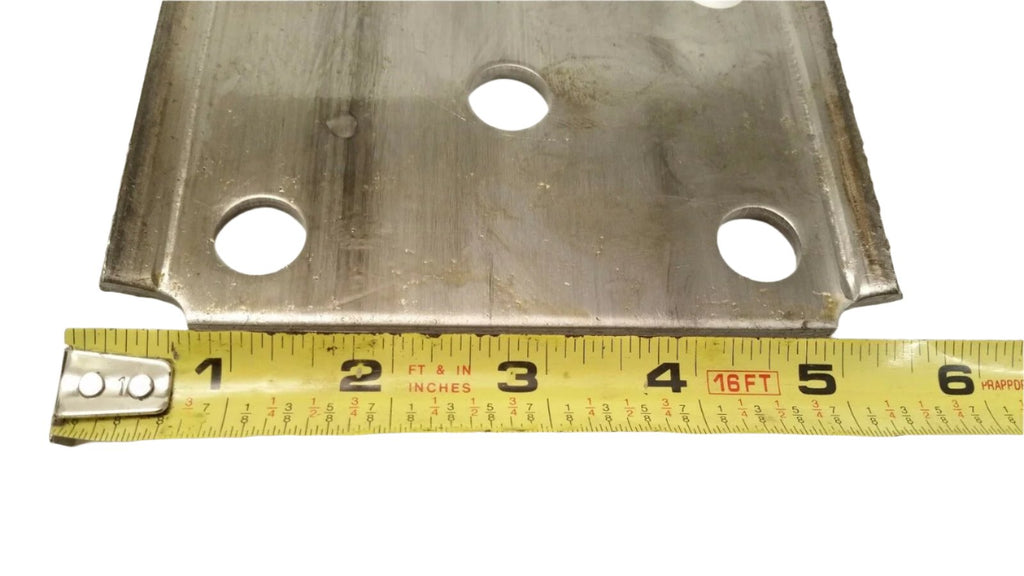

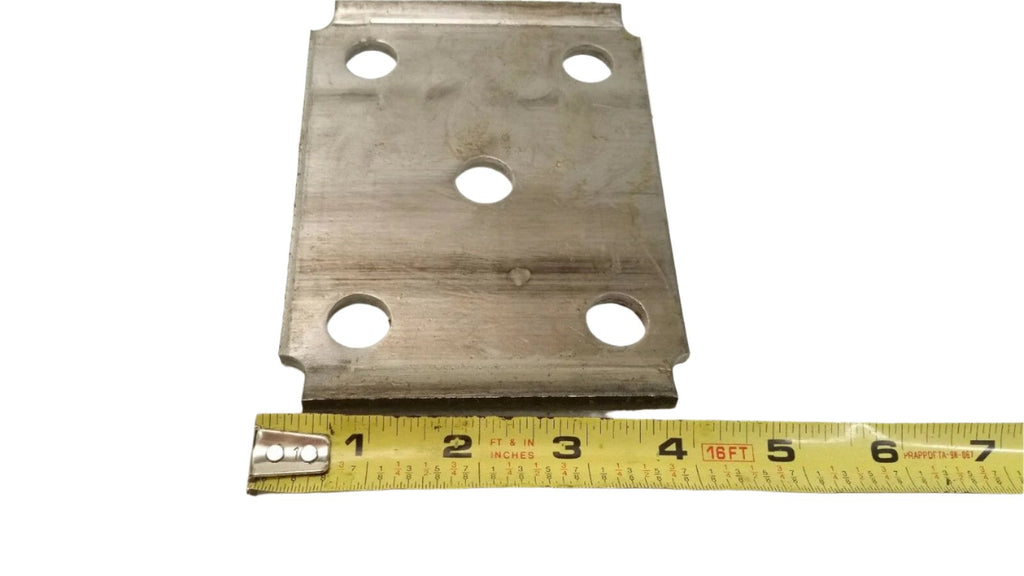

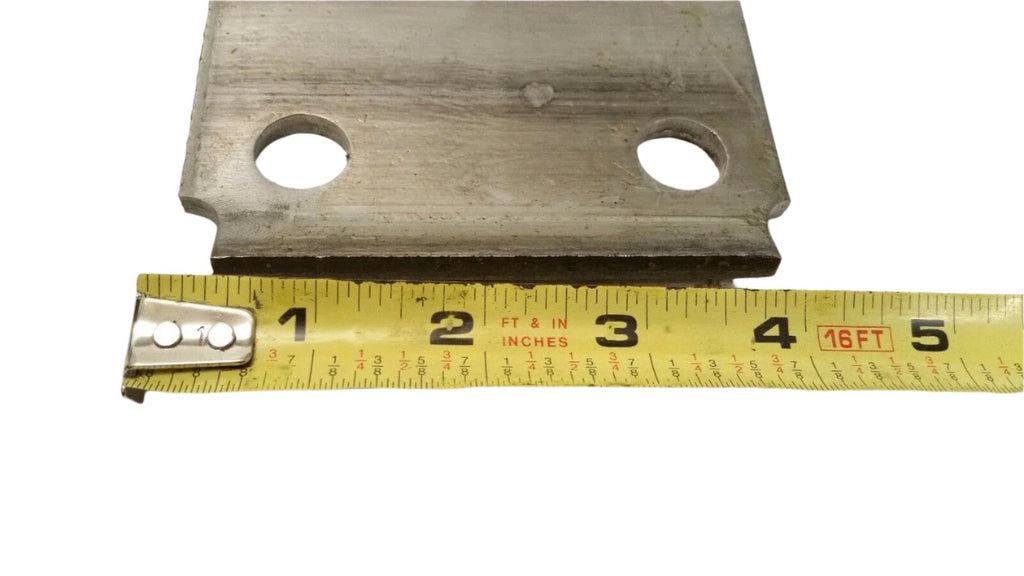

- (2) 3" U-Bolt Plates
- (8) 1/2"-20 Hex Nuts
Specifications
| Axle Type | Round |
| Axle Diameter | 3" |
| Typical Axle Capacity | 5200 lb – 6000 lb |

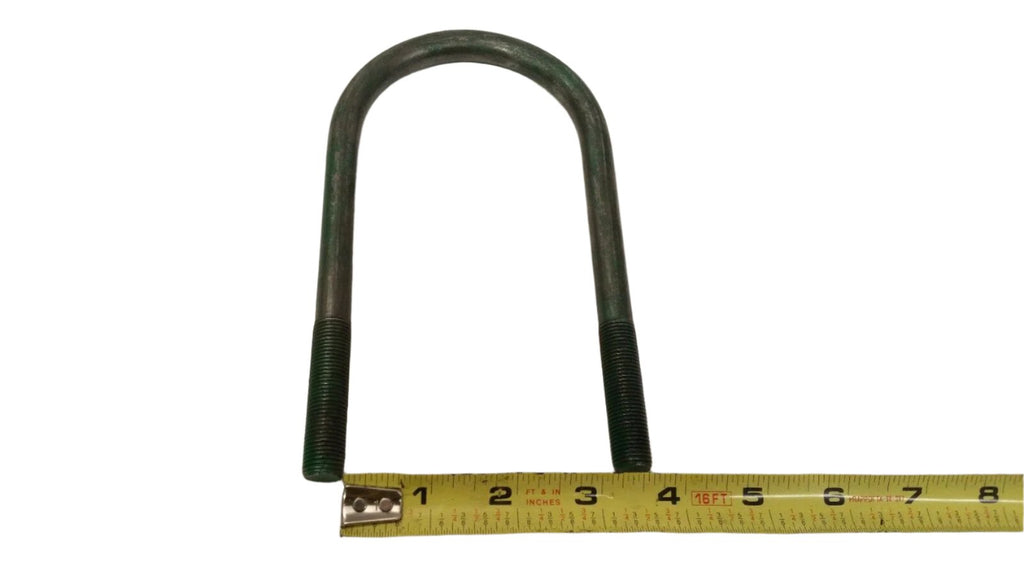

| U-Bolt Length | 6-1/2" |
| U-Bolt Diameter | 1/2" |

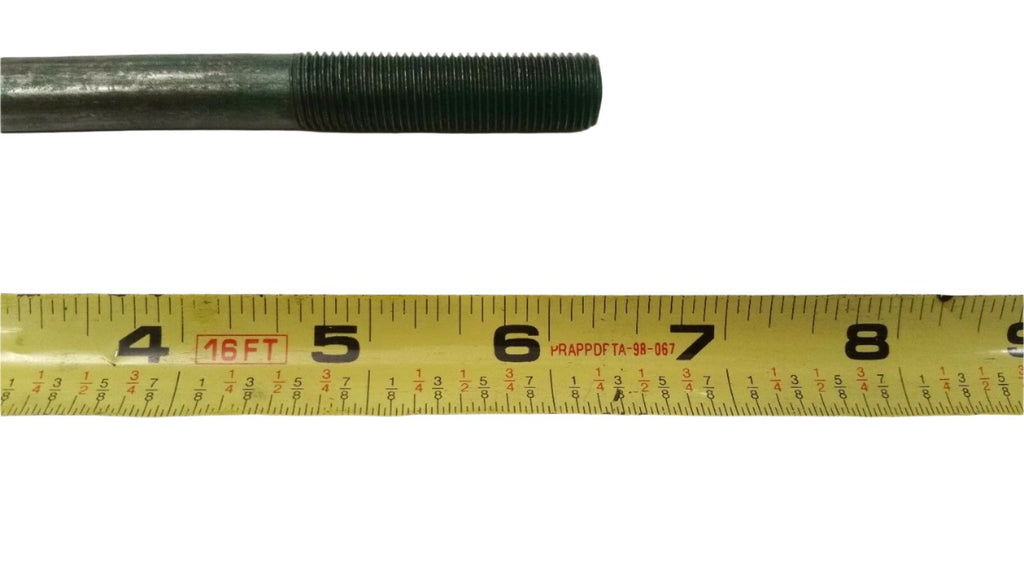

| Thread Size | 1/2"-20 |
| Spring Width Compatibility | 1-3/4" or 2" |
| Total U-Bolts | 4 |
| Total Nuts | 8 |
U-bolt plate appearance may vary. Verify axle diameter and spring width before installation.
