8 Pack 1/2" Trailer Wheel Studs 2.25" Long .62 Spline

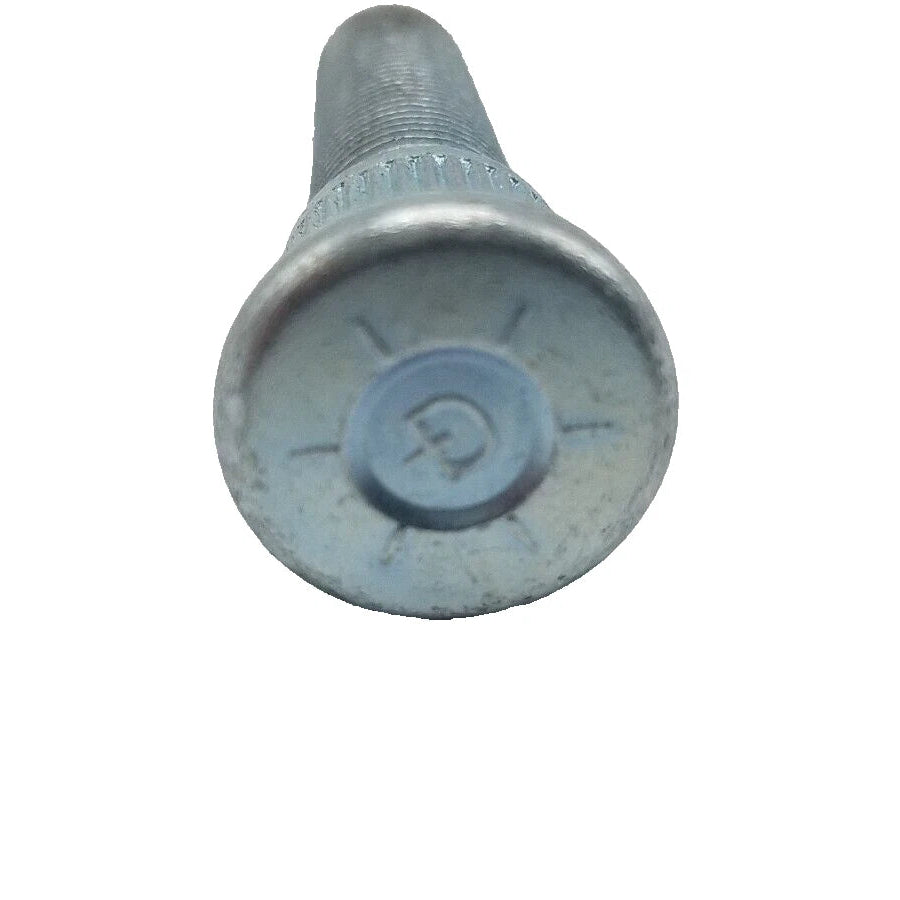

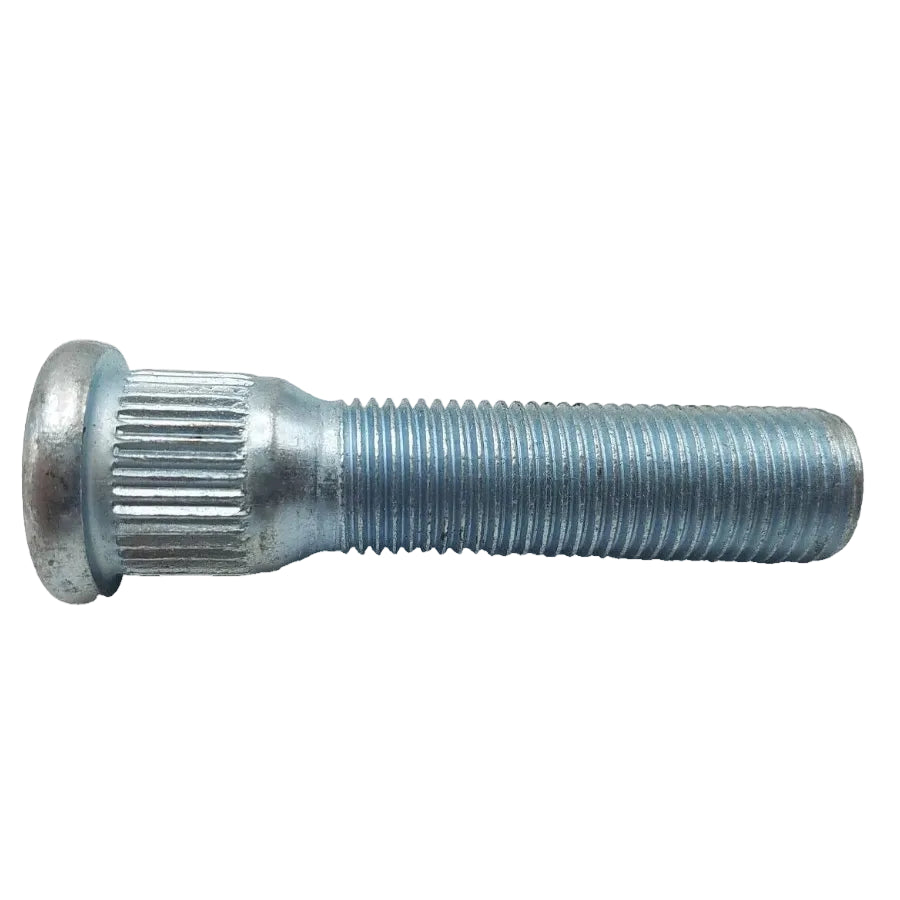

Set of eight replacement trailer wheel studs for hub and wheel mounting service. Each stud has a 1/2" thread diameter, 2.25" overall length, .62" spline diameter, and 1.5" long threaded section.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | 7-150-LOTOF8 |
| Brand | R&P Carriages |
| Product Type | Trailer Wheel Studs |
| Thread Diameter | 1/2" |
| Overall Length | 2.25" |
| Spline / Knurl Diameter | .62" |
| Thread Length | 1.5" |
| Material / Finish | Steel / Finish not specified |

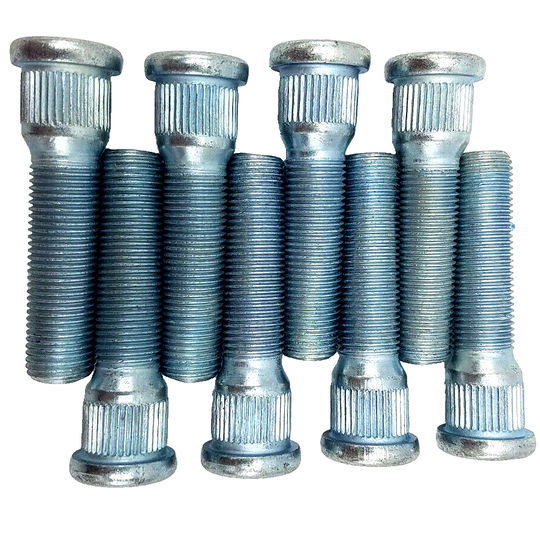

| Quantity Included | 8 wheel studs |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / Trailer / System | Trailer wheel and hub assembly |
| Primary Fit | Applications requiring 1/2" wheel studs with .62" spline diameter and 2.25" overall length |
| Fitment Method | Match by thread diameter, overall length, spline diameter, thread length, and hub bore condition |
| Important Note | Verify before ordering. Wheel studs must be matched by measurement, not appearance alone. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Lot of Eight | Includes eight replacement studs for trailer wheel and hub service. |
| 1/2" Thread Diameter | Designed for applications requiring 1/2" wheel stud threads. |
| .62" Spline Diameter | Spline/knurl diameter must match the receiving hub for proper seating. |
| 2.25" Overall Length | Provides the listed overall stud length with a 1.5" long threaded section. |
Overview
This listing is for a set of eight replacement trailer wheel studs for hub and wheel mounting service. Each stud measures 1/2" thread diameter, 2.25" overall length, with a .62" spline diameter and 1.5" long threaded section. These studs are intended for replacing worn, damaged, stripped, or missing trailer wheel studs when the listed measurements match the existing hub setup.
R&P Service Insight
Wheel studs should be matched by measurement, not by appearance alone. The thread diameter, spline/knurl diameter, overall length, and thread length all matter for correct hub fitment.
- Thread Size: Verify the 1/2" thread diameter before ordering.
- Spline Fit: Confirm the hub accepts a .62" spline/knurl diameter.
- Length Check: Match both the 2.25" overall length and 1.5" threaded section to your application.
R&P Knowledge Hub
Compatibility: Use only where 1/2" wheel studs with .62" spline diameter and 2.25" overall length are required.
Vehicle / System Fit: Commonly used in trailer hub and wheel mounting service when the stud dimensions match the hub.
Installation Notes: Press-in wheel studs require proper seating in the hub. Do not force an incorrect spline size into the hub bore.
Performance Insight: Correct spline engagement helps maintain a secure hub-to-wheel connection and supports proper lug nut torque retention.
Brand & Fitment Note
Selling Brand: R&P Carriages
Application Reference: Replacement trailer wheel stud hardware for matching hub and wheel mounting applications.
What This Means: This listing includes eight replacement wheel studs only, supplied as a lot of eight.
Before Ordering: Compare your old wheel stud to the listed thread diameter, overall length, spline diameter, and thread length.
R&P Repair Insight
A damaged wheel stud can affect lug nut engagement and wheel security. When replacing studs, inspect the hub, lug nuts, wheel holes, and surrounding hardware before putting the trailer back into service.
- Inspect the Hub: Make sure the stud bore is not wallowed out or damaged.
- Check Lug Nuts: Replace lug nuts if threads are worn, rounded, or cross-threaded.
- Torque Properly: After installation, torque wheel nuts to the trailer or wheel manufacturer specification.
Features
Lot of Eight
Includes eight wheel studs for trailer wheel and hub service.
1/2" Thread Diameter
Designed for applications requiring 1/2" wheel stud threads.
.62" Spline Diameter
The spline/knurl diameter must match the receiving hub for proper seating.
2.25" Overall Length
Overall stud length is 2.25" with a 1.5" long threaded section.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 7-150-LOTOF8 |
| Listing SKU | 7-150-LOTOF8 |
| Brand | R&P Carriages |
| Product Type | Trailer Wheel Studs |
| Quantity Included | 8 wheel studs |
| Application | Trailer hub / wheel mounting service |
| Material / Finish | Steel / Finish not specified |
| Key Measurement | 1/2" thread, 2.25" long, .62" spline |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Trailer wheel / hub assembly |
| Primary Fit | Applications requiring 1/2" wheel studs with .62" spline diameter. |
| Secondary Fit / Common Uses | Replacement for damaged, stripped, or missing trailer wheel studs. |
| Notes | Fitment depends on thread diameter, spline diameter, overall length, thread length, and hub bore condition. |
Detailed Measurements
| Key Dimension | Measurement |
|---|---|

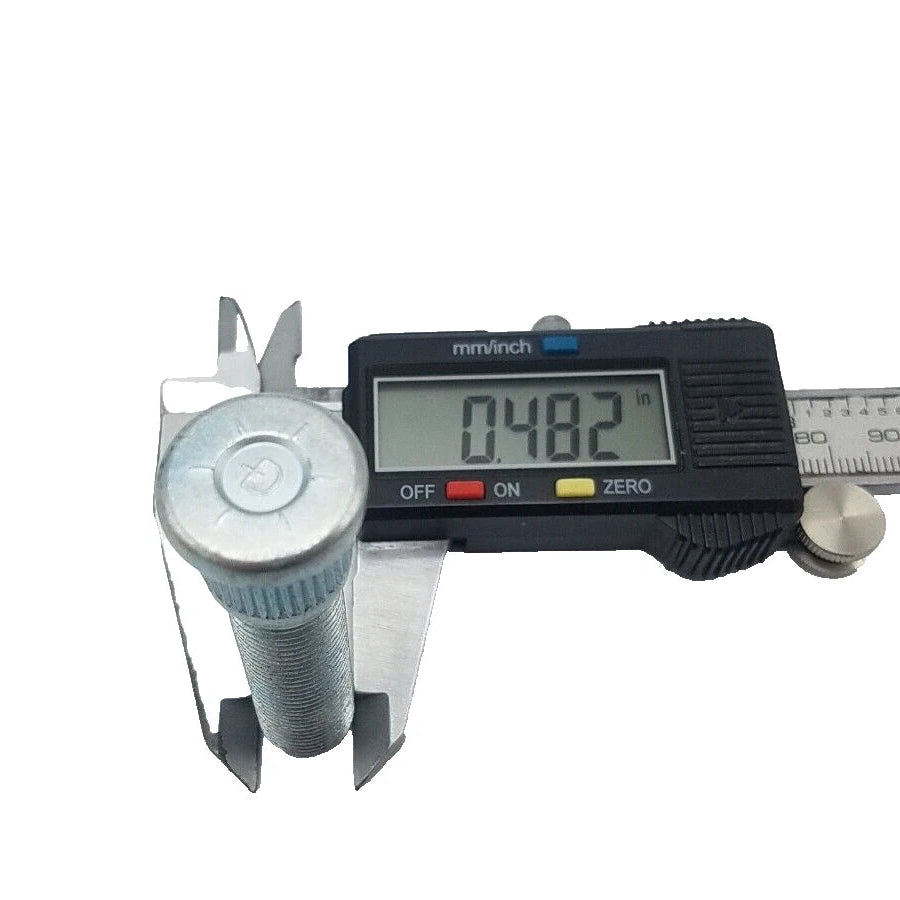

| Thread Diameter | 1/2" |

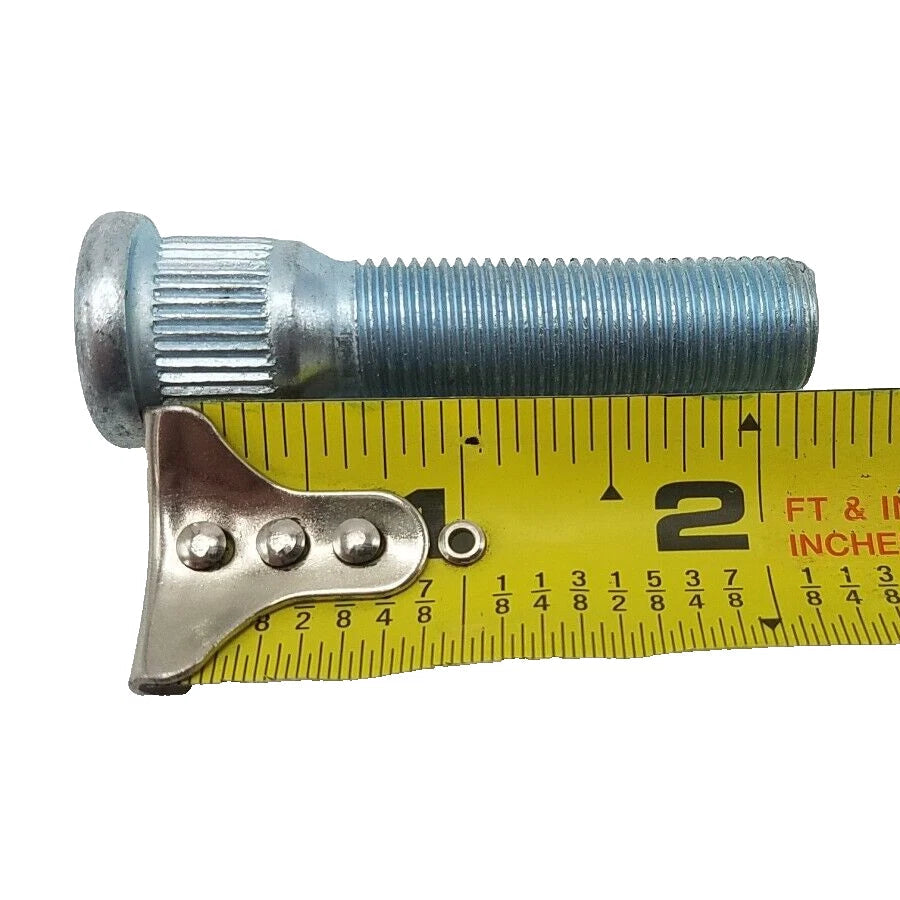

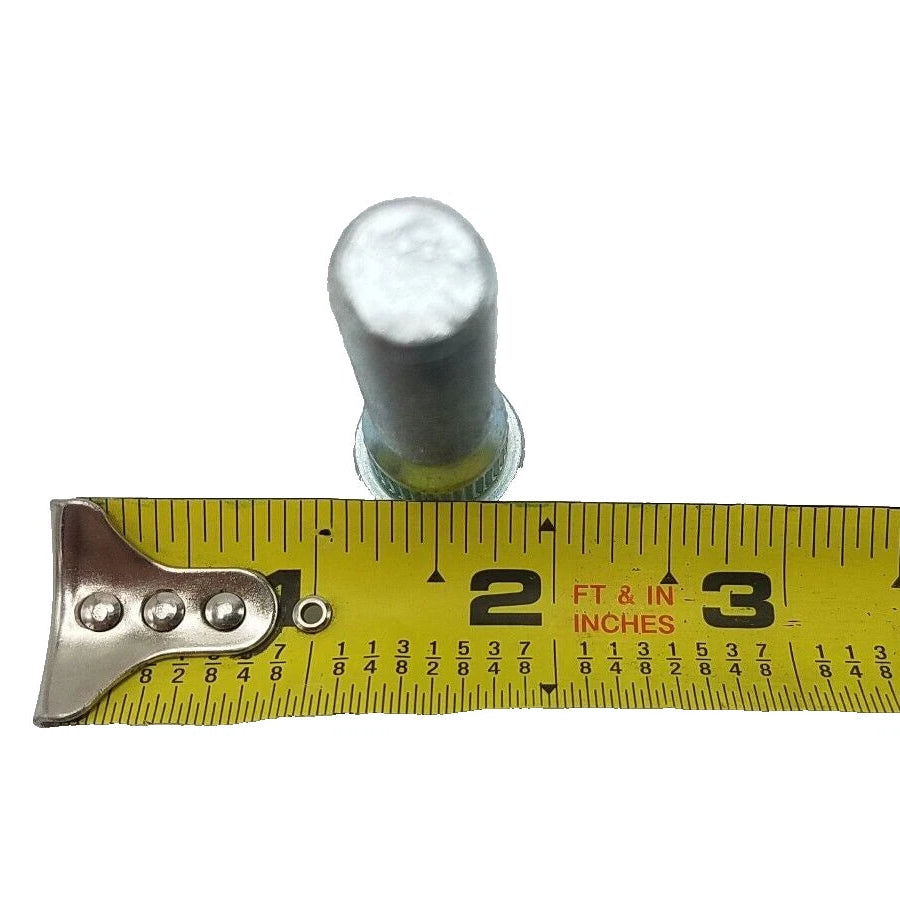

| Overall Length | 2.25" |

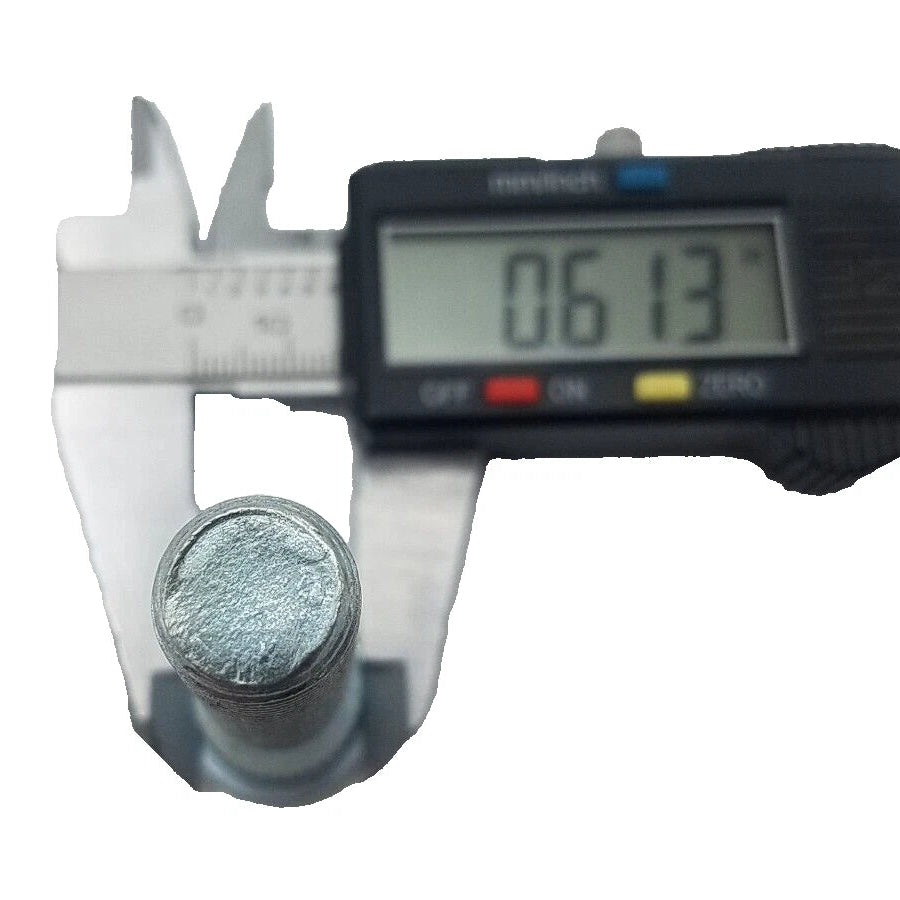

| Spline Diameter | .62" |
| Thread Length | 1.5" |
Included Components
| Quantity | Item |
|---|---|
| 8 | 1/2" trailer wheel studs, 2.25" long, .62" spline, 1.5" thread length |
| Not Included | Lug nuts, hub, wheel, installation tools, or additional hardware |
