11-Foot Arctic Blue Cold-Weather 7-Way Trailer Cord with Junction Box - Two Mounting Tabs (J-JB-11FT)

$70.91
Available to order

Enter the quantity you need to check availability.

Quantity options
1 selected · 29 available 28 remaining after purchase
Selected quantity subtotal $70.91
Not Sure It Fits? Ask a Pro
R&P PARTS GUIDE

At a Glance

  • SKU: J-JB-11FT
PRODUCT INFORMATION

Product Details

R & P Carriages

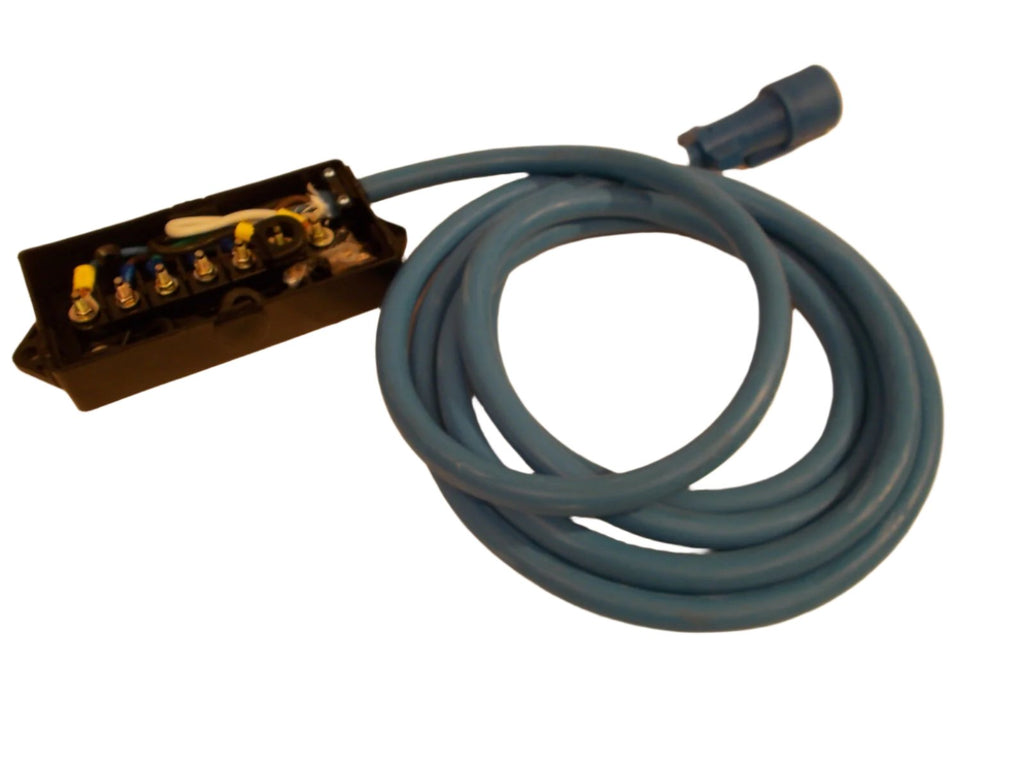

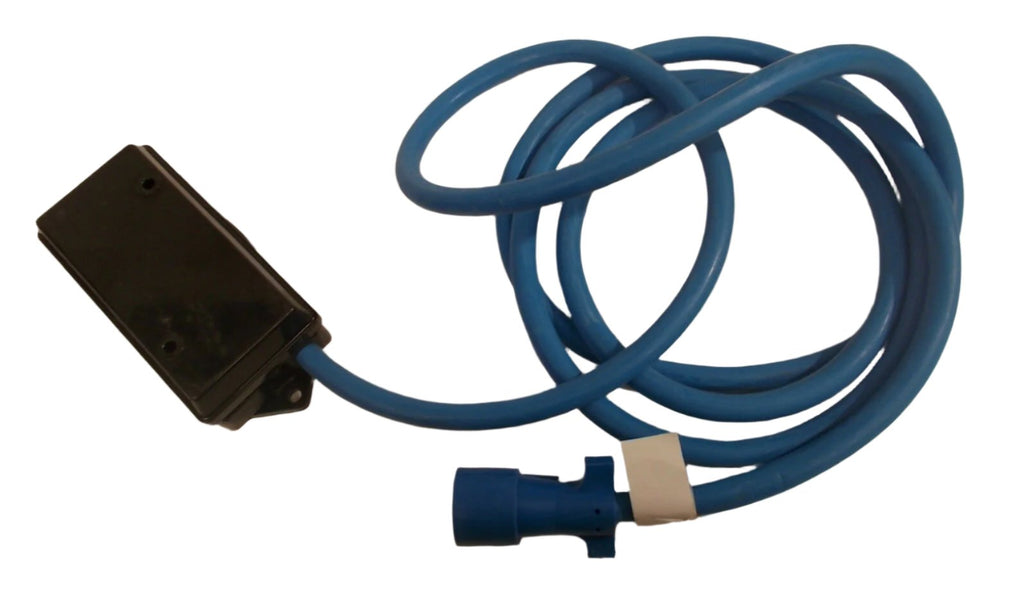

11-Foot Arctic Blue Cold-Weather 7-Way Trailer Cord with Junction Box - Two Mounting Tabs

Part Number: J-JB-11FT

Heavy-duty 11-foot Arctic Blue cold-weather rated 7-way trailer cord with molded RV-style plug and weather-sealed junction box. Designed for utility trailers, cargo trailers, snowmobile trailers, equipment haulers, and commercial applications exposed to extreme winter conditions.

Arctic-grade jacket remains flexible to –40°C (–40°F) while heavy-gauge copper wiring supports brake, charge, and lighting circuits.

R&P Knowledge Hub

Cold-weather trailer cords must remain flexible in freezing temperatures. Standard PVC jackets stiffen and crack under repeated flexing in winter conditions. Arctic-rated thermoplastic elastomer jackets maintain flexibility and reduce wire fatigue.

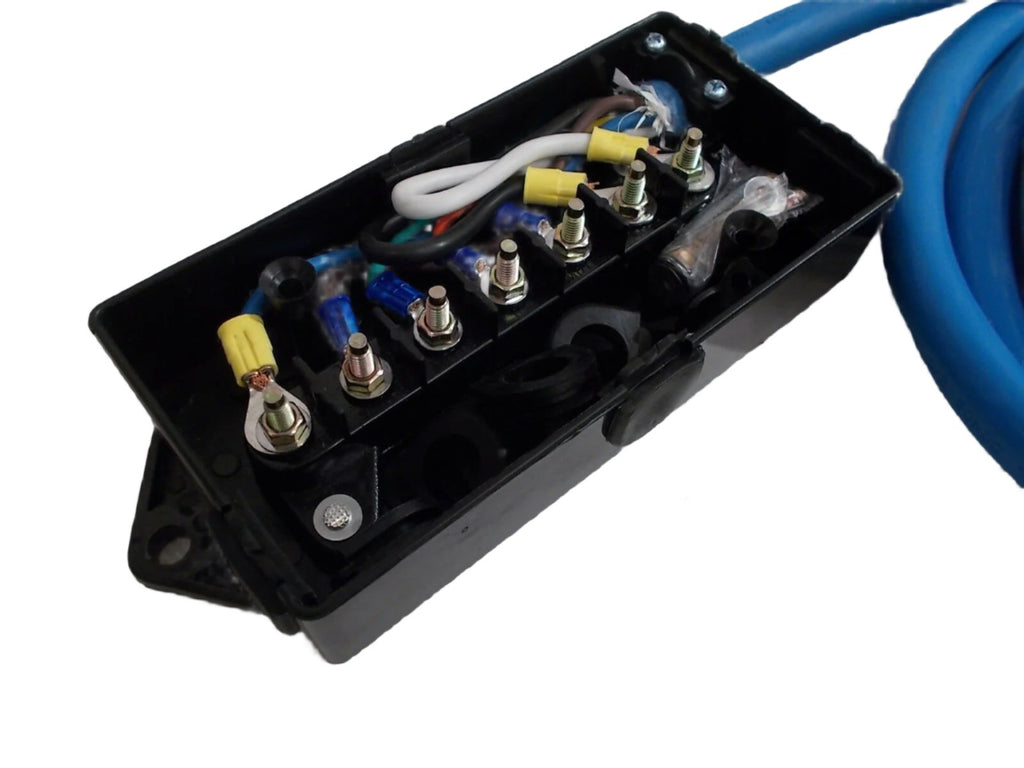

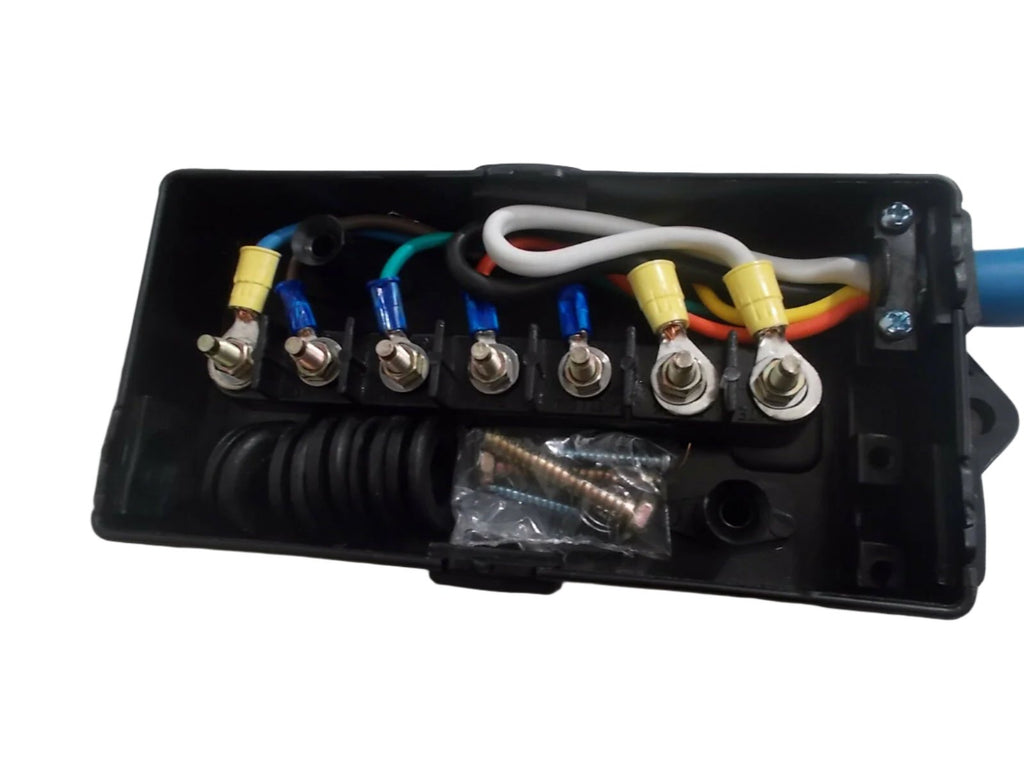

Junction box systems allow cleaner installations by eliminating butt connectors and providing labeled studs for secure wiring.

Features

  • 11 ft usable cord length
  • Cold-weather rated –40°C to +105°C

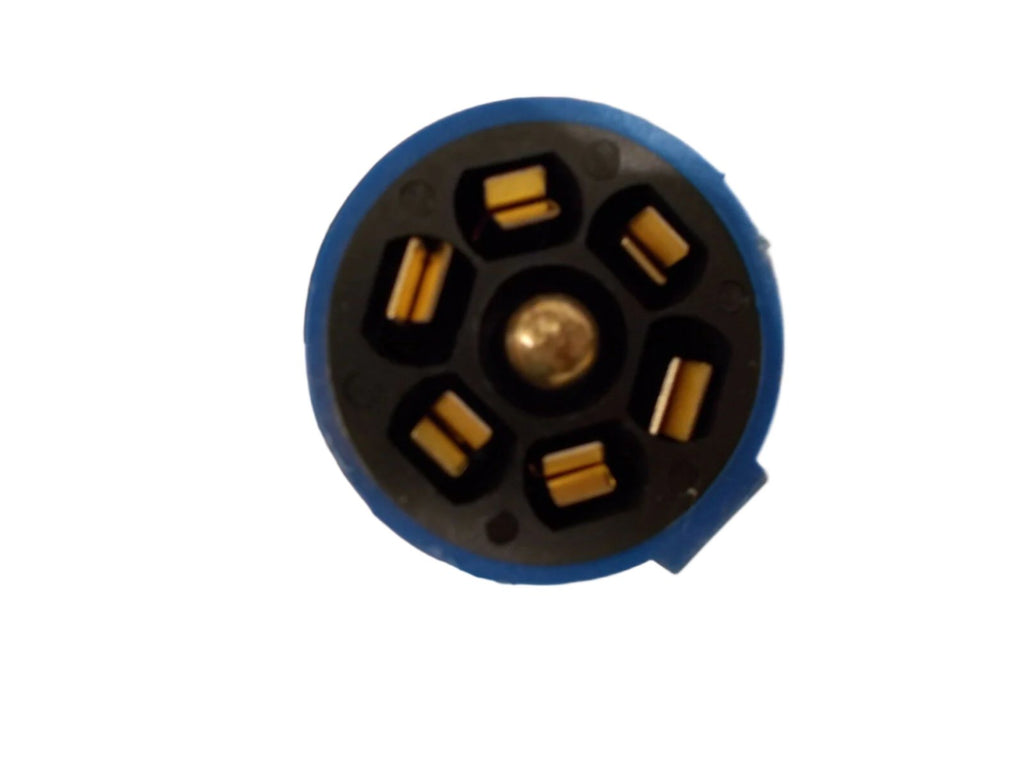

  • Molded 7-way RV blade plug
  • Double-brass self-cleaning contacts
  • Heavy-duty sealed junction box
  • (4) Open + (4) Closed rubber grommets included
  • Color-coded stud terminals
  • Mounting screws included

Specifications

Specification Detail
Cord Length 11 ft usable (12 ft overall before strip-back)
Wire Gauge (2) 10 AWG – White (Ground), Black (12V Hot)
(1) 12 AWG – Blue (Electric Brake)
(4) 14 AWG – Red (Left Stop), Brown (Right Stop), Green (Tail), Yellow (Reverse)
Temperature Rating –40°C to +105°C
Jacket Type Arctic-grade thermoplastic elastomer
Plug Style 7-Way RV Blade
Mounting Hole Spacing 7-3/8" center-to-center

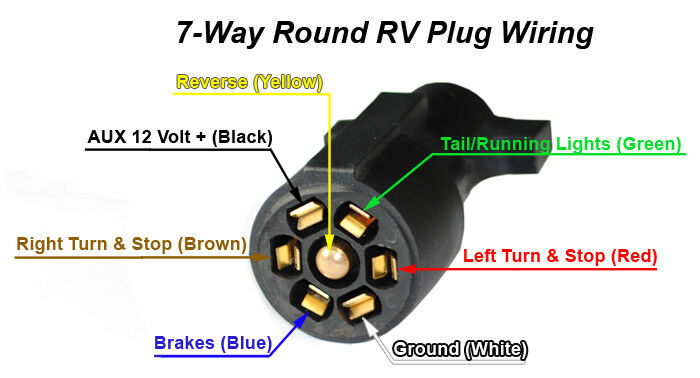

Wiring Code Reference

Molded Wire Function Typical Trailer Wire
White Ground White
Red Left Turn & Brake Yellow
Brown Right Turn & Brake Green
Green Tail / Marker Brown
Blue Electric Brake Blue
Black 12V Hot Black
Yellow Auxiliary —

Always verify wiring with a circuit tester, as trailer manufacturers may use different color standards.

Verify specifications before installation.
