1000# Capacity Torsion half axle (2000# Per pair)
You are looking at custom built Torsion "half axles" which allow you to "build your own axle" use any way you want!
This ad is for one "half axle" (one Right)
These axle allow them to be mounted to any width trailer, just bolting on under the frame. They are rated to 1000# per wheel (2000# Per pair) they come stock with common 5 bolt, 4-1/2" Bolt circle hubs. We can also custom build the arm at different "start angles" to raise or lower your trailer floor.
Arm angle is about 22 degrees up unloaded
Tube size measures about 2-1/8"

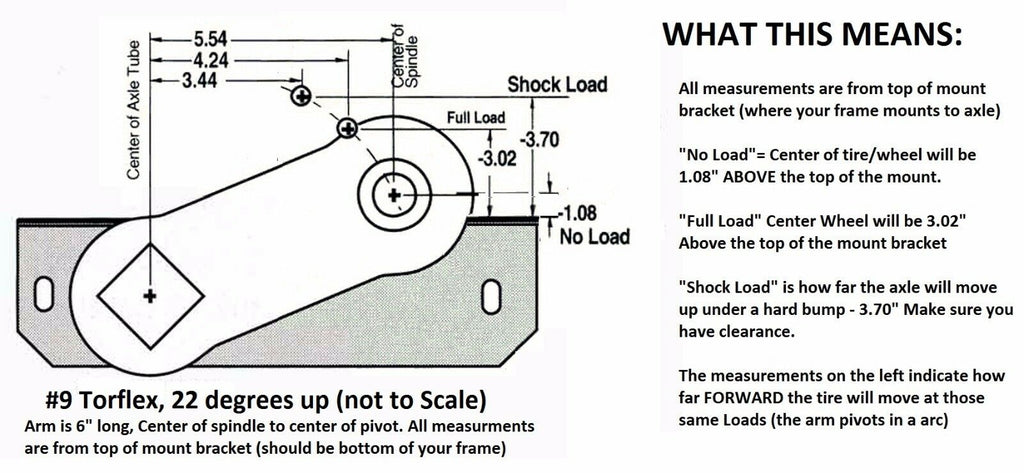

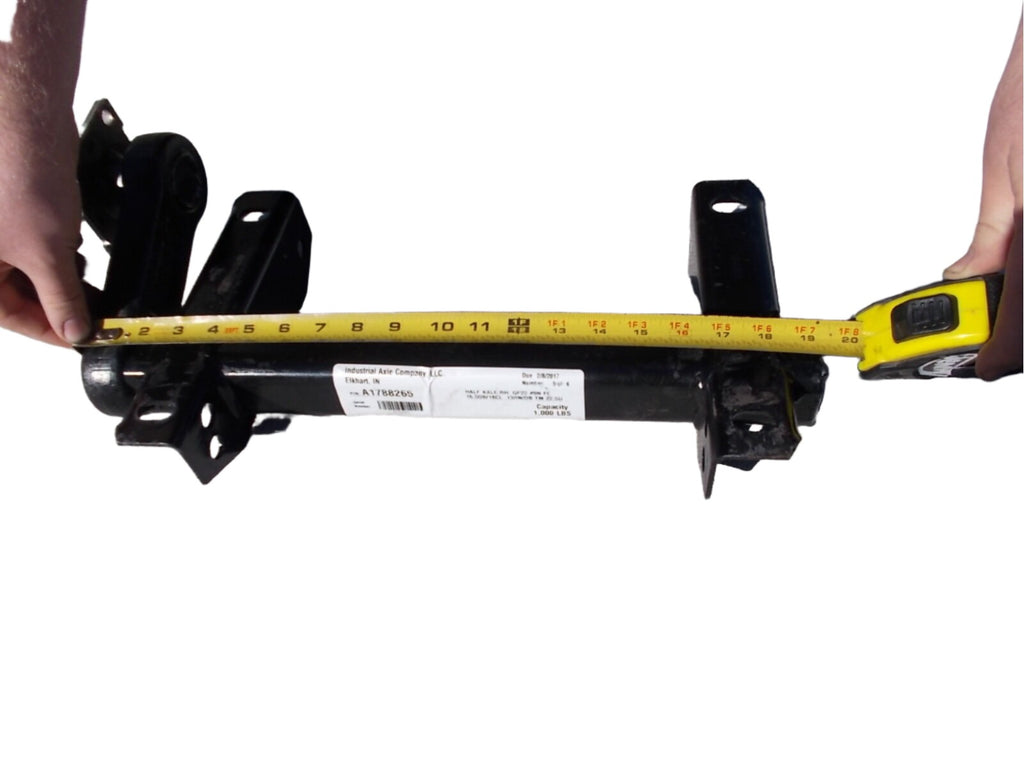

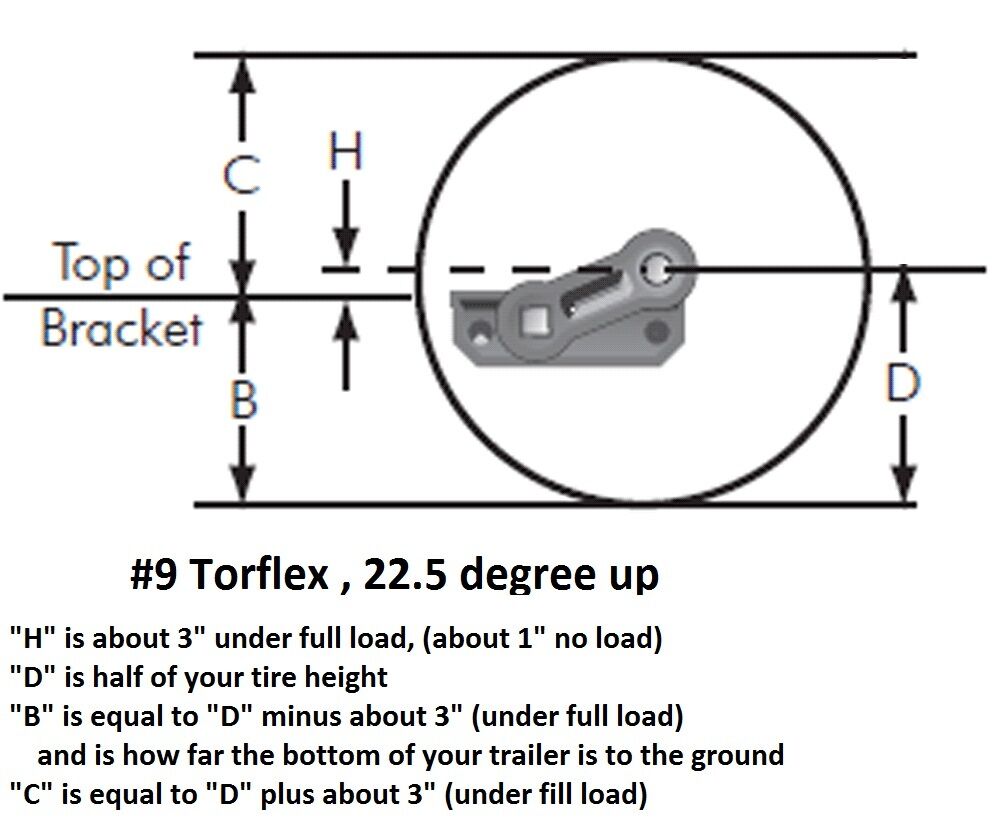

Basic installation dimensions are two angle brackets, with hole center front to back (on the bracket) of 7-1/2" Center to center, and the brackets are spaced 14-1/2" bolt center to center length wise. At rest, the center of the wheel will be about 3-1/2" above the bottom of your trailer frame. Figure a rise of about 1" under load, and a extra 2-1/2" of room for arm swing when you hit a bump.
Comes with Lug nuts!
Click on any picture below for a larger picture:
(1) RIGHT SIDE ONLY

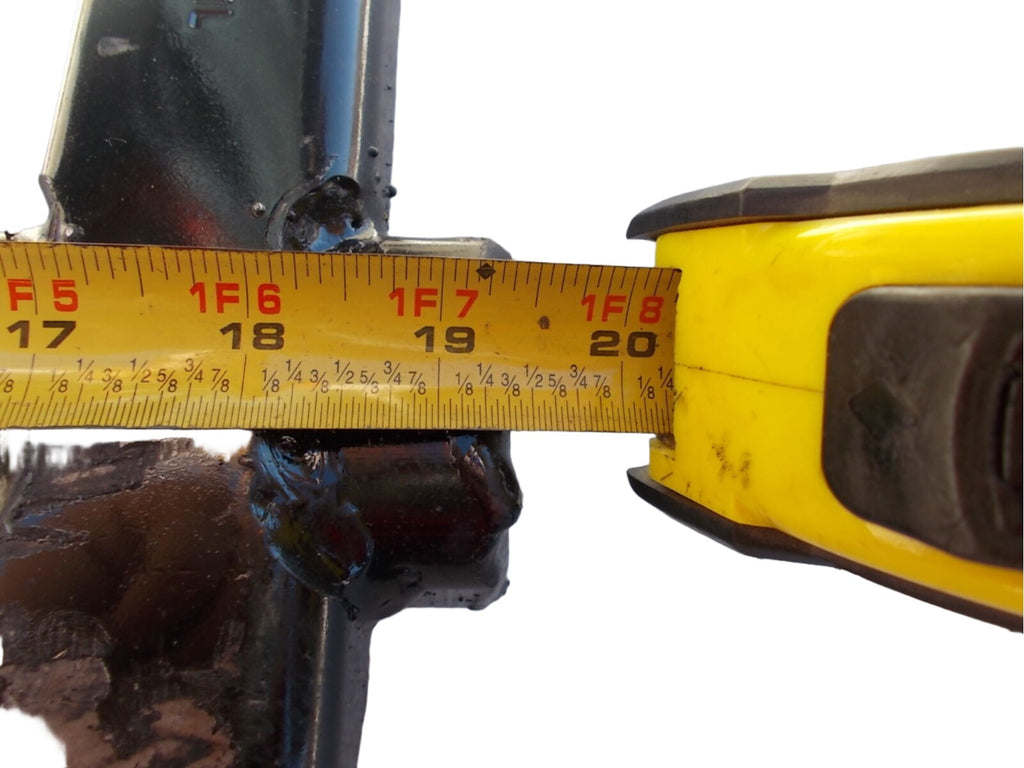

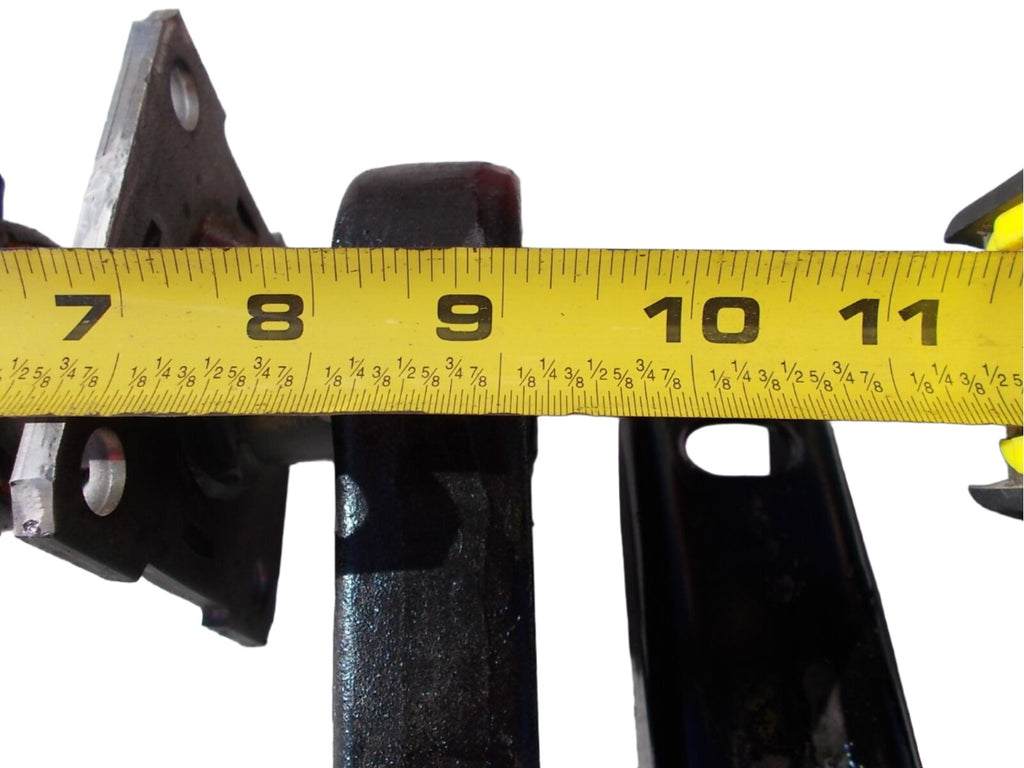

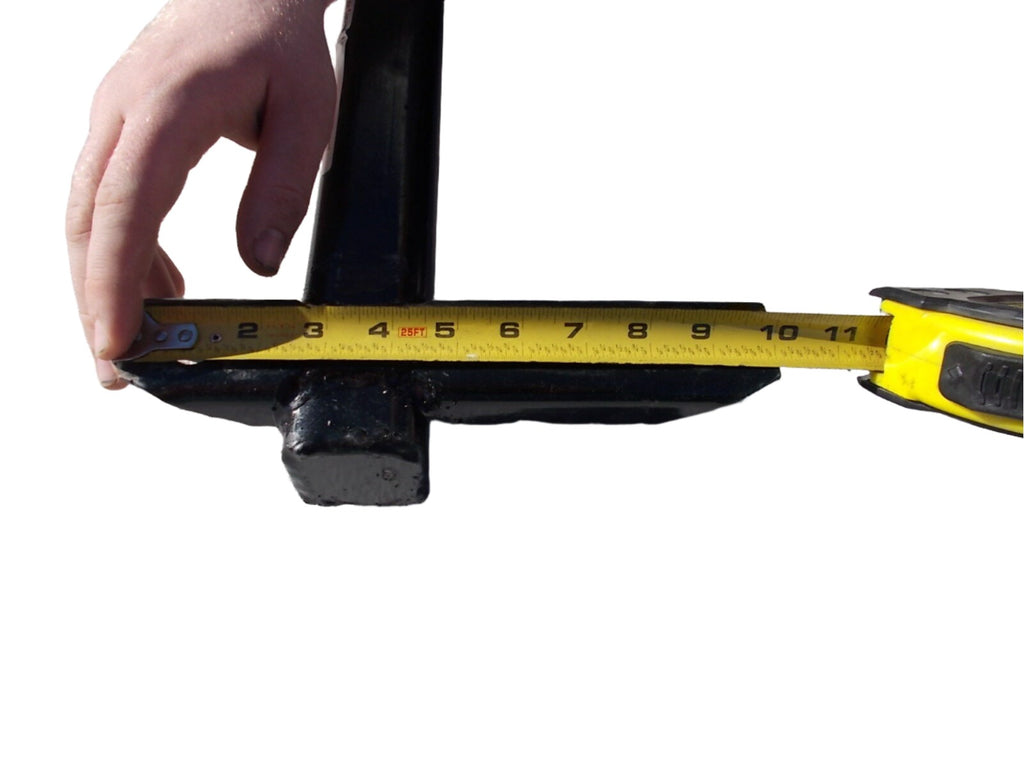

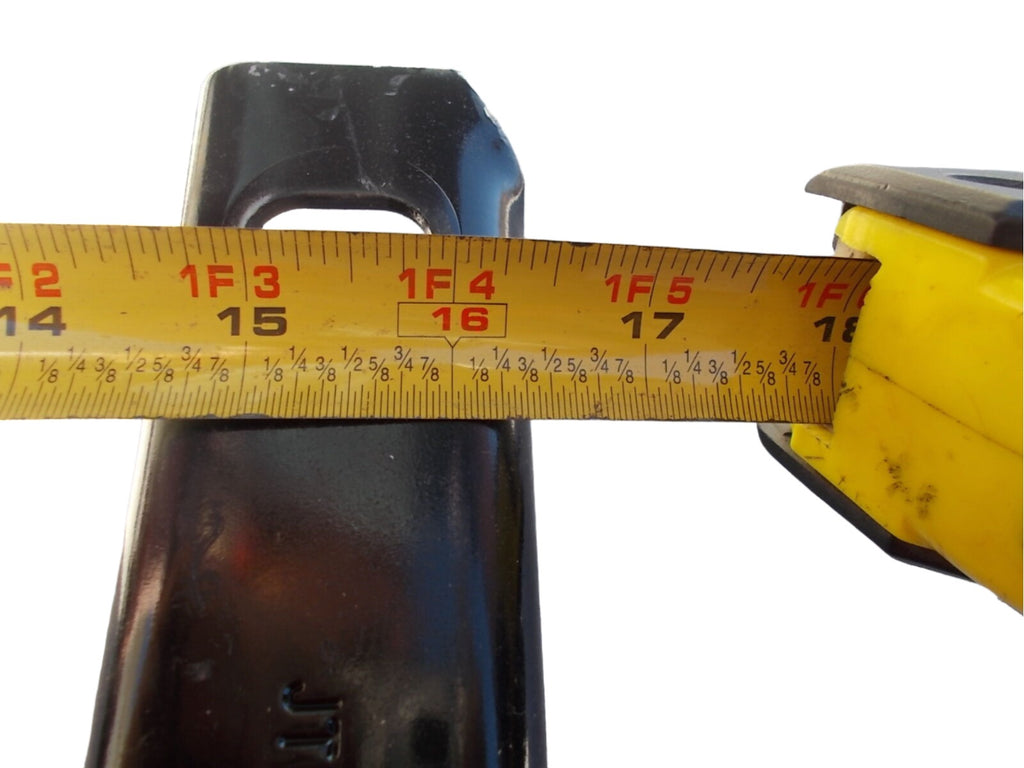

**Picture measurements are of the left side but will be the same**
**Picture measurements are of the left side but will be the same**
