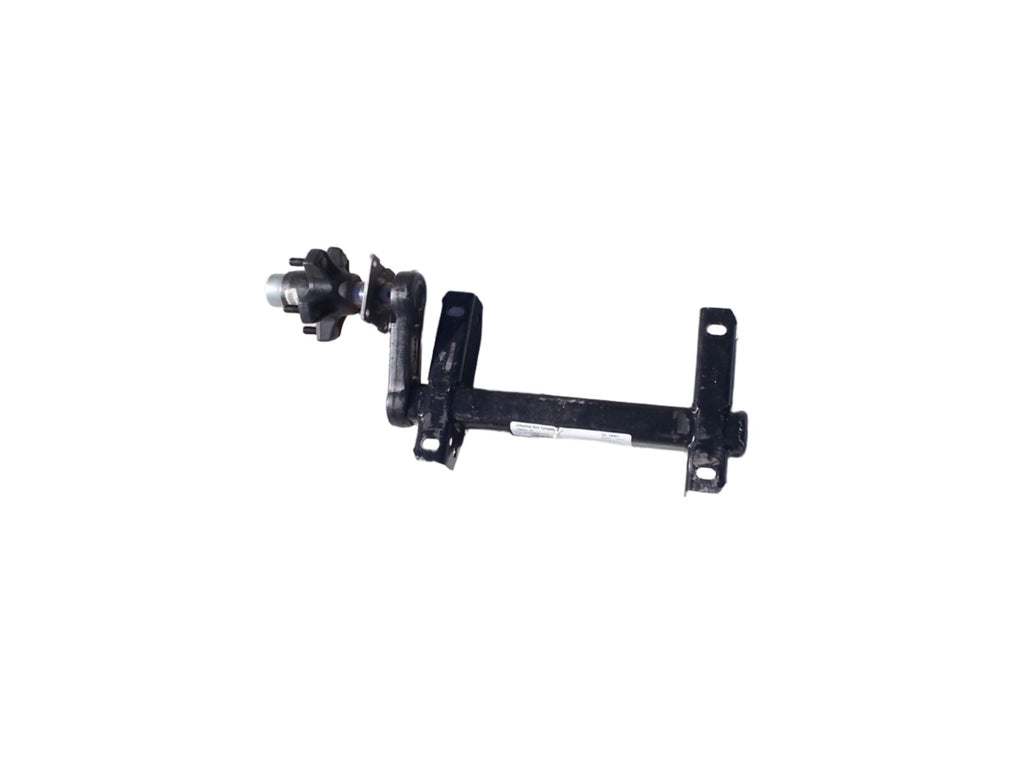

1000 lb Torsion Half Axle – Left Side Only
This listing is for one LEFT-side torsion half axle rated at 1000 lbs per wheel (2000 lbs per pair). Torsion half axles are commonly used to build custom-width trailer axles and are typically mounted directly beneath the trailer frame.
Features
- Left-side torsion half axle
- Rated at 1000 lb capacity per axle
- Commonly used to build custom-width axles
- Mounts directly under the trailer frame
- 5 on 4.5" bolt pattern hub
- Lug nuts included
Specifications
| Side | Left |
| Capacity | 1000 lbs per axle |
| Capacity (Pair) | 2000 lbs per pair |
| Start Angle | Approximately 22° up (unloaded) |

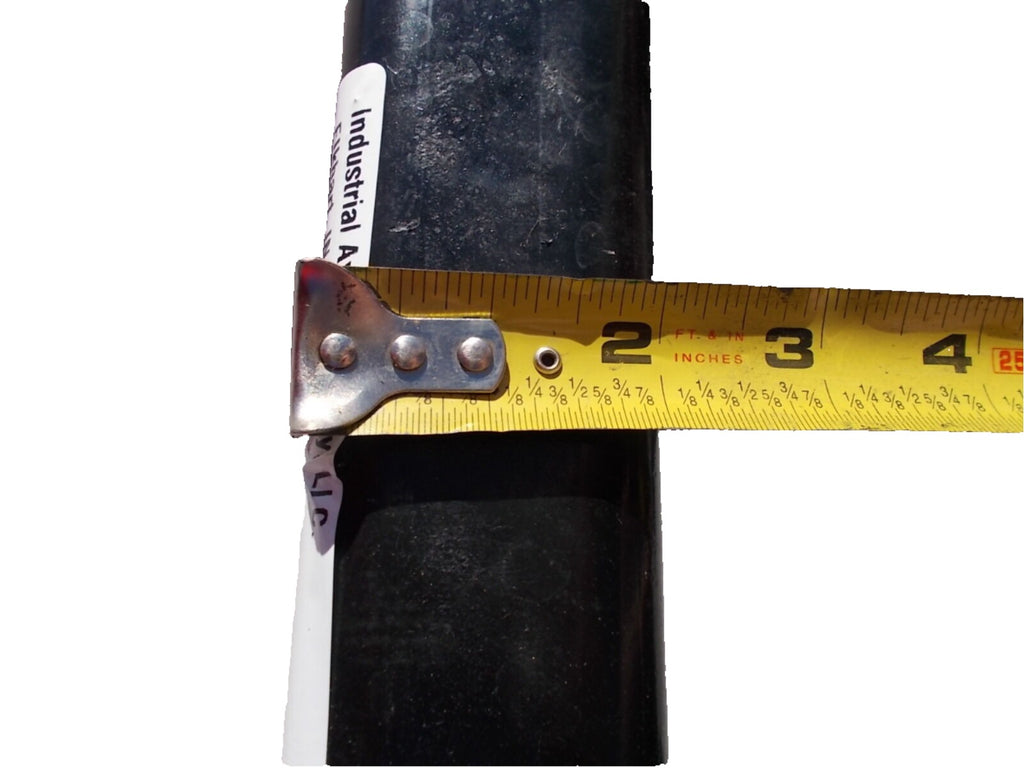

| Tube Diameter | Approximately 2-1/8" |
| Bolt Pattern | 5 on 4.5" |
Additional Information

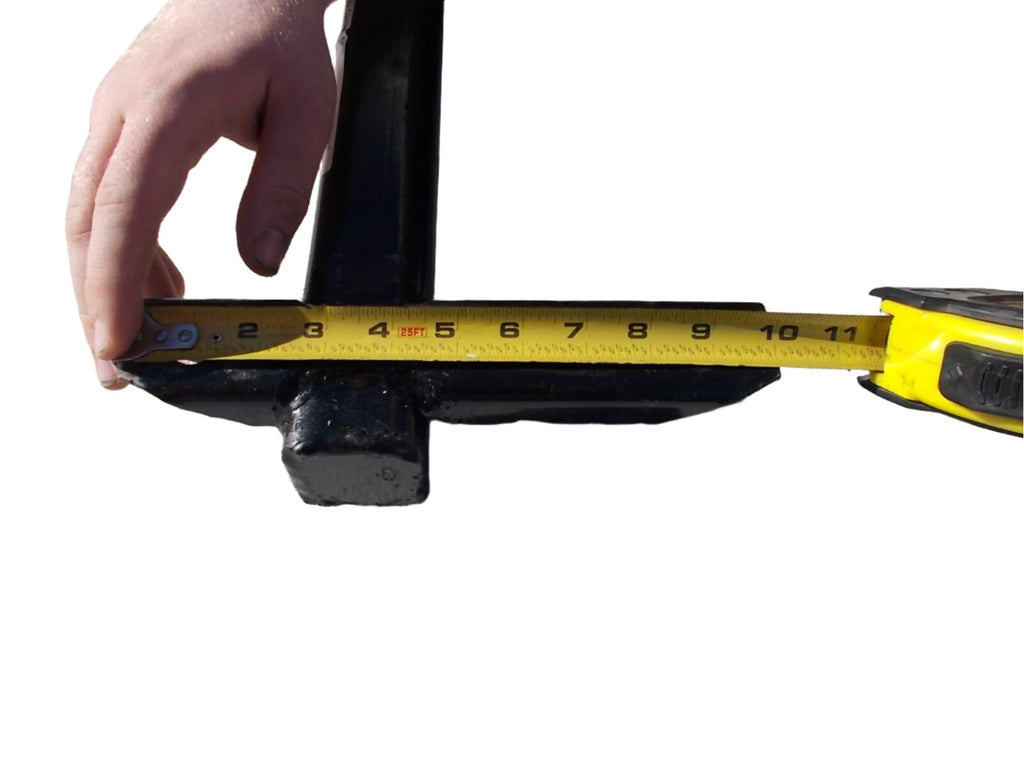

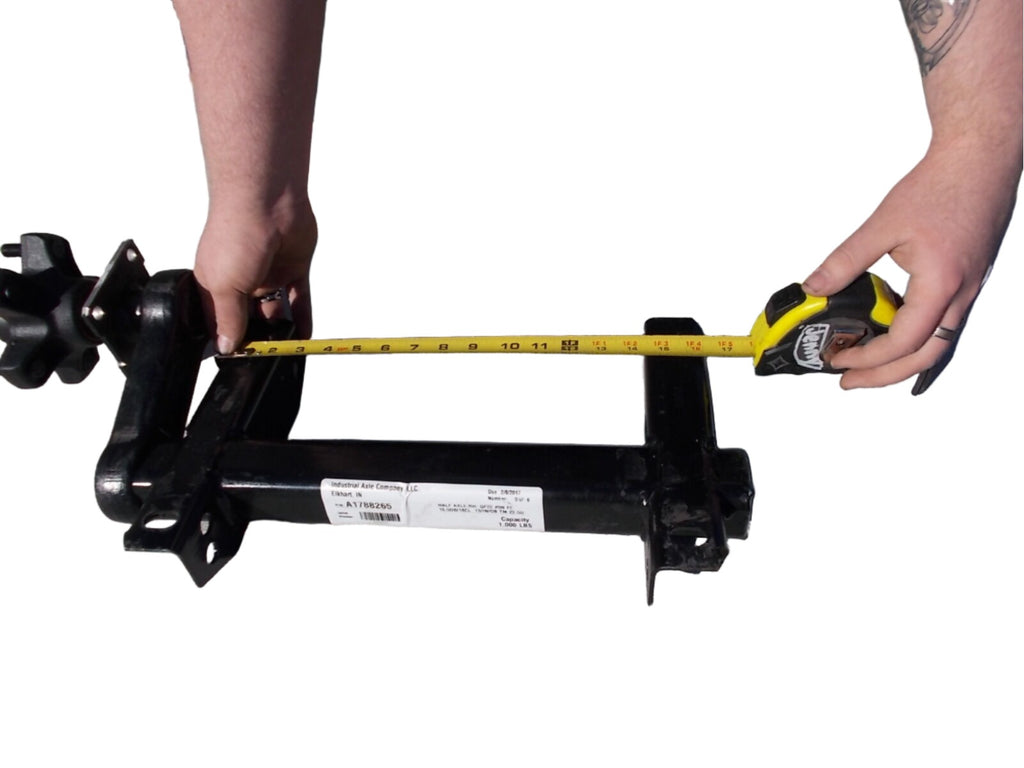

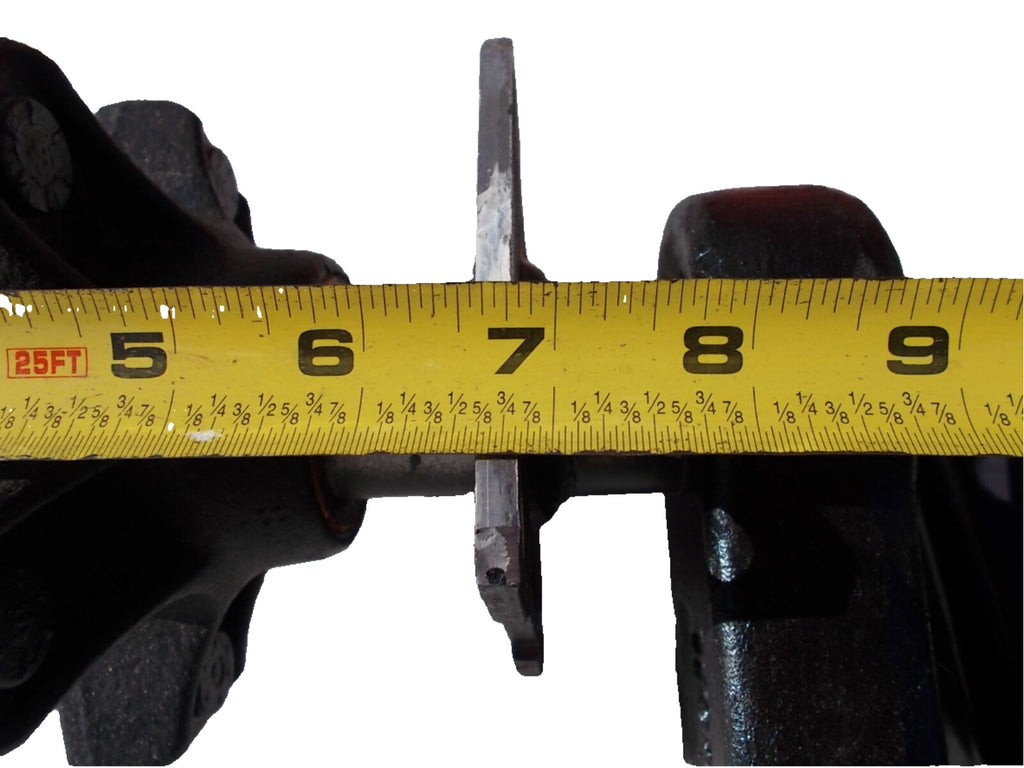

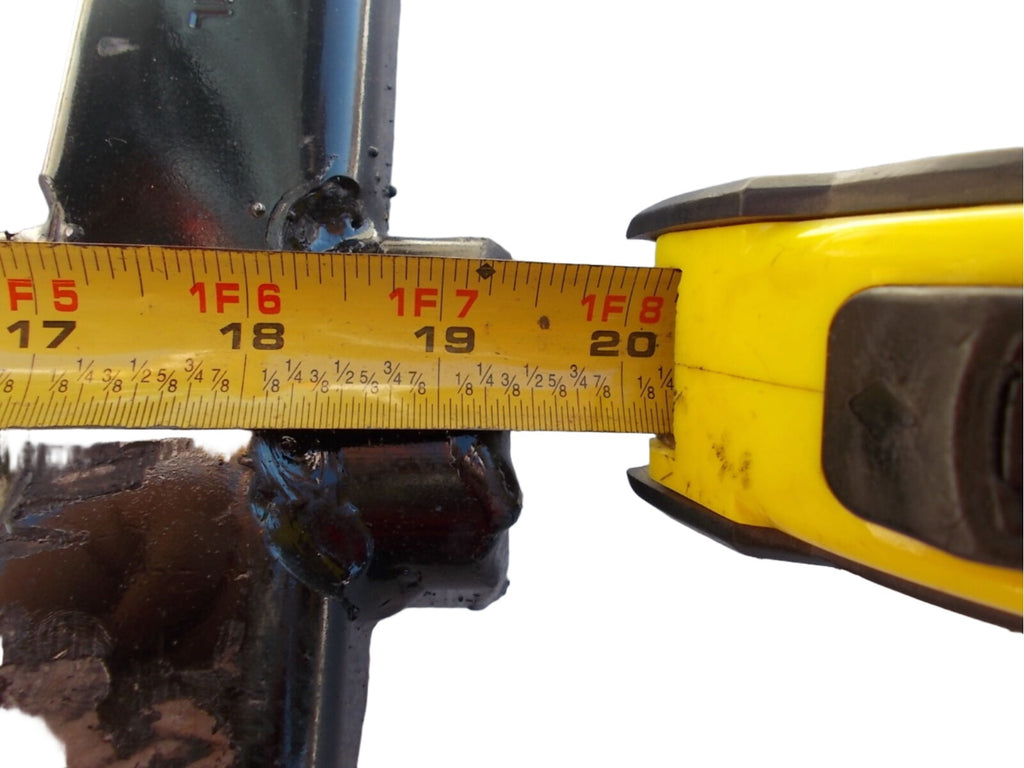

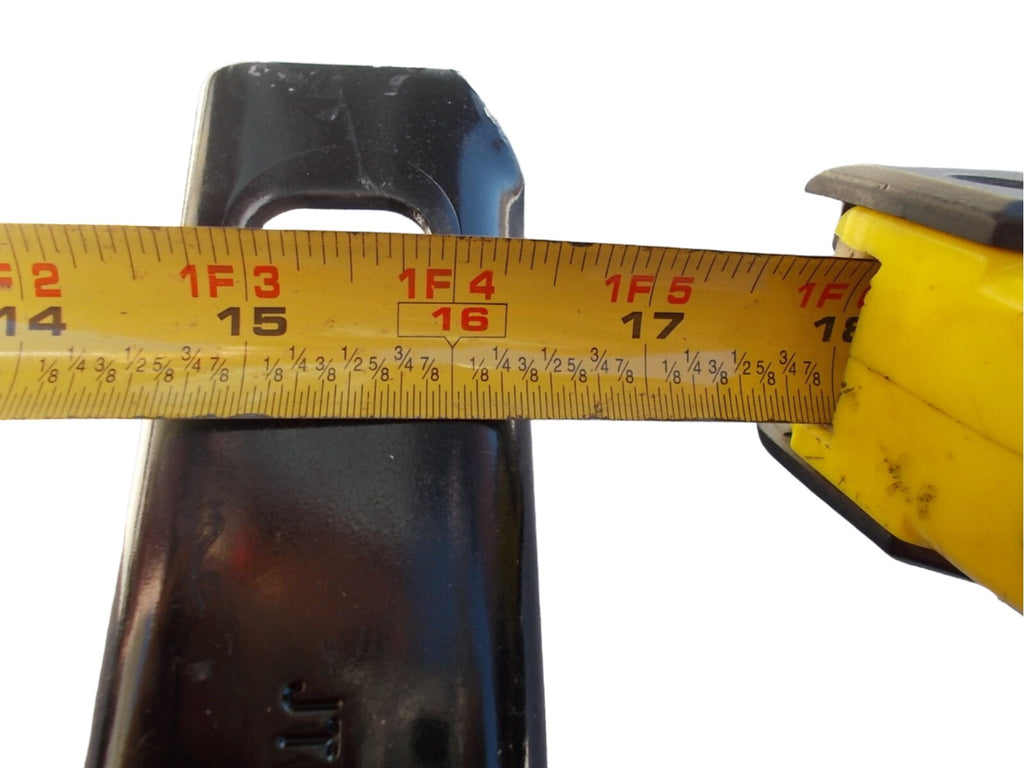

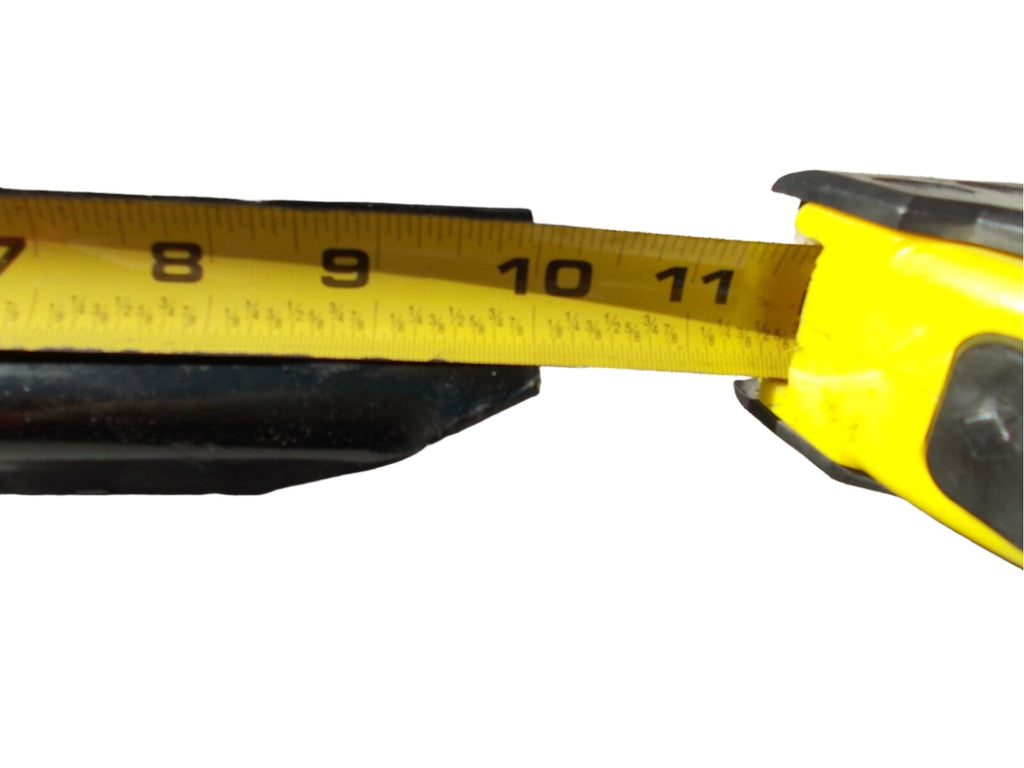

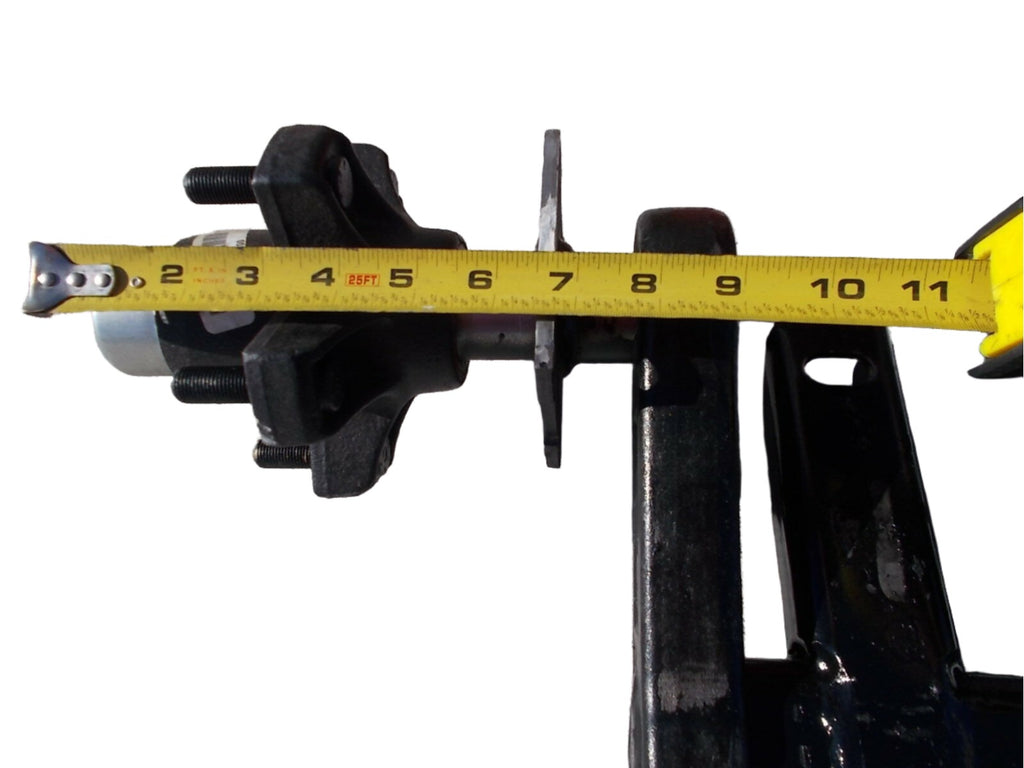

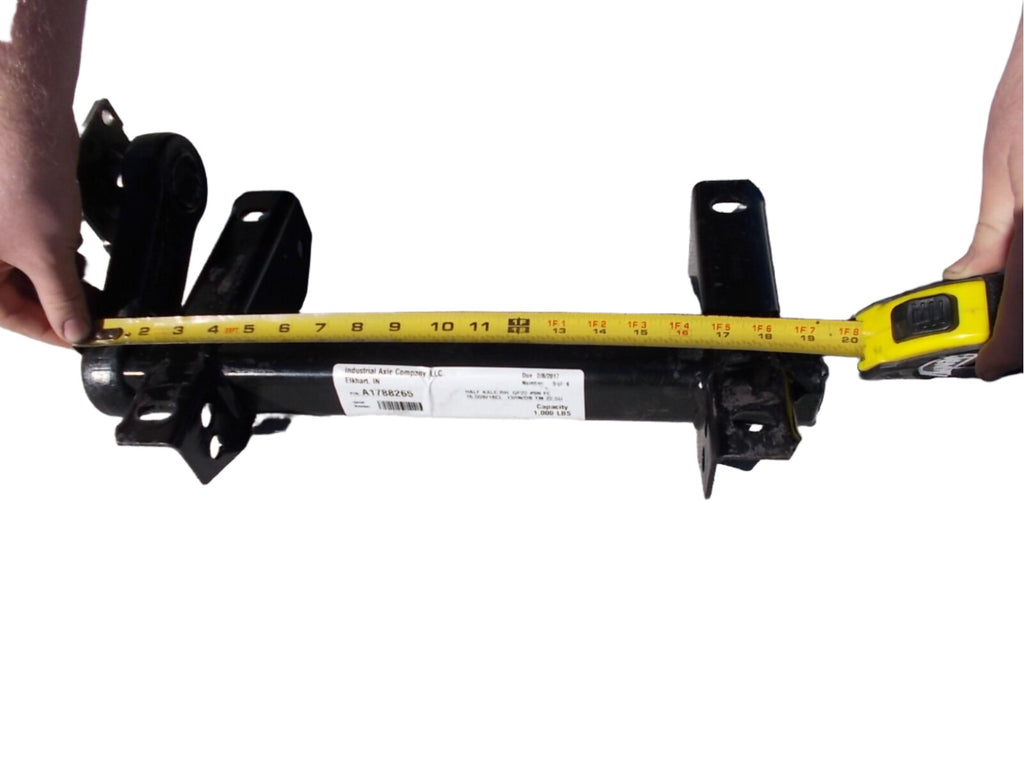

Hole spacing front to back is approximately 7-1/2" center to center, with mounting brackets spaced approximately 14-1/2" center to center lengthwise.
Wheel center height is approximately 3-1/2" above the bottom of the trailer frame when unloaded. Allow additional clearance for suspension travel.
Fitment Notes
Typically used on custom-built trailers utilizing torsion half axle systems. Verify measurements, mounting orientation, and required clearance before ordering. Refer to manufacturer documentation for exact dimensions if required.
