TWO - 1750# Torsion "Stub " Axles
Part Number - 1448734 + 1448735
These are HALF axles, that measure 24" from the hub face to the inner end. Bolt two of these to your trailer frame to make a "complete" axle. (You will get both a "left" and "right")
Great for the do it your self person
Farm equipment (hay racks, etc)
Tow Dolly
BBQ Grills and Smokers
Click to see a print of this axle:
Print sows brackets with weld on angle leg out, but we normally build with the leg in (see pictures) all mounting holes are the same.
Custom axles available for extra charge
These are HALF axles, that measure 24" from the hub face to the inner end. Bolt two of these to your trailer frame to make a "complete" axle. (You will get both a "left" and "right")
Great for the do it your self person
Farm equipment (hay racks, etc)
Tow Dolly
BBQ Grills and Smokers
Rated 1750# Each (3500# per pair.)
Use to build your own trailer, or add a extra 3500# axle to one you already have.
Standard bolt pattern is 5 on 4.5" but other patterns are available.
Brake flange is welded on for easy conversion to brake axle
(see my other auctions for conversion kits)
Axles are standard 22 degree down angle (arm should be close to level when loaded)

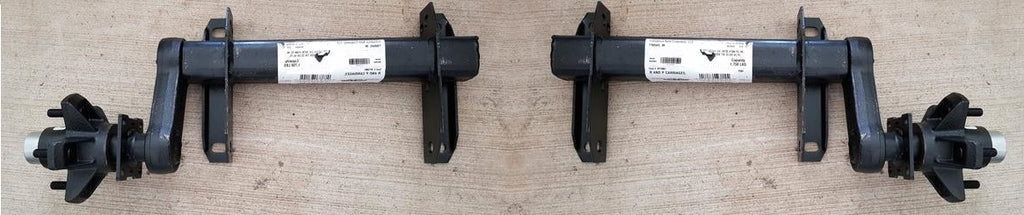

NOTE: "tall side" of mount bracket can be to the inside or to the outside. (shown to the outside in drawing, some pictures about they are to the inside. )
Please specify bracket orientation if critical
Price is For TWO They weigh 49 pounds each, so they are too big to ship two in one box. We can ship UPS, or you can arrange for truck shipping (we have forklifts, etc) or you can pick up at our store. \
Per Ebay Buyer and Seller protection rules, (any transaction over $250.00) this item will be sent with SIGNITURE REQUIRED at time of delivery
Use to build your own trailer, or add a extra 3500# axle to one you already have.
Standard bolt pattern is 5 on 4.5" but other patterns are available.
Brake flange is welded on for easy conversion to brake axle
(see my other auctions for conversion kits)
Axles are standard 22 degree down angle (arm should be close to level when loaded)
NOTE: "tall side" of mount bracket can be to the inside or to the outside. (shown to the outside in drawing, some pictures about they are to the inside. )
Please specify bracket orientation if critical
Price is For TWO They weigh 49 pounds each, so they are too big to ship two in one box. We can ship UPS, or you can arrange for truck shipping (we have forklifts, etc) or you can pick up at our store. \
Per Ebay Buyer and Seller protection rules, (any transaction over $250.00) this item will be sent with SIGNITURE REQUIRED at time of delivery
Custom Axles available for extra cost. It is about 3-4 week build time and the axle is non-returnable
Click to see a print of this axle:
Print sows brackets with weld on angle leg out, but we normally build with the leg in (see pictures) all mounting holes are the same.
Custom axles available for extra charge
We have Lots of axle parts, IN STOCK!
Both left and right, in many load ratings!
