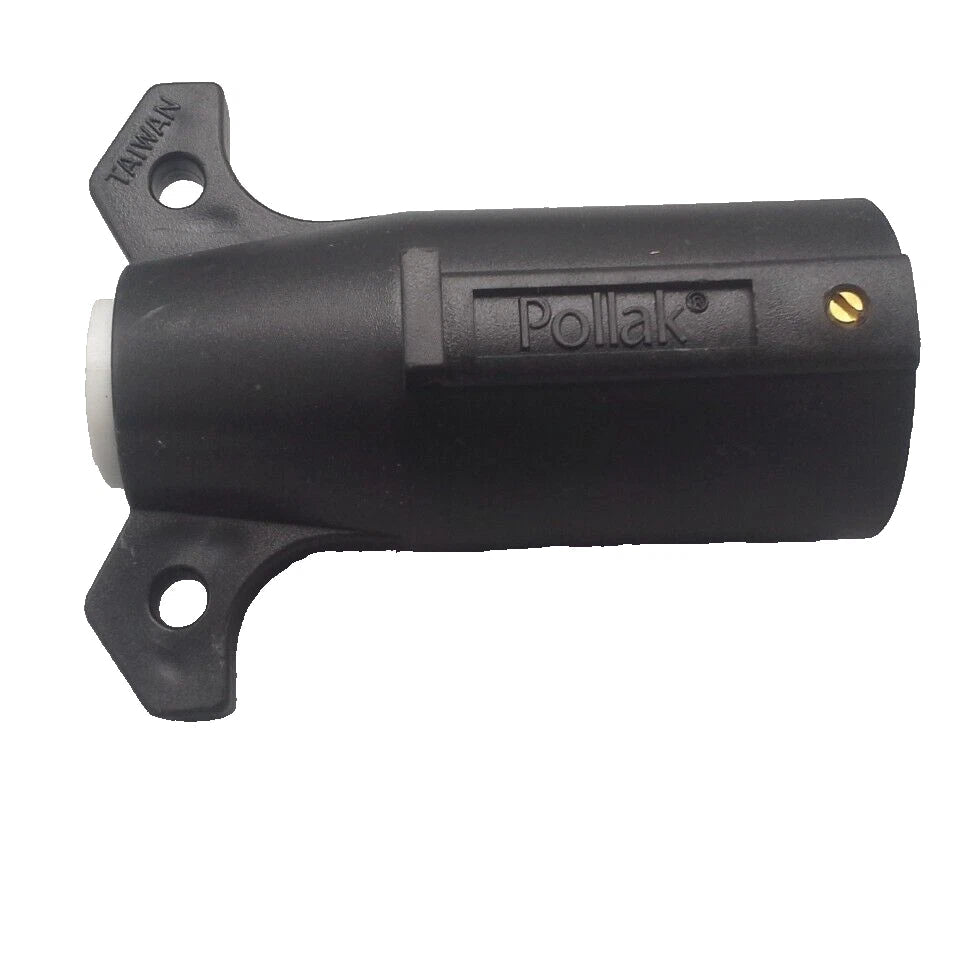

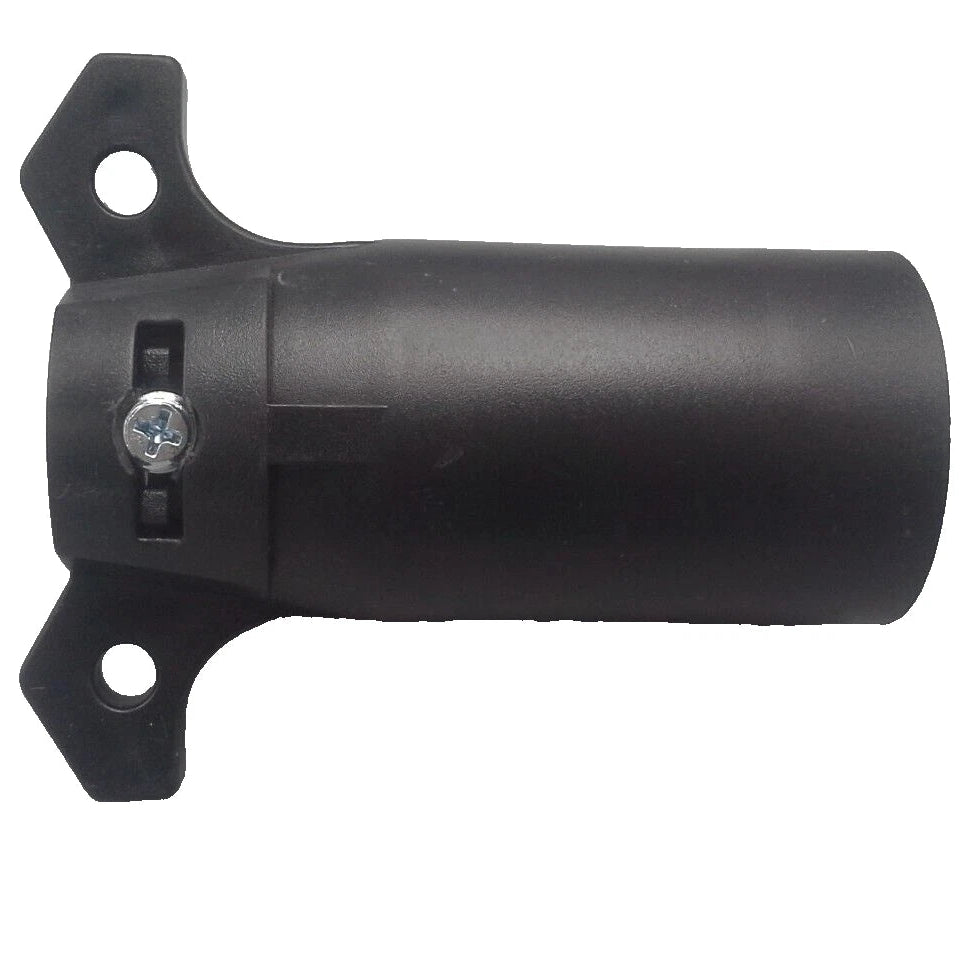

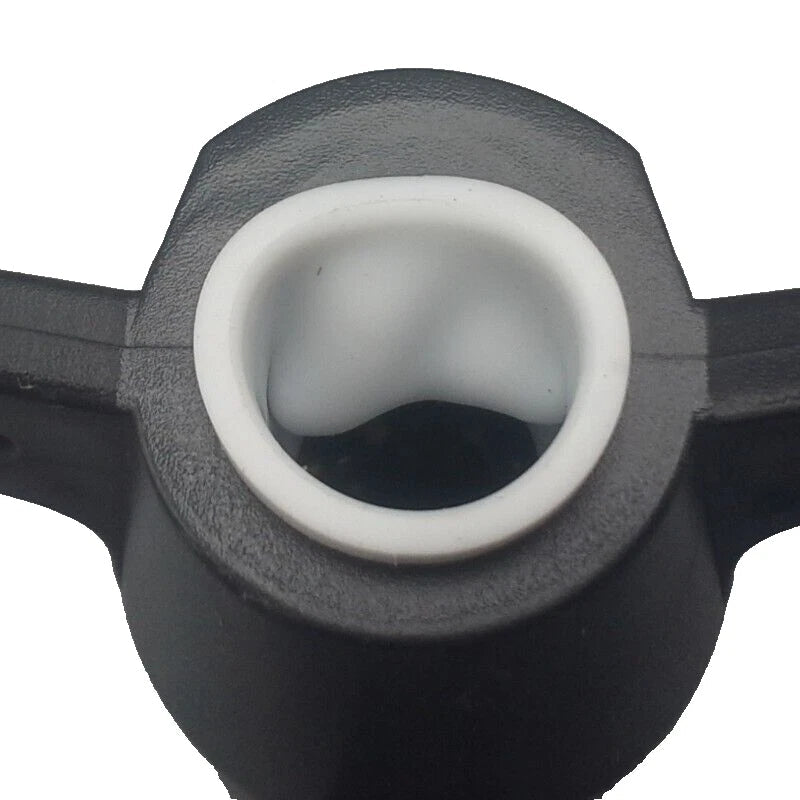

Add Brakes Complete Trailer Box Kit - 14 AWG Wire, 7-Way Plug & Connectors - Battery Not Included

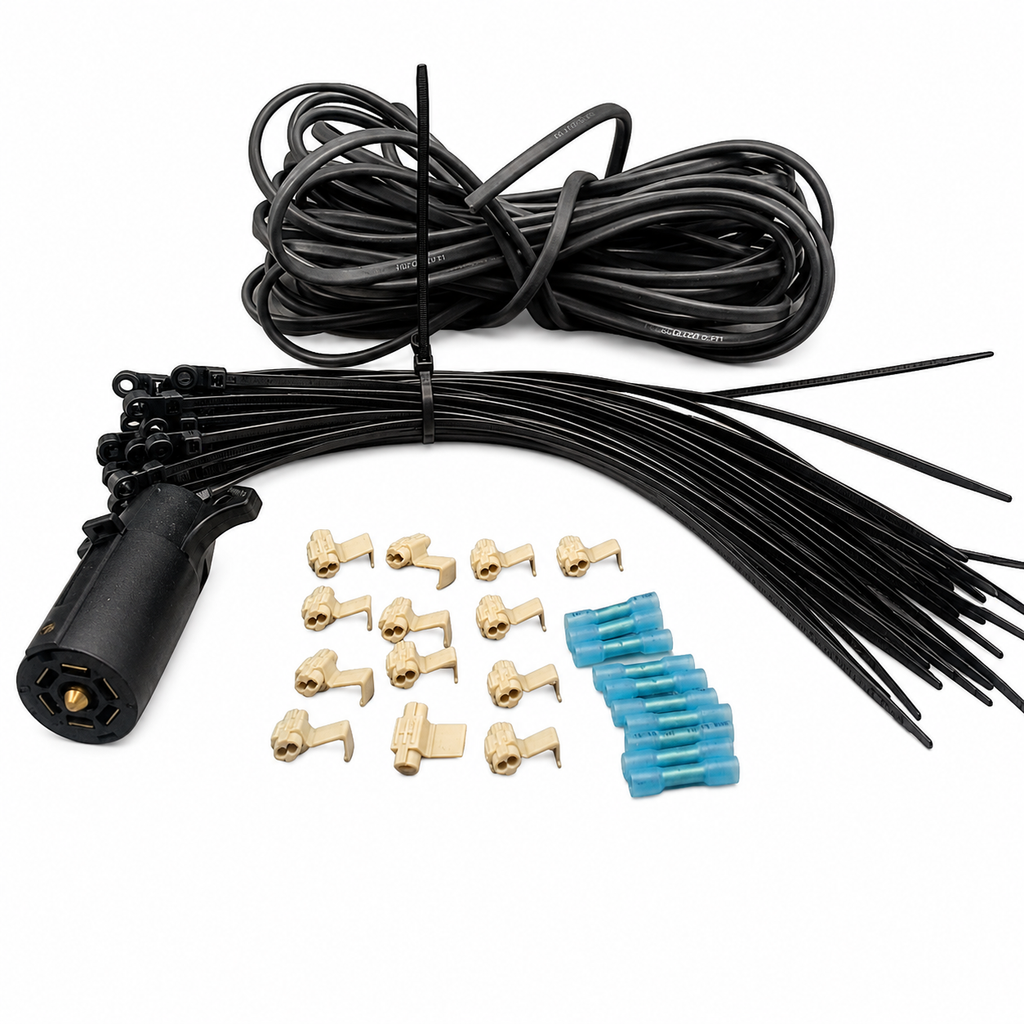

Boxed trailer brake add-on wiring kit with over 30 feet of jacketed 14 AWG 2-conductor wire, butt splice connectors, and screw-mount zip ties. Battery is not included.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | ABTK-BOXED |
| Selling Brand | R&P Carriages |
| Product Type | Trailer brake add-on wiring and hardware kit |
| Wire Length | Over 30 ft. |
| Wire Type | Jacketed 14 AWG, 2-conductor wire |
| Quantity Included | 1 boxed kit |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / Trailer / System | Trailer electric brake wiring applications |
| Primary Fit | For trailer brake add-on or repair jobs where 14 AWG 2-conductor jacketed wire is appropriate |
| Fitment Method | Verify trailer length, wiring route, brake layout, number of brake assemblies, and required electrical components before ordering |
| Important Note | This kit does not include a breakaway battery, brake assemblies, hubs, drums, brake controller, or complete breakaway system. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Over 30 ft. Wire | Provides a practical wire supply for many trailer brake wiring jobs. |
| 14 AWG 2-Conductor | Designed for two-wire trailer brake circuit routing where this gauge and conductor count match the job. |
| 10 Butt Splices | Includes connectors for common wire-joining points during installation or repair. |
| 25 Screw-Mount Zip Ties | Helps secure wiring along the trailer frame when properly routed and fastened. |
Overview
The ABTK-BOXED R&P Add-Brakes Wiring Kit is built for trailer electric brake wiring jobs where the installer needs jacketed 14 AWG 2-conductor wire, butt splice connectors, and screw-mount zip ties in one boxed kit. This listing is for the wiring and attachment components only. Battery is not included.
R&P Service Insight
Adding or repairing trailer brake wiring depends on more than just wire length. Before installation, confirm the trailer’s brake layout, axle count, breakaway requirements, wire routing path, and any additional components needed for a complete brake system.
- Wire Routing: Keep wiring protected from sharp edges, moving suspension parts, road debris, and heat sources.
- Connection Points: Use proper crimping technique and protect connections from moisture and corrosion.
- System Check: Test trailer brake operation after installation before road use.
R&P Knowledge Hub
Compatibility: Best matched by required wire gauge, conductor count, trailer length, brake circuit layout, and installation requirements.
Vehicle / System Fit: General trailer electric brake wiring application where jacketed 14 AWG 2-conductor wire is appropriate.
Installation Notes: Verify that all brake assemblies, grounds, trailer plug wiring, breakaway components, and tow vehicle brake controller requirements are addressed separately.
Performance Insight: Clean wiring layout and secure mounting help reduce vibration-related wire damage and connection issues over time.
Brand & Fitment Note
Selling Brand: R&P Carriages
Application Reference: Trailer electric brake wiring and add-on brake system service applications.
What This Means: This listing is for an R&P Carriages boxed wiring kit, not a complete electric brake conversion kit and not a battery-included breakaway kit.
Before Ordering: Verify wire length, gauge requirements, number of brake assemblies, trailer plug configuration, brake controller setup, and breakaway system requirements before installation.
R&P Repair Insight
When adding brakes or repairing trailer brake wiring, confirm the entire circuit instead of replacing only one visible section of wire. Brake wiring issues can come from damaged frame wiring, weak grounds, corroded connectors, poor splices, or missing system components.
- Check Wire Path: Inspect the trailer frame route and protect wiring wherever it passes through holes, brackets, or exposed areas.
- Check Grounds: Poor grounds can cause weak, inconsistent, or non-functioning trailer brakes.
- Check Missing Parts: Battery, brake assemblies, breakaway switch, controller wiring, and trailer connector parts may be needed separately.
Features
Boxed Brake Wiring Kit
Convenient kit for trailer brake wiring service, add-on brake wiring work, or repair jobs where the included components match the application.
Over 30 ft. Jacketed Wire

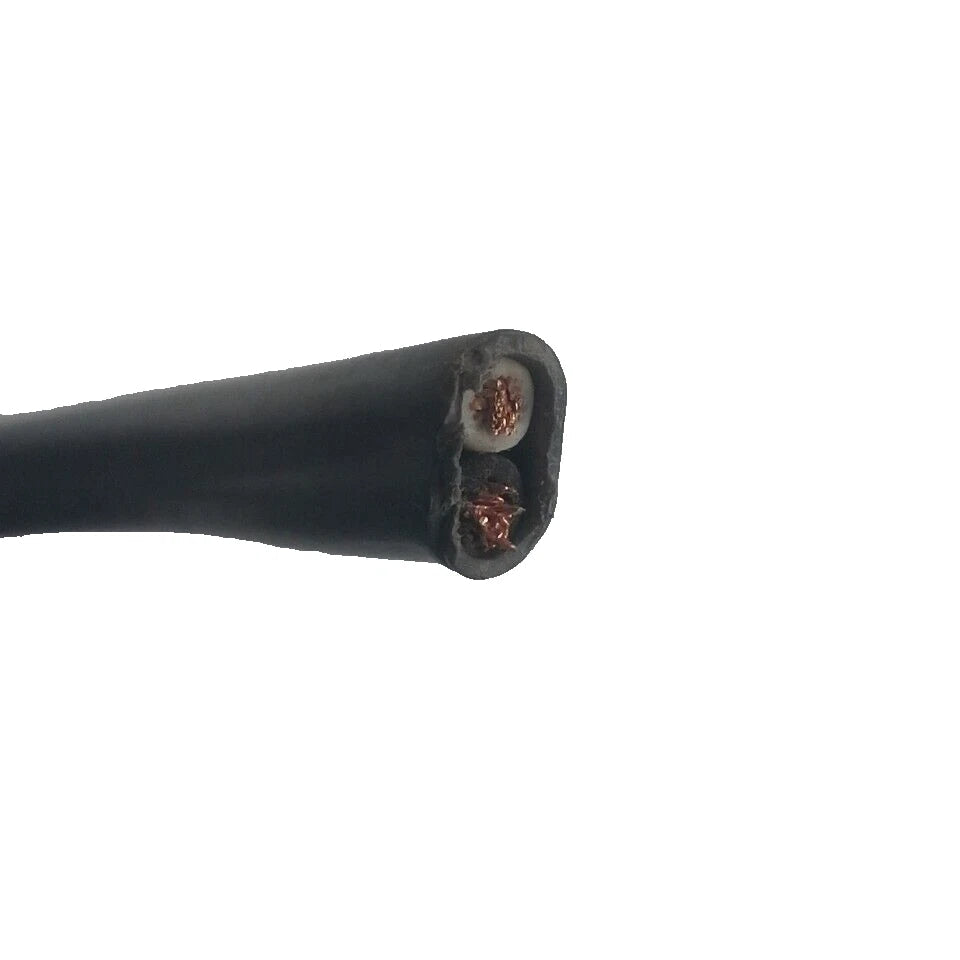

Includes over 30 feet of jacketed 14 AWG 2-conductor wire for routing brake wiring along the trailer frame.
Connectors Included

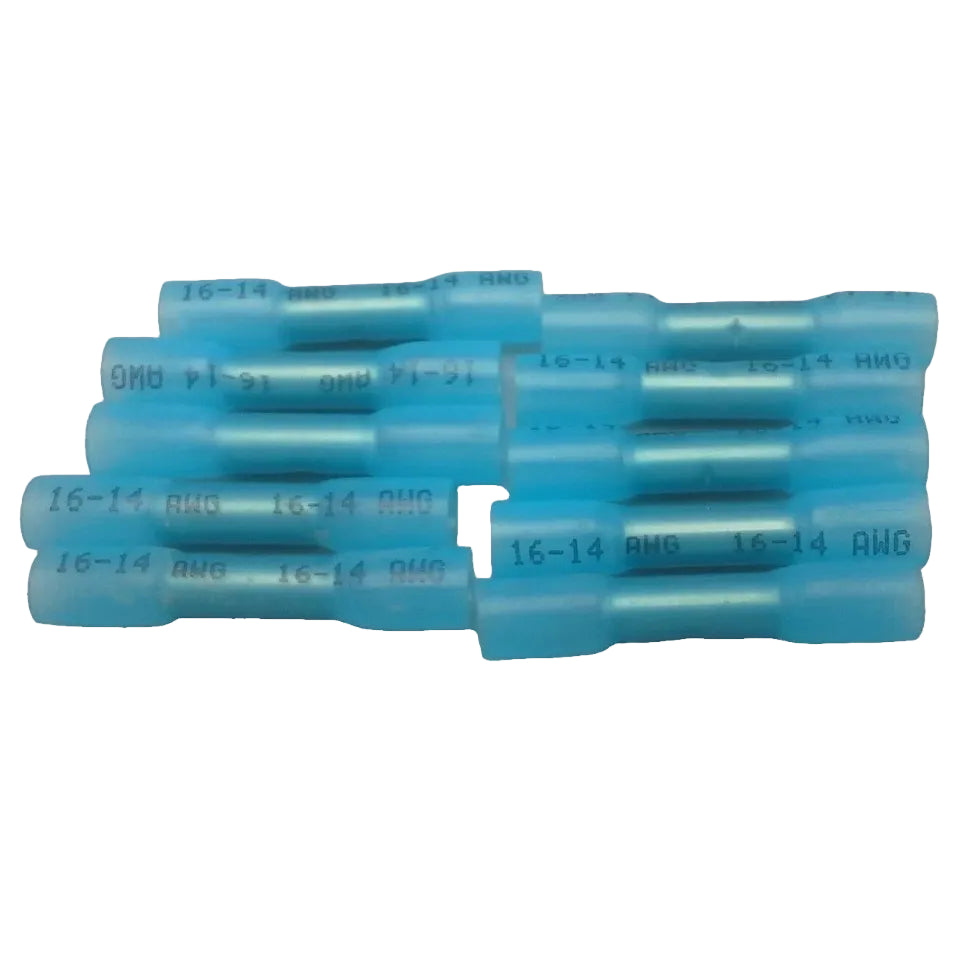

Comes with 10 butt splice connectors for common wire connection points during installation.
Mountable Wire Ties

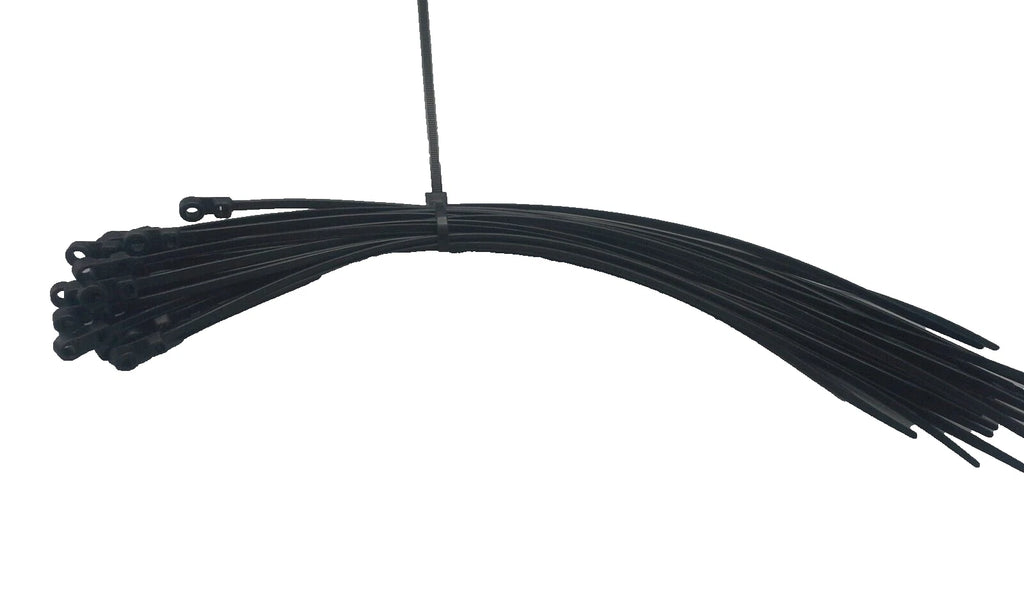

Includes 25 zip ties with screw-mount holes to help secure wiring neatly along the trailer frame.
Included Components
| Quantity | Item |
|---|---|
| Over 30 ft. | Jacketed 14 AWG 2-conductor wire |
| 10 | Butt splice connectors |
| 25 | Zip ties with screw-mount holes |
| Not Included | Battery |
