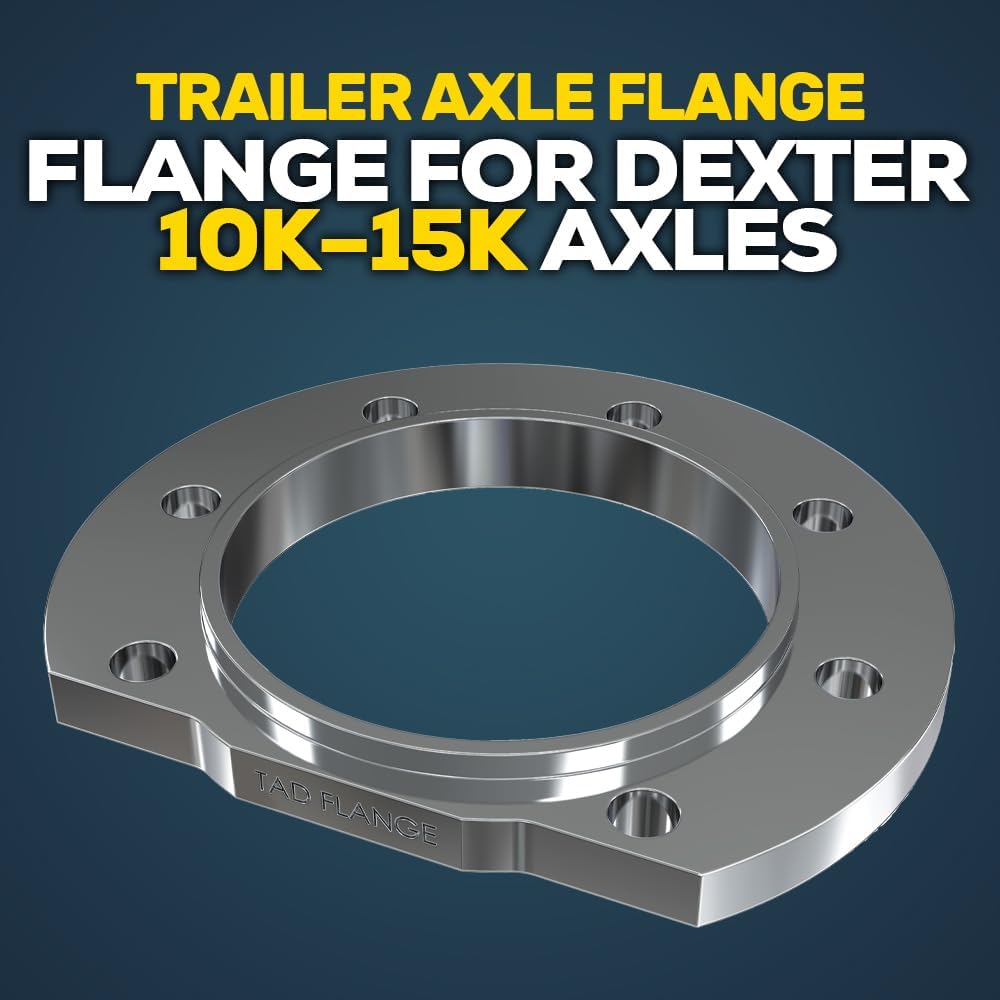

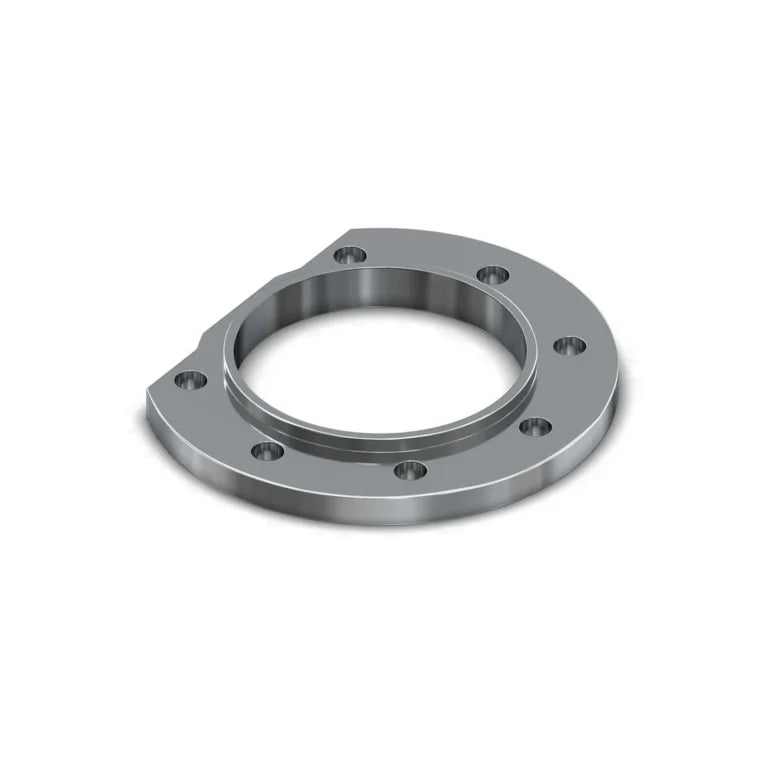

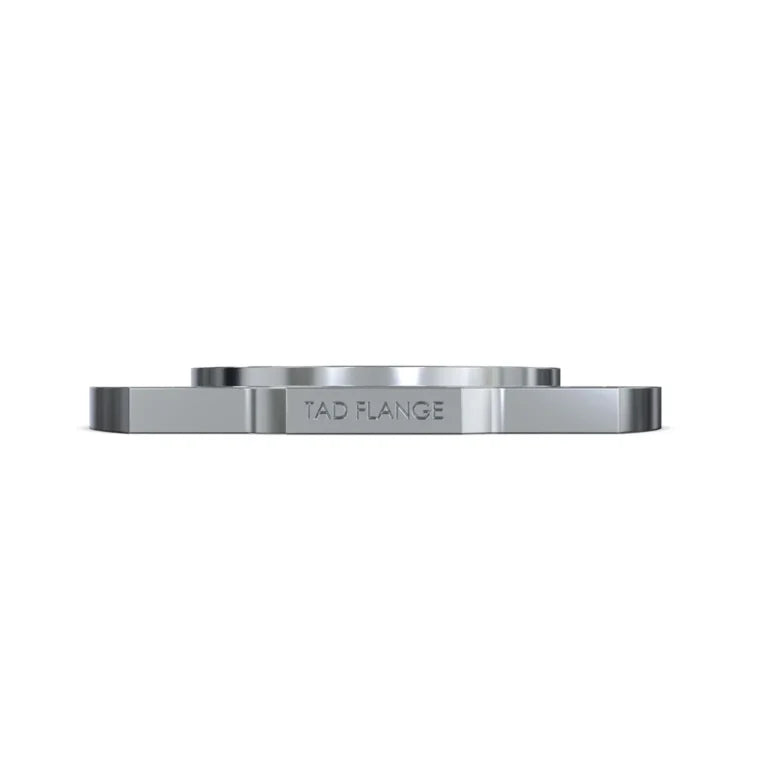

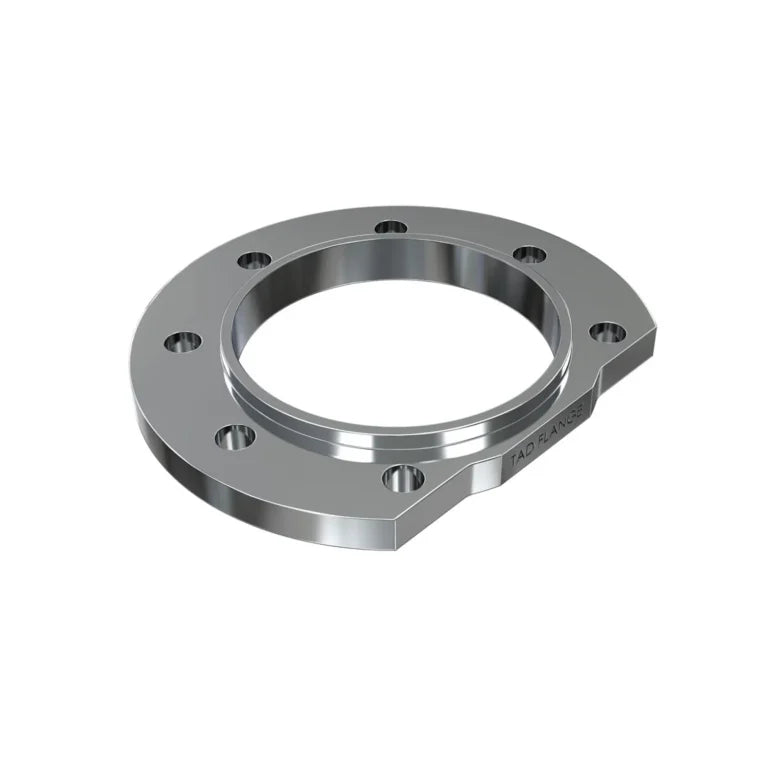

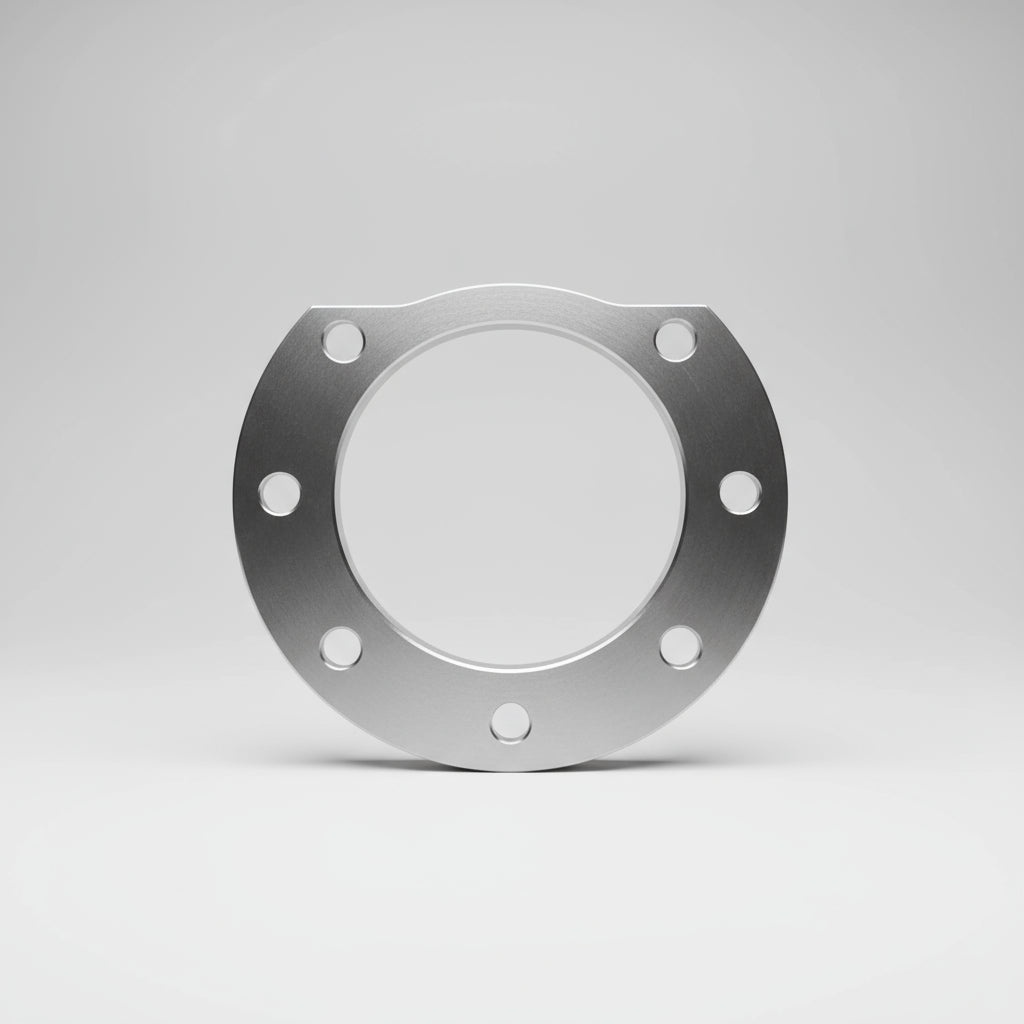

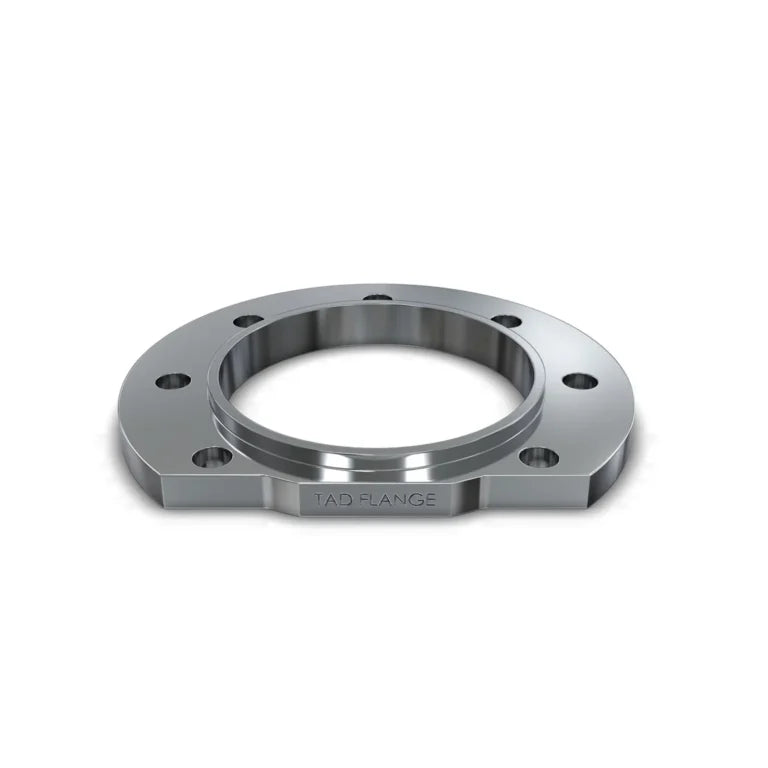

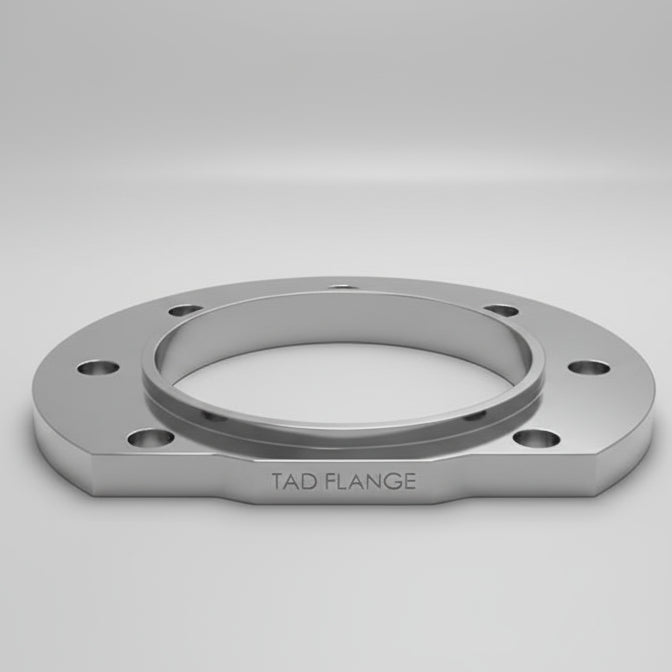

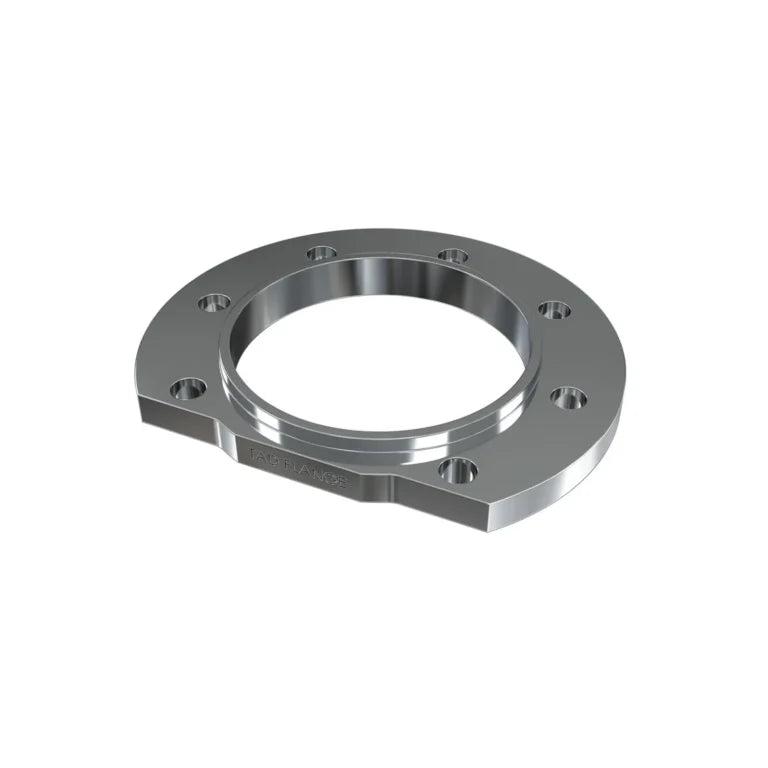

5-Bolt Weld-On Brake Flange — Fits Dexter-Style Spindles
The TAD-FLANGE is a precision-machined, weld-on brake flange designed for Dexter-style 5-bolt brake assemblies commonly used on 7K–15K axles. Built from thick carbon steel and machined for perfect concentricity, this flange ensures your brake backing plates mount square and true to the spindle shoulder. Ideal for axle fabrication, spindle replacement, and heavy-duty trailer maintenance.
| Specification | Detail |
|---|---|
| Bolt Pattern | 5-bolt, 3.50" circle |
| Outer Diameter | 5.50" |
| Center Bore | 3.00" |
| Flange Thickness | 3/8" heavy plate |
| Material | Carbon steel, precision-machined |
| Weight | ~3.2 lb |
| Includes | Brake flange only |
Compatible with most Dexter, AL-KO, and Lippert 5-bolt brake assemblies across 7K, 8K, 10K, 12K, and 15K axle families. Ensure your spindle’s weld shoulder matches the 3.00" alignment register for proper installation.
Applications
- Axle tube fabrication
- New spindle installations
- Brake system rebuilds
