Dexter Trailer Brake Drum 12" x 2", 9/16" Stud, 8x6.5 Lug 7000# Axle (008-219-13-KIT)
Product Info
Dexter 12" x 2" Trailer Brake Drum Kit 8 on 6.5" Bolt Pattern | 9/16"-18 Studs
Part Number: 008-219-13-KIT
The Dexter 008-219-13-KIT is a complete 12" x 2" trailer hub and brake drum kit equipped with heavy-duty 9/16"-18 wheel studs and an 8 on 6.5" bolt pattern.
Designed for common 5,200 lb, 6,000 lb, and 7,000 lb trailer axle applications, this kit includes the hub and drum assembly, inner and outer bearings with matching races, two grease seal options, eight lug nuts, and an EZ Lube-compatible dust cap. One kit services one wheel position.
| 12" x 2" DRUM SIZE | 8 on 6.5" BOLT PATTERN | 9/16"-18 WHEEL STUDS |

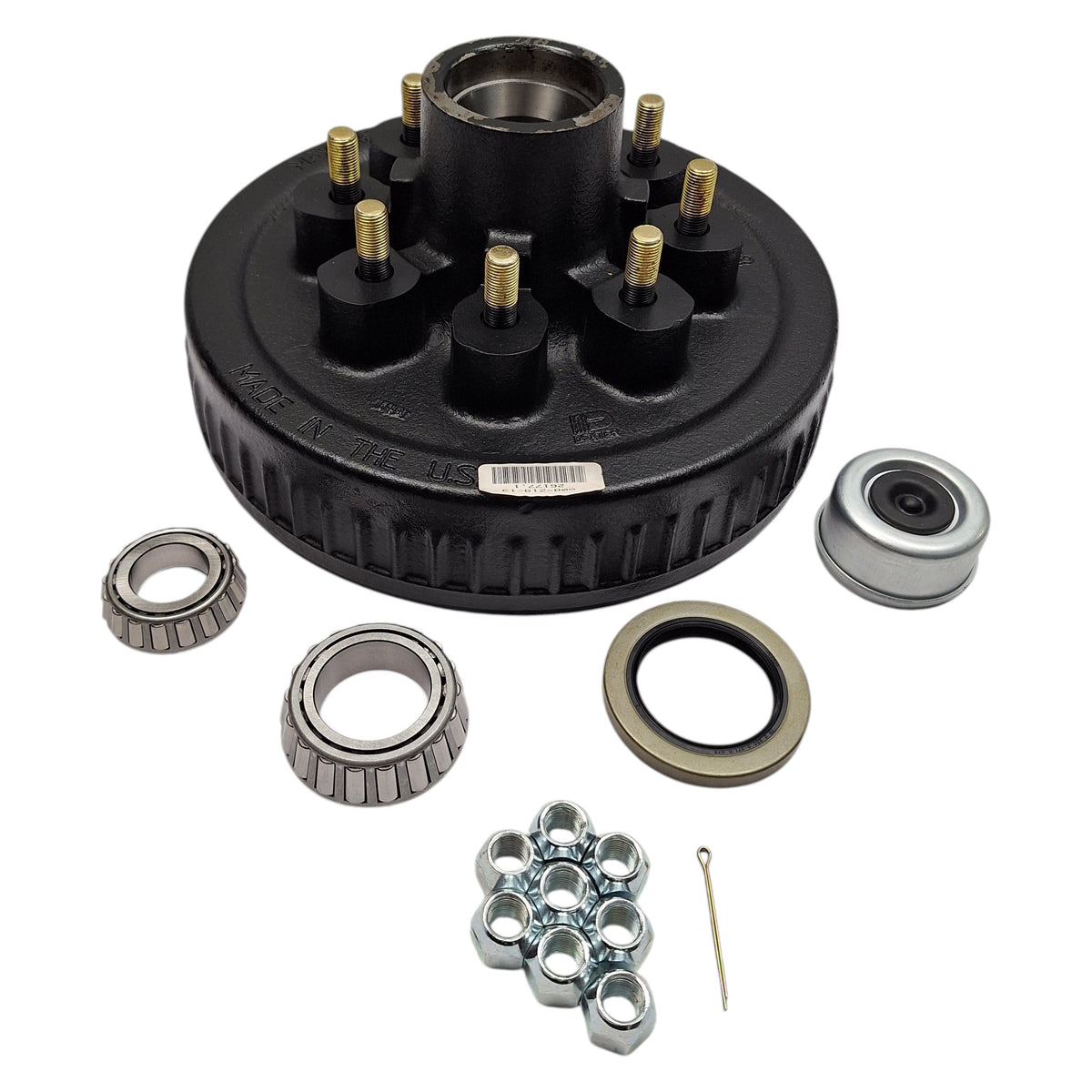

What's Included
Each kit contains the components needed for one hub and drum assembly:
| Component | Description |
|---|---|
| Brake Drum / Hub | 12" x 2" hub and drum assembly, 8 on 6.5" bolt pattern, with eight installed 9/16"-18 studs |
| 14125A | Outer bearing — 1.25" inside diameter, with matching race |
| 25580 | Inner bearing — 1.75" inside diameter, with matching race |
| 10-36 | Grease seal — 2.25" inside diameter |
| 10-10 | Grease seal — 2.125" inside diameter |
| Lug Nuts | Eight 9/16"-18 lug nuts |
| Dust Cap | 2.71" dust cap with rubber plug, EZ Lube compatible |
Features
- Dexter 12" x 2" trailer hub and brake drum assembly
- Heavy-duty 8 on 6.5" wheel bolt pattern
- Eight 9/16"-18 wheel studs installed
- Inner and outer bearings with matching races
- Two included grease seal sizes for common spindle variations
- EZ Lube-compatible 2.71" dust cap with rubber plug
- Includes eight matching lug nuts
- Common applications include 5,200 lb, 6,000 lb, and 7,000 lb trailer axles
Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Dexter |
| Kit Part Number | 008-219-13-KIT |
| Drum Size | 12" x 2" |
| Common Axle Ratings | 5,200 / 6,000 / 7,000 lb |
| Bolt Pattern | 8 on 6.5" |
| Wheel Studs | 9/16"-18 |
| Outer Bearing | 14125A — 1.25" I.D. |
| Inner Bearing | 25580 — 1.75" I.D. |
| Grease Seal 10-36 | 2.25" I.D. |
| Grease Seal 10-10 | 2.125" I.D. |
| Dust Cap Diameter | 2.71" |
| Lubrication Access | EZ Lube-compatible dust cap |
| Kit Coverage | One wheel position |
Bearing & Seal Information
This hub and drum kit uses the 25580 inner bearing with a 1.75" inside diameter and the 14125A outer bearing with a 1.25" inside diameter. Matching races are included.
Two grease seal options are supplied:
- 10-36: 2.25" inside diameter
- 10-10: 2.125" inside diameter
Both grease seal sizes are included to accommodate common spindle variations. Only the seal matching your spindle's seal journal should be installed. Confirm your existing seal dimensions or spindle specifications before assembly.
R&P Knowledge Hub
How a hub and brake drum works
A trailer hub and brake drum performs two related functions. The hub supports wheel rotation through its inner and outer bearings, while the drum provides the friction surface for the trailer's brake shoes.
During braking, the brake shoes expand against the inside surface of the drum to produce stopping force. Proper bearing adjustment, lubrication, and brake condition are essential for reliable operation.
Before ordering: Match the existing hub's bolt pattern, wheel stud diameter, inner and outer bearing numbers, grease seal dimensions, and brake drum size. Axle weight rating alone does not establish compatibility.
Fitment & Installation Notes
- Designed for common 5,200 lb, 6,000 lb, and 7,000 lb trailer axle applications using compatible 12" x 2" brakes.
- Requires an 8 on 6.5" wheel bolt pattern.
- Verify 9/16"-18 wheel stud and lug nut compatibility with the trailer's wheels.
- Verify the 25580 inner and 14125A outer bearing dimensions against the spindle.
- Select the appropriate included grease seal based on the spindle's seal journal diameter.
- Follow applicable Dexter service instructions for bearing lubrication, adjustment, wheel installation, and lug nut torque.
- One kit services one wheel position. Two kits are needed to service both hubs on one axle.
This listing is for one complete Dexter hub and brake drum kit with the components listed above. It does not include a second hub and drum assembly.
Verify all dimensions and component specifications before ordering or installation.
