2000 lb Brake Drum HYDRAULIC 7" with Bearing Kit— 5 on 4.5"

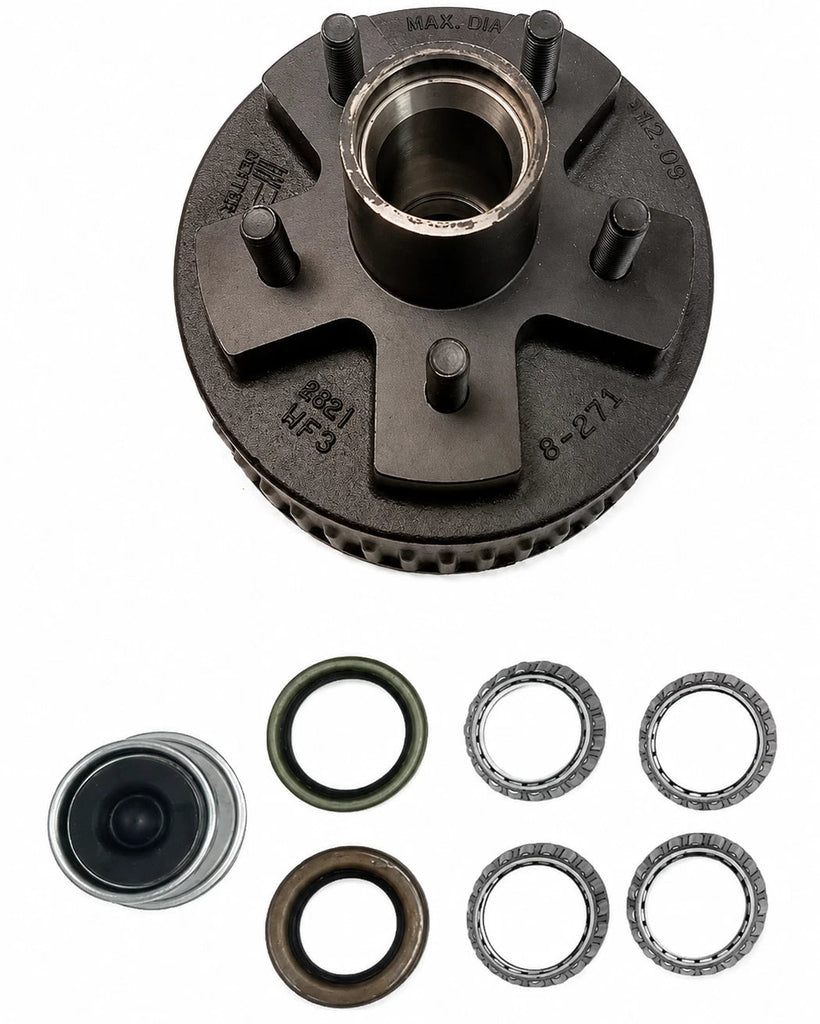

Custom wheel-end kit assembled by R&P Carriages using one 008-271-07 hydraulic hub drum and one HD-200-KIT hub/drum bearing kit for compatible light-duty hydraulic trailer brake applications.
Overview
This R&P Carriages custom hydraulic trailer brake drum kit is assembled for compatible hydraulic trailer brake applications requiring a 7" hub drum with a 5 on 4.5" wheel bolt pattern. The kit BOM includes one 008-271-07 hydraulic hub drum and one HD-200-KIT hub/drum bearing kit. Match the brake size, spindle, bearing setup, seal dimensions, wheel bolt pattern, pilot diameter, and axle rating before installation.
R&P Service Insight
Hydraulic brake drum fitment depends on the complete wheel-end setup, not just the axle capacity. Confirm your existing hub/drum and bearing measurements before ordering.
- Brake Type: For hydraulic trailer brake systems only, including compatible surge or hydraulic actuator setups.
- BOM Match: This kit is built from one 008-271-07 hub drum and one HD-200-KIT bearing kit.
- Fitment Check: Match drum size, bearings, seals, bolt pattern, pilot diameter, and spindle dimensions before installation.
R&P Knowledge Hub
Compatibility: Designed for compatible 7" hydraulic trailer brake drum applications where the hub drum, spindle, bearings, seals, and wheel pattern match.
Vehicle / System Fit: Trailer hydraulic drum brake systems using a 5 on 4.5" wheel bolt pattern.
Installation Notes: Verify bearing numbers, seal I.D. and O.D., spindle dimensions, pilot diameter, lug thread, and brake size before installation.
Performance Insight: The hub drum supports the wheel through tapered roller bearings while also providing the braking surface for hydraulic brake shoes.
R&P Custom Kit Note
Selling Brand: R&P Carriages Custom Kit
Application Reference: Custom 7" hydraulic trailer brake drum and bearing kit for compatible light-duty trailer wheel-end service.
What This Means: This listing is for one R&P-assembled wheel-end kit made from one hub drum and one bearing kit, not a bulk pack of loose individual components.
Before Ordering: Match this kit carefully to the trailer’s brake size, spindle, bearings, seals, bolt pattern, pilot diameter, and axle capacity.
R&P Repair Insight
When replacing a trailer brake drum, inspect the full wheel-end system before reassembly. A new hub drum should not be installed over damaged bearings, incorrect seals, worn brake shoes, or contaminated brake hardware.
- Inspect Bearings: Replace bearings that are pitted, discolored, loose, noisy, or heat damaged.
- Verify Seals: Match seal I.D. and O.D. to the spindle and hub bore before installation.
- Check Brake Shoes: Replace shoes if they are grease-soaked, cracked, unevenly worn, or below safe service thickness.
Features
Correct Two-Line BOM
Includes one 008-271-07 hydraulic hub drum and one HD-200-KIT hub/drum bearing kit as the assembled R&P custom kit.
7" Hydraulic Hub Drum
Built around a 7" hydraulic trailer hub drum for compatible light-duty hydraulic drum brake applications.
Hub/Drum Bearing Kit Included
The HD-200-KIT bearing kit is included with the hub drum to support one wheel-end service setup.
5 on 4.5" Wheel Pattern
Configured for 5-lug trailer wheels using the common 5 on 4.5" bolt pattern.
Specifications
| Specification | Detail |
|---|---|
| Kit Part Number | 008-271-07-KIT |
| Brand / Seller | R&P Carriages Custom Kit |
| Product Type | Hydraulic trailer brake hub drum with hub/drum bearing kit |

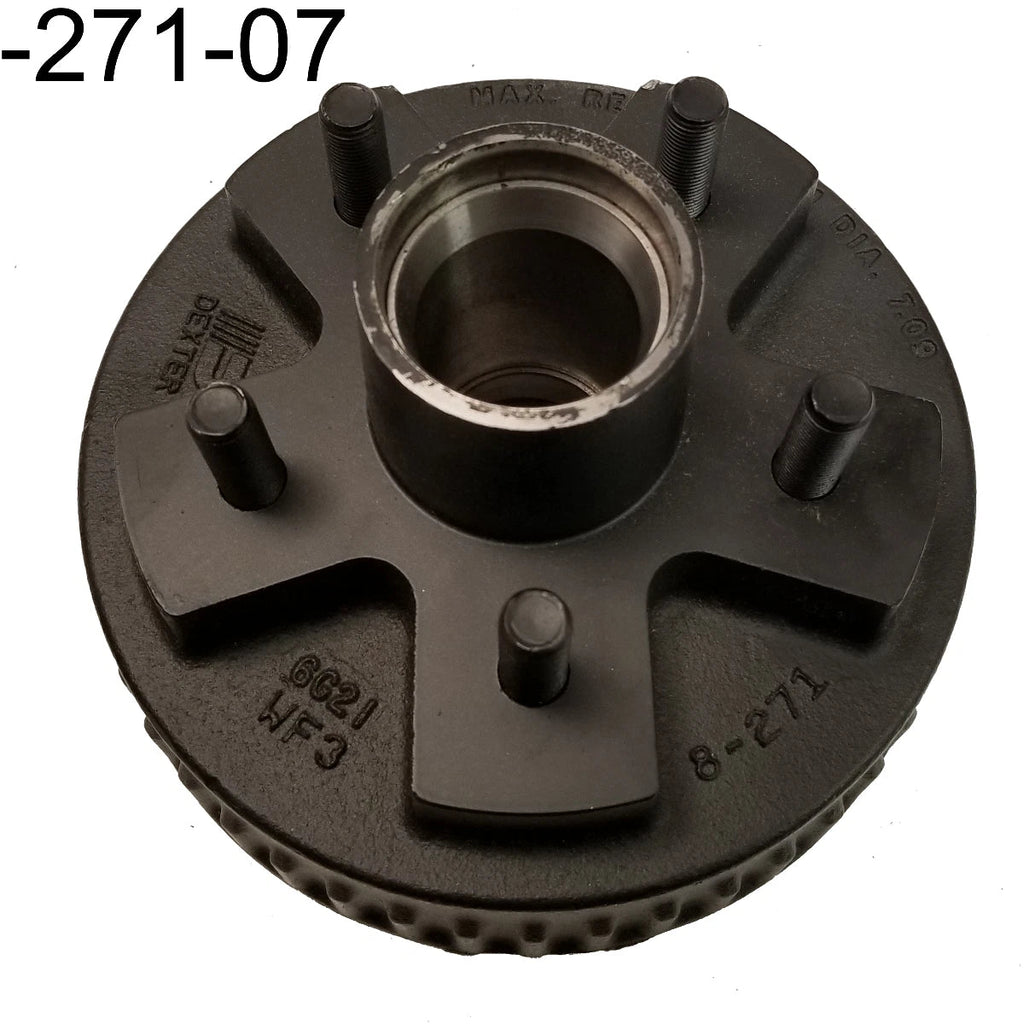

| Hub Drum Component | 008-271-07 — Hub Drum, hydraulic, 7", 5 on 4.5" |
| Bearing Kit Component | HD-200-KIT — Hub/Drum Bearing Kit |

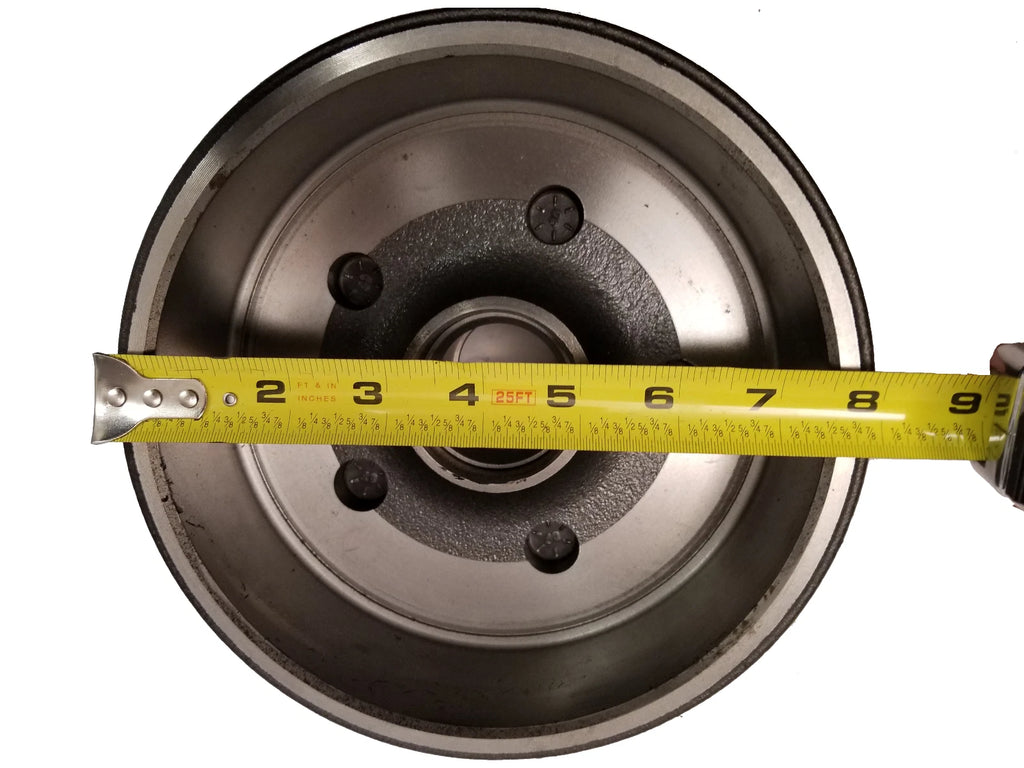

| Brake Drum Size | 7" x 1-3/4" |
| Brake Type | Hydraulic brake systems only |

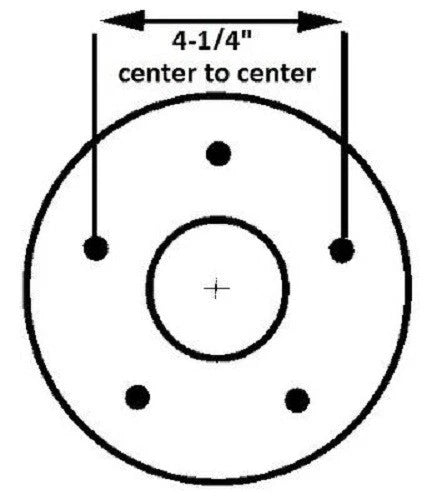

| Bolt Pattern | 5 on 4.5" |
| Stud Count | 5 wheel studs |

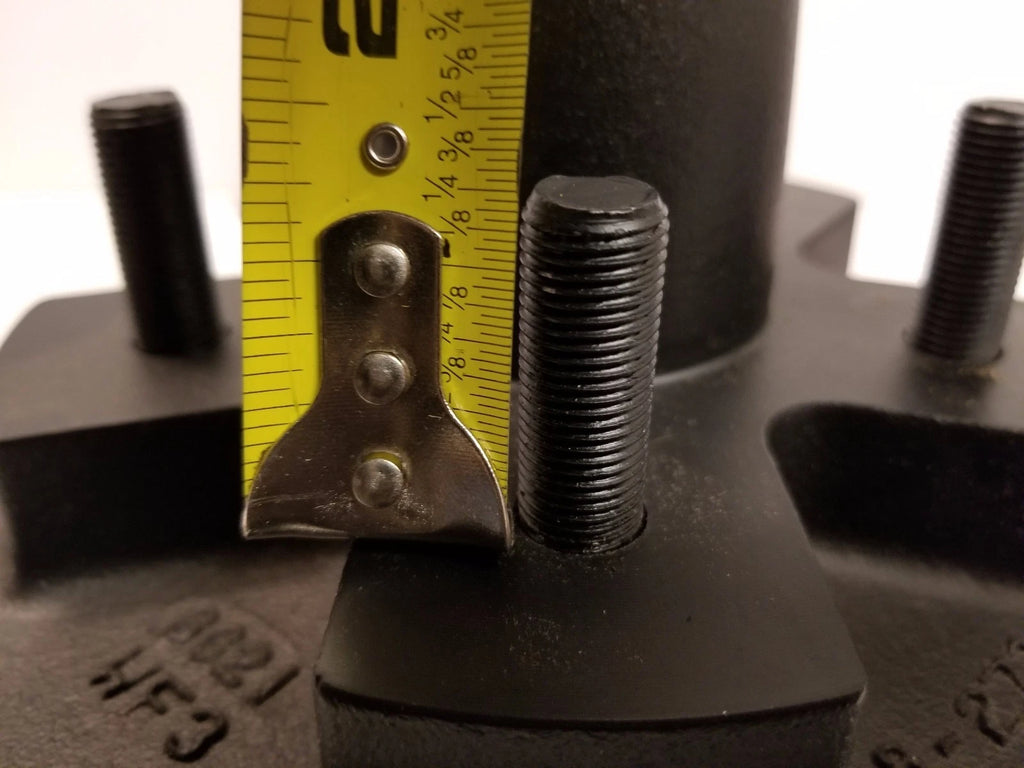

| Lug Nut Thread | 1/2"-20 |

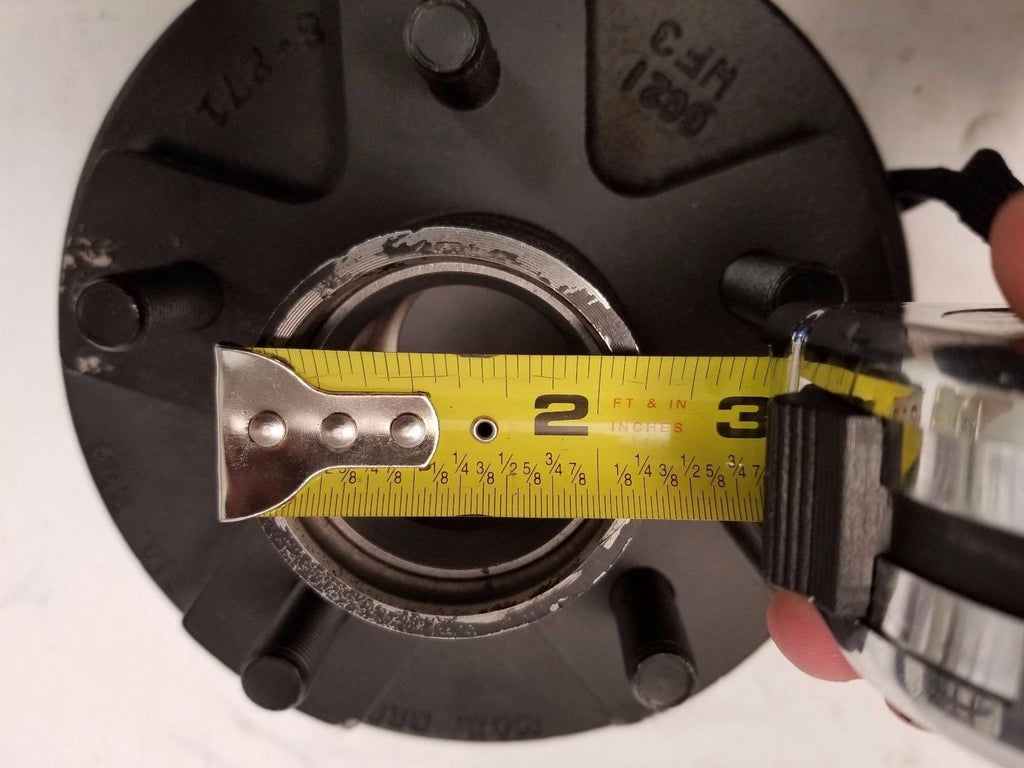

| Pilot Diameter | 2.56" |
| Material / Finish | Not specified — verify before ordering if finish or coating is required |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Trailer hydraulic drum brake system |
| Primary Fit | Compatible light-duty trailer applications using a 7" hydraulic hub drum |
| Wheel Pattern | 5 on 4.5" |
| Notes | Confirm brake size, bearing setup, seal sizes, spindle measurements, pilot diameter, lug thread, and axle rating before ordering. |
Included Components
| Quantity | Item |
|---|---|
| 1 | 008-271-07 — Hub Drum, 2200#, Hydraulic, 7", 5 x 4.5, cupped / studded hub drum assembly |
| 1 | HD-200-KIT — Hub/Drum Bearing Kit, 2000#, for 1" and 1.0625" bearing setup |
