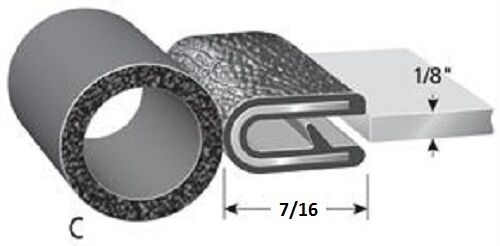

1/8" Black Trim Lok Edge Seal with 1/2" Bulb – Flexible PVC Edge Trim
Part Number: 1600C-8
Flexible edge trim with integrated sealing bulb designed to cover exposed panel edges while providing a compressible seal. Commonly used around trailer doors, lids, compartments, and equipment panels where vibration protection and weather sealing are required.
The trim grips panel edges using internal metal retaining clips embedded inside the flexible PVC material. The attached bulb seal compresses when panels close, helping reduce gaps, vibration, and moisture intrusion. This type of trim is frequently used on trailers, RV compartments, truck caps, equipment covers, and utility enclosures.
Features
- Flexible black PVC edge trim
- Integrated 1/2" sealing bulb
- Internal metal gripping clips
- Designed to slide over exposed panel edges
- Commonly used on trailer doors, lids, and compartments
- Helps reduce vibration and seal panel gaps
- Sold by the foot in continuous lengths
R&P Knowledge Hub
Edge trim with bulb seal combines two functions in a single component: protecting exposed panel edges and providing a compressible seal where panels meet. The internal metal clips inside the trim grip the edge of sheet metal or fiberglass panels to keep the trim in place during vibration and movement. The attached bulb compresses when doors or lids close, helping reduce dust, water intrusion, and rattling. These seals are commonly used on trailer access doors, RV compartments, and equipment enclosures where panel edges require both protection and sealing. When selecting replacement trim, verify panel thickness and bulb orientation to ensure proper grip and sealing contact.
Edge trim with bulb seal combines two functions in a single component: protecting exposed panel edges and providing a compressible seal where panels meet. The internal metal clips inside the trim grip the edge of sheet metal or fiberglass panels to keep the trim in place during vibration and movement. The attached bulb compresses when doors or lids close, helping reduce dust, water intrusion, and rattling. These seals are commonly used on trailer access doors, RV compartments, and equipment enclosures where panel edges require both protection and sealing. When selecting replacement trim, verify panel thickness and bulb orientation to ensure proper grip and sealing contact.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 1600C-8 |
| Edge Grip Size | 1/8" |
| Bulb Size | 1/2" |
| Material | Flexible PVC with internal metal retaining clips |
| Color | Black |
| Sold By | 1 Foot (Continuous Length) |
Verify specifications before installation.
