Genuine Dexter 3,500 lb Trailer Hub Kit — 5 on 4.5" Bolt Pattern
Part Number: K08-248-90

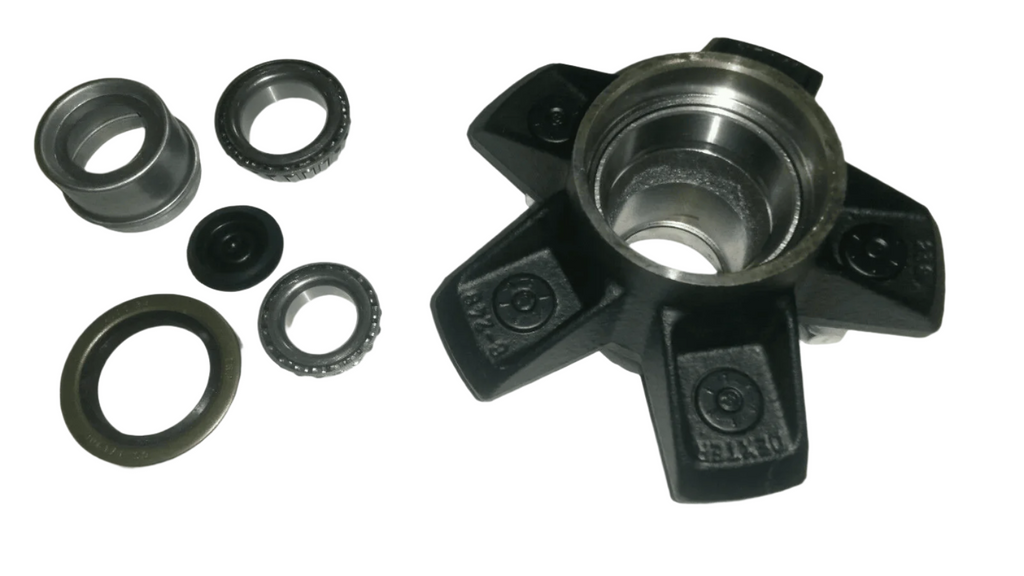

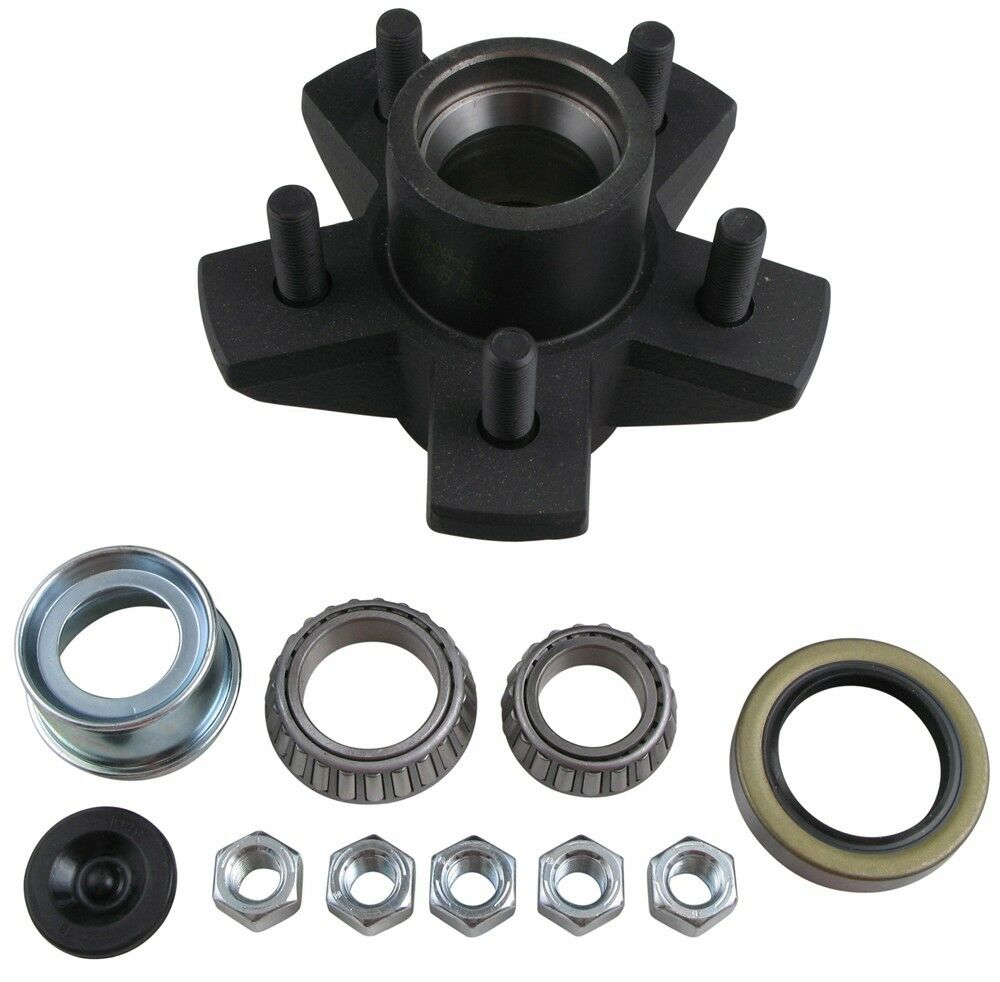

Genuine Dexter boxed hub kit designed for standard 3,500 lb trailer axles. This kit includes the hub, bearings, seal, grease cap, and lug nuts needed for a complete hub replacement on common 3,500 lb spring or torsion axles.
Features a 5 on 4.5" bolt circle with standard 1/2"-20 wheel studs.
Kit Contents
| Component | Quantity | Part Number / Detail |
|---|---|---|
| Lug Nuts | 5 | 006-080-00 |
| Hub | 1 | 008-248-05 (5 on 4.5") |
| Grease Seal | 1 | 010-004-00 (10-19) |
| Grease Cap | 1 | 021-003-00 |
| Outer Bearing | 1 | 031-031-02 (L44649) |
| Inner Bearing | 1 | 031-033-02 (L68149) |
| Instruction Sheet | 1 | 059-831-00 |
Specifications
| Specification | Detail |
|---|---|
| Axle Rating | 3,500 lb |
| Bolt Pattern | 5 on 4.5" |
| Stud Size / Thread | 1/2"-20 |
| Stud Spacing | 4-1/4" |
| Axle Compatibility | Spring axles and Torflex-style torsion axles |
This kit includes all standard wear components required for hub replacement. Axle nut, spindle washer, and cotter pin are not included and are typically reused if in good condition.
Verify bearing sizes, seal size, and bolt pattern before ordering to ensure compatibility with your axle and wheels.
