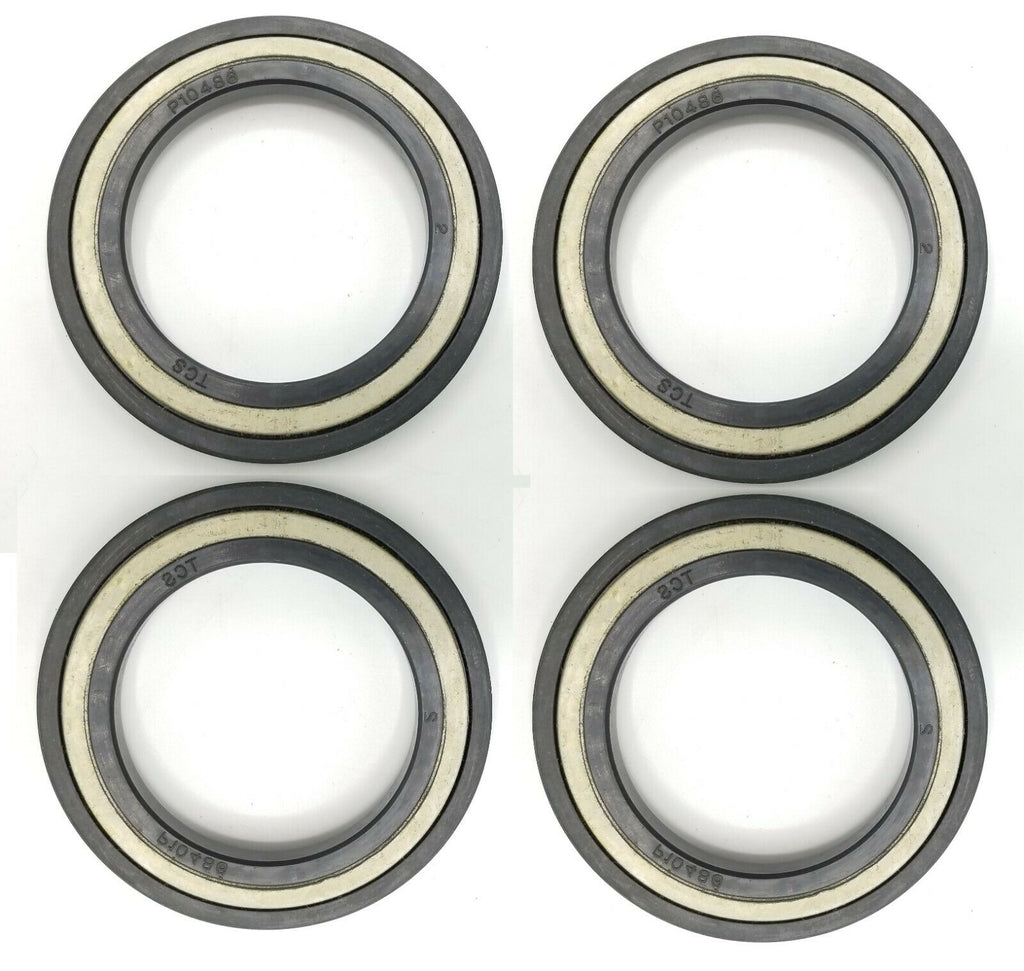

Four Pack Unitized Oil Seal 2.255 inch ID x 3.38 inch OD
For 7000 lb and 8000 lb Dexter Oil Bath Axles
Four unitized oil bath seals commonly used on 7000 lb and 8000 lb Dexter oil bath trailer axles. Designed for oil-lubricated hubs requiring an internal style seal.
Direct replacement for Dexter part number 010-063-00, commonly referred to as 10-63.
R&P Knowledge Hub
A unitized oil seal is a dual-action design where the inner sealing surface remains fixed on the spindle while the outer casing rotates with the hub. This construction reduces wear and provides improved leak resistance compared to standard grease seals.
These seals are for oil bath hubs only. They are not standard grease seals. Always confirm your existing seal number and measurements before ordering.
Features
- Unitized internal oil bath design
- Fits many 7000 lb and 8000 lb Dexter oil bath axles
- Replaces Dexter 010-063-00 (10-63)
- Improved leak resistance compared to standard seals
- Four seals included
Specifications
| Specification | Detail |
| Seal Type | Unitized Oil Bath Internal Seal |
| Inner Diameter | 2.255 inch |
| Outer Diameter | 3.38 inch |
| Axle Rating | 7000 lb to 8000 lb |
| Hub Type | Oil Bath Only |
| Quantity | 4 Seals |
Verify specifications and existing seal number before installation.
