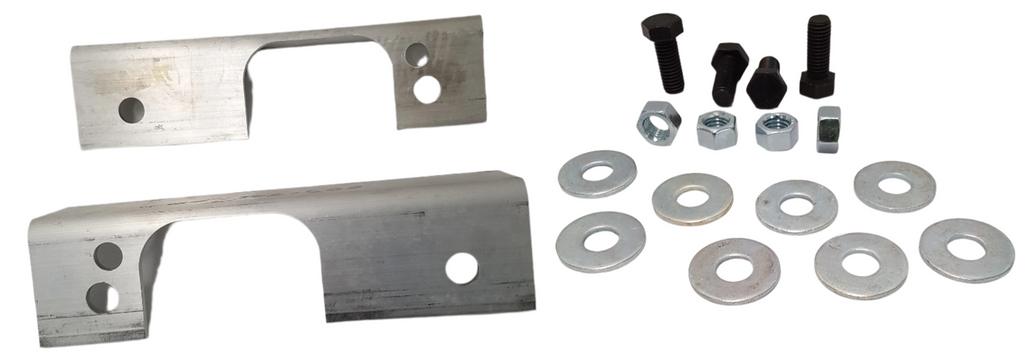

#10 Aluminum Side Mount Hanger Suspension Kit for 3500# Torflex Axles
Part Number: 3-304-305-B-KIT
Complete side mount hanger kit for #10 Torflex torsion axles. Includes left and right brackets with hardware for secure installation and proper suspension support.
R&P Knowledge Hub
Torflex hanger brackets mount torsion axles to the frame. Accurate spacing and alignment are essential to maintain ride quality and prevent uneven load distribution.
Features
- Designed for #10 Torflex torsion axle systems
- Aluminum construction for corrosion resistance
- Side mount configuration for versatile installation
- Includes full hardware kit for mounting
Specifications
| Product Type | Side Mount Hanger Kit |
| Axle Compatibility | #10 Torflex Torsion Axle |
| Material | Aluminum |
| Length | 11" |
| Mounting Dimensions | 3" x 2.25" |
| Bolt Hole Size | 5/8" |
| Bolt Hole Spacing | 8" Center to Center |
| Dexter Part Numbers | 003-304-00 / 003-305-00 |

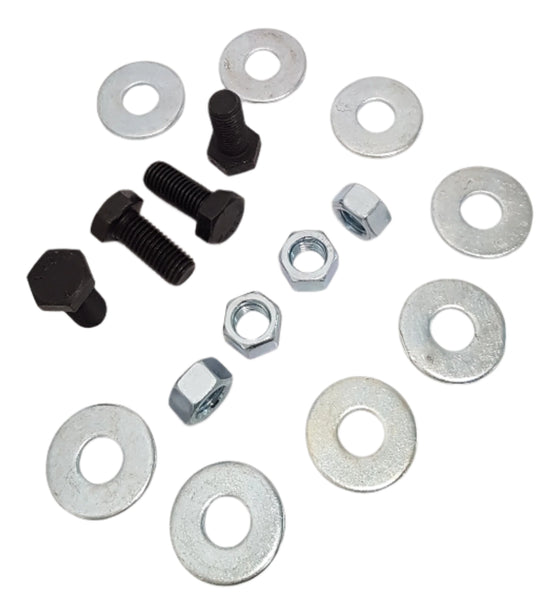

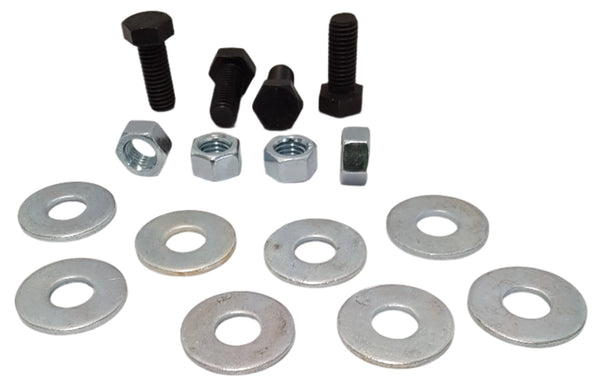

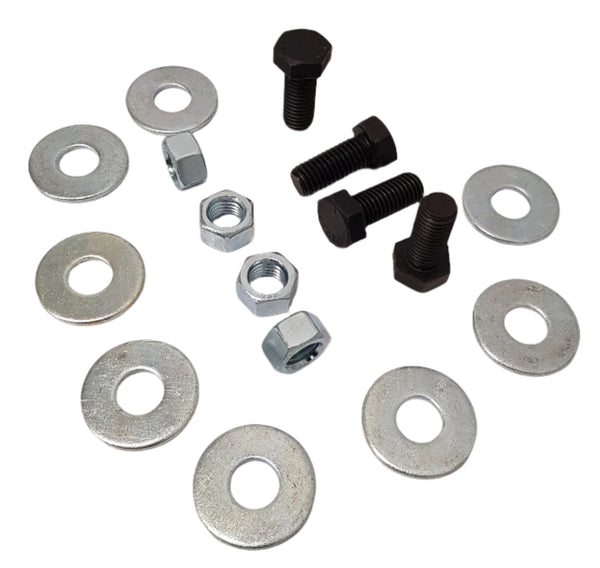

Included Components
| Part Number | Quantity | Description |
|---|---|---|
| 003-304-00 | 1 | Left Hand Hanger |
| 003-305-00 | 1 | Right Hand Hanger |
| 58USSFWZ | 8 | 5/8" USS Flat Washer |
| 58CHNZ | 4 | 5/8" Hex Nut |
| 58C112HC5P | 4 | 5/8"-11 Grade 5 Hex Cap Bolt |
