10" Trailer Hub & Drum Kit – 6 on 5.5" – 3,500 lb – Self Adjusting Electric Brakes
Part Number: 94655-B-IMP-FSA

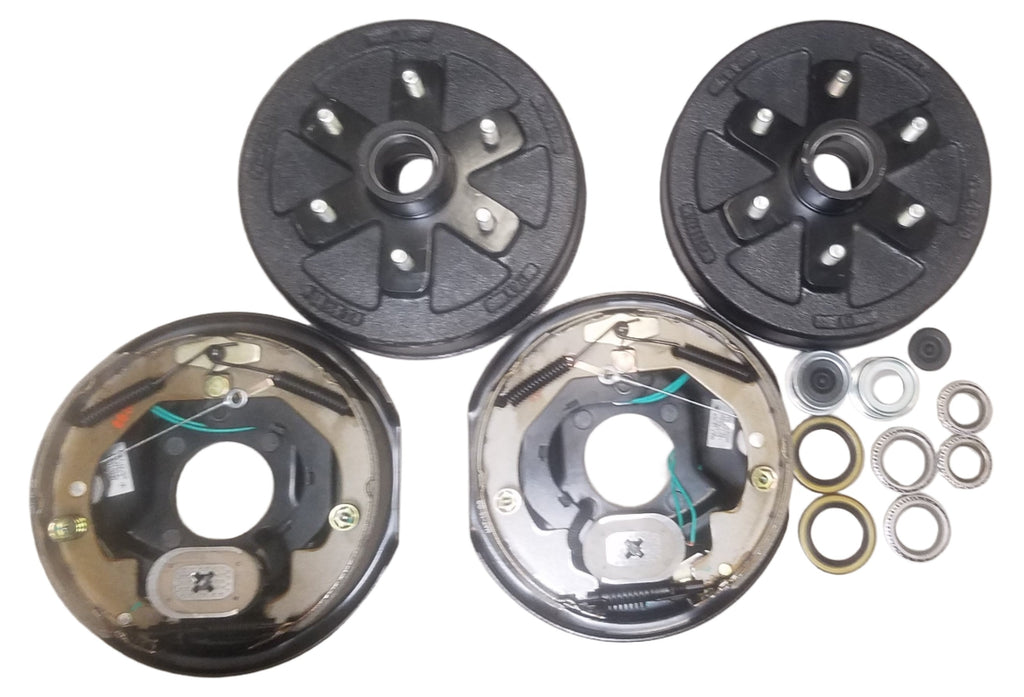

Complete 3,500 lb axle replacement kit including hub/drums, bearing kits, and self-adjusting electric brake backing plates for both left and right sides. Designed for 10" x 2.25" brake applications with a 6 on 5.5" bolt pattern.
Kit Includes
- (2) 94655-1 Hub/Drums – 3,500 lb – 6 on 5.5" bolt pattern – cupped and studded – 1/2" studs
- (2) HD-3500-Kit Bearing Kits:
- L44649 inner bearing – 1.0625" I.D.
- L68149 outer bearing – 1.378" I.D.
- 10-19 grease seal – 1.719" x 2.56"
- DC-200L cap with DC-RP rubber insert
- (1) BK-10E-01SA Left Hand Self-Adjusting Electric Brake – 10" x 2.25" – 4 bolt
- (1) BK-10E-02SA Right Hand Self-Adjusting Electric Brake – 10" x 2.25" – 4 bolt
Specifications
| Axle Rating | 3,500 lb |
| Brake Size | 10" x 2.25" |
| Bolt Pattern | 6 on 5.5" |
| Stud Size | 1/2" |
| Brake Type | Electric – Self Adjusting |
| Mounting | 4-Bolt Brake Flange |
Verify bearing numbers, seal dimensions, and bolt pattern before installation.
