Lot of 100 – White Truss Octa Drive Self-Tapping Cargo Screws – #10 × 3/4"
Part Number: 1034TOT3-G29000X100

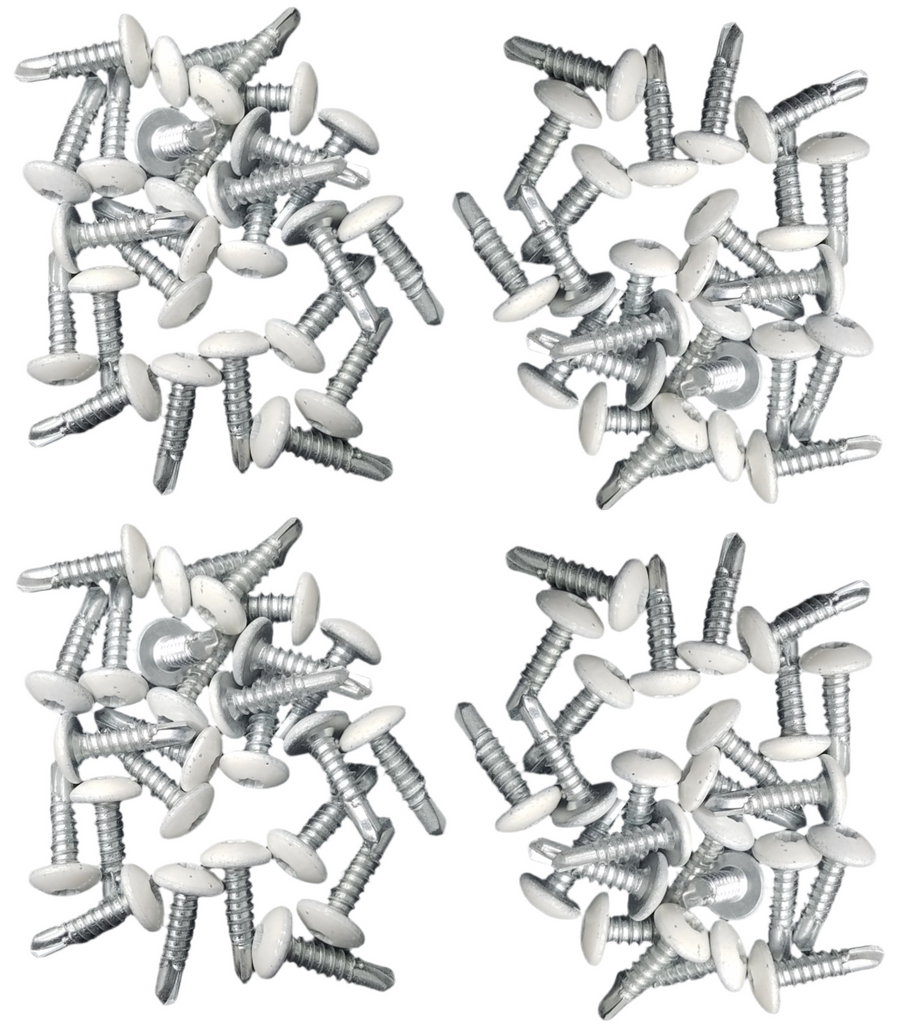

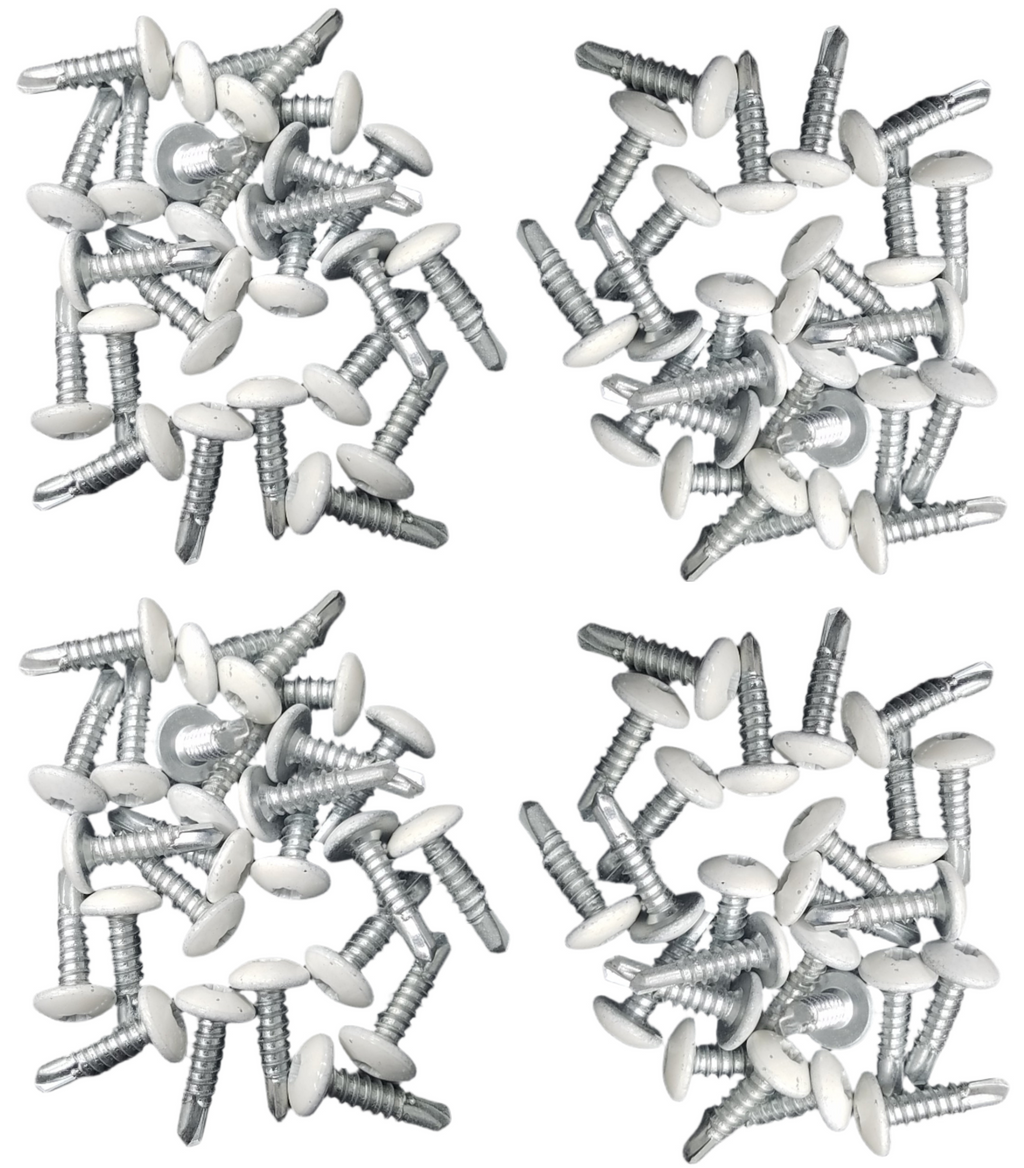

This listing includes one hundred (100) white-painted #10 × 3/4" truss head cargo screws. These screws use a T-3 (Octa Drive) bit and feature a G2-plated base with painted white finish for exterior trailer applications. Self-tapping configuration.
R&P Knowledge Hub
Truss head screws provide a wider bearing surface for thin sheet materials commonly used on cargo trailer exterior panels. The T-3 Octa Drive design helps reduce cam-out compared to standard Phillips drive styles.
These screws are self-tapping and are typically used in thin sheet metal applications. Always verify diameter, length, and drive style before installation.
Features
- Lot of 100 screws
- #10 diameter × 3/4" length
- Truss head profile
- T-3 (Octa Drive) configuration
- Self-tapping thread style
- G2-plated base with painted white finish
- Common cargo trailer exterior panel application
Specifications
| Specification | Detail |
| Quantity | 100 Screws |
| Size | #10 × 3/4" |
| Head Style | Truss Head |
| Drive Type | T-3 (Octa Drive) |
| Thread Type | Self-Tapping |
| Finish | G2-Plated with White Painted Finish |
| Typical Application | Exterior cargo trailer skin and panel fastening |
Verify specifications before installation.
