Match the part number, measurements and connection points that apply to your trailer.
| Part Number | Compare the original manufacturer number when available. |
|---|---|
| Dimensions | Verify critical dimensions. |
| Connection | Confirm how the original part mounts or connects. |
| Rating | Verify capacity or electrical rating when applicable. |

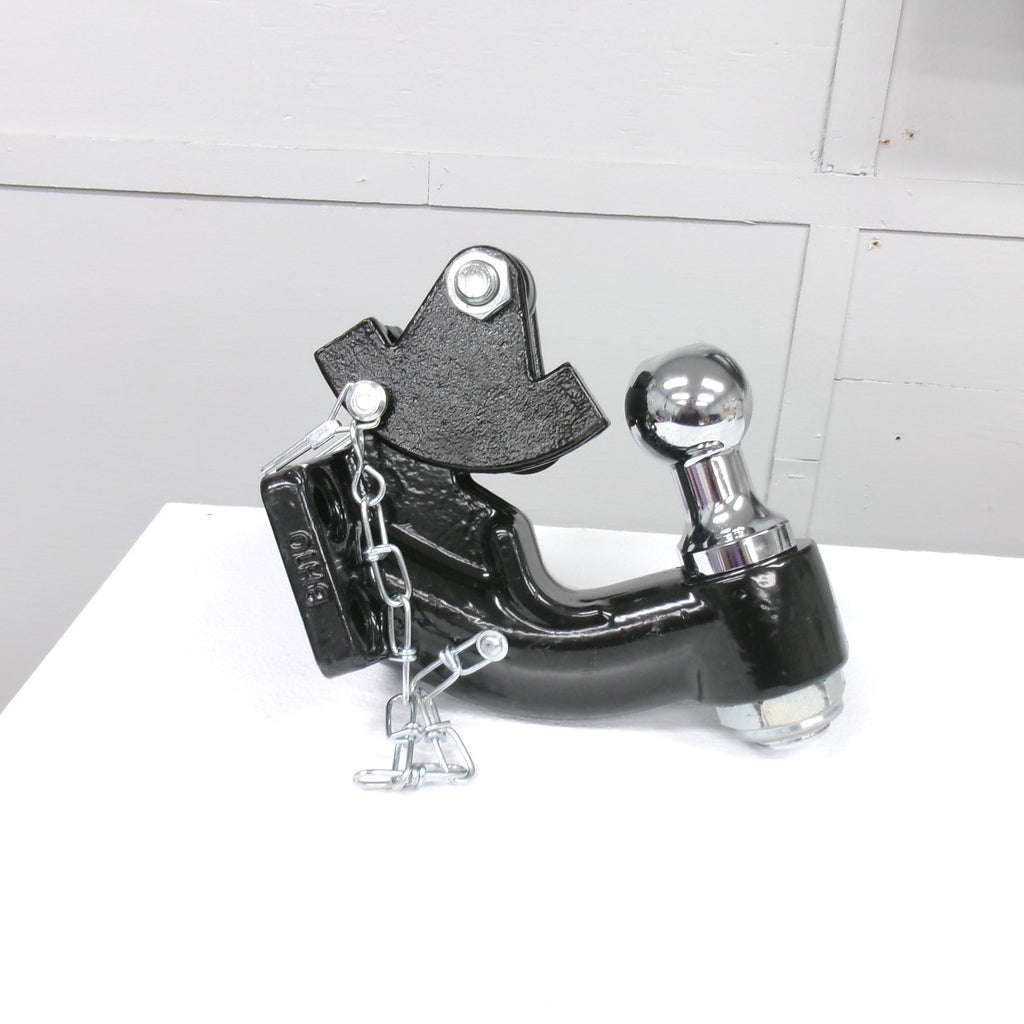

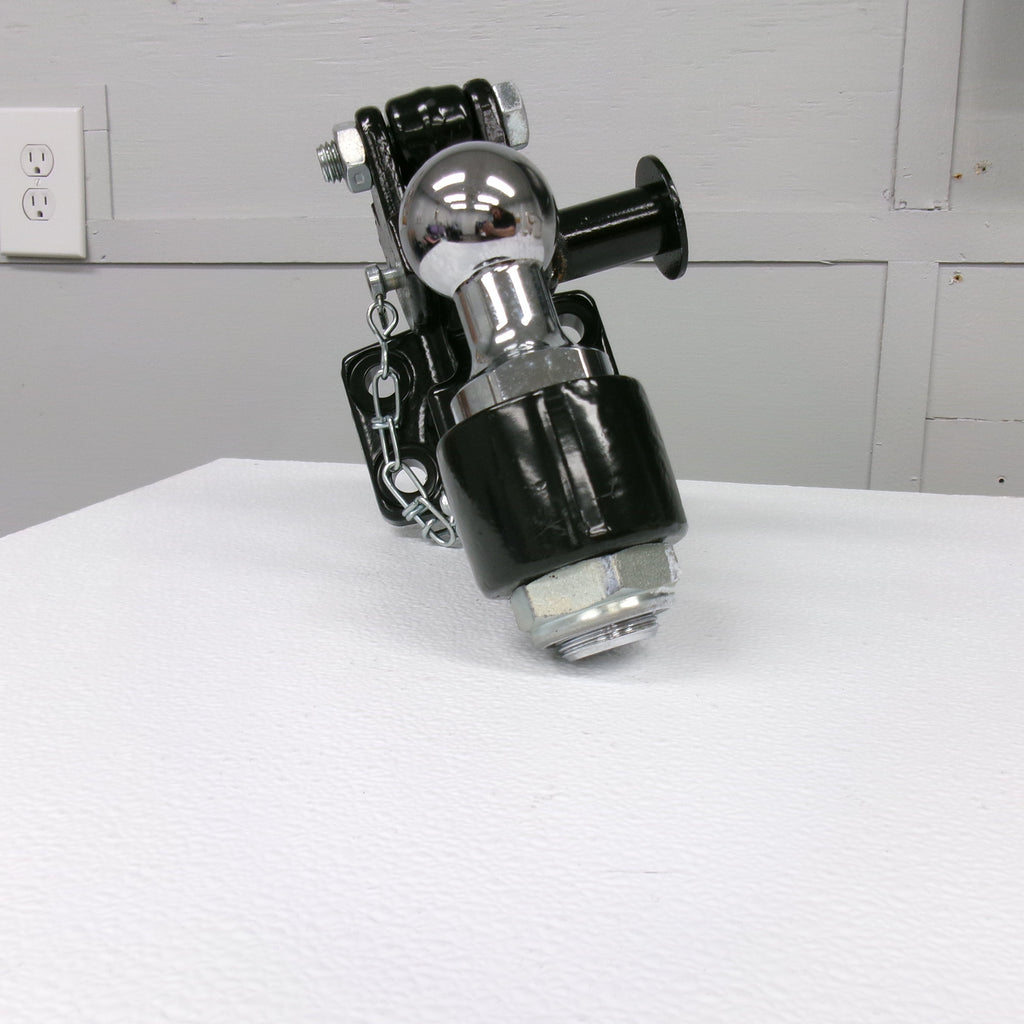

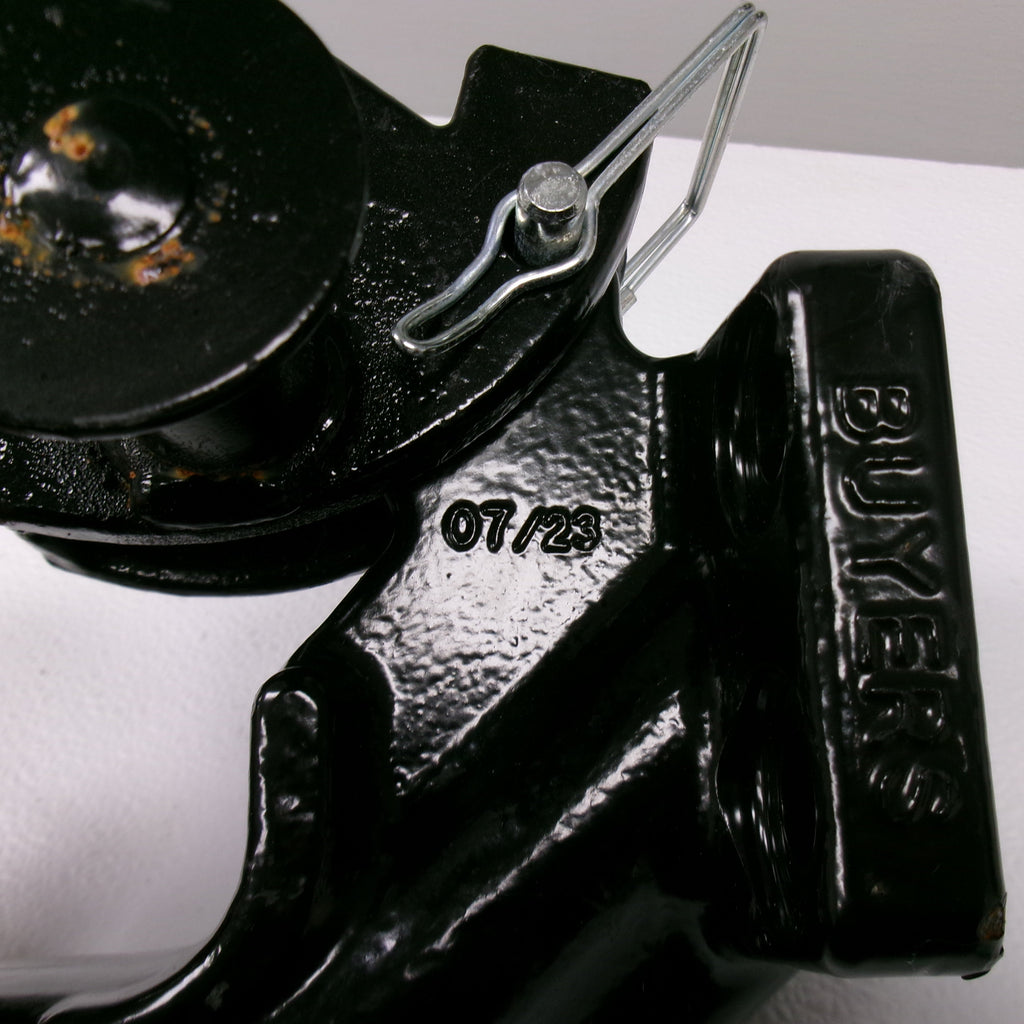

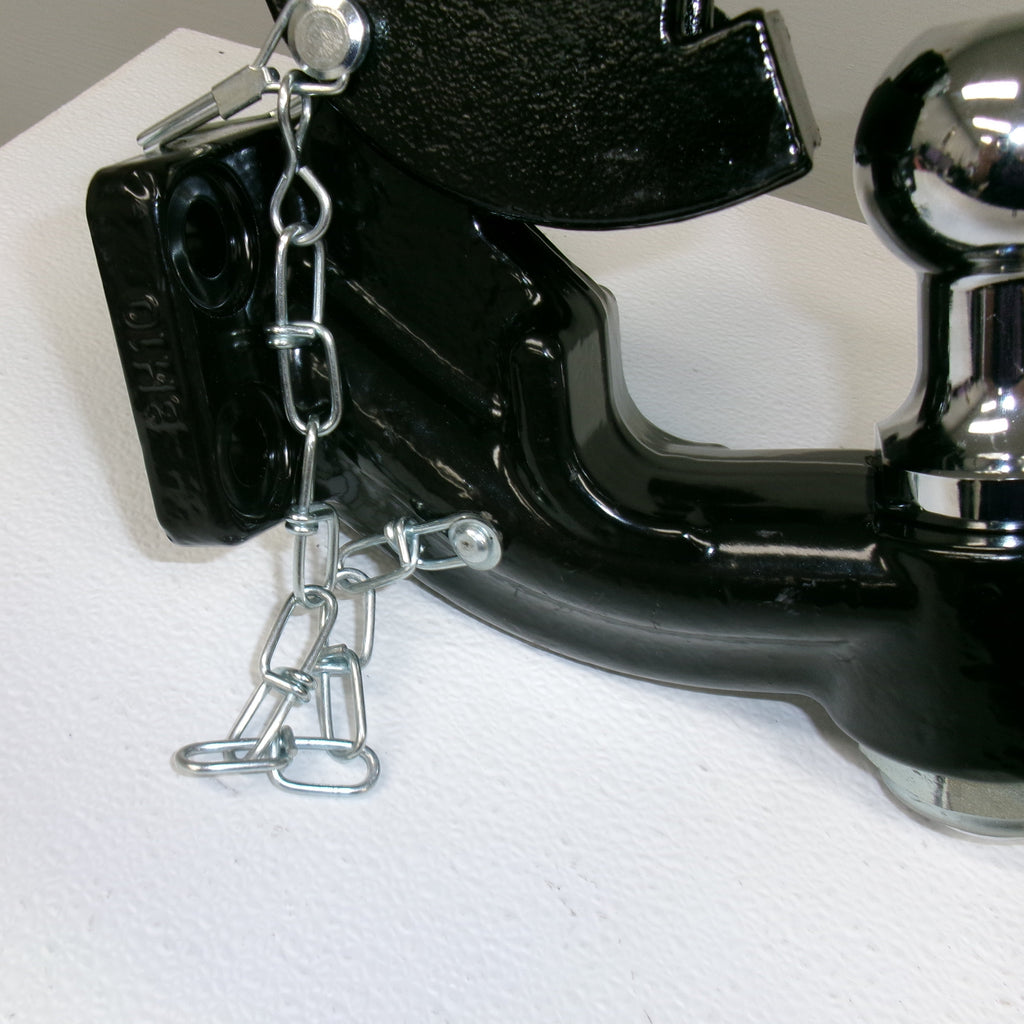

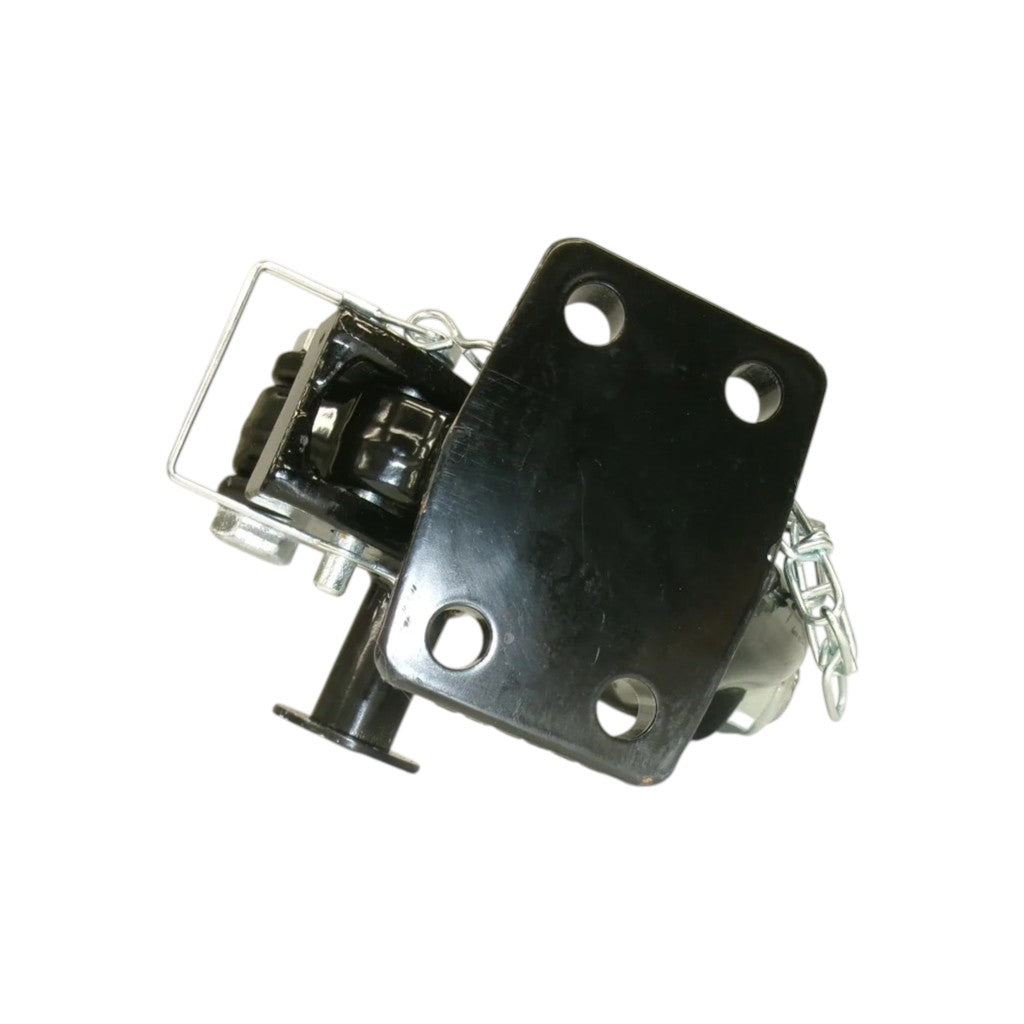

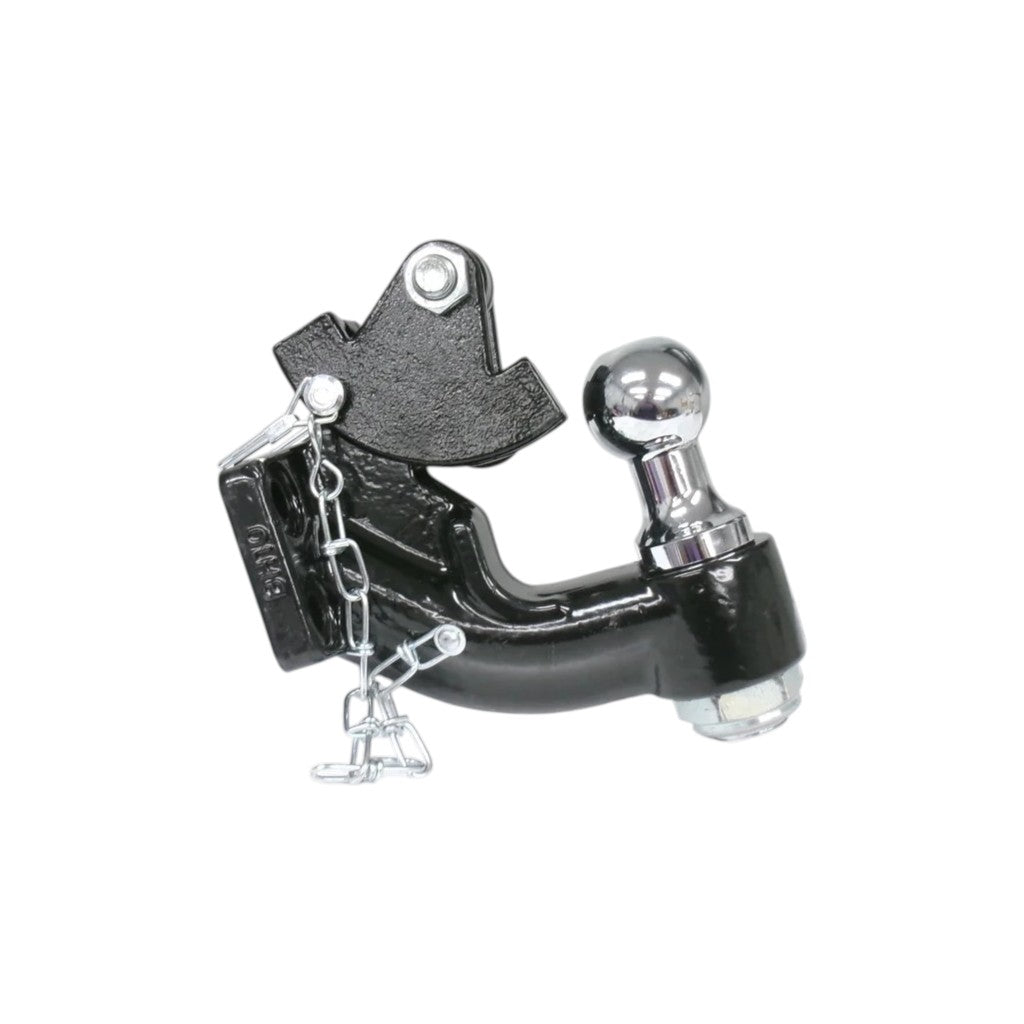

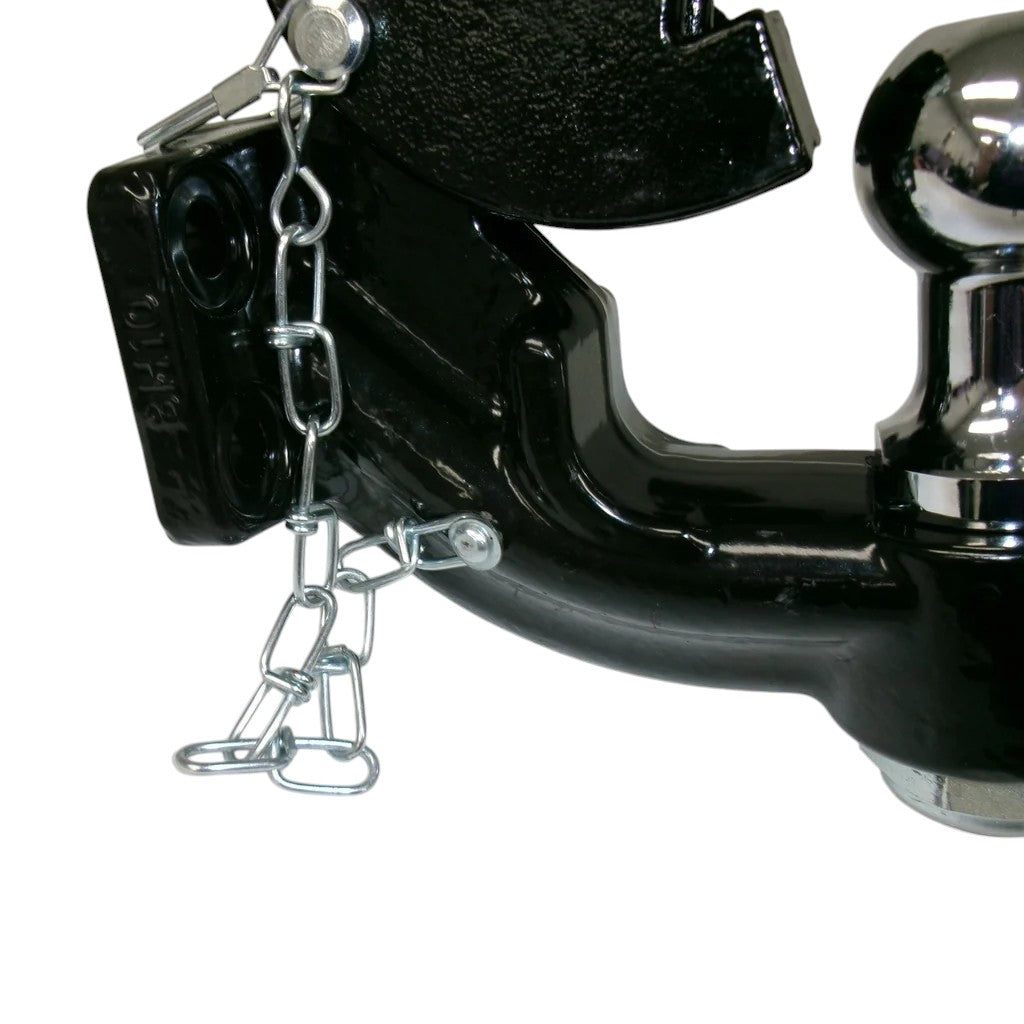

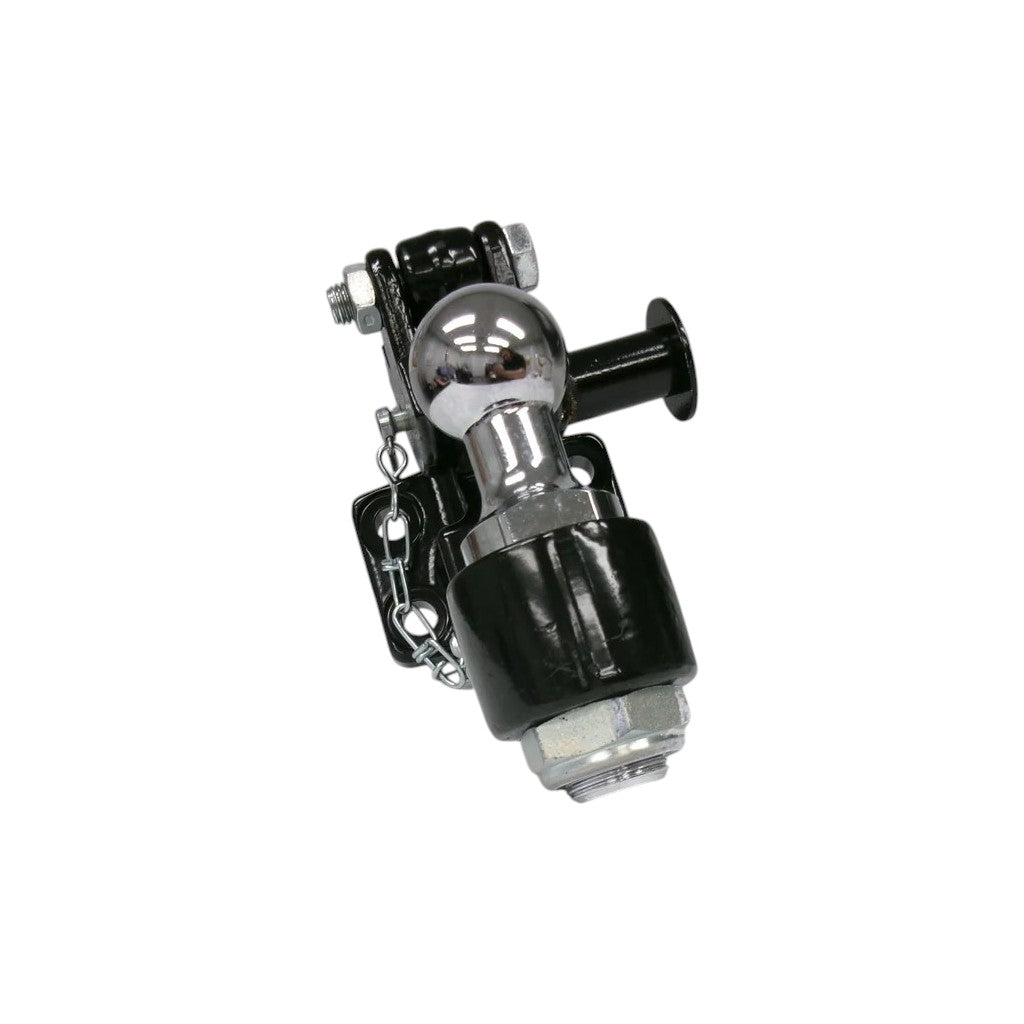

10 ton hook pintle combo hitch with 2" ball, forged steel construction, black powder coating, and included Grade 8 mounting hardware.
| Specification | Detail |
|---|---|
| Part Number / SKU | 10052 |
| Series | BH10 Series |
| Product Type | 10 Ton Hook Pintle Combo Hitch with Mounting Kit |
| Ball Size | 2" |
| Material / Finish | Forged steel with black powder coating |
| Maximum Gross Trailer Weight | 20,000 lbs / 10 ton MGTW |
| Maximum Vertical Load | 4,000 lbs |

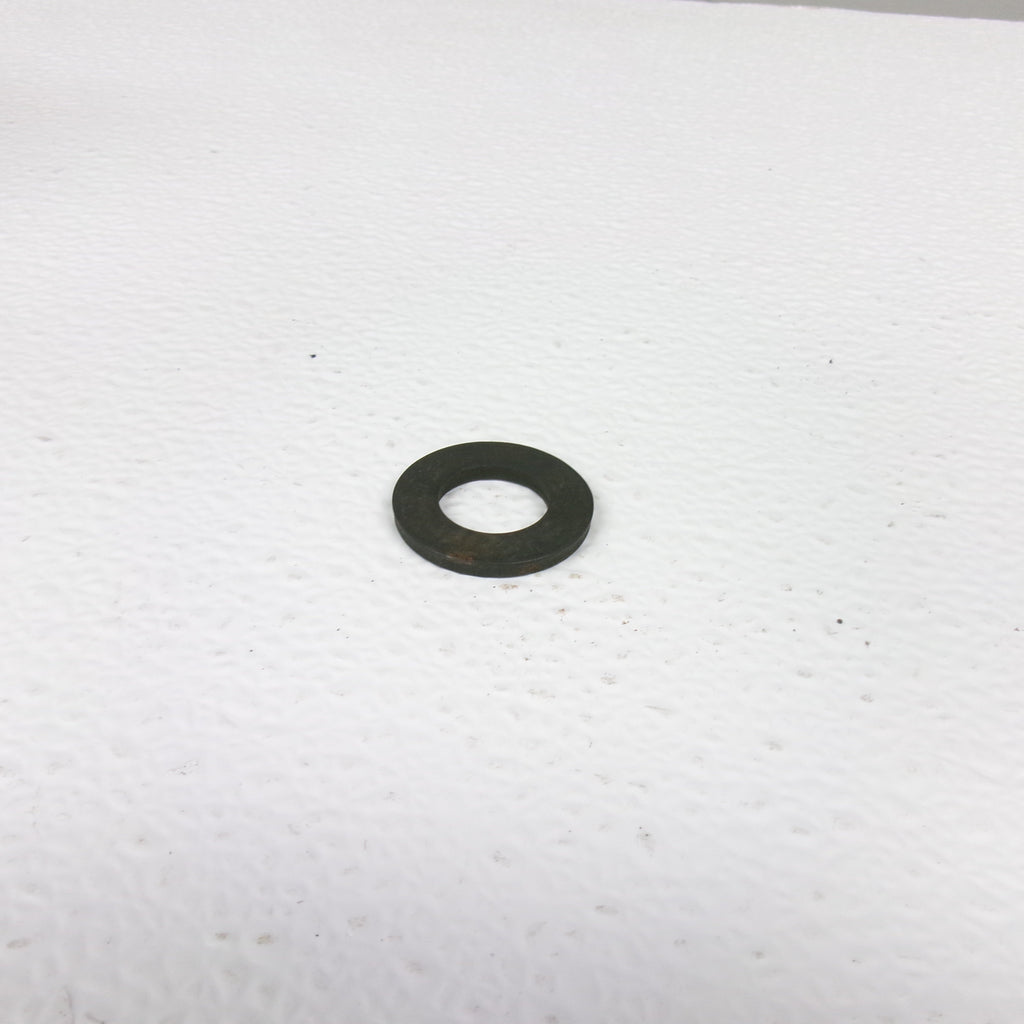

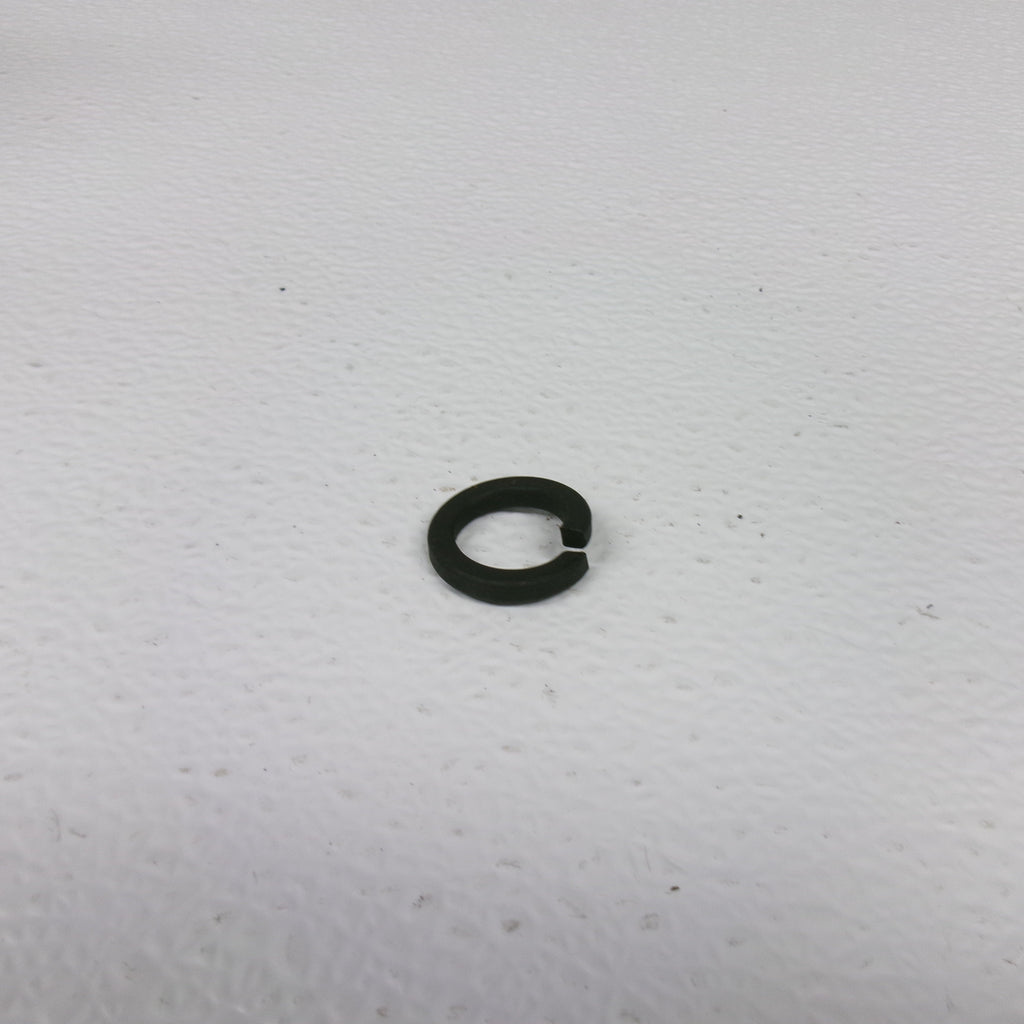

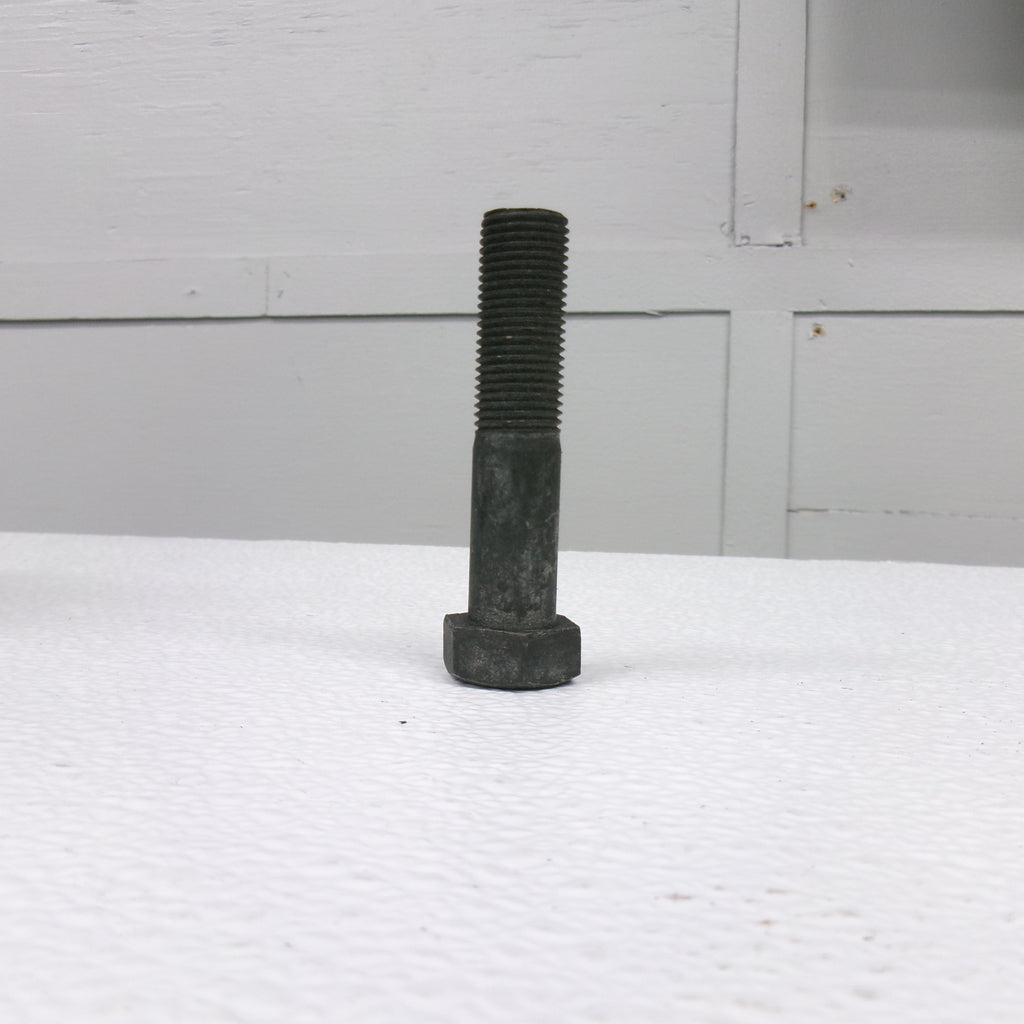

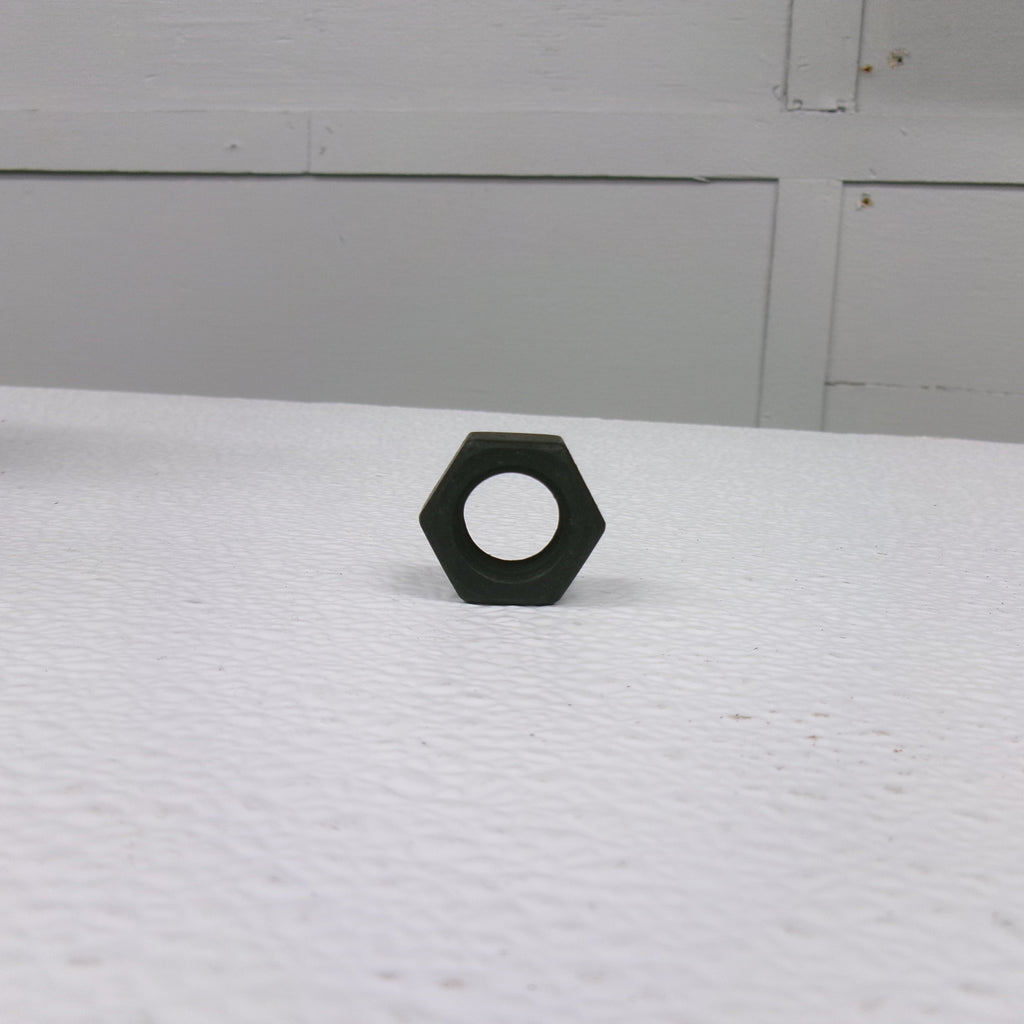

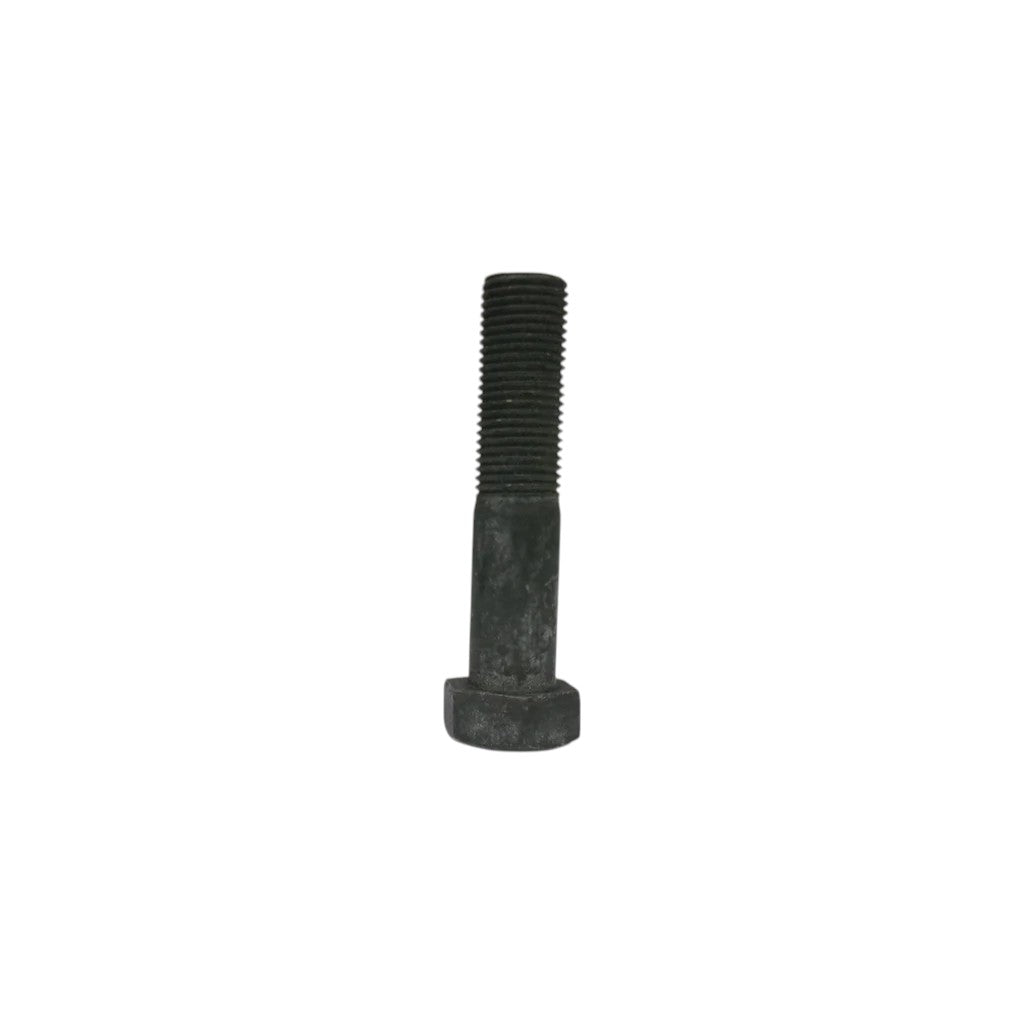

| Hardware Included | Grade 8 hardware, 9/16" x 2-1/2", 16 pieces total |
| Category | Details |
|---|---|
| Application | Hook pintle combo hitch applications requiring a 2" ball |
| Primary Fit | Verify before ordering |
| Fitment Method | Confirm mounting requirements before installation |
| Important Note | Do not exceed the listed maximum gross trailer weight or maximum vertical load. |
| Feature | Buyer Benefit |
|---|---|

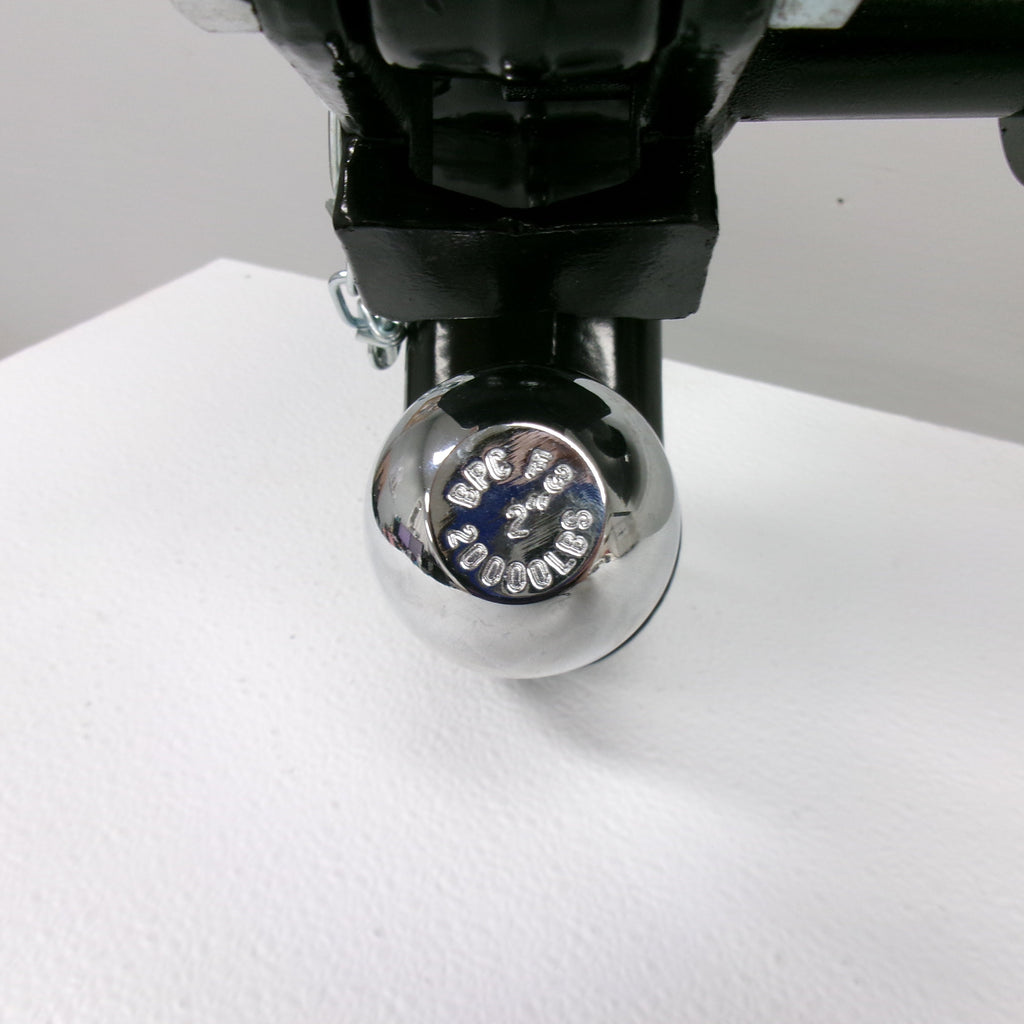

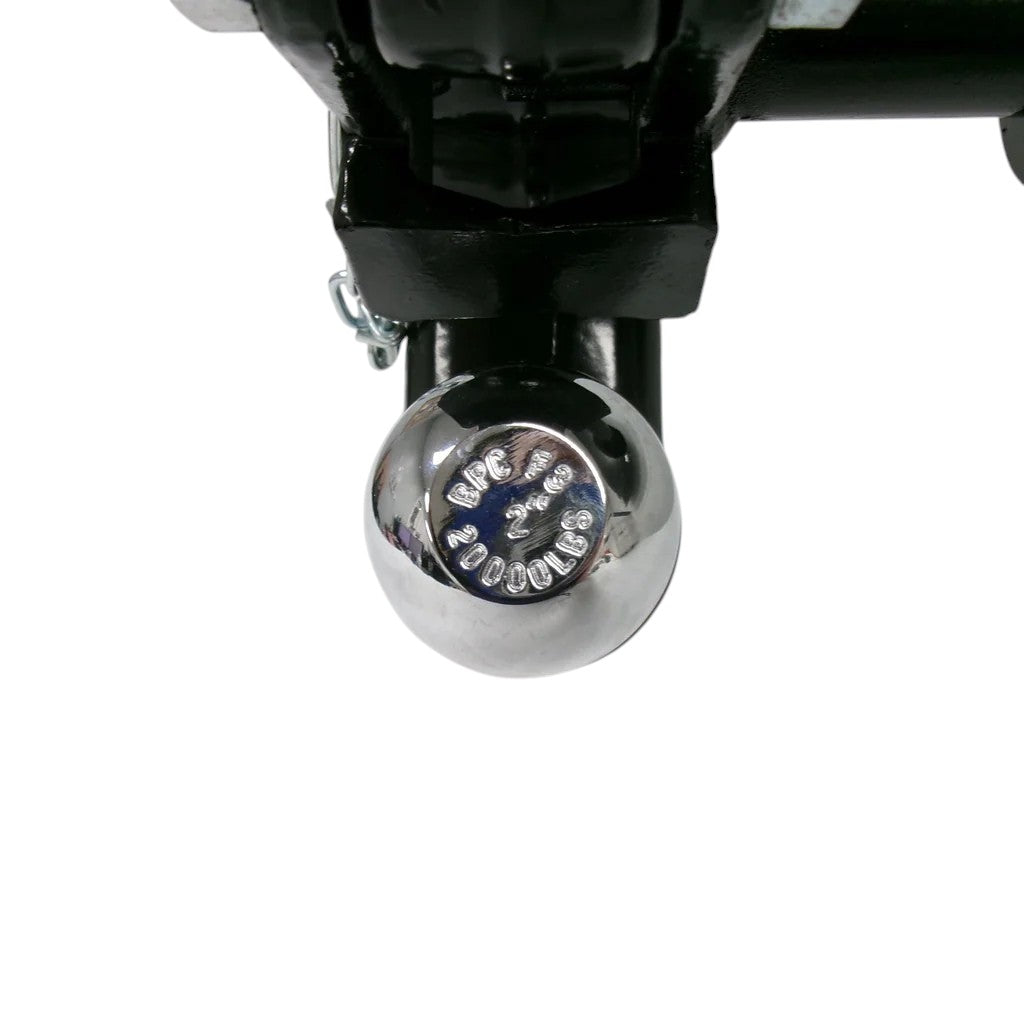

| 2" Ball | Built with the specified 2" ball size. |

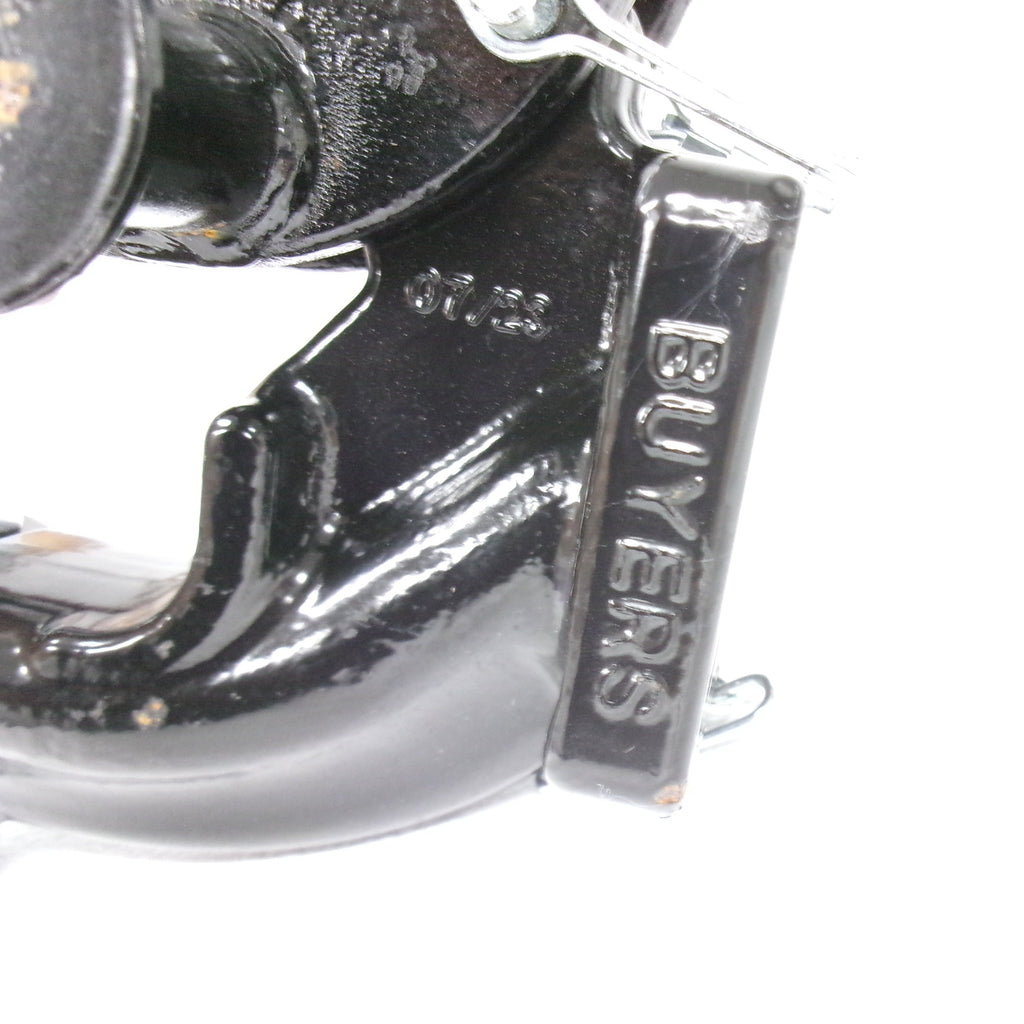

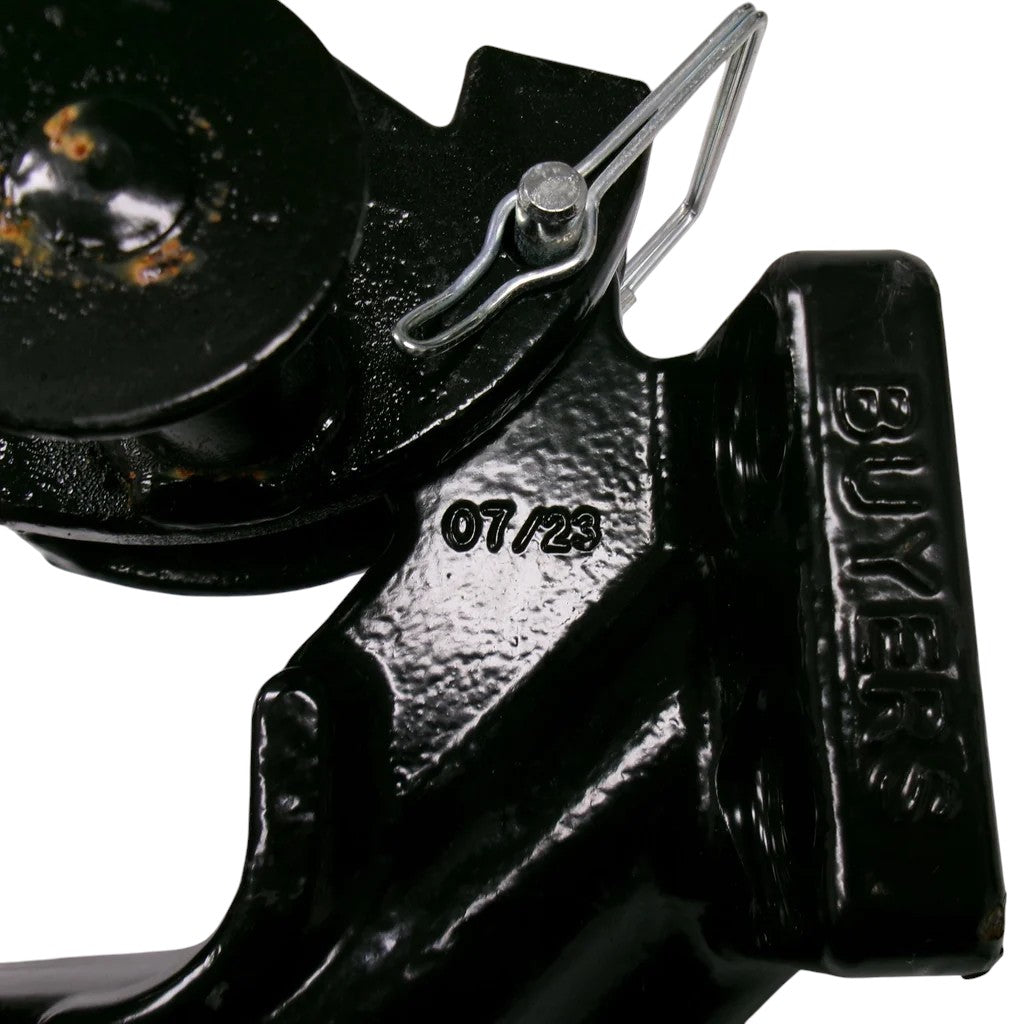

| Forged Steel | Forged steel construction for the hitch body. |
| Black Powder Coating | Finished with black powder coating. |
| Grade 8 Hardware Included | Includes 9/16" x 2-1/2" Grade 8 hardware, 16 pieces total. |
Compatibility: Verify before ordering.
Vehicle / System Fit: Hook pintle combo hitch applications requiring a 2" ball.
Installation Notes: Confirm mounting requirements before installation and use the included Grade 8 hardware as specified.
Performance Insight: This hitch is rated for 20,000 lbs maximum gross trailer weight and 4,000 lbs maximum vertical load.
Rated for 20,000 lbs maximum gross trailer weight.
Maximum vertical load is 4,000 lbs.
Built with a 2" ball for compatible hook pintle combo hitch applications.
Constructed from forged steel and finished with black powder coating.
| Quantity | Item |
|---|---|
| 1 | 10 Ton Hook Pintle Combo Hitch with 2" ball |

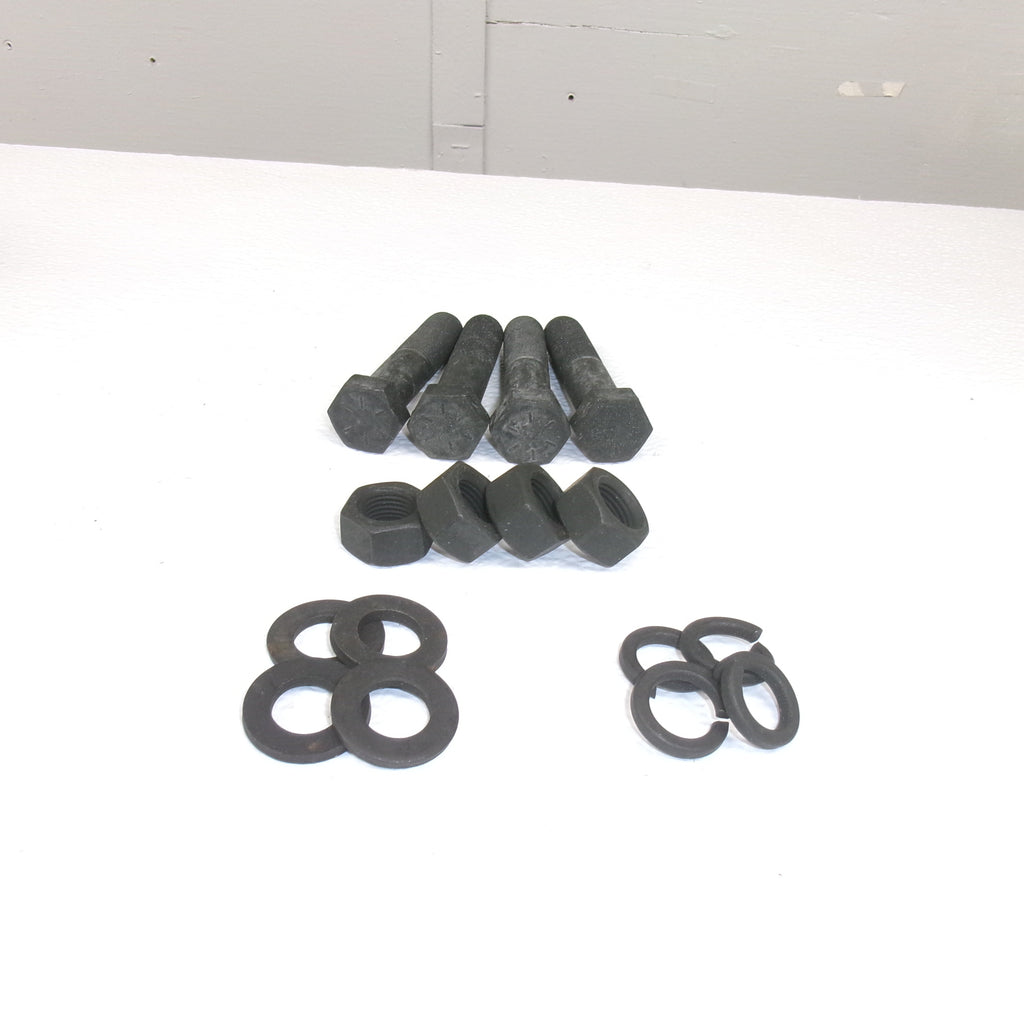

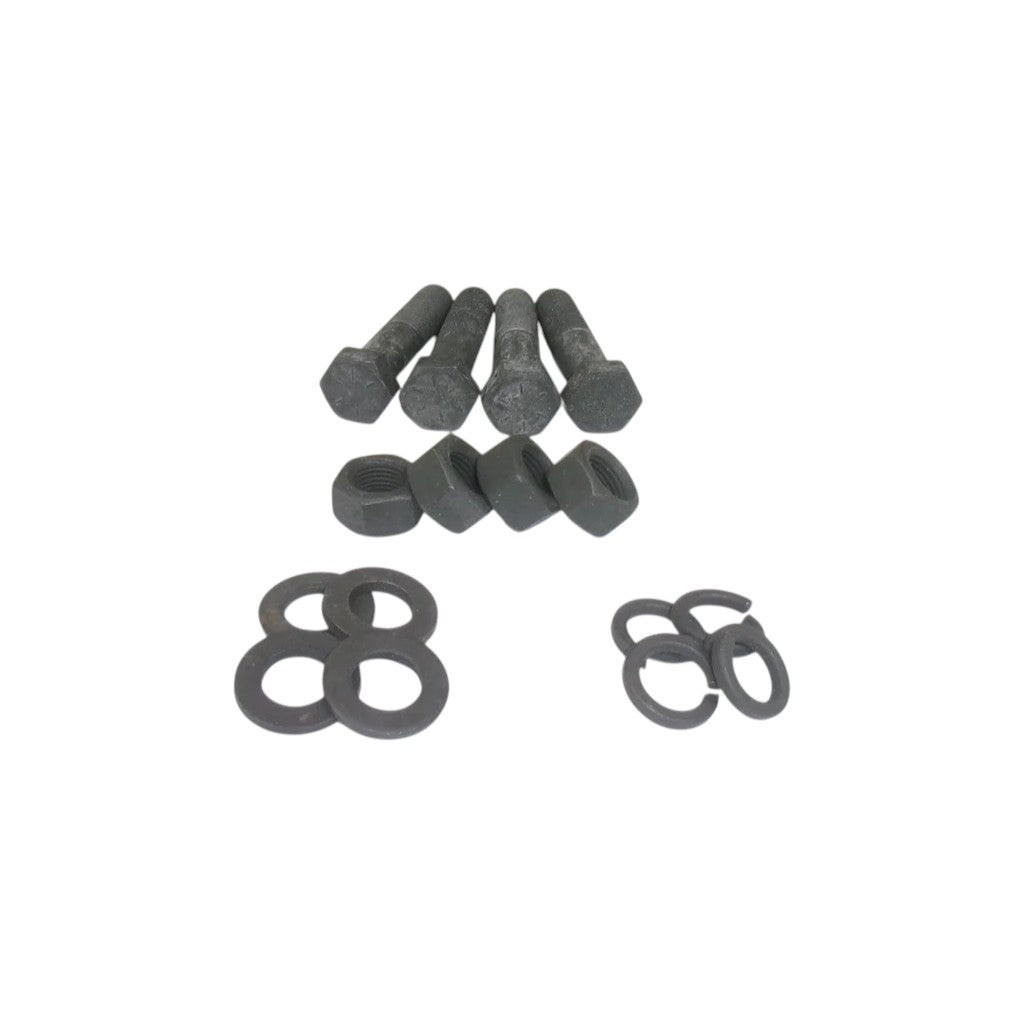

| 16 pieces total | Grade 8 mounting hardware, 9/16" x 2-1/2" |
