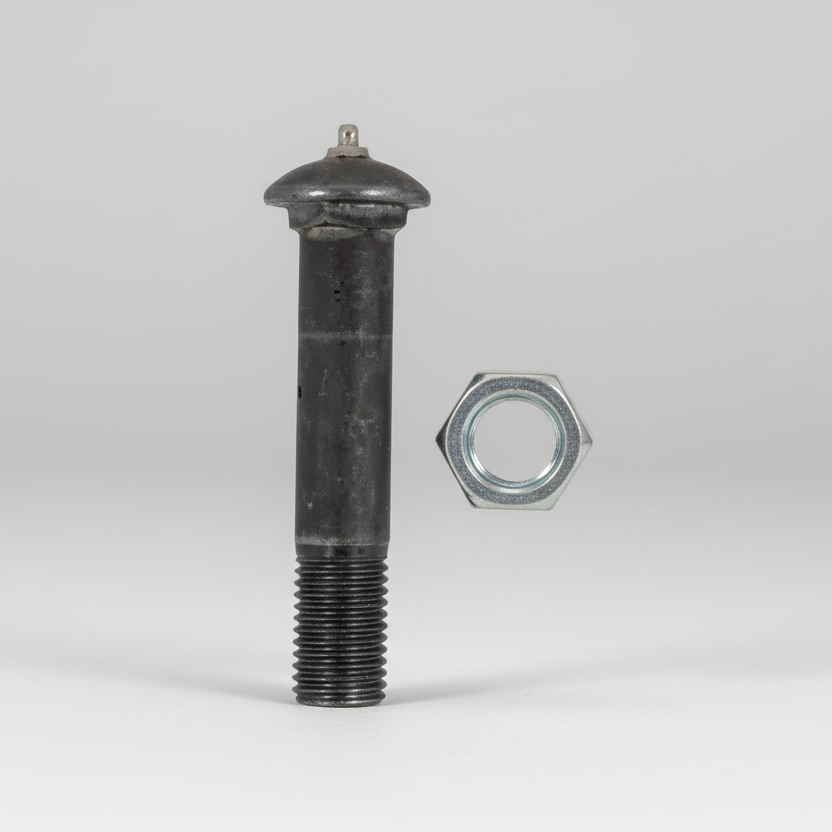

Center Equalizer Suspension Pivot Bolt with Locknut
1" Diameter × 5-1/4" Length
Part Numbers: 007-136-02 (Bolt) & 006-112-00 (Locknut)
Heavy-duty center equalizer pivot bolt designed to attach the equalizer to the center hanger in tandem axle trailer suspension systems. Includes matching locknut for secure installation.
Kit Includes
- 1 – Equalizer Pivot Bolt (007-136-02)
- 1 – Locknut (006-112-00)
Specifications
| Specification | Detail |
| Diameter | 1" |
| Length | 5-1/4" |
| Thread Pitch | 8 Threads Per Inch (1"-8) |
| Grade | Grade 5 |
| Application | Center Equalizer to Hanger Pivot |
R&P Knowledge Hub
The center equalizer pivot bolt is critical to proper tandem axle suspension movement. It allows the equalizer to transfer load between axles while maintaining alignment. Always verify bolt diameter, thread pitch, and overall length before installation, especially on older or modified suspension systems.
The center equalizer pivot bolt is critical to proper tandem axle suspension movement. It allows the equalizer to transfer load between axles while maintaining alignment. Always verify bolt diameter, thread pitch, and overall length before installation, especially on older or modified suspension systems.
Verify dimensions prior to installation.
