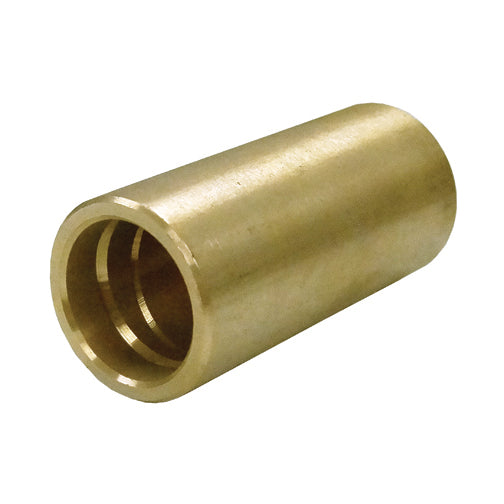

Dexter Bronze Spring Eye Bushing – 10K GD Leaf Spring – 014-111-00
Part Number: 014-111-00
Bronze suspension bushing designed for use in Dexter 10,000 lb General Duty (GD) leaf spring assemblies. Commonly installed in heavy-duty trailer suspension systems where durability and controlled spring movement are required.
This bushing fits applications requiring a 7/8" diameter bolt and is typically found in multi-leaf spring packs used on 10K GD axles.
Features
- Bronze construction for strength and wear resistance
- Designed for heavy-duty 10K GD leaf spring systems
- Compatible with 7/8" diameter bolts
- Used in multi-leaf spring applications
- Quantity: One (1) bushing
R&P Knowledge Hub
Bronze bushings provide a durable wear surface between the suspension bolt
and the spring eye. In 10K GD systems, these bushings help maintain proper
alignment under heavy load conditions. When paired with greaseable hardware,
bronze bushings can reduce long-term wear and friction. Always verify inside
diameter, outside diameter, and overall length before installation.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 014-111-00 |
| Material | Bronze |
| Inside Diameter (ID) | 7/8" |
| Outside Diameter (OD) | 1-1/8" |
| Overall Length | 2-1/2" |
| Application | Dexter 10K GD Leaf Spring Assemblies |
| Quantity | One (1) Bushing |
Verify specifications before installation.
