10MM Angle Bracket 1-1/4" Mount Flange Gas Strut Prop LPB-60 Spring Prop Rod

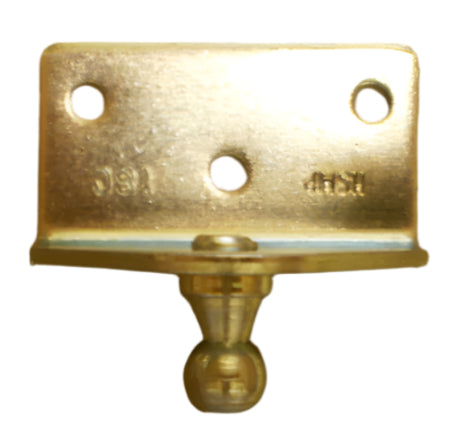

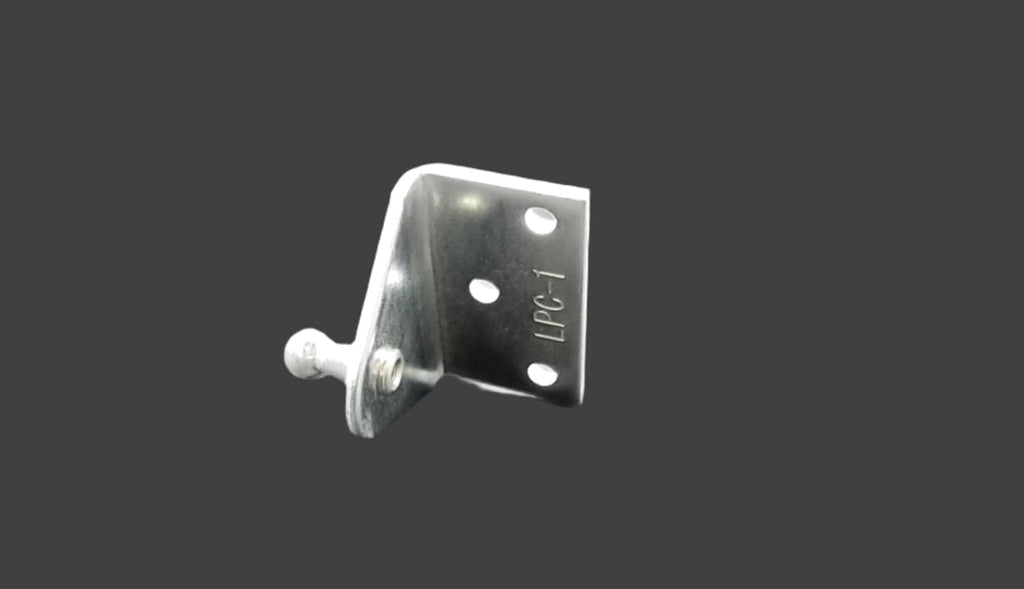

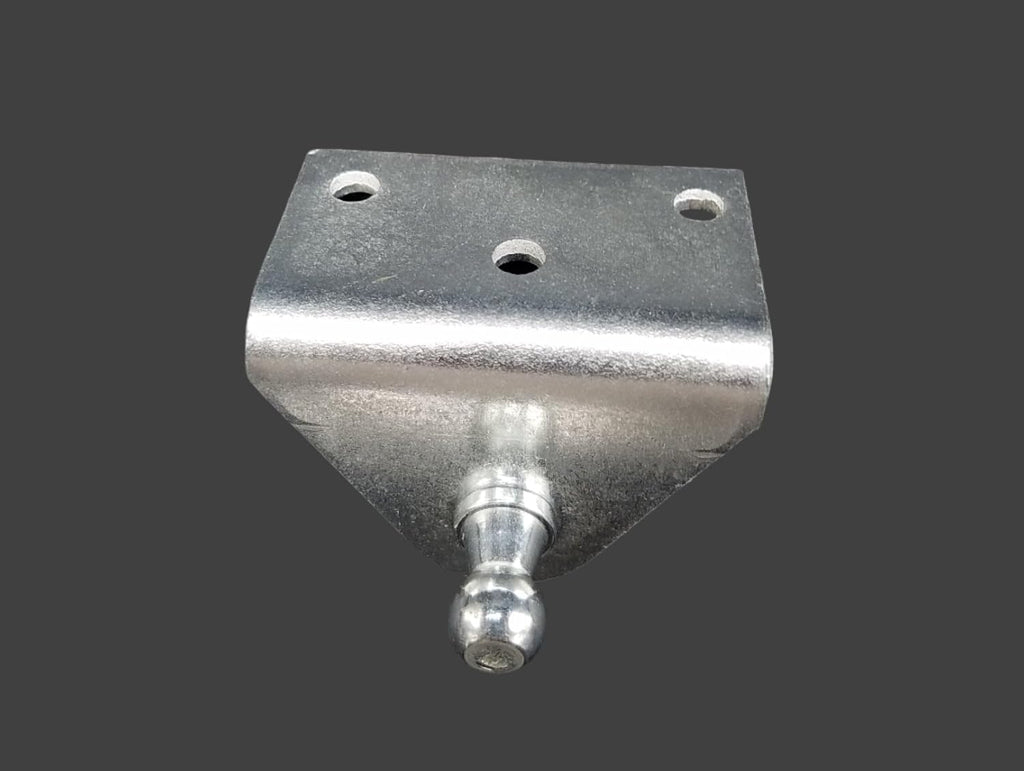

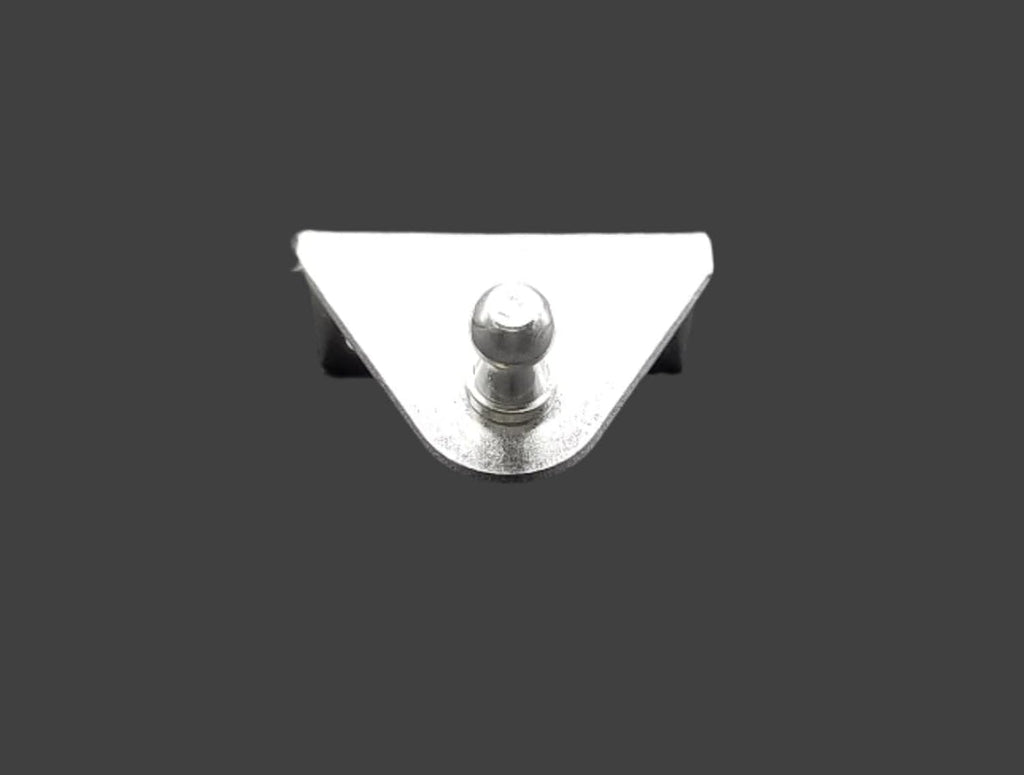

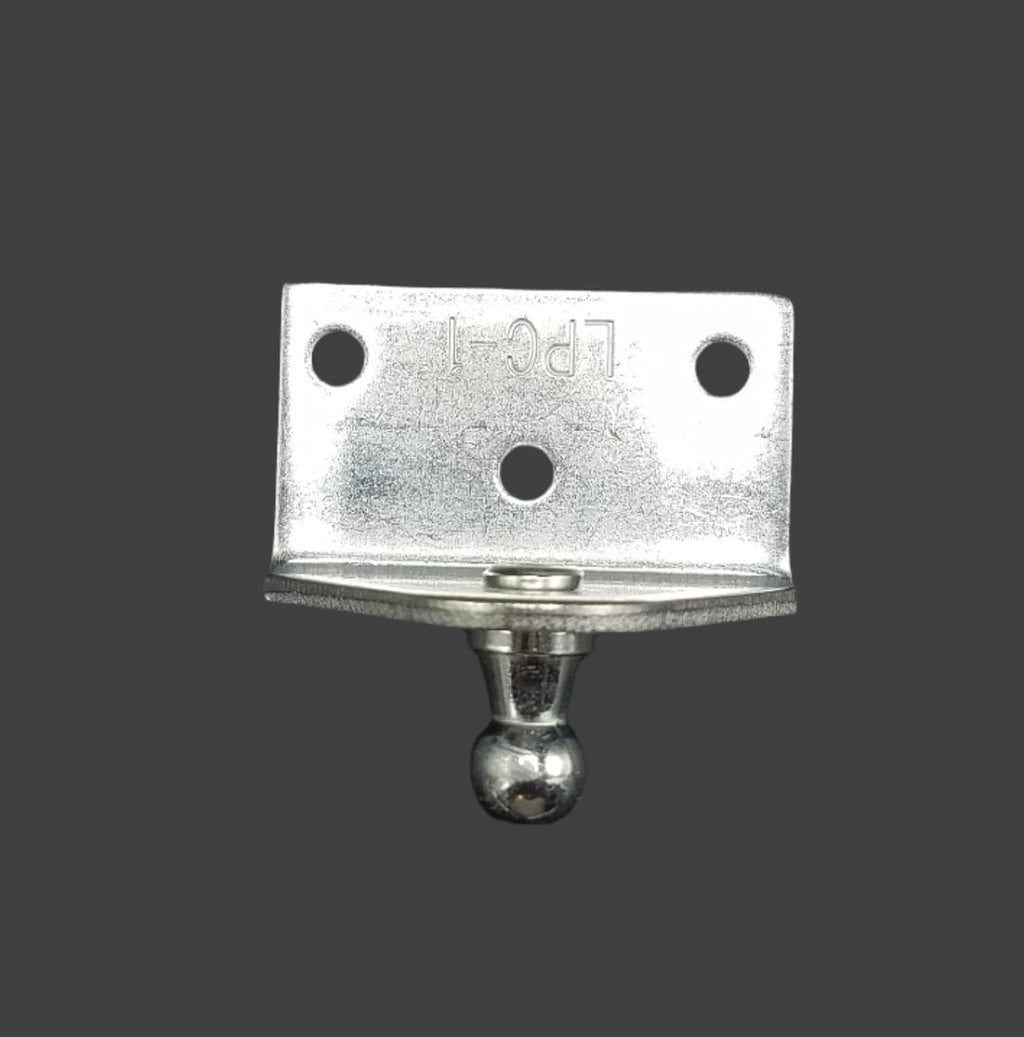

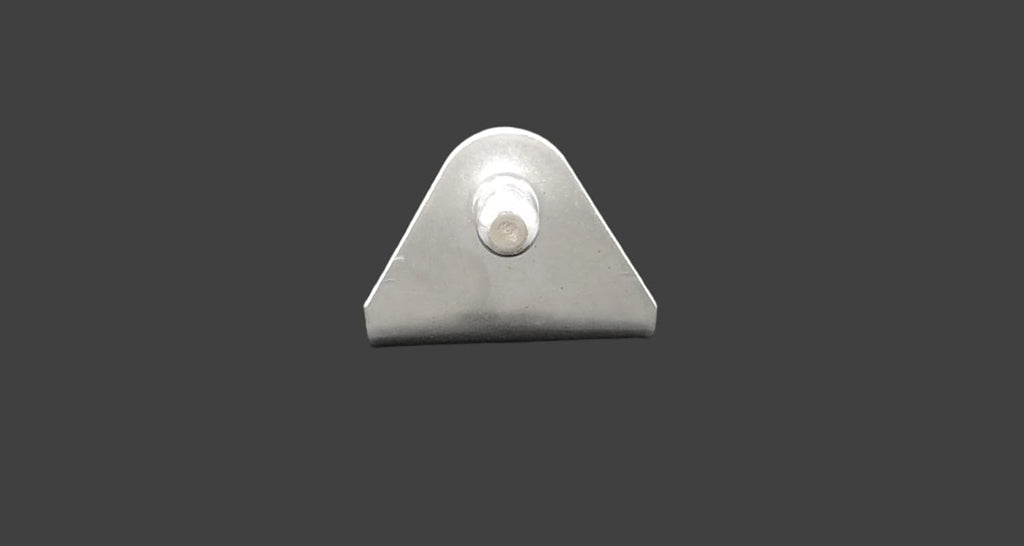

One new L-shaped mounting bracket for compatible 10mm ball-end gas struts. Features a three-hole mounting surface and attached ball stud.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | LPB-60 |
| Brand | R&P Carriages |
| Product Type | Gas strut prop L-bracket |
| Ball Stud Size | 10mm |
| Mounting Flange | 1-1/4" |
| Mounting Surface | Three holes |
| Hole Spacing | 7/8" center to center |
| Overall Length | 2" with ball stud |
| Ball Stud Height | 5/8" from bracket |
| Material / Finish | Steel |
| Quantity Included | One bracket |
Fitment / Application
| Category | Details |
|---|---|
| System | Gas strut and spring prop mounting applications |
| Primary Fit | Compatible 10mm ball-end gas struts |
| Mounting Style | L-shaped bracket with three-hole mounting surface |
| Fitment Method | Match the 10mm ball connection, flange size and mounting-hole spacing. |
| Important Note | Verify the bracket orientation and available mounting space before ordering. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| 10mm Ball Stud | Works with compatible 10mm ball-end gas struts. |
| Three-Hole Surface | Provides three mounting points on the flange. |
| 7/8" Hole Spacing | Allows the mounting pattern to be measured before ordering. |
| Compact L-Bracket | Measures 2" long with the ball stud. |
Overview
The LPB-60 is a single L-shaped mounting bracket for compatible gas struts. It includes an attached 10mm ball stud, a 1-1/4" flange and a three-hole mounting surface.
R&P Service Insight
Compare the connection size and mounting measurements with the existing bracket or intended mounting area before installation.
- Ball Connection: Confirm that the gas strut uses a 10mm ball-end connection.
- Mounting Pattern: Verify the three-hole surface and 7/8" center-to-center spacing.
- Bracket Position: Confirm that the L-shaped orientation matches the intended installation.
R&P Knowledge Hub
Compatibility: Designed for compatible gas struts using a 10mm ball-end connection.
System Fit: Used as a mounting point for gas-strut and spring-prop applications.
Installation Notes: Confirm the mounting surface, hole spacing, bracket orientation and available clearance before installation.
Measurement Insight: The complete bracket measures 2" long with the ball stud, which extends 5/8" from the bracket.
Brand & Fitment Note
Selling Brand: Not specified.
Application Reference: LPB-60 identifies the listed bracket configuration and measurements.
What This Means: This listing is for one LPB-60 gas-strut prop L-bracket with an attached 10mm ball stud.
Before Ordering: Verify the ball size, mounting-flange width, hole spacing, bracket orientation and included components.
R&P Repair Insight
When replacing an existing bracket, compare all listed measurements rather than relying on the ball-stud size alone.
- Connection Check: Confirm that the strut socket accepts a 10mm ball stud.
- Spacing Check: Measure the mounting-hole locations from center to center.
- Clearance Check: Confirm adequate space for the 5/8" ball-stud height.
Features
10mm Ball-End Connection
The attached ball stud works with compatible gas struts using a 10mm ball-end connection.
Three-Hole Mounting Surface
The bracket includes three mounting holes spaced 7/8" apart from center to center.
1-1/4" Mounting Flange
The listed flange measurement helps buyers compare the bracket with the intended mounting surface.
Compact L-Bracket Design
The bracket measures 2" long with the ball stud, which extends 5/8" from the bracket.
Included Components
| Quantity | Item |
|---|---|
| 1 | LPB-60 L-shaped gas-strut prop bracket with attached 10mm ball stud |
| Not Included | Mounting hardware |
