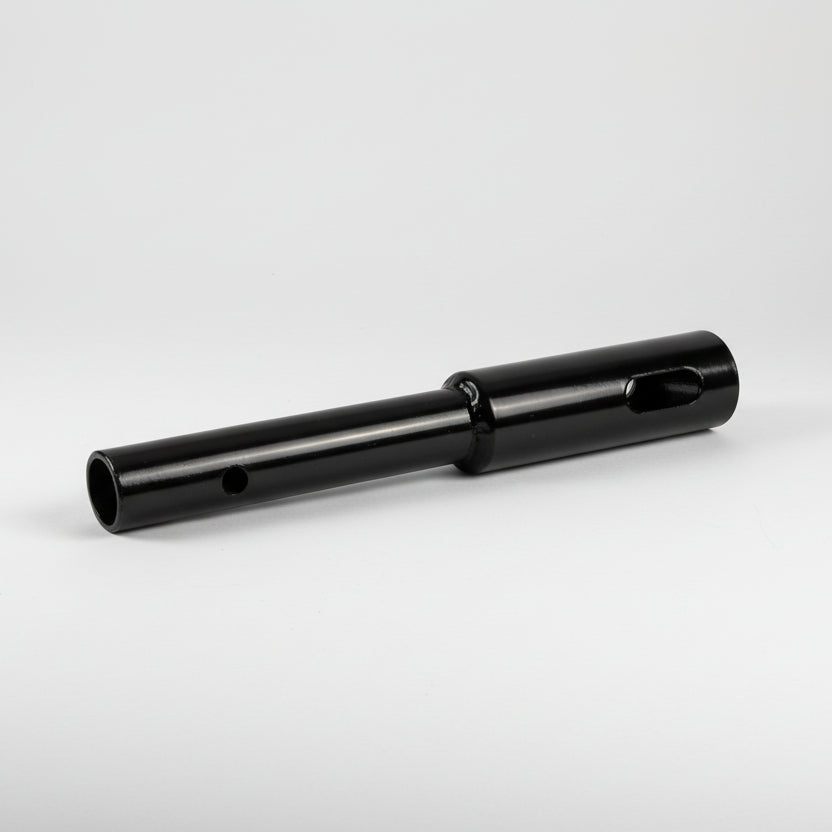

12,000 lb Trailer Jack Handle Extension – Sure-Trac (ST7236S)

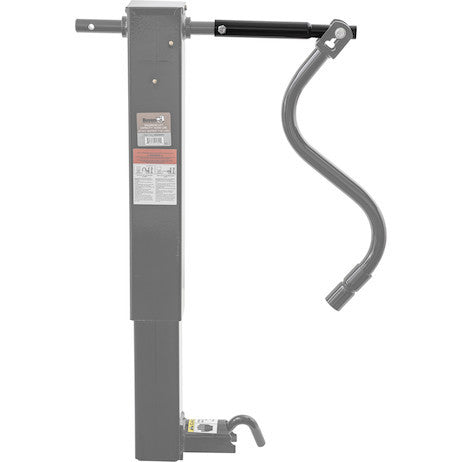

Jack handle extension designed for compatible heavy-duty trailer jacks rated up to 12,000 lb, providing added reach and leverage for equipment, utility, and commercial trailer applications.
R&P Knowledge Hub
Compatibility: Intended for compatible heavy-duty trailer jack setups up to 12,000 lb where additional handle reach is needed.
Vehicle / System Fit: Common on equipment, utility, and commercial trailers using heavy-duty jack assemblies.
Installation Notes: Extension only. Jack and original handle are not included. Verify handle diameter and fitment before installation.
Performance Insight: A handle extension can improve crank access and leverage where jack placement, trailer frame clearance, or accessory layout makes standard operation less convenient.
R&P Service Insight
Jack handle extensions are commonly added when operators need better crank access, added leverage, or improved clearance around the trailer tongue and front-mounted equipment.
- Access: Helps reach jack handles that sit close to toolboxes, couplers, or trailer frames
- Leverage: Added handle length can make heavy-duty jack operation more manageable
- Fitment: Matching the handle connection is critical before installation
Features
- Designed for heavy-duty trailer jack applications up to 12,000 lb
- Provides added reach and leverage for compatible jack handles
- Useful where extra clearance is needed during jack operation
- Sold individually as a jack handle extension only
Specifications
| Specification | Detail |
| Type | Jack handle extension |
| Application | Heavy-duty trailer jacks up to 12,000 lb |
| Fitment | Compatible heavy-duty trailer jack handle setups |
| Brand / Source | Sure-Trac |
| Quantity | Sold individually |
| Part Number | ST7236S |
Measured Dimensions
To help verify fitment on this 12,000 lb trailer jack handle extension, the key dimensions below are taken from the actual part shown. These measurements are intended to assist with handle-side compatibility and insertion depth.
| Measurement | Detail |

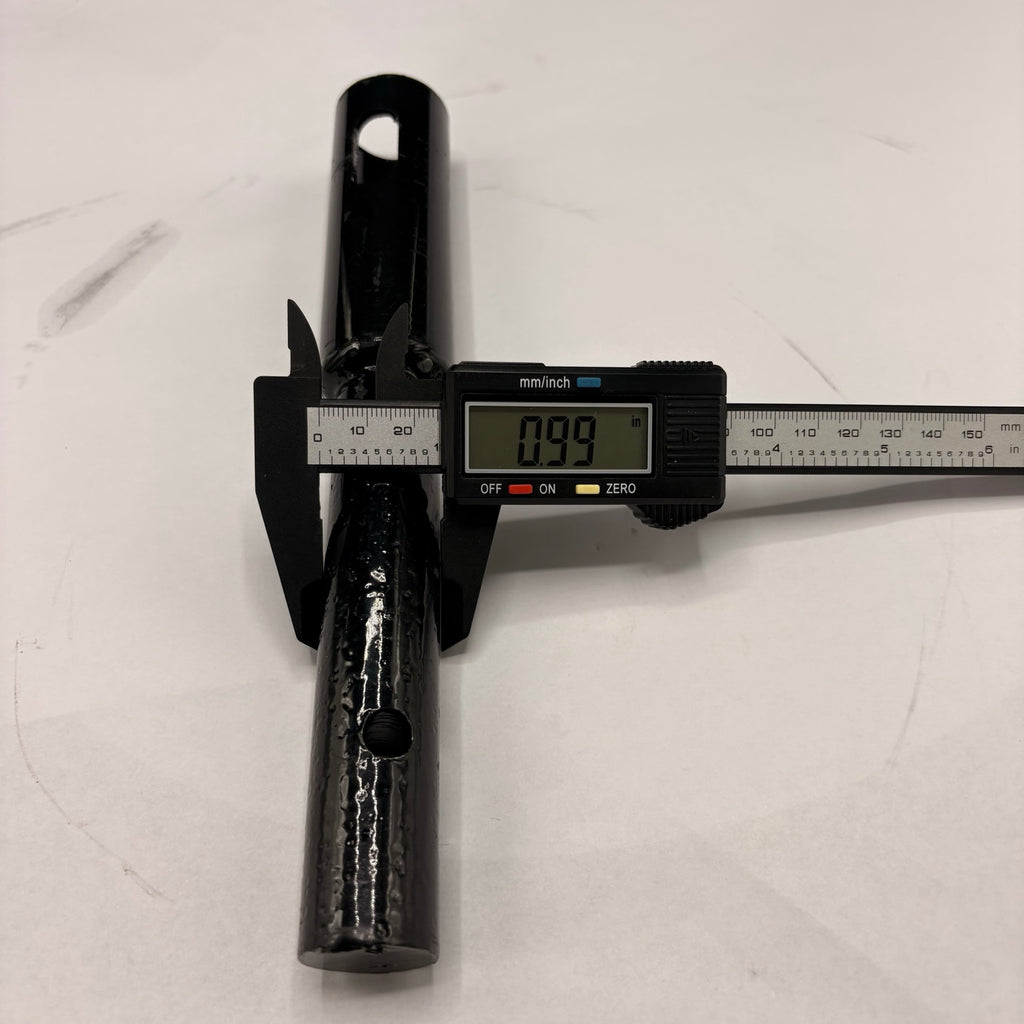

| Inner Shaft Outside Diameter | 0.99" approx. |

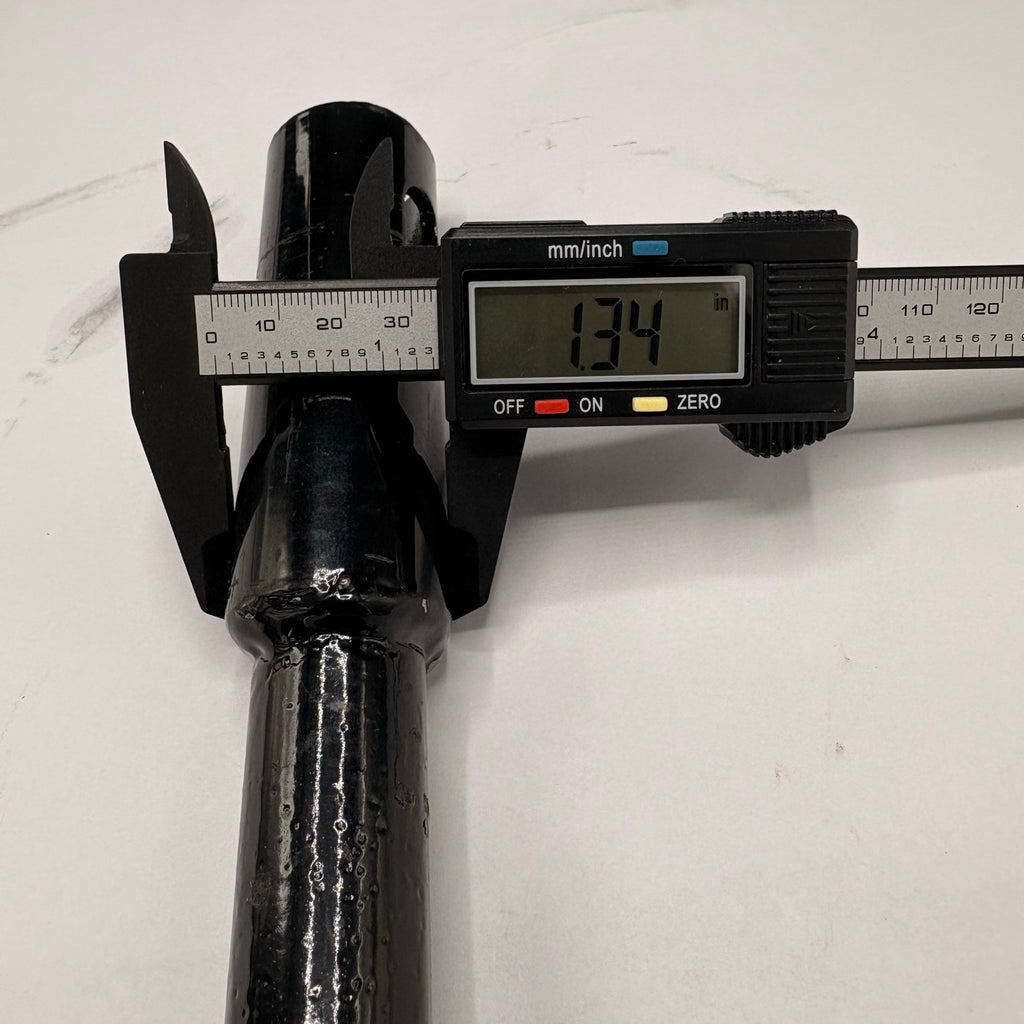

| Outer Sleeve Outside Diameter | 1.34" approx. |

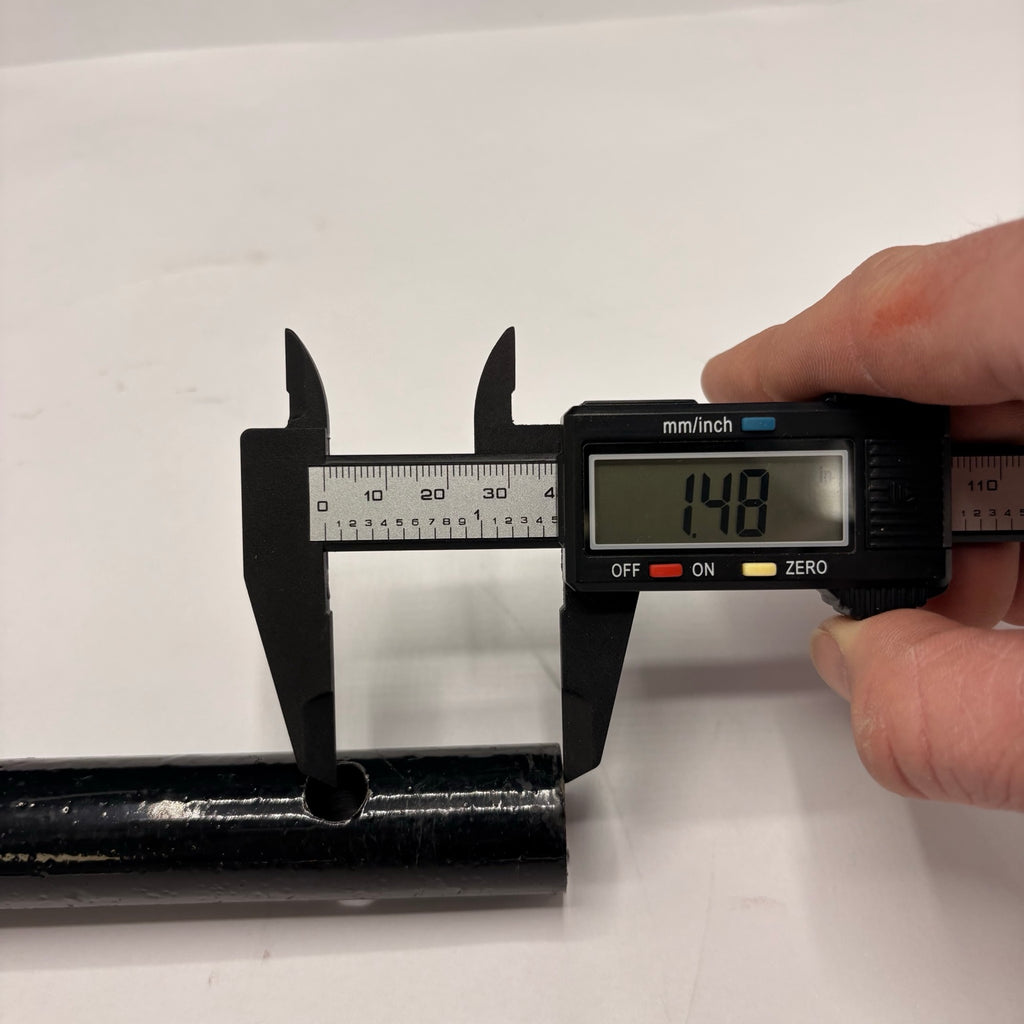

| End to Center of Round Pin Hole | 1.48" approx. |
| Hole to Hole | 6.04" approx. |

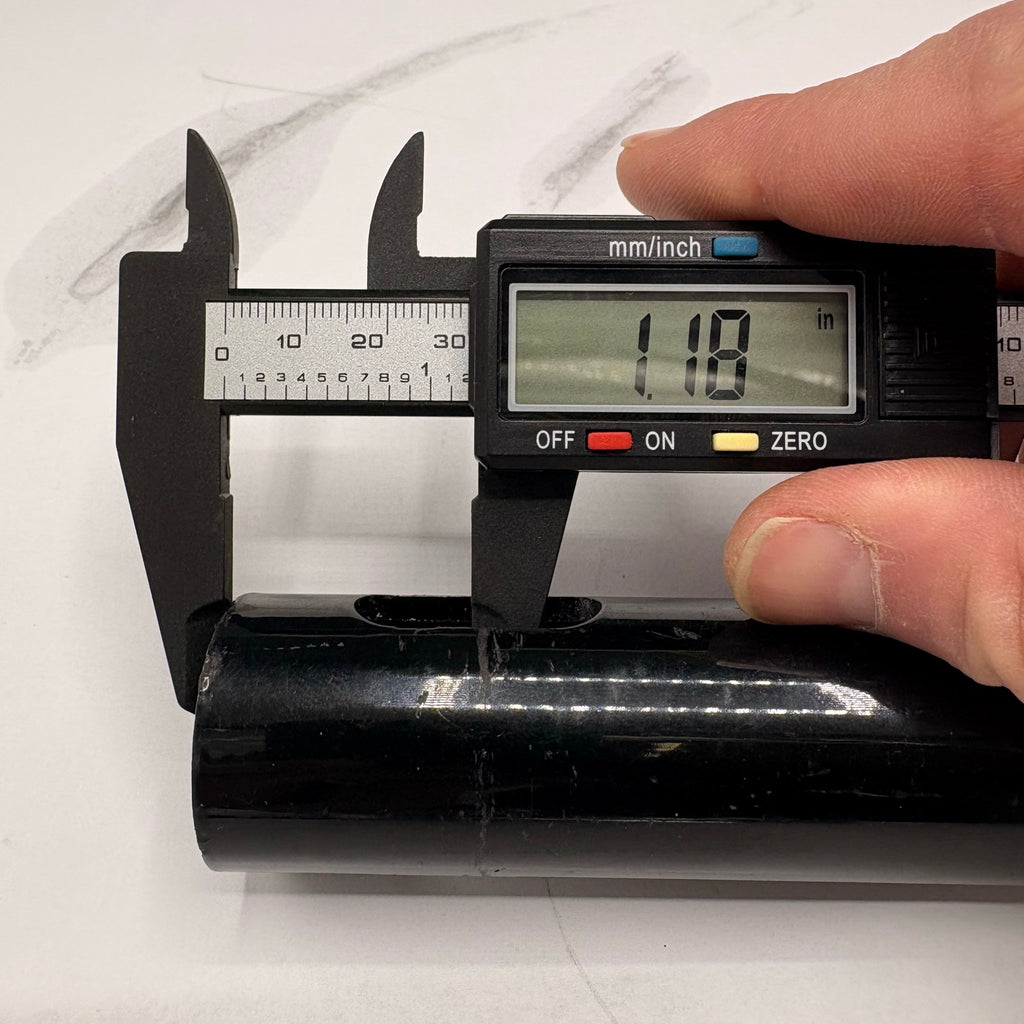

| Slotted Opening Length | 1.18" approx. |

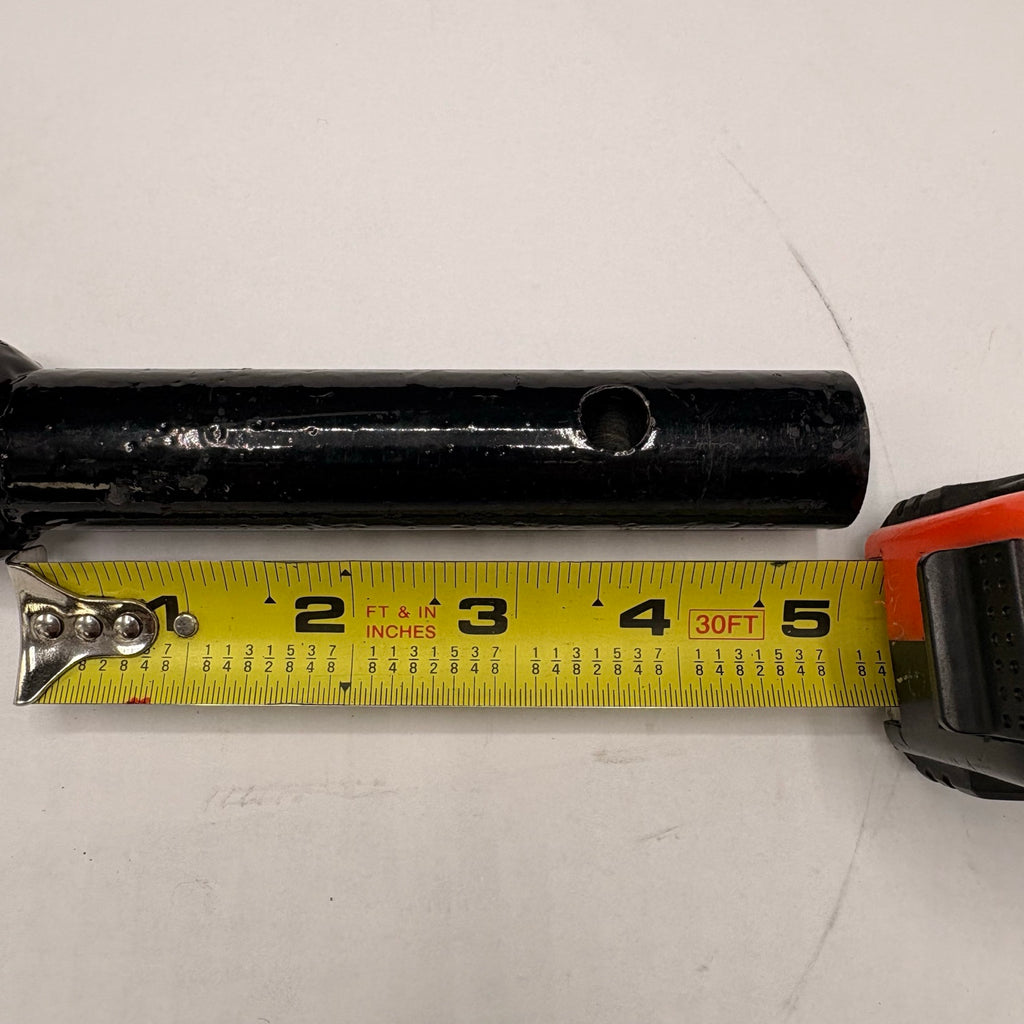

| Visible Inner Shaft Length | 4.5" approx. |

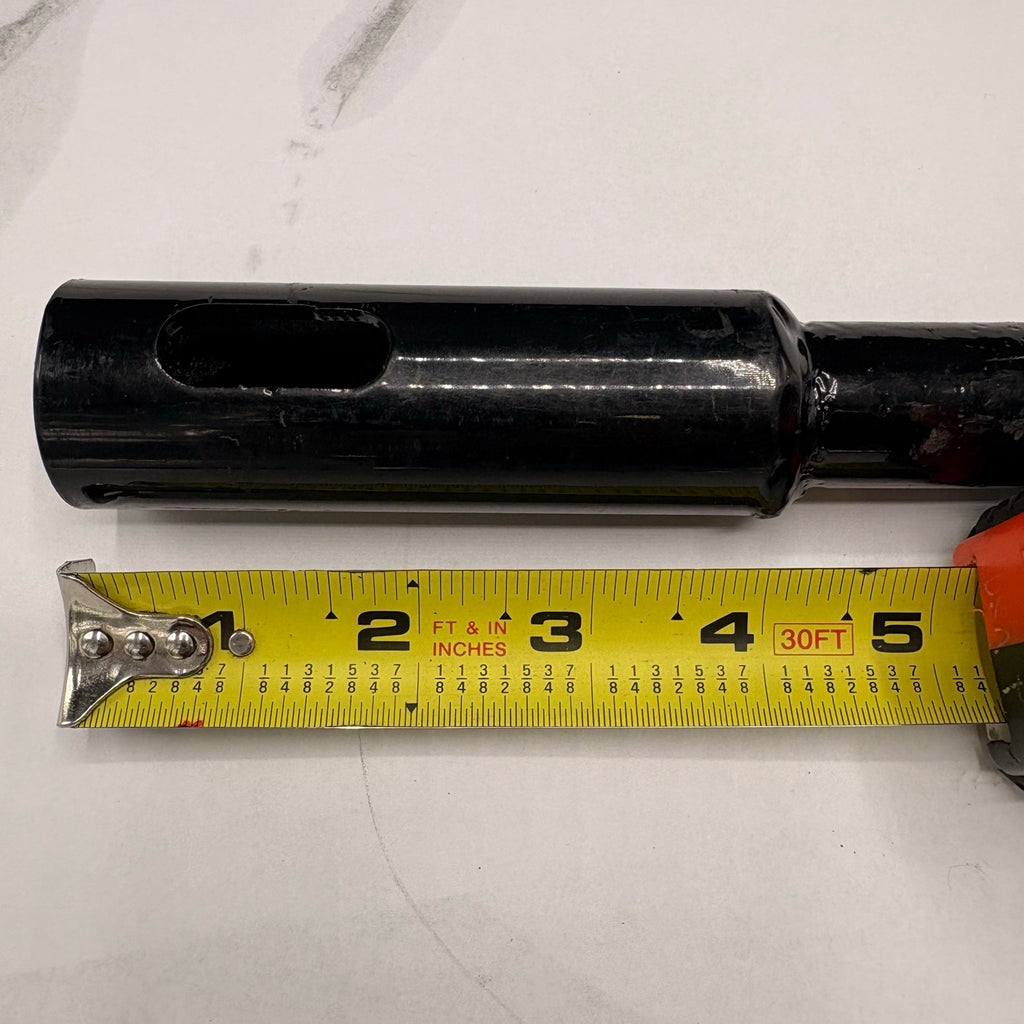

| Visible Outer Sleeve Length | 4.5" approx. |
Important: These are approximate hand-taken measurements from the extension itself and should be used as a fitment reference only. Please compare your jack handle connection point, pin location, and receiving dimensions before purchase.
Fitment / Application
| Category | Details |
| Vehicle / System | Equipment, utility, and commercial trailers using compatible heavy-duty jacks |
| Axle / Capacity | Jack applications up to 12,000 lb |
| Notes | Extension only. Verify handle diameter, connection style, pin-hole location, and overall fitment before installation. |
Included Components
| Quantity | Item |
| 1 | Trailer jack handle extension |
Verify all specifications, handle dimensions, and compatibility before installation.
