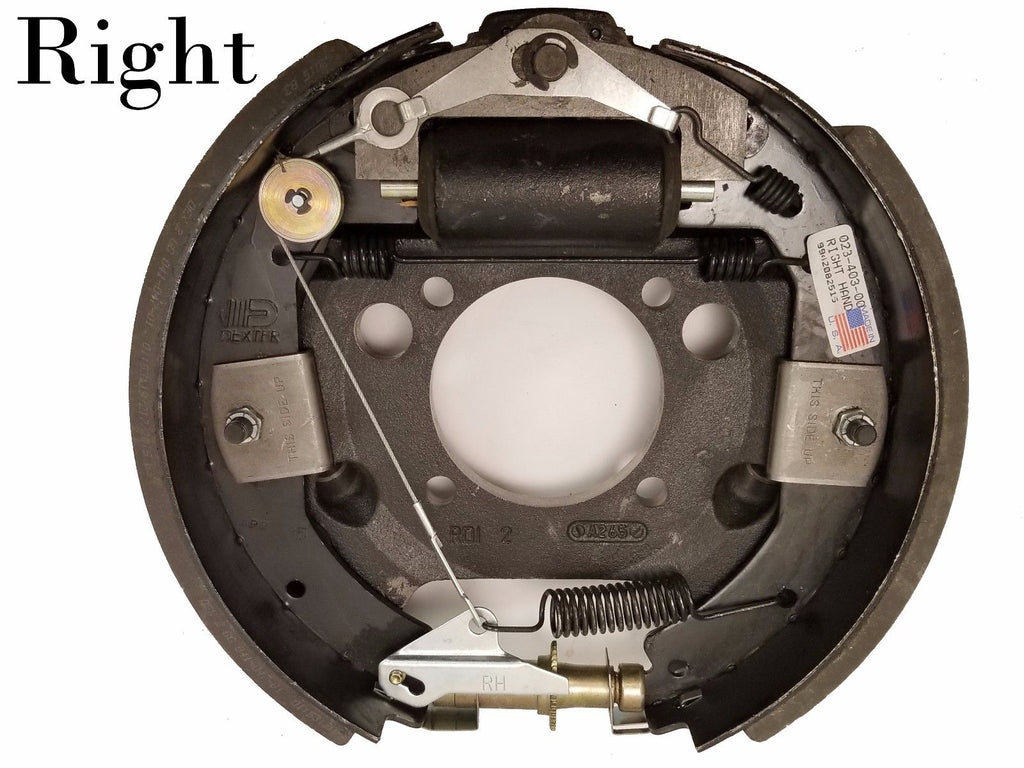

Dexter 12.25" x 3.375" Hydraulic Brake Assembly – 8,000 lb Axle – Right Hand – 4 Bolt
Genuine Dexter 12.25" x 3.375" hydraulic brake backing plate assembly designed for 8,000 lb trailer axles. Right-hand configuration (passenger side). Mounts to a 4-bolt brake flange and is used with hydraulic surge or electric-over-hydraulic brake systems.
This assembly is intended for hydraulic drum brake systems only and cannot be used with electric brake systems.
Features
- 12.25" diameter x 3.375" wide brake assembly
- Designed for 8,000 lb axle applications
- Hydraulic duo-servo design
- Right-hand (passenger side) orientation
- 4-bolt mounting flange configuration
- Genuine Dexter component
R&P Knowledge Hub
Hydraulic trailer brake assemblies use fluid pressure from a surge actuator or electric-over-hydraulic system to expand the brake shoes against the drum surface.
The duo-servo design provides self-energizing braking in both forward and reverse directions, which improves stopping efficiency under heavy loads. Brake assemblies are side-specific and must match the correct left or right orientation.
Before ordering, verify brake size (12.25" x 3.375"), axle rating (8,000 lb), 4-bolt flange configuration, and proper side.
Specifications
| Specification | Detail |
| Manufacturer | Dexter |
| Brake Diameter | 12.25 Inches |
| Brake Width | 3.375 Inches |
| Axle Capacity | 8,000 lbs |
| Mounting Pattern | 4 Bolt Flange |
| Orientation | Right Hand (Passenger Side) |
| Brake Type | Hydraulic Duo-Servo |
Verify specifications before installation.
