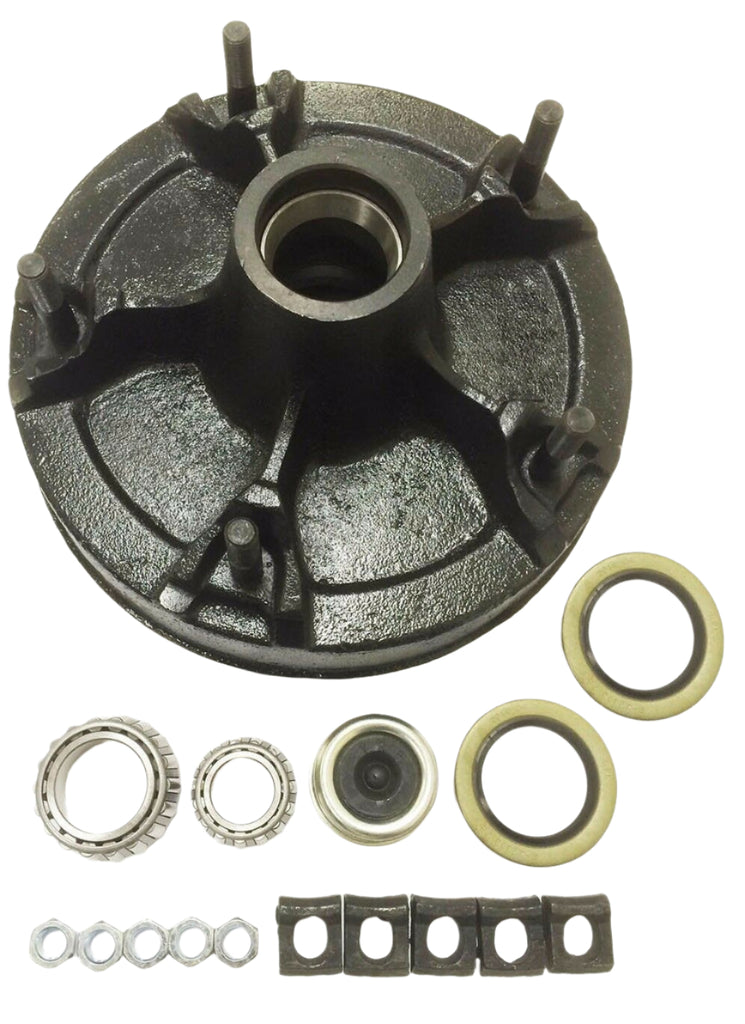

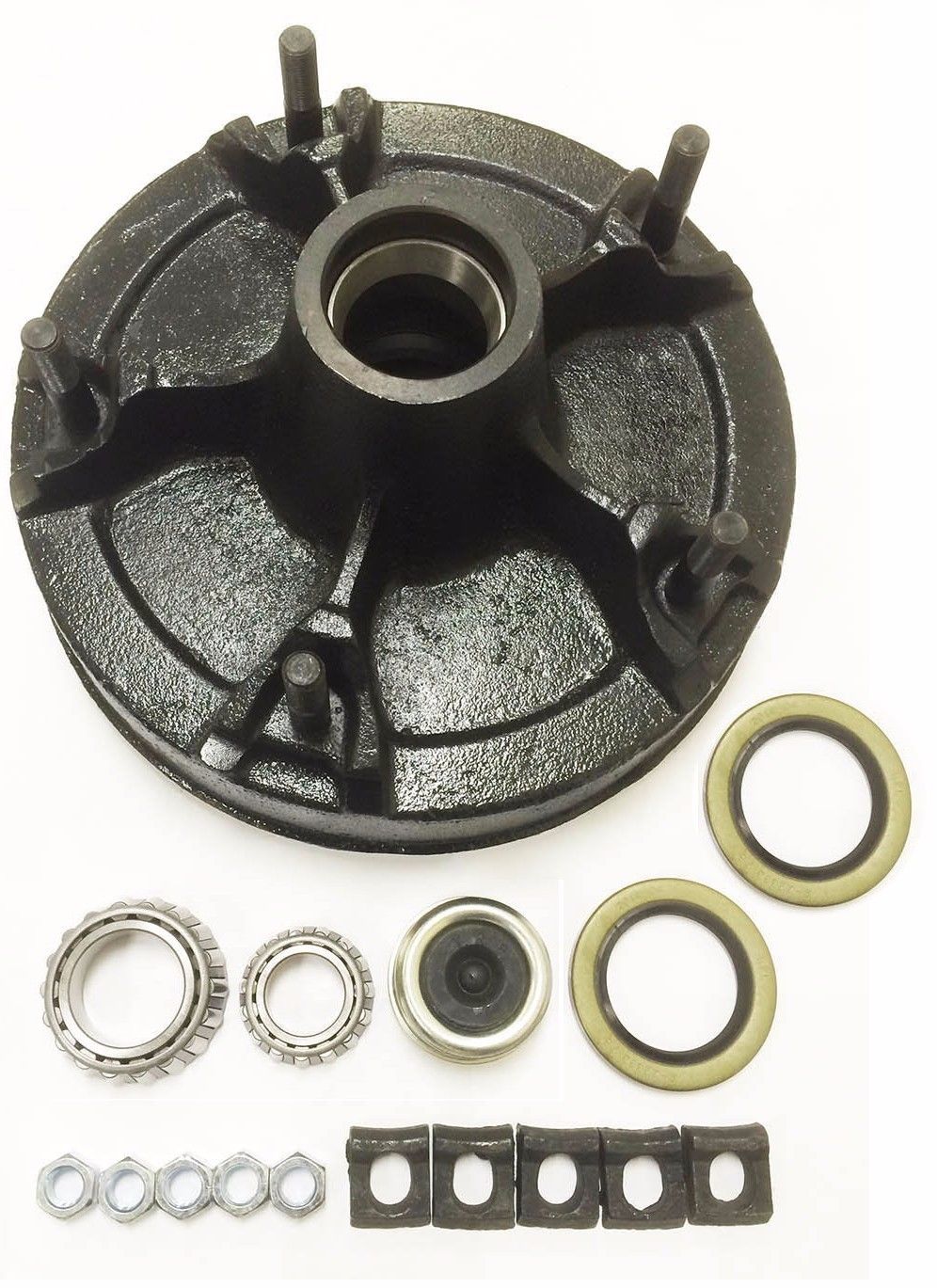

12" x 2" Mobile Home Trailer Brake Drum – 5 Lug
Part Number: 8-174

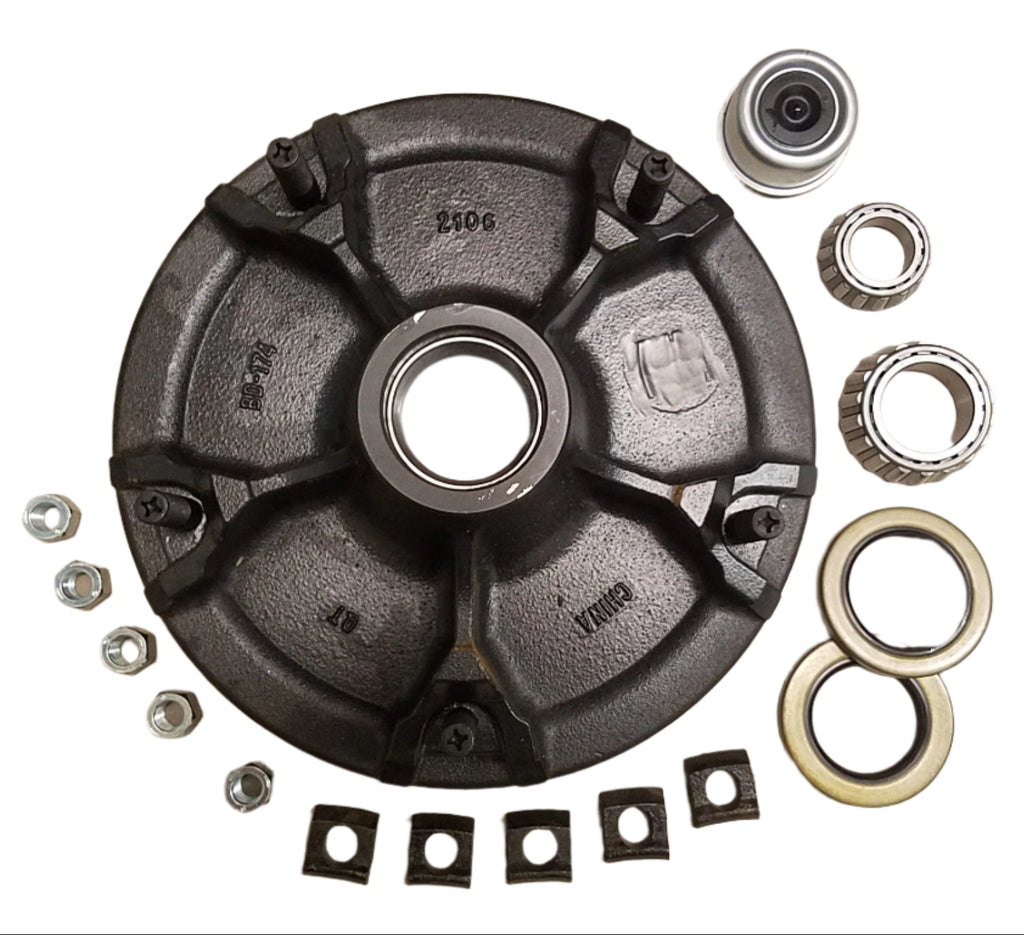

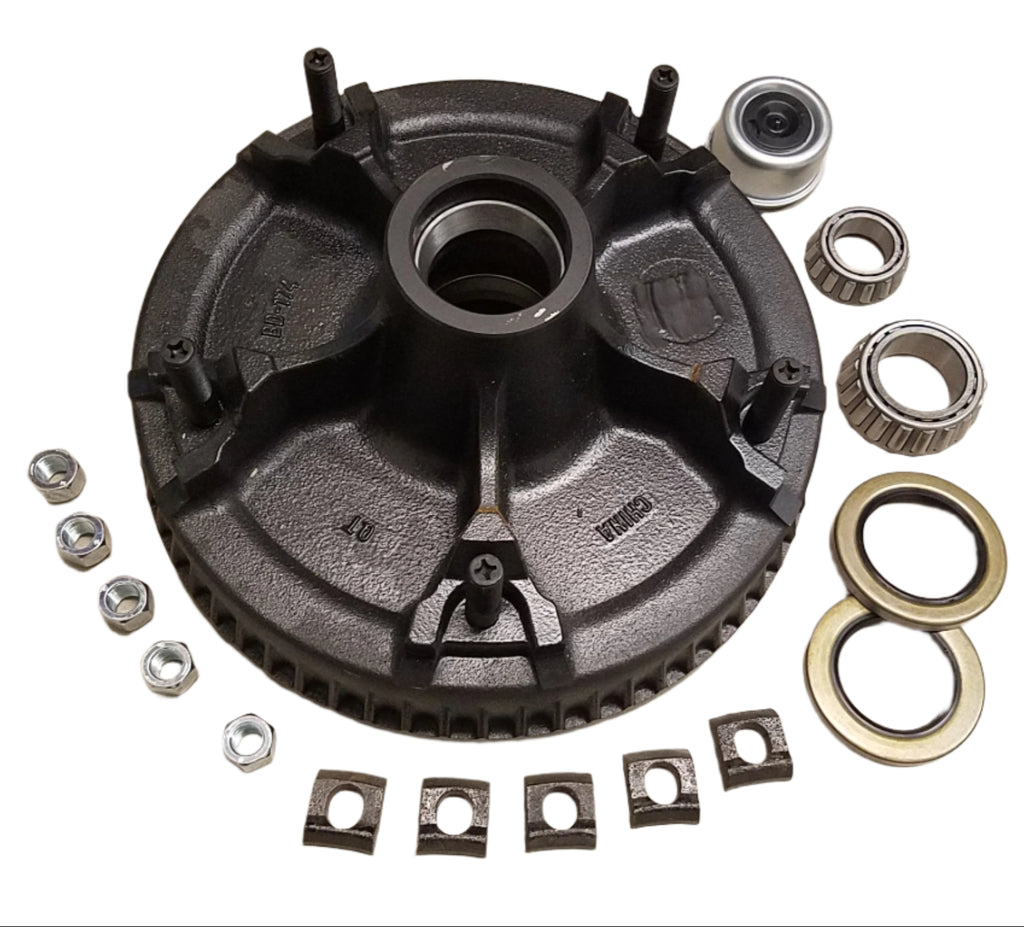

This mobile home–style brake drum is designed for trailers using 12" x 2" electric brake assemblies and a 5-lug on mobile home pattern. It is commonly used on utility and equipment trailers built with former mobile home axles. Bearings are included loose for service or replacement use.
Features
- Fits standard 12" x 2" electric brake backing plates
- Mobile home–style 5-lug drum configuration

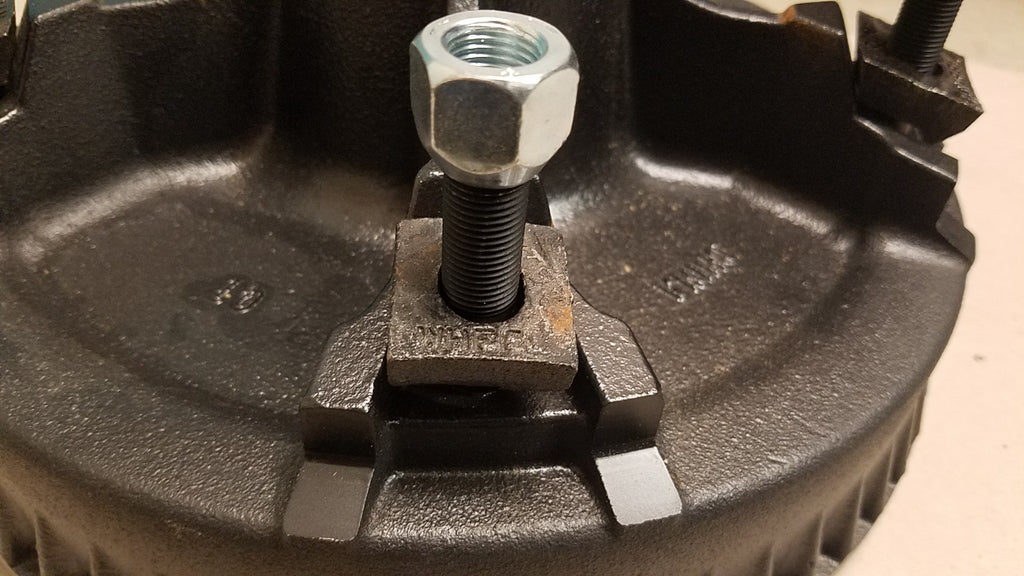

- Studs measure 9/16" diameter x 2-1/4" long
- Designed for use on former mobile home or utility axles
Specifications
| Brake Size | 12" x 2" |
| Wheel Bolt Pattern | 5 lug mobile home pattern |
| Stud Size | 9/16" x 2-1/4" |

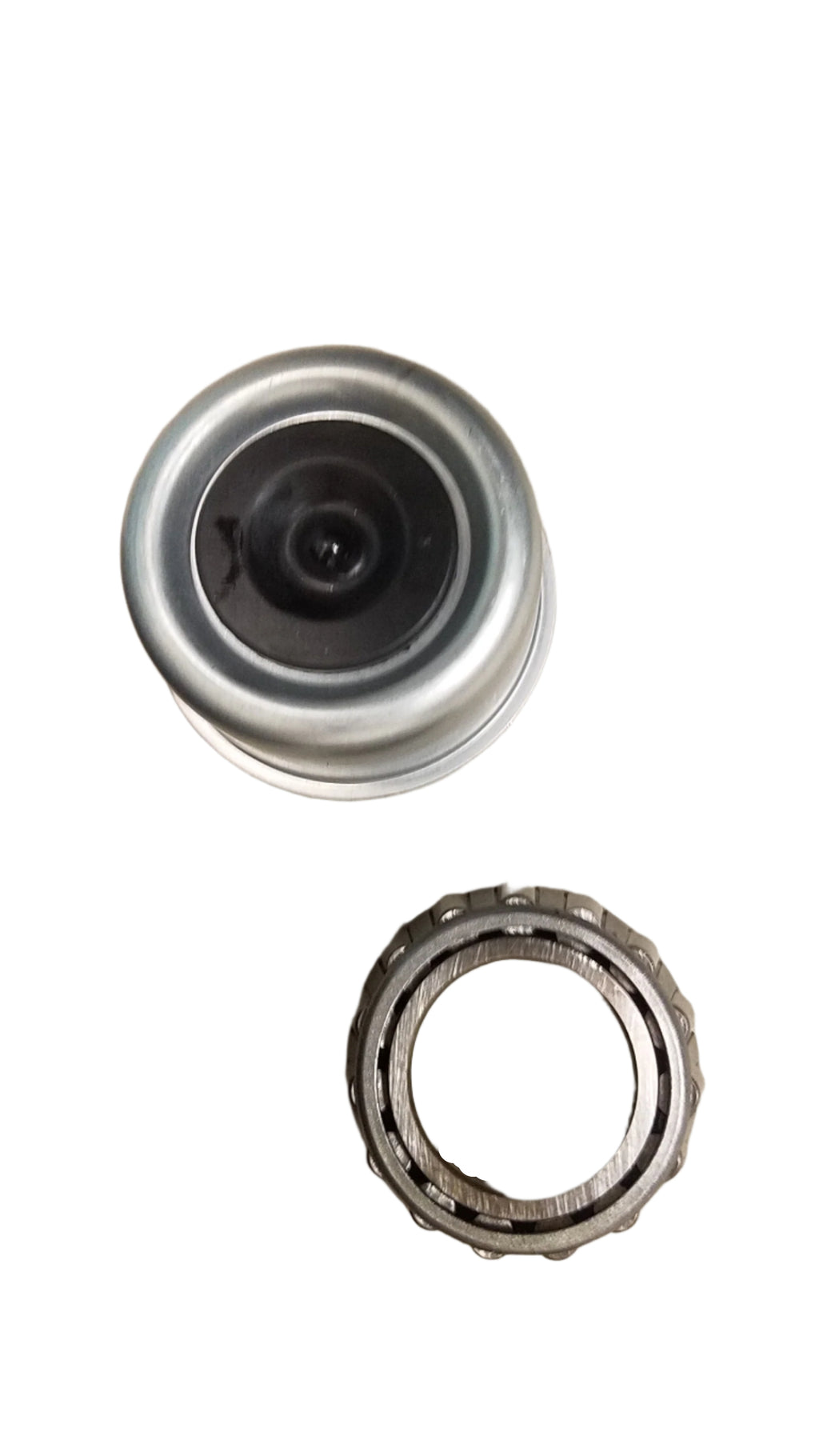

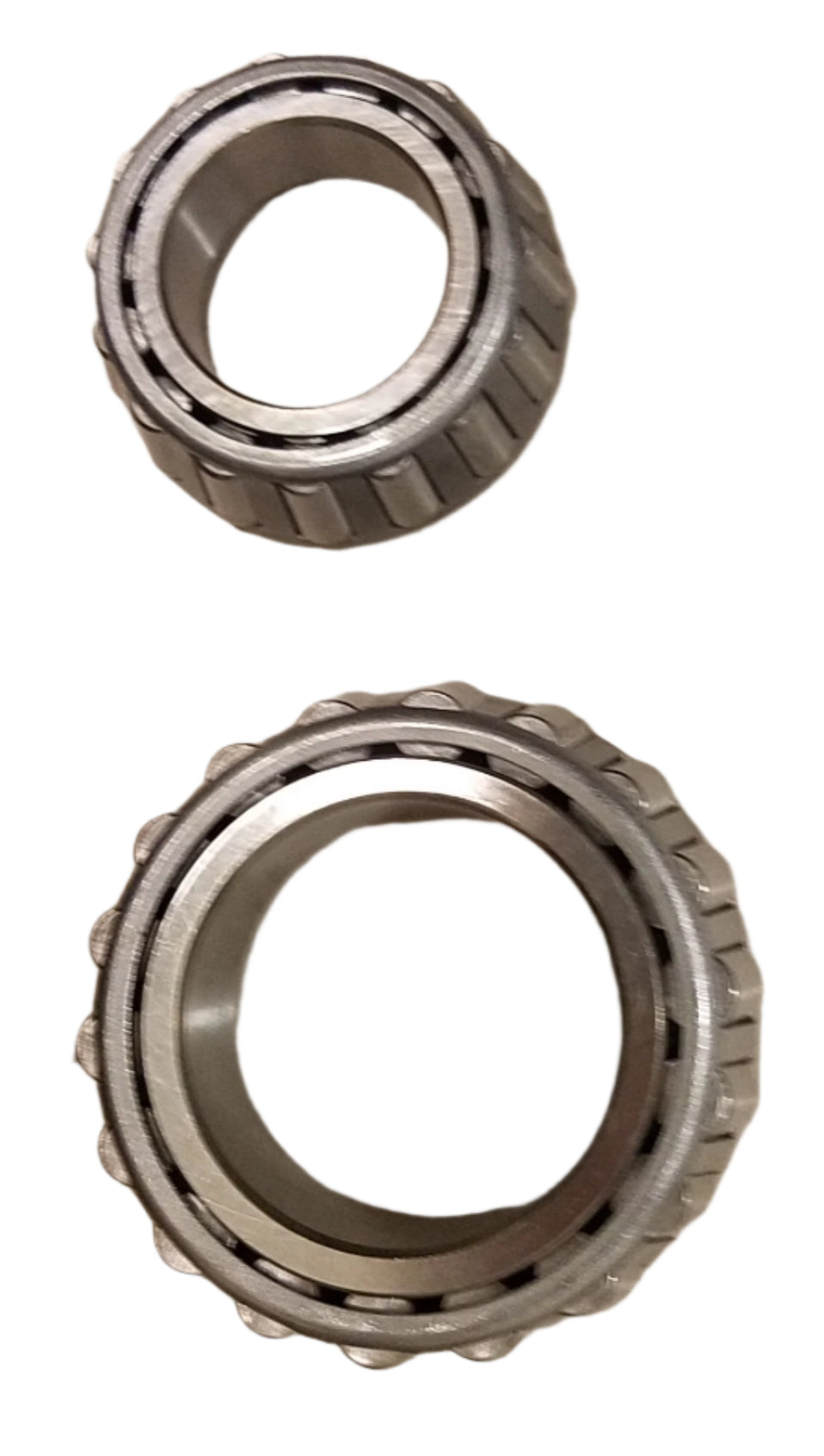

| Inner Bearing | 25580 (1.75" ID, loose) |
| Outer Bearing | 15123 (1.25" ID, loose) |
| Bearing Races | 25520 (inner), 15123 (outer) |

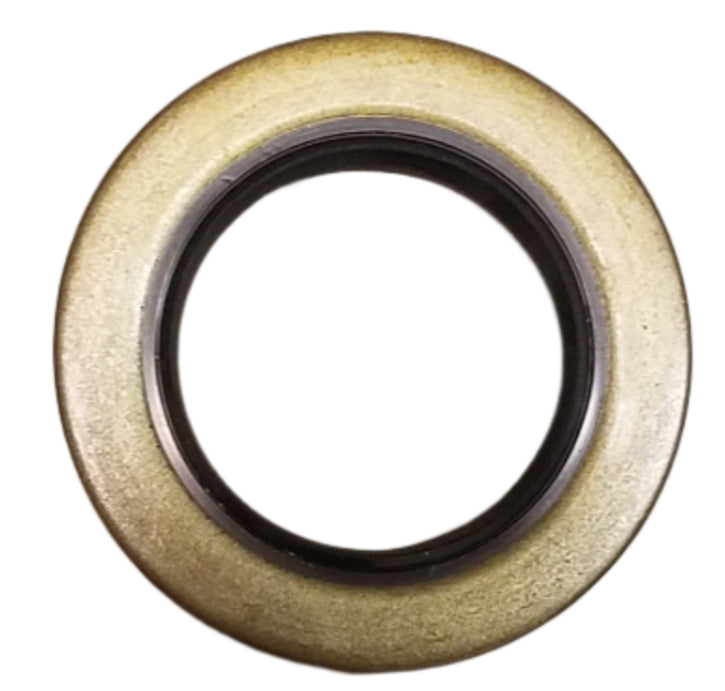

| Grease Seal | 2.25" seal – 10-36 |

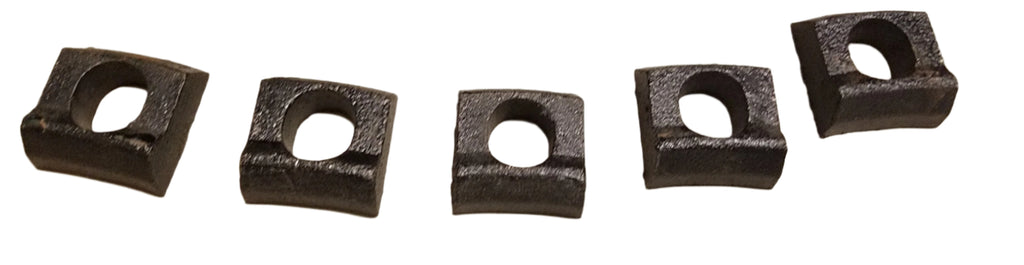

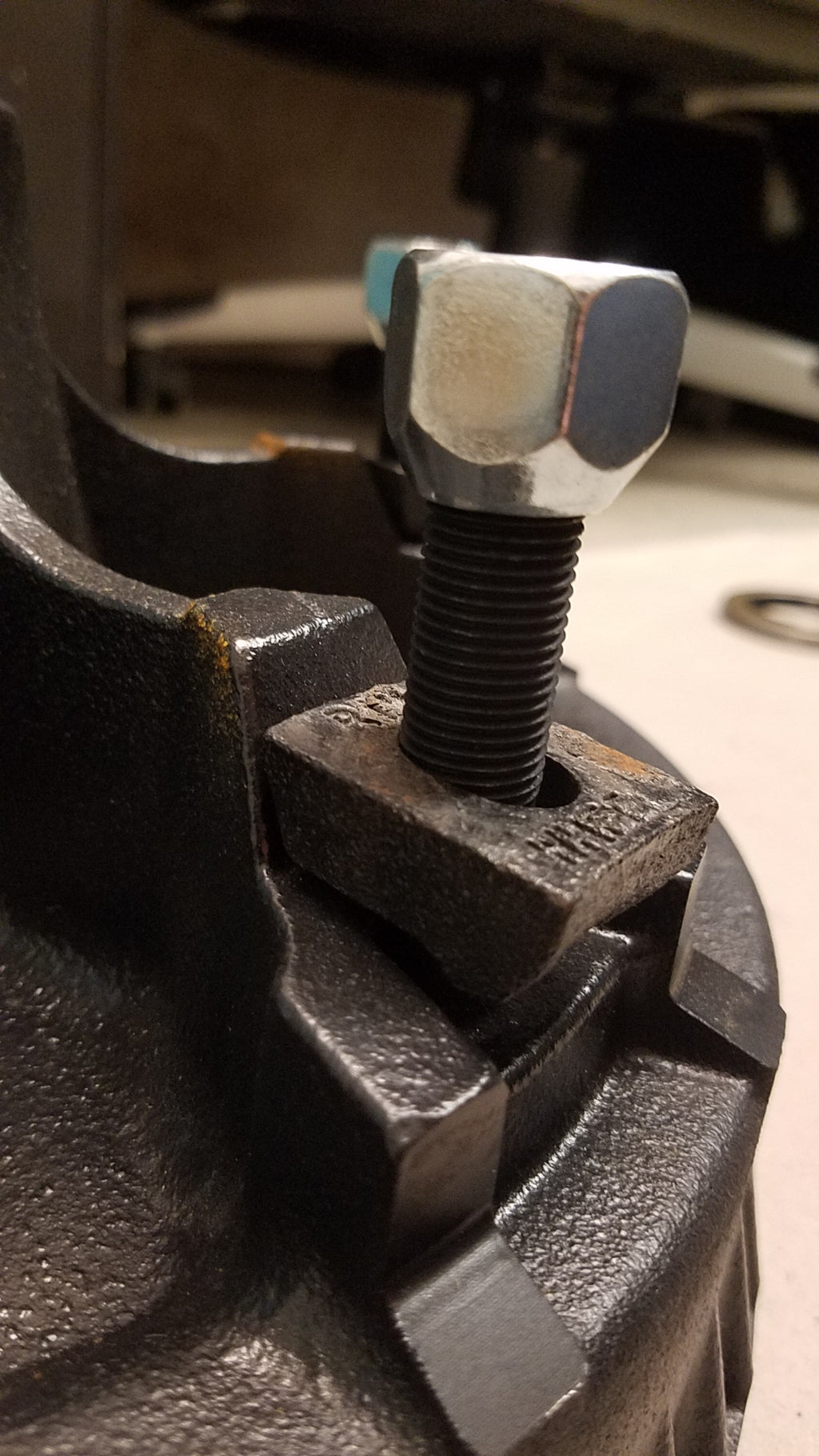

| Included Clamps | Five mobile home rim clamps (15-2) |

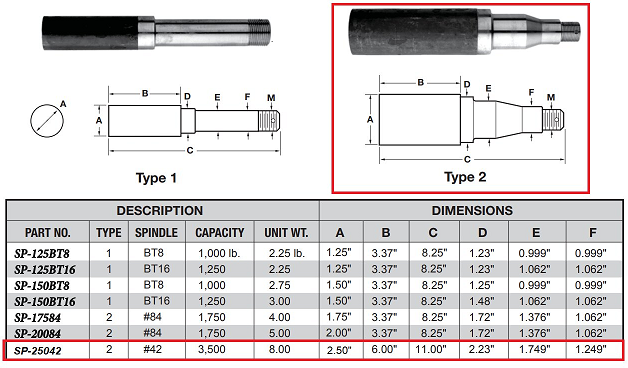

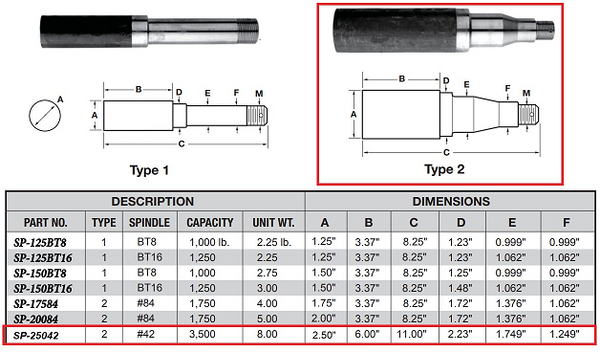

For proper fitment, the axle spindle must accept a 1.25" outer bearing and a 1.75" inner bearing. Verify all measurements and bearing numbers before installation.
