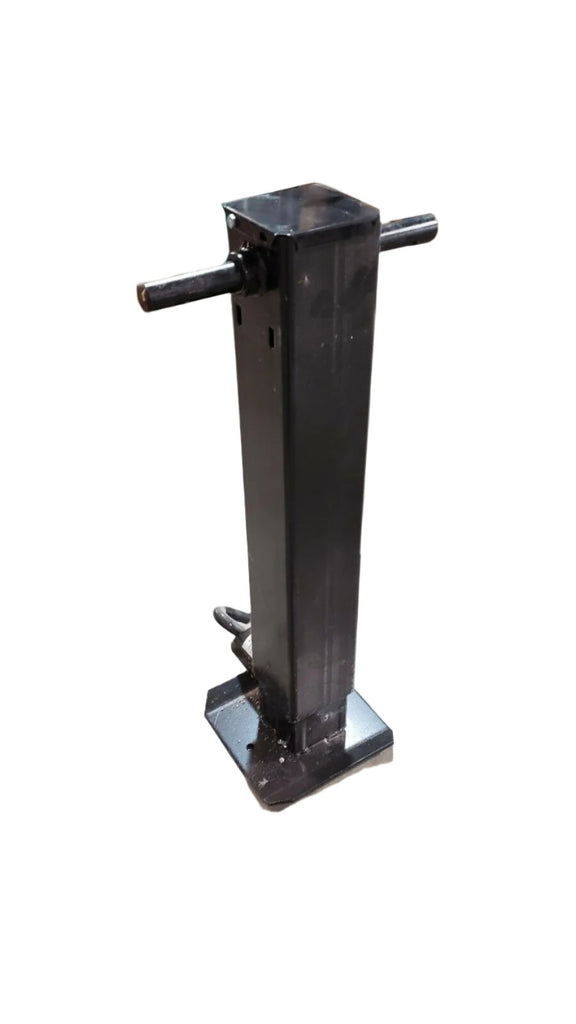

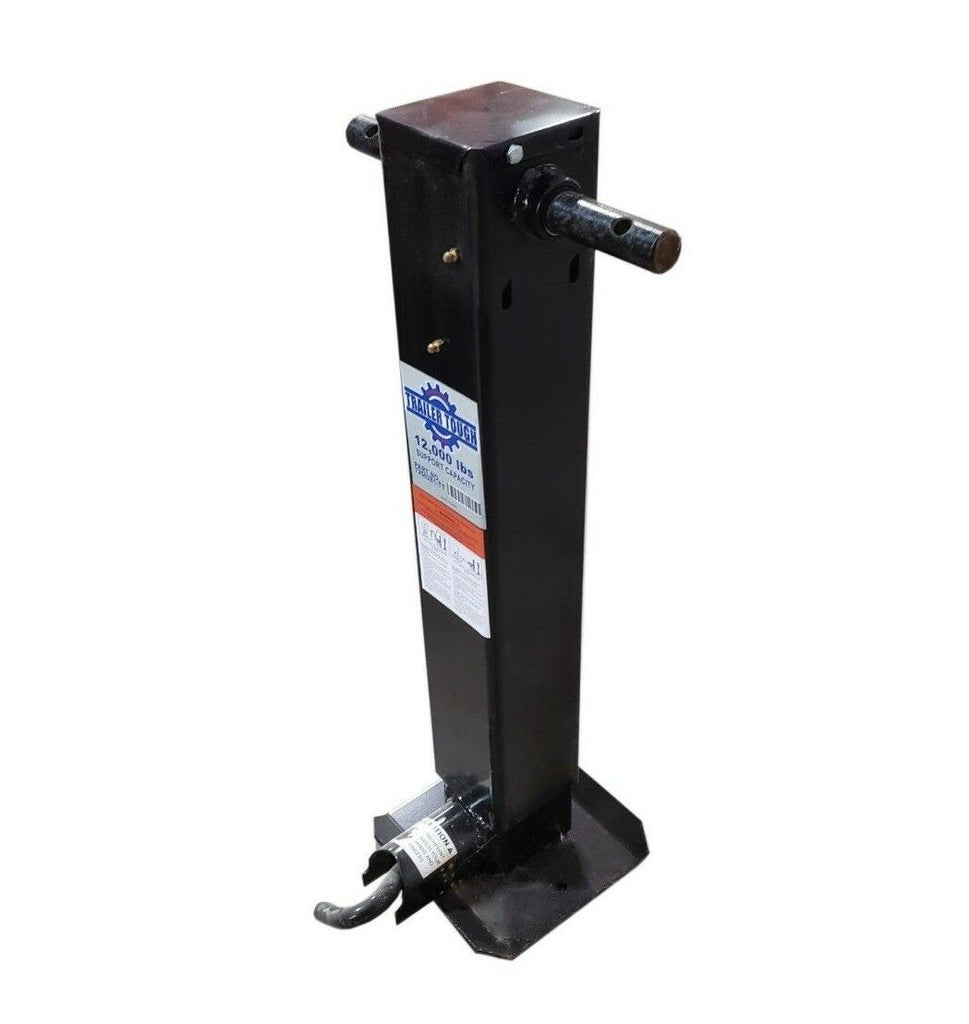

12,000 lb Drop Leg Trailer Jack, Direct Weld, Side Wind
Part Number: TJD12000SPF
Heavy-duty drop leg trailer jack designed for direct-weld installation on trailers requiring high support capacity. This jack features a square tube design, spring-loaded drop leg, and side-wind handle for controlled lifting and lowering.
Features
- Heavy-duty drop leg trailer jack
- Direct-weld mount design
- Spring-loaded drop leg with pull pin

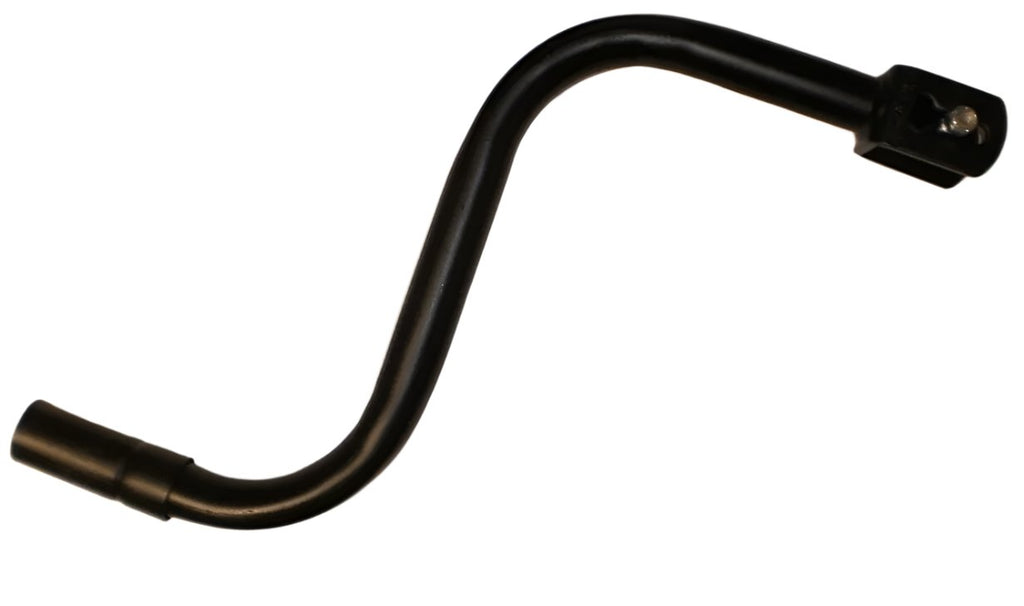

- Side-wind handle included
- Painted outer tube, inner tube, and drop leg
Specifications
| Support Capacity | 12,000 lb |
|---|---|
| Lift Capacity | 10,000 lb |
| Jack Lift | 12.5" |
| Retracted Height | 28.5" |
| Extended Height | 54" |
| Tube Size | 4" x 4" |
| Mount Type | Direct Weld |
| Handle | Side Wind (Included) |
Important Installation Note: This jack is designed for direct weld installation to the trailer frame.
Verify mounting location, clearance, and required lift height before installation.
