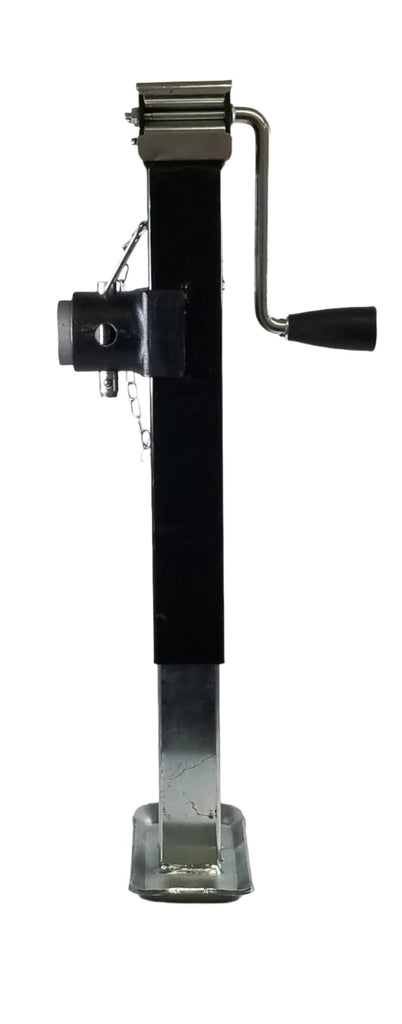

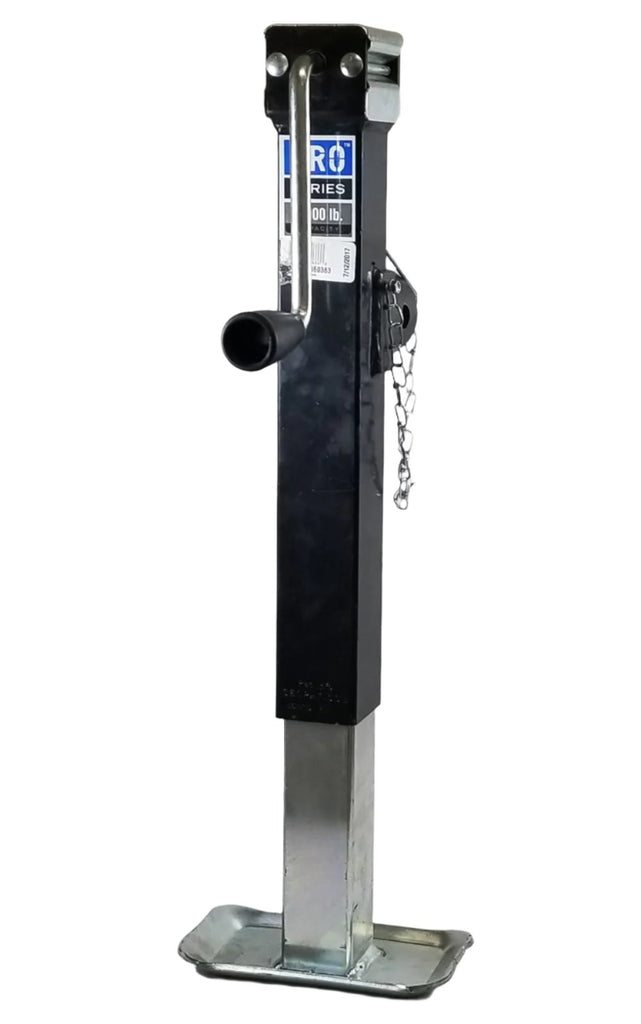

Pro Series 5,000 lb Square Tube Swivel Trailer Jack – Sidewind – 10" Lift
Heavy-duty swivel trailer jack with 5,000 lb capacity, sidewind operation, and 10" lift. Designed for square tube mounting on utility and equipment trailers.
R&P Knowledge Hub
Compatibility: Designed for square tube mount trailer jack brackets. Verify tube size and mounting style before ordering.
Vehicle / Trailer Fit: Ideal for utility, equipment, and cargo trailers requiring a 5,000 lb capacity jack with swivel functionality.

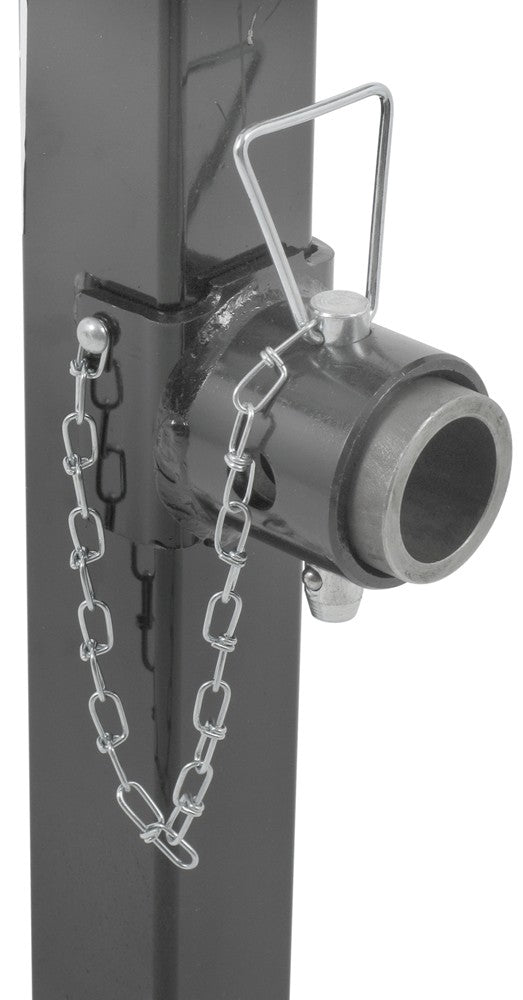

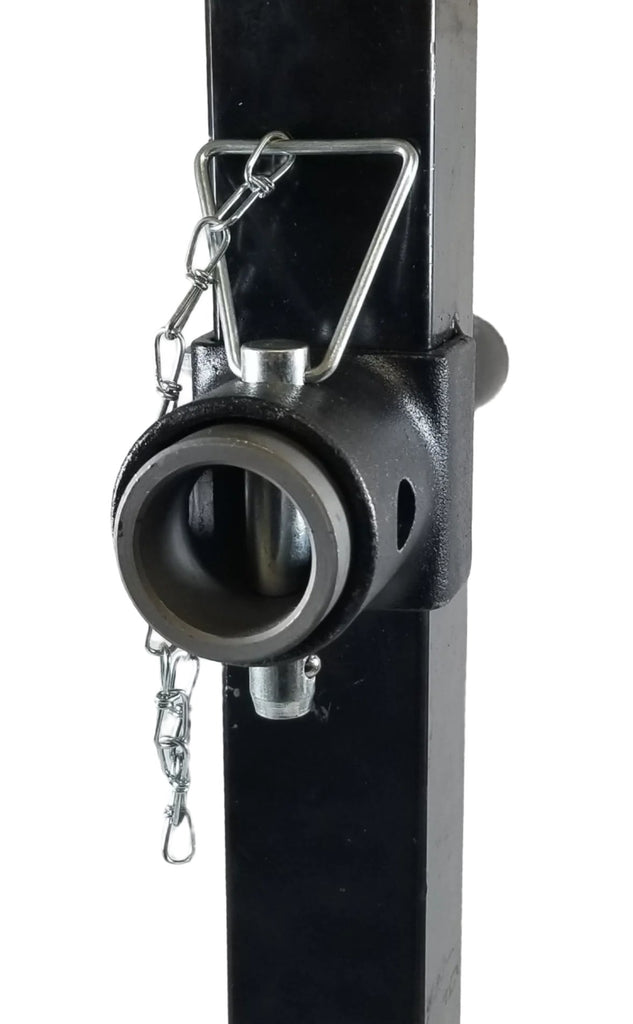

Installation Notes: Swivel mechanism must be properly pinned and secured. Mount height must allow full retraction clearance to prevent ground contact during towing.
Performance Insight: Sidewind jacks provide better clearance in tight mounting areas compared to top-wind designs, especially near toolboxes or trailer walls.
Features
- 5,000 lb capacity for heavy-duty trailer support

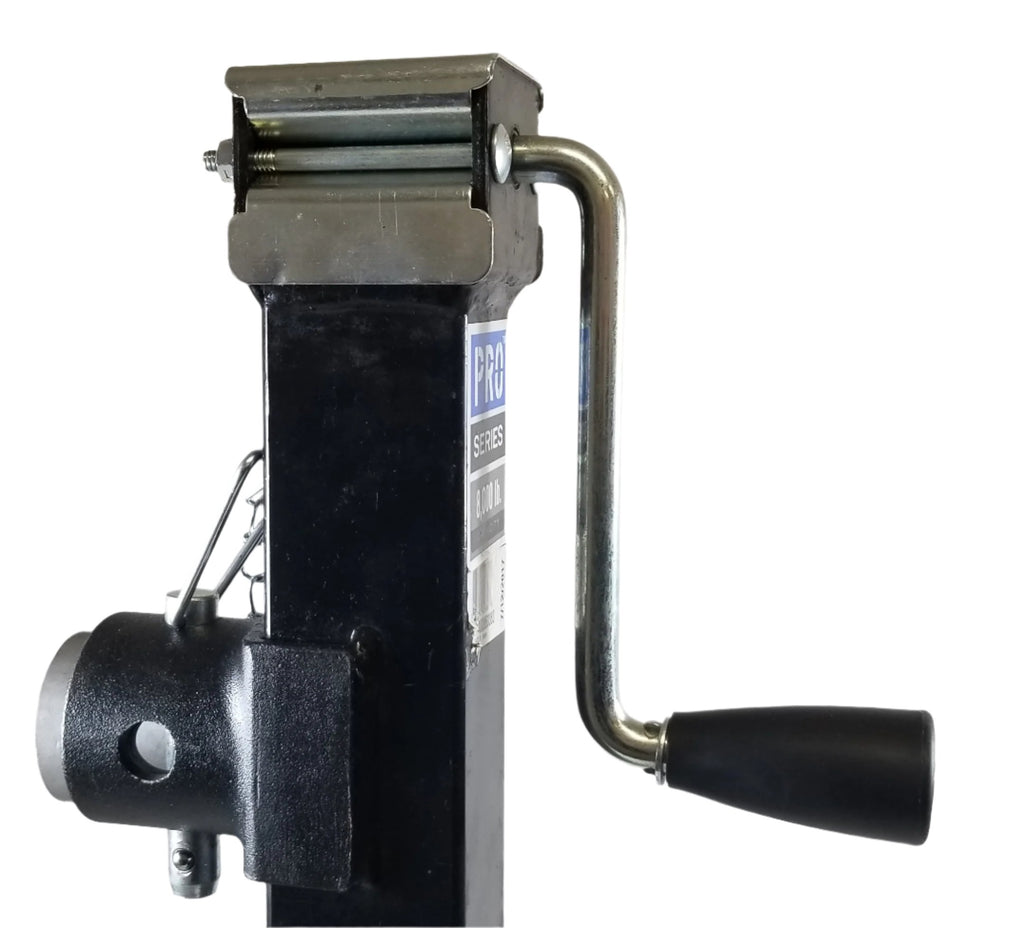

- Sidewind handle for improved access and operation

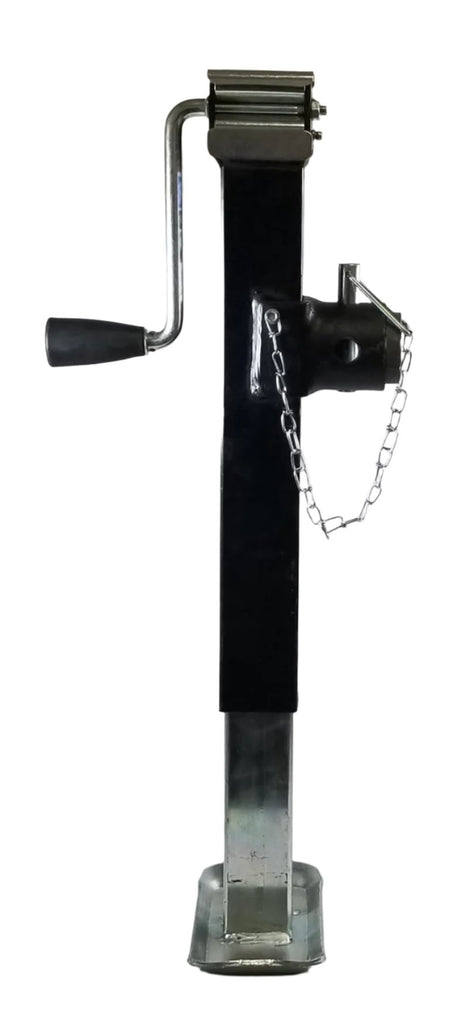

- Swivel mount allows jack to rotate out of towing position

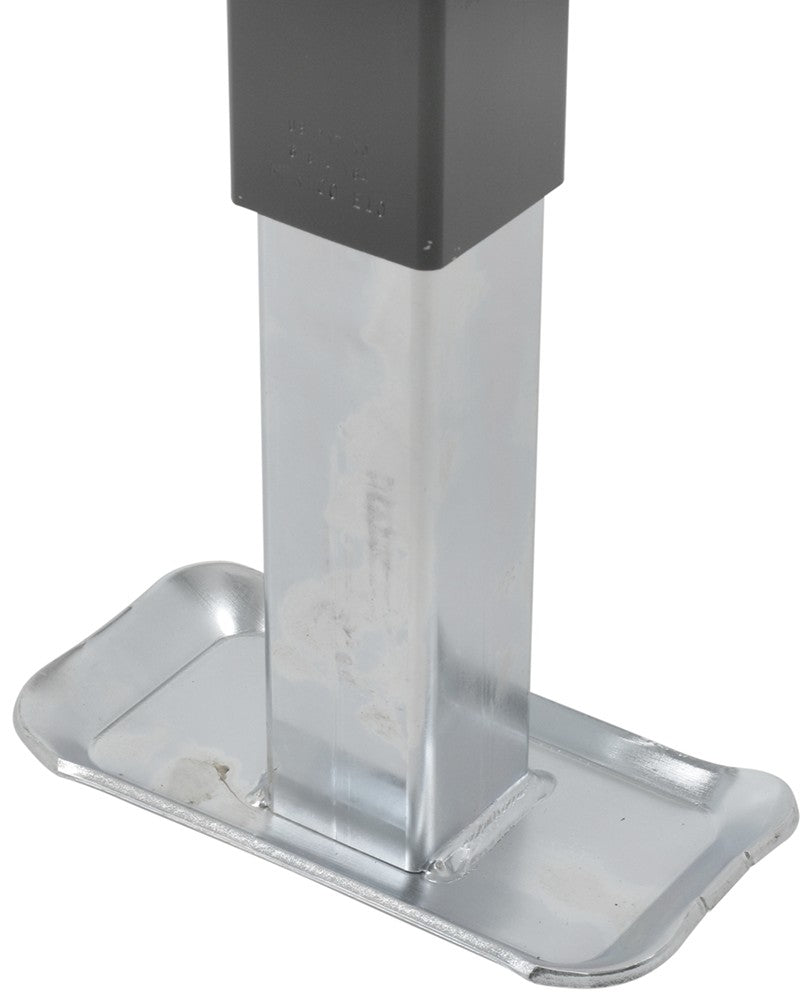

- Integrated footplate for stable ground contact
Specifications
| Specification | Detail |
| Type | Swivel Trailer Jack |
| Application | Utility, cargo, and equipment trailers |
| Fitment | Square tube mount |
| Material / Finish | Steel construction |
| Lift Capacity | 5,000 lbs |
| Lift Range | 10" |

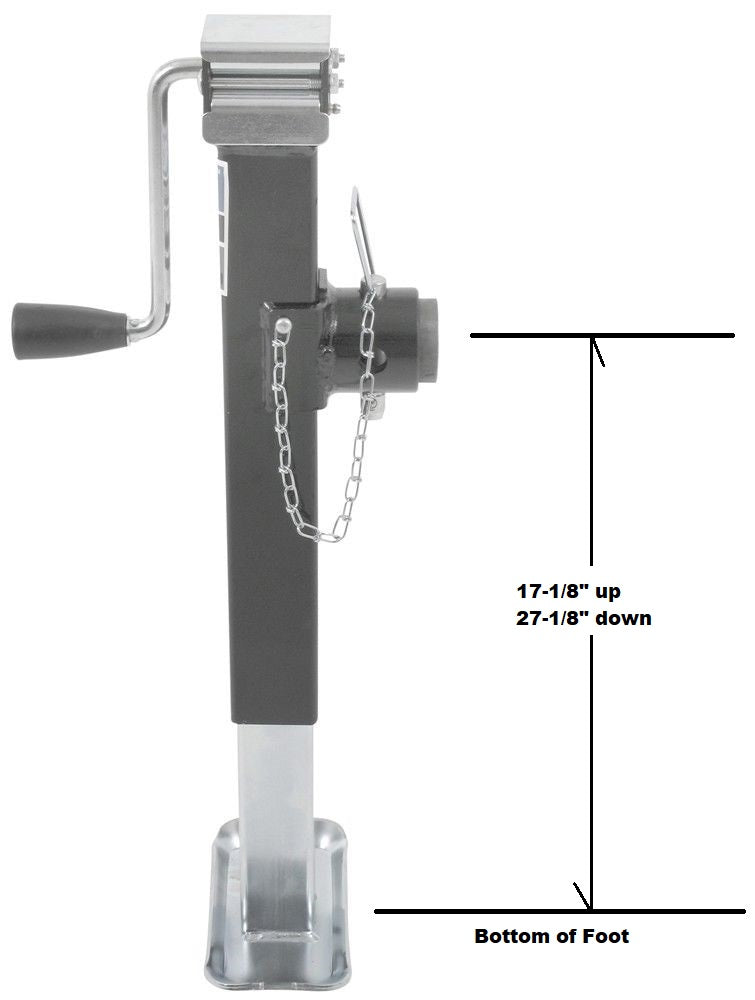

| Retracted Height | 17-1/8" |
| Extended Height | 27-1/8" |
| Part Number | 1400860383 |
Included Components
| Quantity | Item |
| 1 | Swivel Trailer Jack |
| 1 | Footplate (integrated) |
Verify all specifications, mounting style, and clearance requirements before installation.
