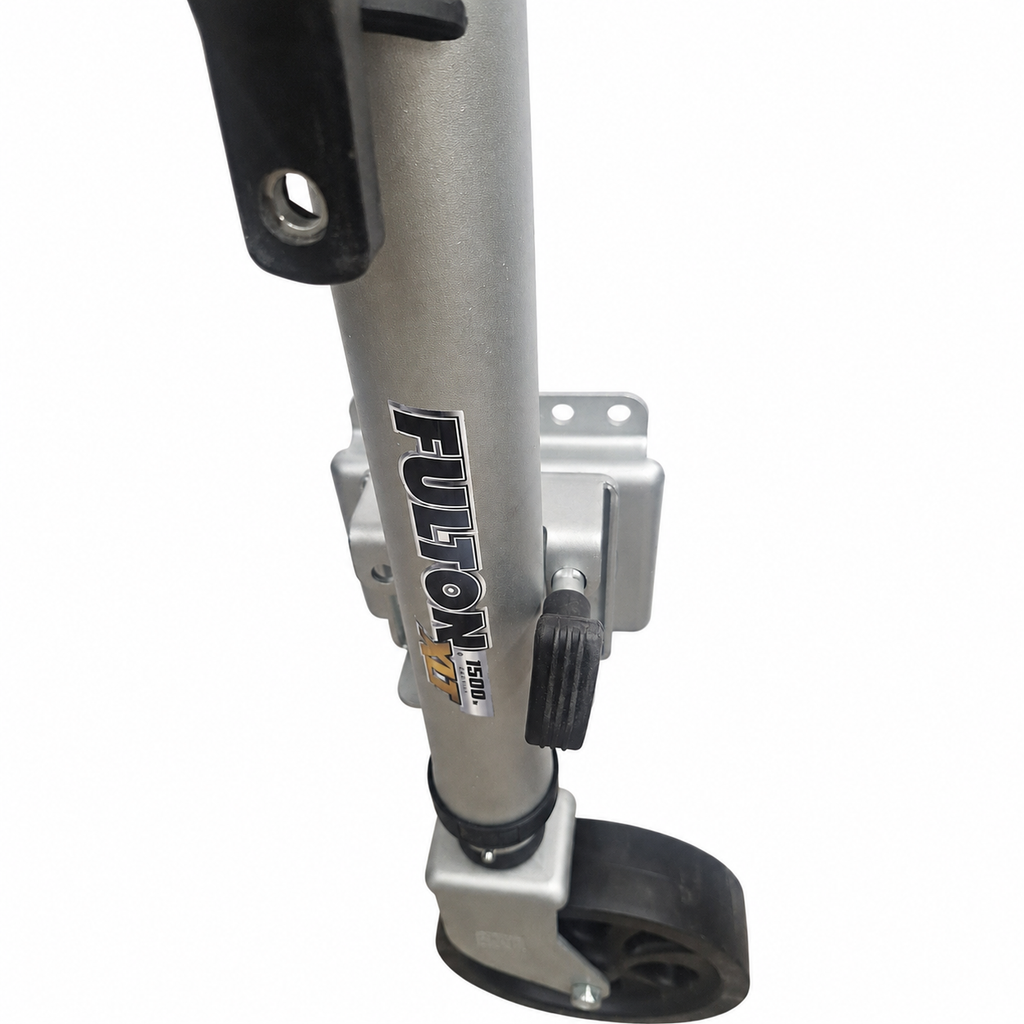

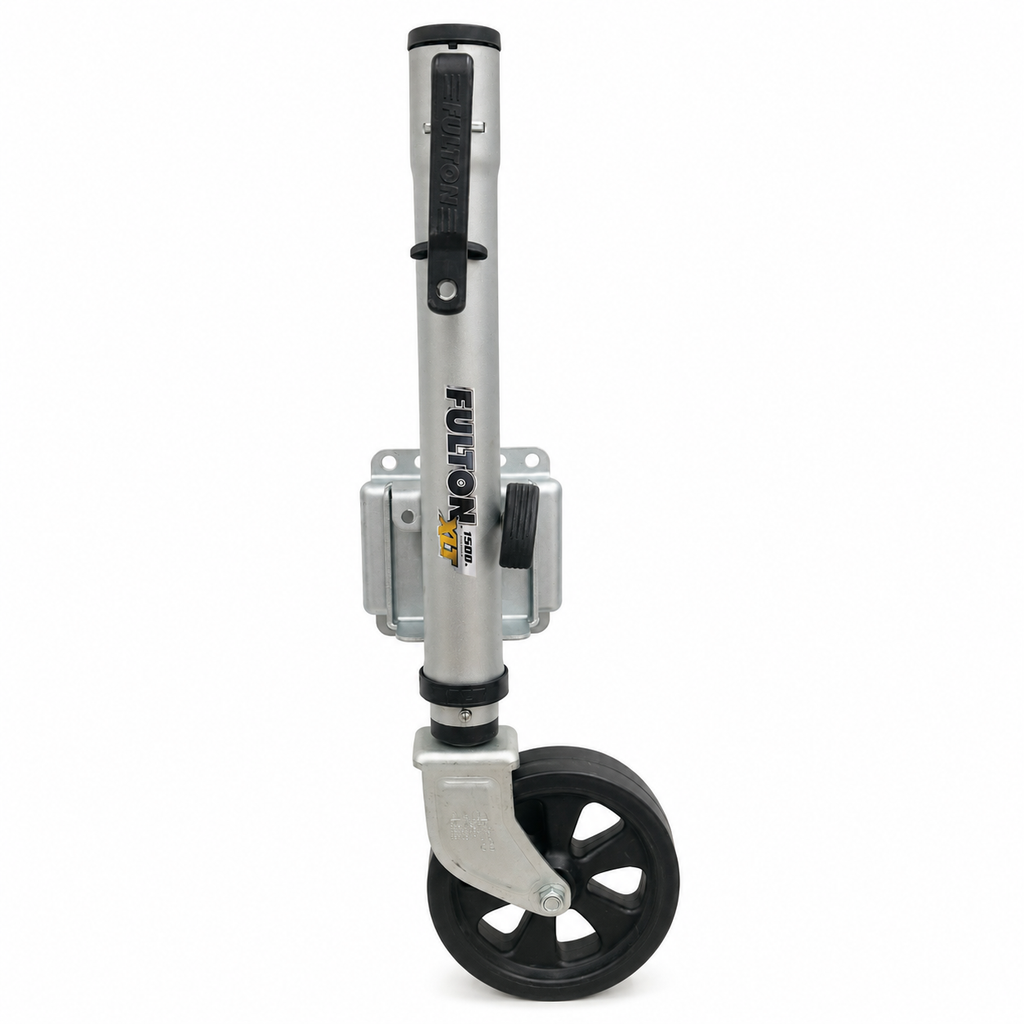

Fulton XLT® Marine Trailer Jack – 1,500 lb Capacity, Bolt-On Side Mount, 8" Wheel
A silver sidewind swivel jack for marine and utility trailers, featuring 12 inches of travel, Fulton’s TruTurn 360 system, and a corrosion-resistant Sharkskin finish.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | 141133 |
| Brand / Series | Fulton XLT® |
| Product Type | Sidewind swivel trailer jack with caster wheel |
| Lift Capacity | 1,500 lb (680.3 kg) |
| Travel | 12" |
| Wheel Diameter | 8" |
| Tube Diameter | 2.25" |
| Extended Measurement | 22.6" |
| Measured Overall Height | Approximately 24-5/8", measured from the wheel to the top of the jack |
| Color | Silver |
| Material | Steel |
| Finish | Sharkskin corrosion-resistant finish |

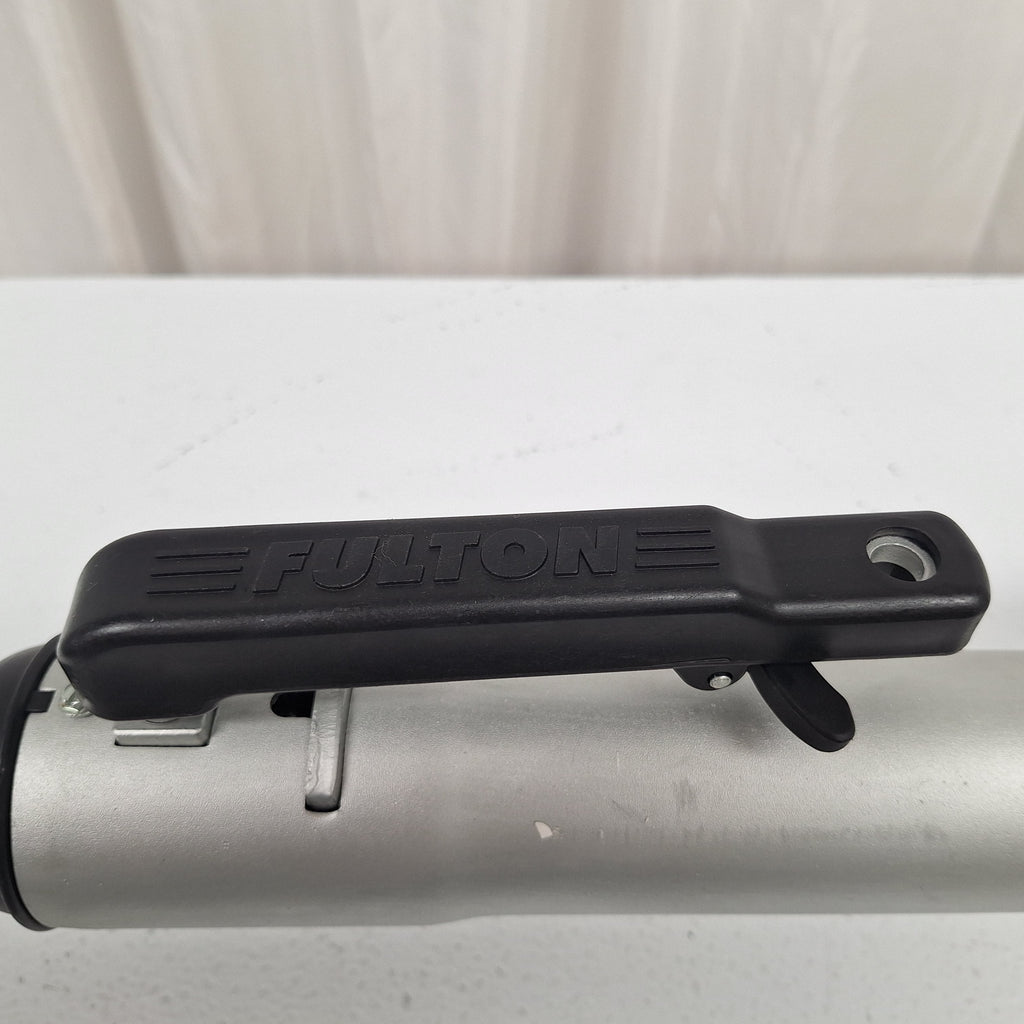

| Handle Style | Sidewind |
| Quantity | One complete jack assembly |
Fitment / Application
| Category | Details |
|---|---|
| Trailer Application | Designed for marine and utility trailers |
| Mounting Configuration | Bolt-on side-mount swivel bracket |
| Trailer Tongue Shape | Square or rectangular trailer tongues only |
| Maximum Tongue Size | Fits trailer tongues up to 3" x 5" |
| Mounting Method | Factory-assembled bracket installs using the included bolt-on mounting hardware |
| Swivel Function | Jack rotates between vertical operating and horizontal storage positions |
| Important Mount Note | SKU 141133 is the bolt-on side-mount version. Direct-mount, rack-jack, and A-frame mounting configurations refer to other jack styles or models and are not included with this item. |
| Welding | No welding is required for the supplied bolt-on bracket. If a trailer is modified or a separate weld-on mounting component is used, all welding must be completed by a qualified professional. |
R&P Knowledge Hub
Compatibility: This jack is intended for marine and utility trailers with a compatible square or rectangular tongue measuring no more than 3" x 5". It is not intended for installation on a round trailer tongue.

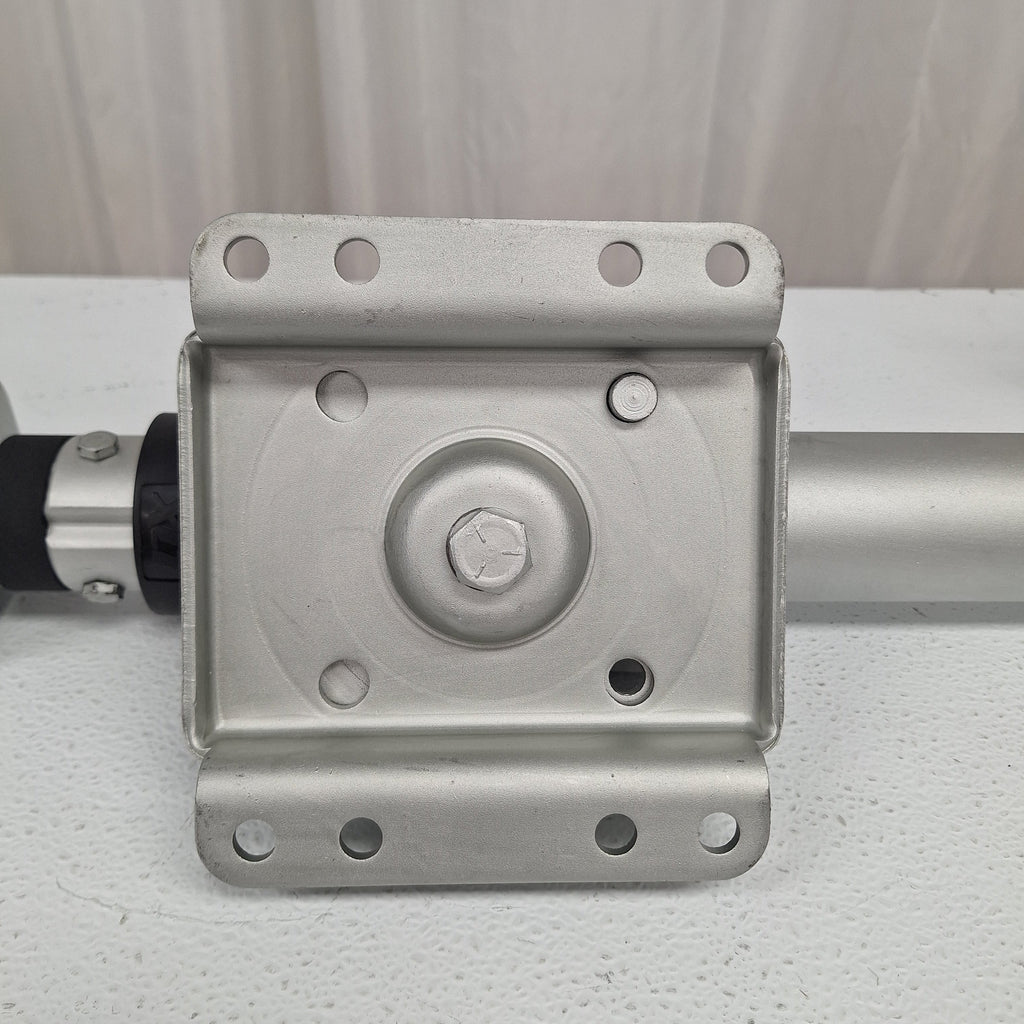

Mounting Style: Part 141133 includes a factory-assembled, bolt-through swivel side-mount bracket. Verify the available mounting space, tongue dimensions, and clearance before ordering.
Installation: Secure the trailer against movement before installation. Position the supplied mounting hardware so the bracket fits tightly against the trailer tongue, then tighten all fasteners according to the included instructions.

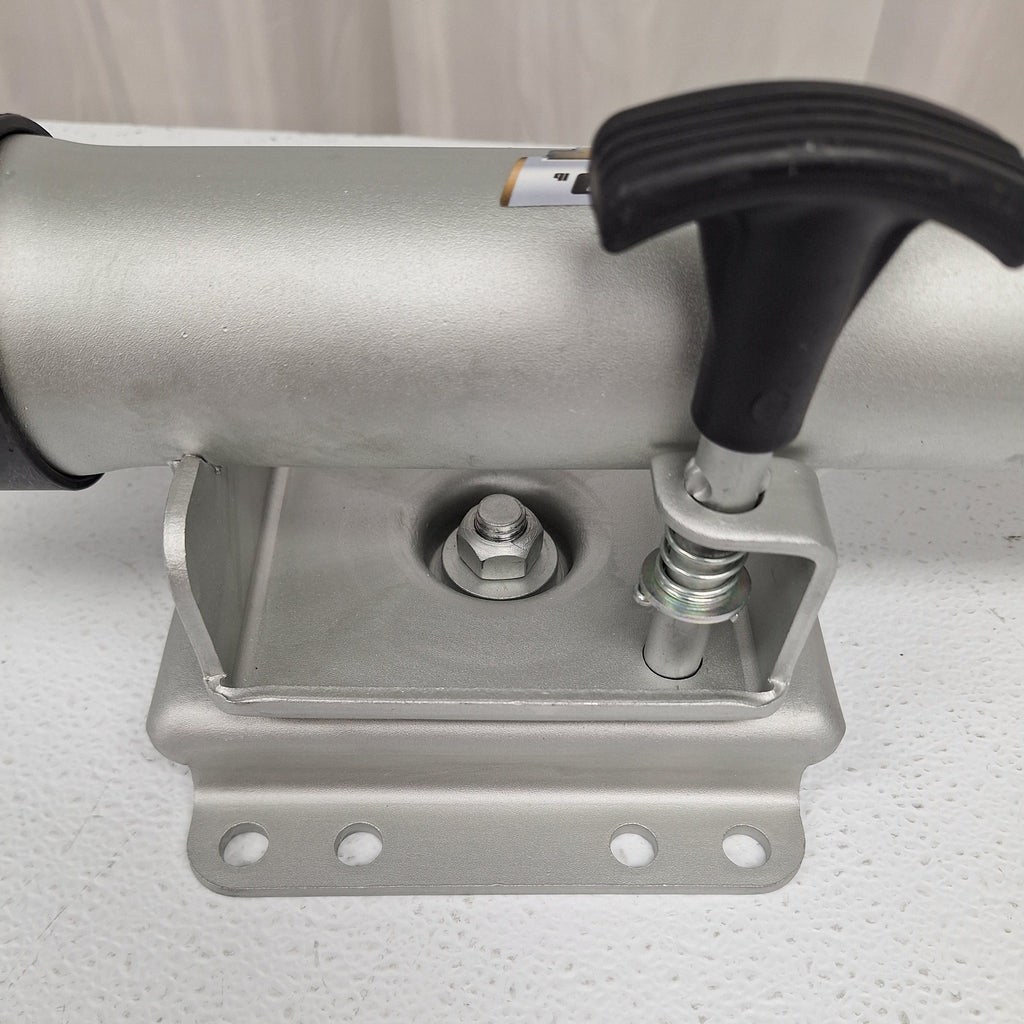

Operating Position: Before placing a load on the jack, confirm that the swivel pull pin is fully seated in the bracket’s detent hole. The pin must also be fully engaged when the jack is rotated into its horizontal storage position.
Load Use: The 1,500 lb rating describes the jack’s vertical lifting capacity. Avoid excessive side loading and never exceed the stated capacity.
Brand & Fitment Note
Selling Brand: Fulton
Product Series: XLT®
Application: This is a universal trailer component rather than a vehicle-specific replacement. Compatibility is determined by trailer-tongue shape, dimensions, mounting space, capacity requirements, and clearance.
Before Ordering: Verify the trailer has a square or rectangular tongue no larger than 3" x 5" and sufficient space for the bolt-on swivel bracket, crank handle, wheel, and horizontal storage position.
Features
1,500 lb Lift Capacity
Provides up to 1,500 lb (680.3 kg) of vertical lifting capacity for compatible marine and utility trailer applications.
35% Faster Cranking
The XLT design raises and lowers approximately 35% faster than conventional comparable jacks for quicker trailer positioning.
TruTurn 360 System
Fulton’s TruTurn 360 caster system is designed to deliver smooth wheel rotation and responsive maneuvering.
Precision-Fit Tube Bushings
Inner and outer tube bushings provide a tighter fit, reduce tube drag, and support smoother cranking operation.

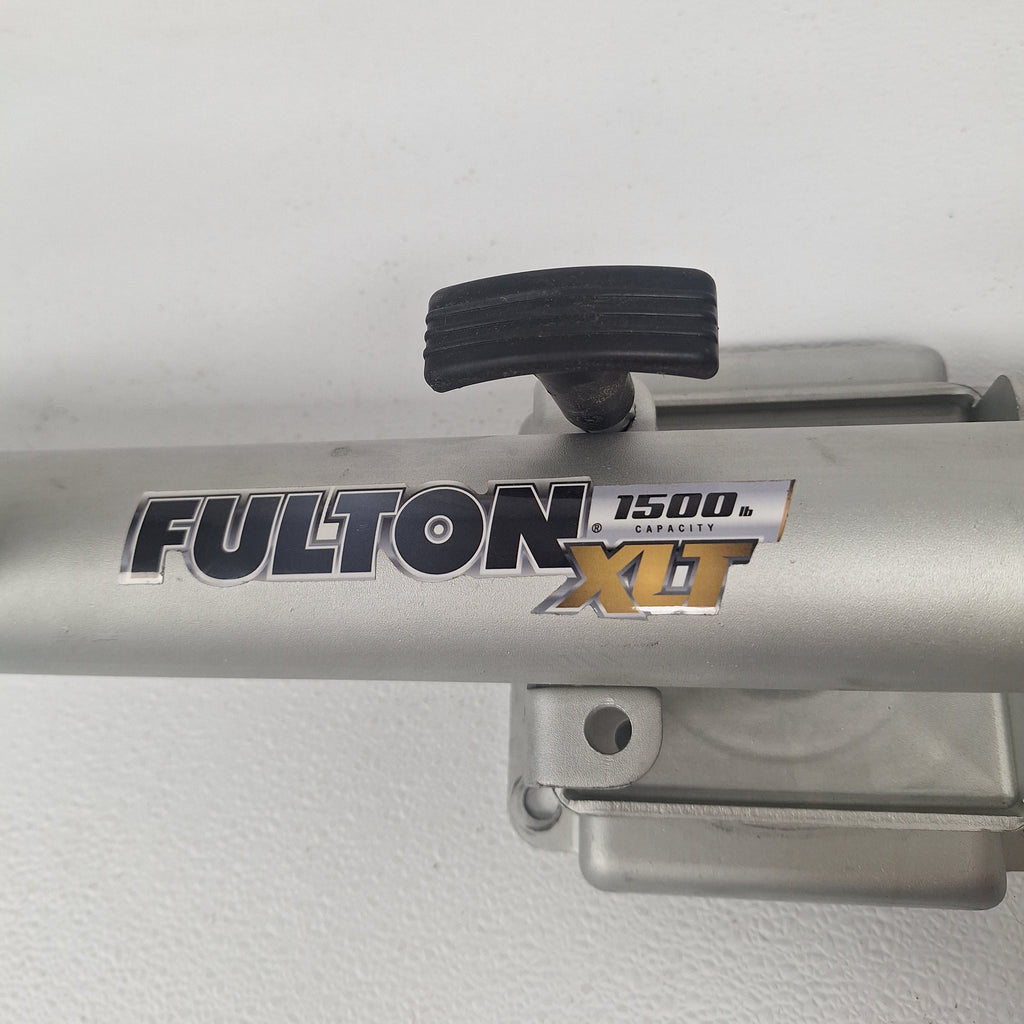

Sharkskin Finish
The premium silver Sharkskin finish provides enhanced corrosion resistance for demanding marine-trailer environments.
12 Inches of Travel
Provides 12 inches of screw travel to help raise, lower, couple, and level compatible trailers.

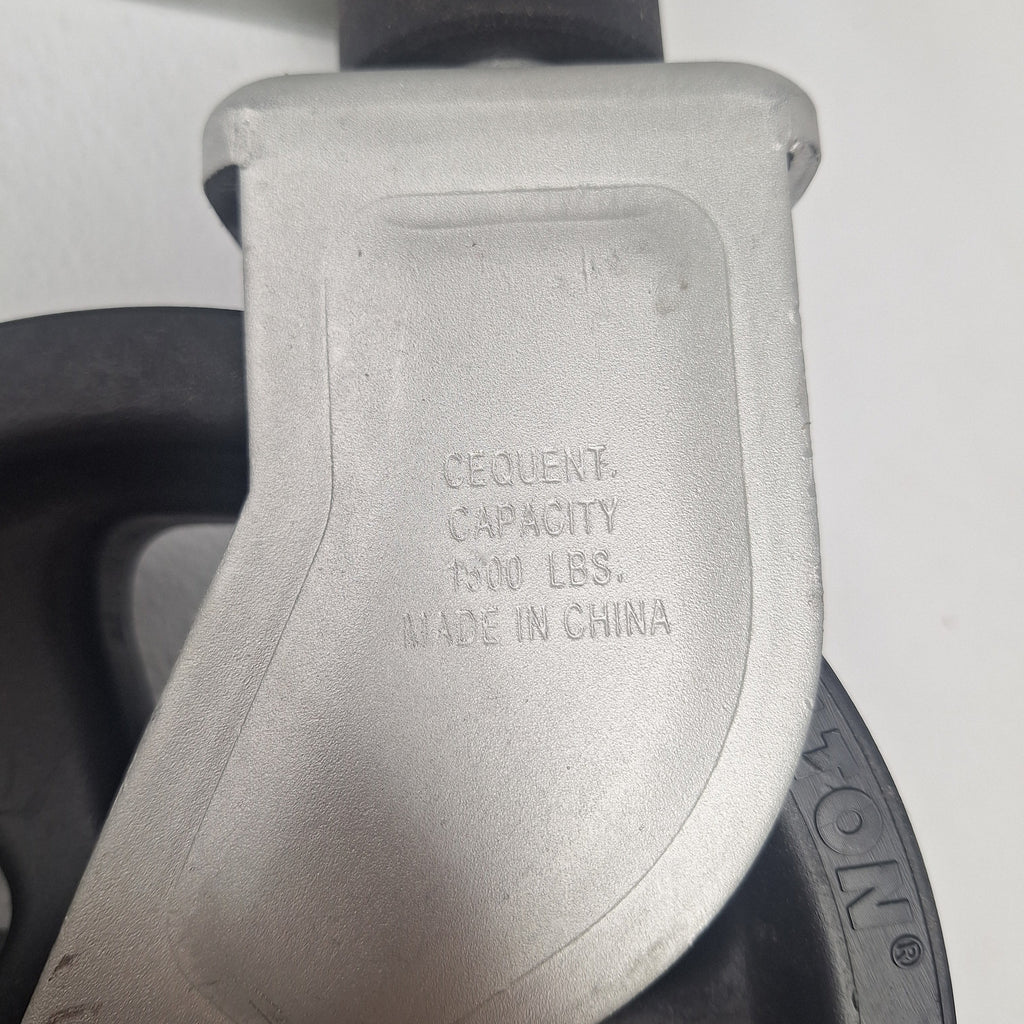

8-Inch Caster Wheel
The attached 8-inch wheel supports maneuverability when positioning an unloaded or properly supported trailer.

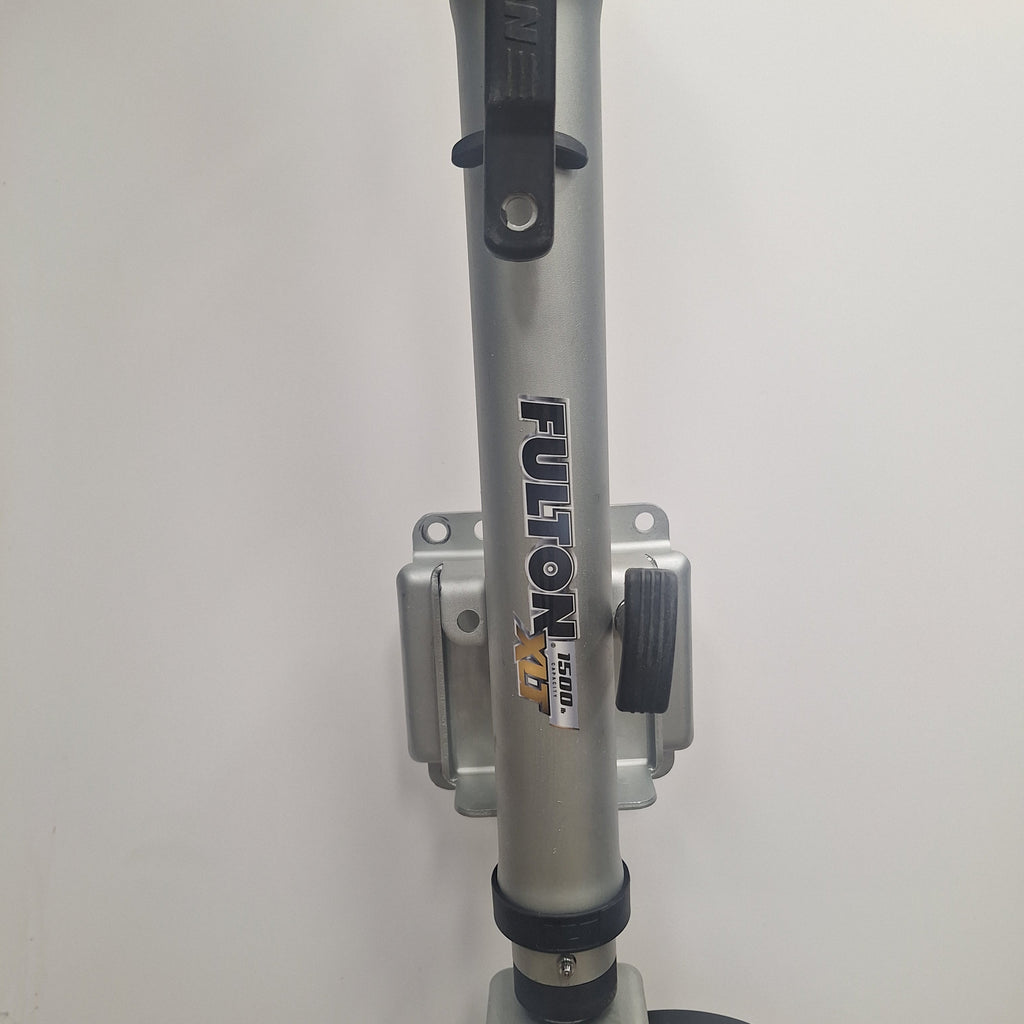

Swing-Away Storage
The swivel bracket allows the jack to rotate into a horizontal position for travel and return to a vertical position when needed.

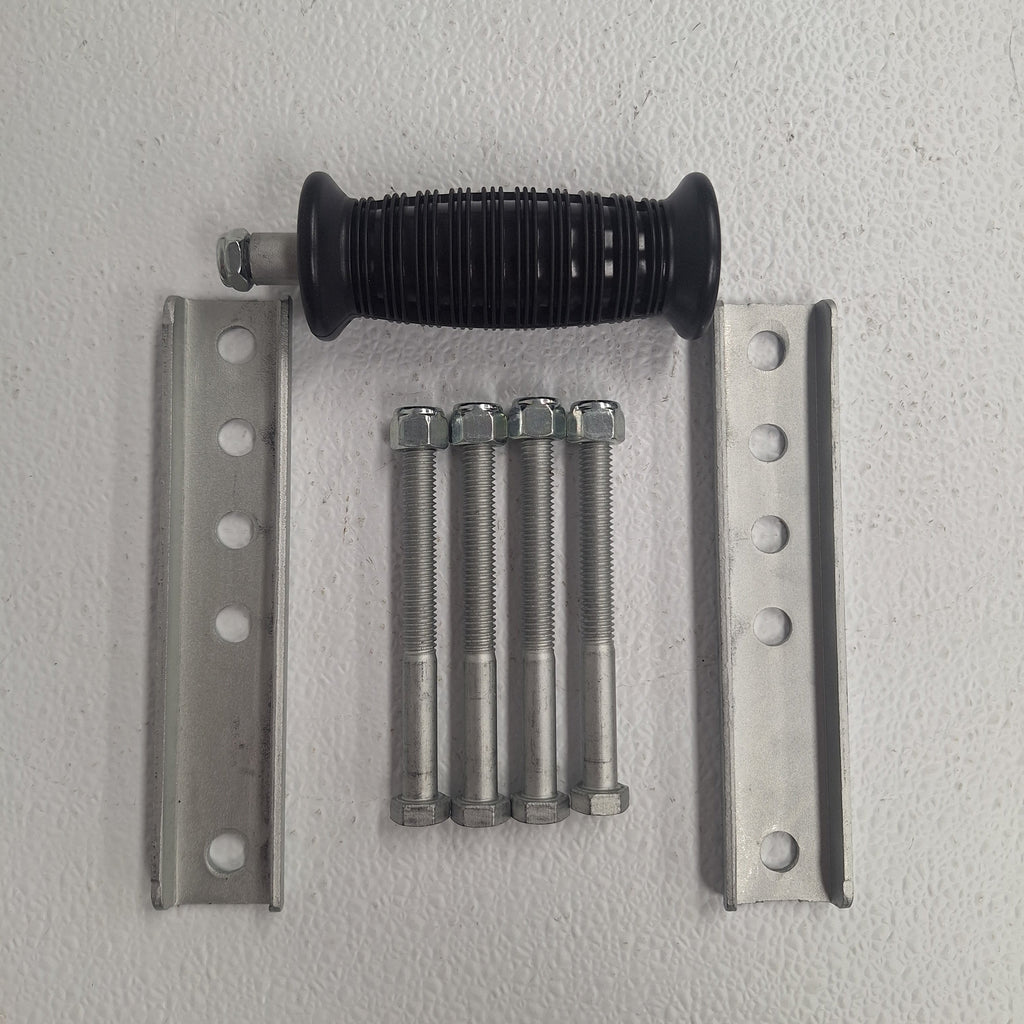

Included Components
| Quantity | Included Item |
|---|---|
| 1 | Fulton XLT® 1,500 lb sidewind trailer jack assembly |
| 1 | Attached 8" caster wheel |
| 1 | Factory-assembled bolt-on swivel side-mount bracket |
| 1 set | Required bolt-on mounting hardware |
| 1 set | Installation and operating instructions |
