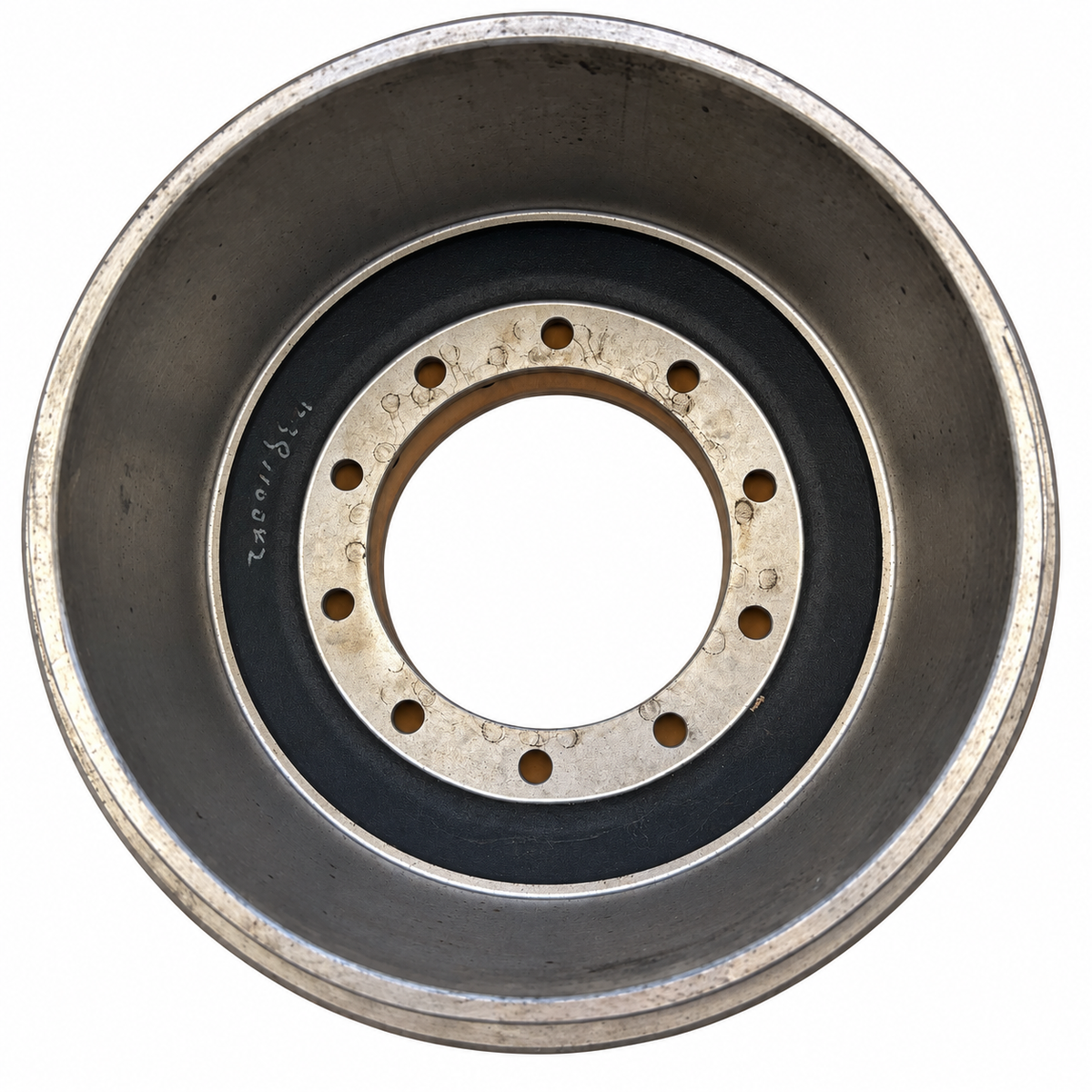

Dexter 16-1/2 x 7 in. Inboard Air Brake Drum — 10 on 11.25 in. Bolt Circle (D009-042-01)
Product Info
Dexter 16-1/2 x 7 in. Inboard Air Brake Drum — 10 on 11.25 in. Bolt Circle
Heavy-duty Dexter air brake drum designed for 16-1/2 x 7-inch air brake systems using an inboard-mounted drum configuration. This drum features a 10-hole mounting pattern on an 11.25-inch bolt circle and is intended for compatible heavy-duty trailer wheel-end assemblies.
The inboard drum mounts on the inside of the hub assembly and provides the friction surface contacted by the brake shoes during braking. Correct replacement requires matching the existing brake dimensions, drum mounting configuration, pilot diameter and bolt pattern.
Product Specifications
| Manufacturer | Dexter |
|---|---|
| Supplier part number | D009-042-01 |
| Dexter catalog part number | 009-042-01 |
| Component | Air brake drum |
| Brake system | Air-operated drum brake |
| Brake diameter | 16.50 inches |
| Brake shoe width | 7.00 inches |
| Mounting configuration | Inboard-mounted drum |
| Mounting pattern | 10-hole |
| Bolt circle diameter | 11.25 inches |
| Pilot diameter | 9.43 inches per supplied order description; 9.44 inches in Dexter dimensional reference |
| Product family | Heavy-duty trailer air brake components |
Applications & Compatibility
Dexter identifies part 009-042-01 in its heavy-duty 16-1/2 x 7-inch air brake hub-and-drum parts documentation. The drum is associated with 10-stud, 11.25-inch bolt-circle wheel-end assemblies using inboard-mounted brake drums.
The relevant Dexter catalog identifies the following hub-and-drum assemblies within this wheel-end family:
| Dexter reference | Description |
|---|---|
| 008-279-71 | Left-hand hub and drum assembly |
| 008-279-70 | Right-hand hub and drum assembly |
| 008-279-04 | Left-hand hub assembly |
| 008-279-05 | Right-hand hub assembly |
These are related Dexter wheel-end catalog references, not additional components included with the brake drum. Confirm compatibility with the actual hub and existing brake assembly before purchasing.
Dexter Order Description
AIR BRAKE DRUM 16 1/2 x 7 BRAKE, 10-11.25 9.43PH, INBOARD
