16x6 – 6 on 6 – Silver – Dual Trailer Wheel – 4.77" Pilot – 3,500 lb Capacity
Product Info

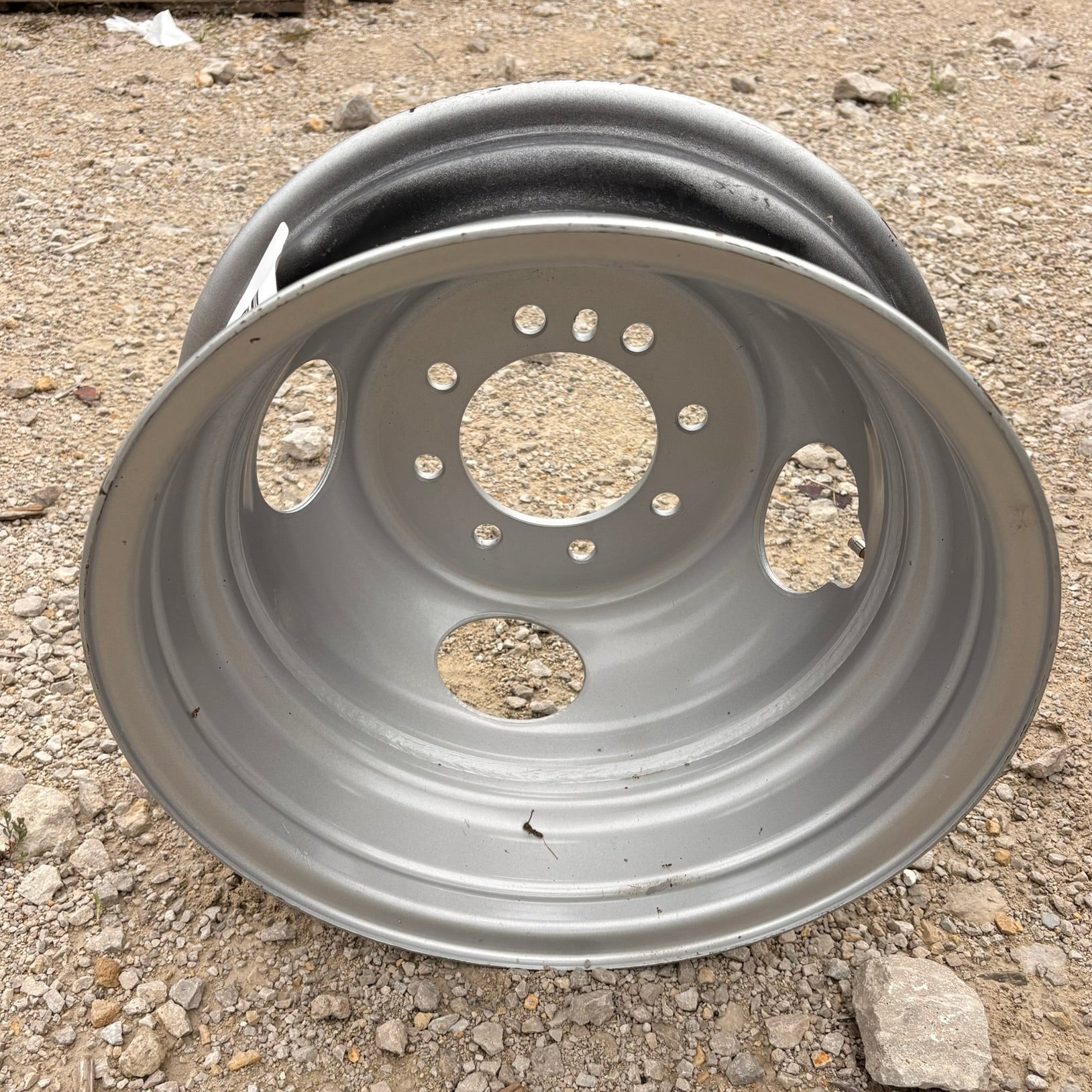

16x6 Silver Dual Trailer Wheel · 8 on 6.5 · 4.77" Pilot · 3,500 lb Capacity
This is measurement- and configuration-specific bare trailer wheel inventory from R&P Carriages in Seneca, Illinois.
Fitment matters. Verify wheel size, 8 on 6.5 bolt pattern, 4.77-inch pilot, dual-wheel configuration, rated capacity, stud/lug compatibility and clearance before purchasing.
| Wheel Size | 16x6 |
|---|---|
| Bolt Pattern | 8 on 6.5 |
| Wheel Style / Finish | Silver |
| Wheel Type | Dual Trailer Wheel |
| Pilot / Center Bore | 4.77" |
| Rated Capacity | 3,500 lb per wheel |
| Configuration | Bare wheel · tire not included |
Dual-wheel fitment
This is a dual trailer wheel configuration. Dual wheels are more fitment-sensitive than standard single wheels, so the pilot diameter, bolt pattern, stud configuration and wheel spacing must be matched to the existing hub and wheel setup.
8 on 6.5 bolt pattern
The wheel uses eight lug holes positioned on a 6.5-inch bolt circle. Both the lug count and bolt-circle diameter must match the hub.
4.77" pilot
The 4.77-inch center pilot is a critical specification on this wheel. Do not substitute a visually similar 8-lug dual wheel with a different pilot without confirming compatibility.
Rated capacity
The listed wheel capacity is 3,500 lb per wheel. Wheel capacity alone does not determine axle or trailer capacity; the usable rating remains limited by the lowest-rated component in the wheel-end, axle, suspension, tire and trailer system.
Before purchasing, confirm:
16x6 wheel size · 8 on 6.5 bolt pattern · 4.77" pilot · dual-wheel configuration · rated capacity · stud and lug configuration · wheel spacing · hub clearance · condition of the exact wheel.
Limited exact-item inventory. Wheels may show normal storage, handling or cosmetic marks. Confirm condition and all critical measurements before purchase.
