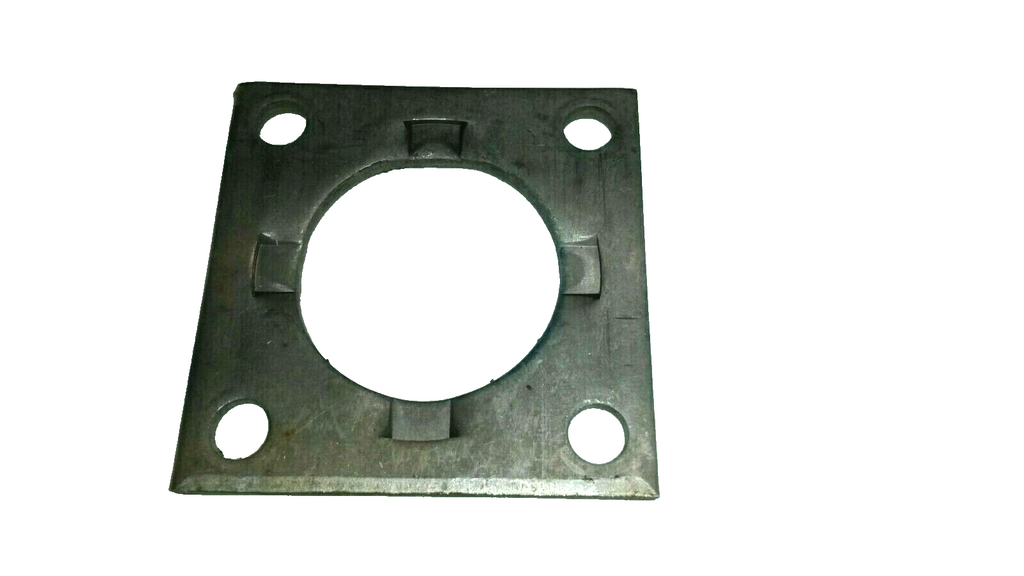

2.27" Center Hole 4 bolt
Trailer Brake Backing Plate Flange
Part Number: 4-35 (004-035-00)
RP SKU BF-3
This auction is for ONE New Backing Plate Flange!!!
If you need more, put the number you need in the box next to the buy it now button. You pay shipping on one flange only, all extras ship for free on the same order.
Part Number: 4-35 (004-035-00)
RP SKU BF-3
Features:
- Flange is made out of High Grade Steel
- Used on 2000# and 3500# LB axles
- Must be welded on.
Specifications:

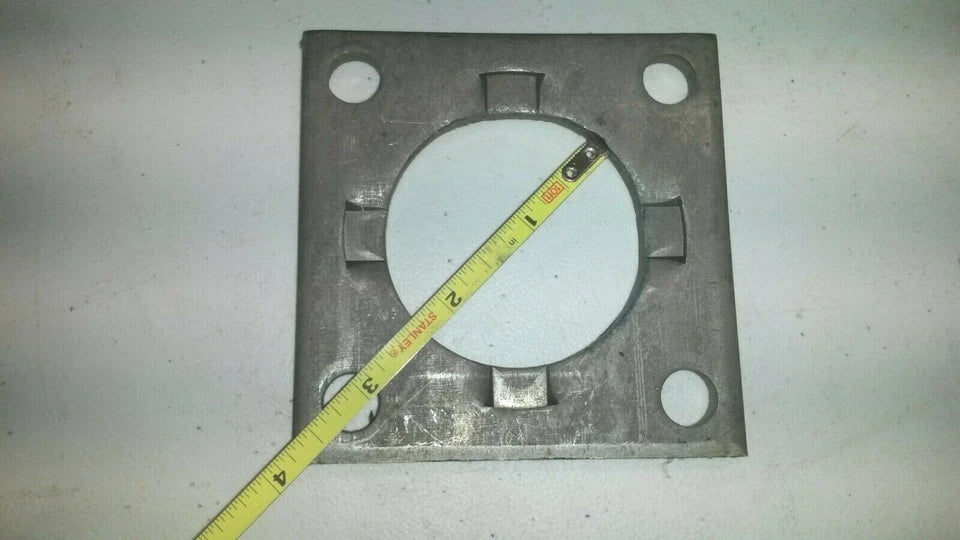

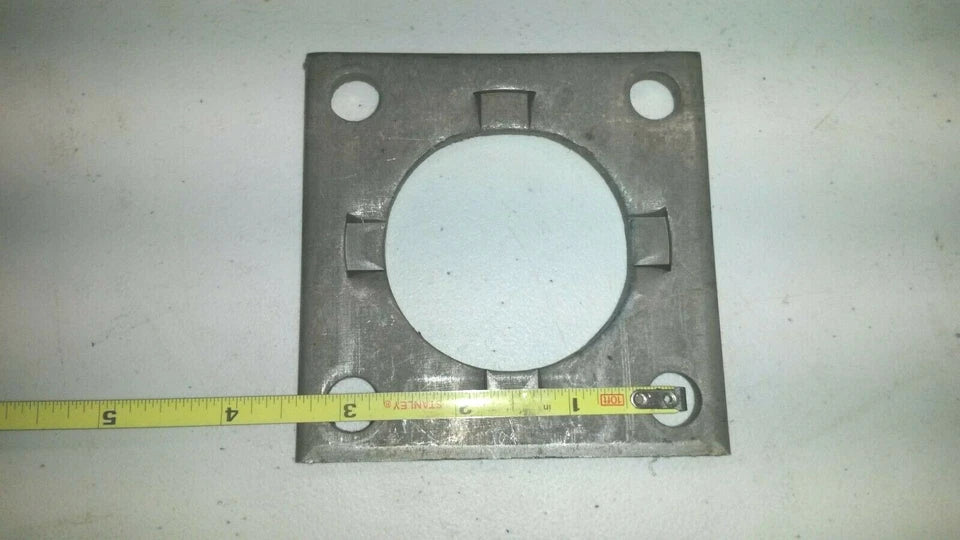

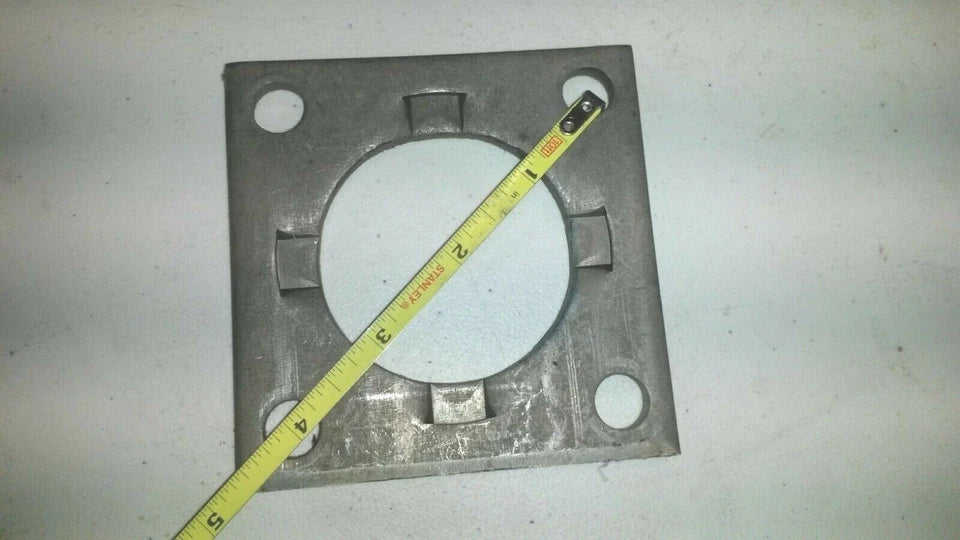

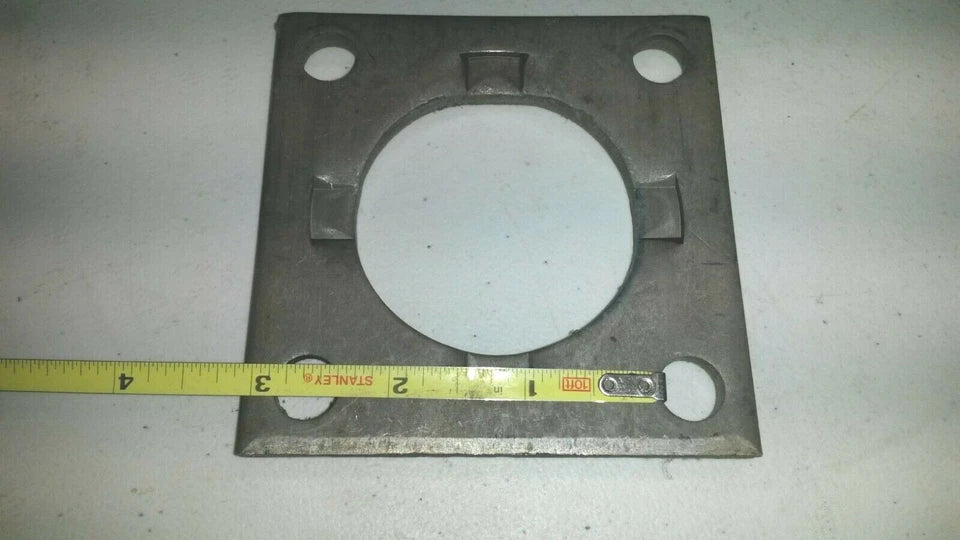

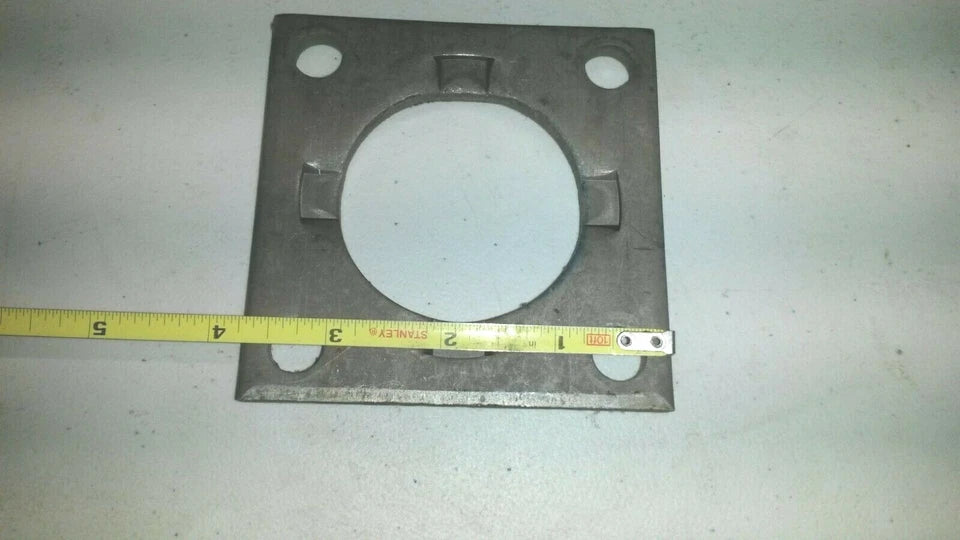

- Measures 3-3/4" wide, 1/4" Thick
- 2.27" Inner Hole Diameter, Takes 7/16" Bolts
- Approximately 2-7/8" spacing (measured from center of mounting holes to the next) or 4" hole spacing measure across, diagonally
- Flange is made out of High Grade Steel
- Used on 2000# and 3500# LB axles
- Must be welded on.
Specifications:
- Measures 3-3/4" wide, 1/4" Thick
- 2.27" Inner Hole Diameter, Takes 7/16" Bolts
- Approximately 2-7/8" spacing (measured from center of mounting holes to the next) or 4" hole spacing measure across, diagonally
We have these brake flanges in other sizes
For use in adding brakes to a axle that does not have them, and needs this flange welded on.
The 7" and 10" drum brakes use the Square flange.
Most modern 7" and 10" Electric Drum brakes use the same standard 4 bolt square flange. (7" brakes are used on 2000# axles, 10" brakes are used on 3500# Axles).
For use in adding brakes to a axle that does not have them, and needs this flange welded on.
The 7" and 10" drum brakes use the Square flange.
Most modern 7" and 10" Electric Drum brakes use the same standard 4 bolt square flange. (7" brakes are used on 2000# axles, 10" brakes are used on 3500# Axles).
This auction is for ONE New Backing Plate Flange!!!
If you need more, put the number you need in the box next to the buy it now button. You pay shipping on one flange only, all extras ship for free on the same order.
