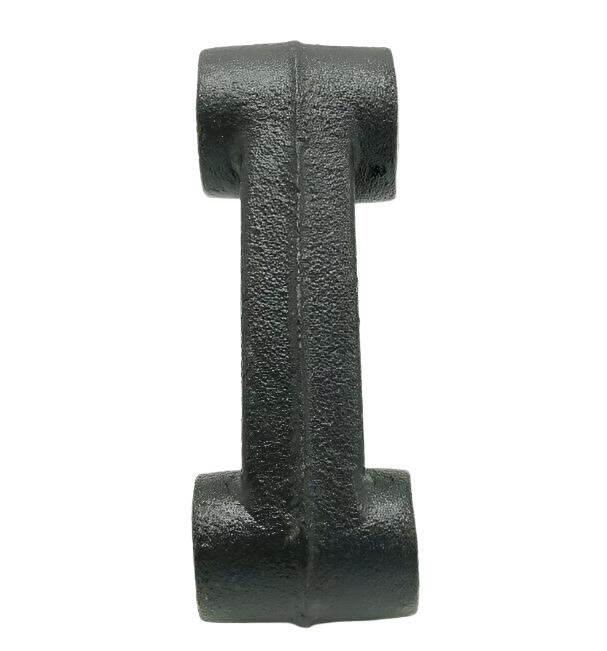

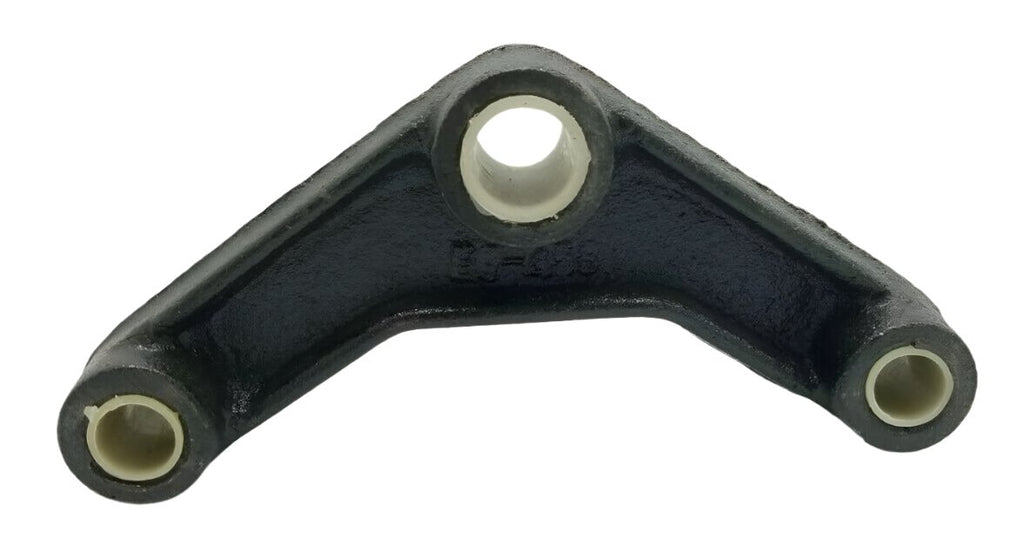

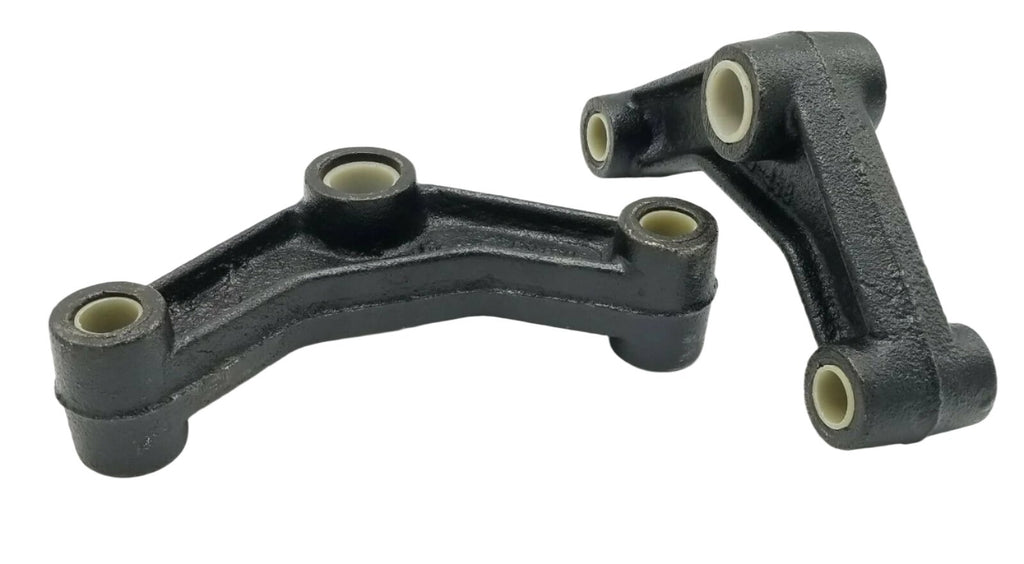

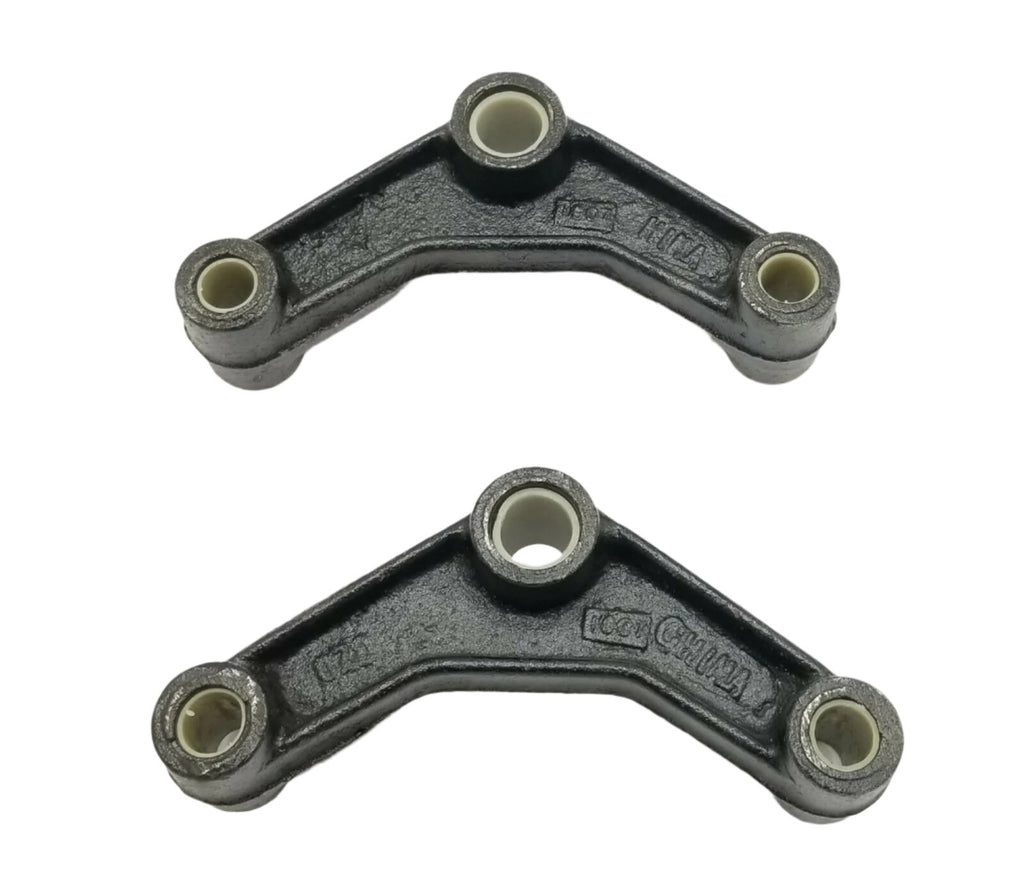

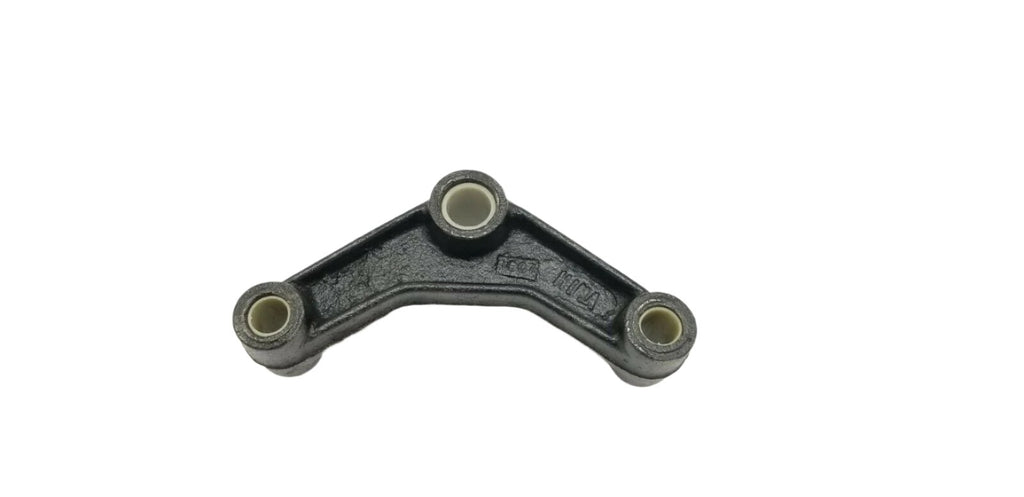

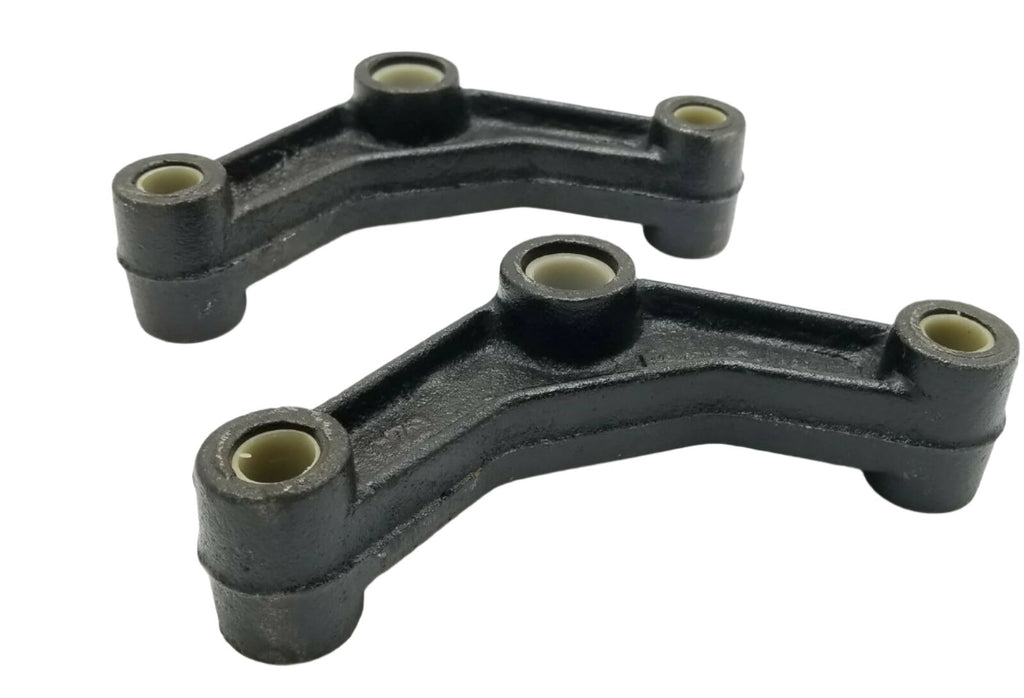

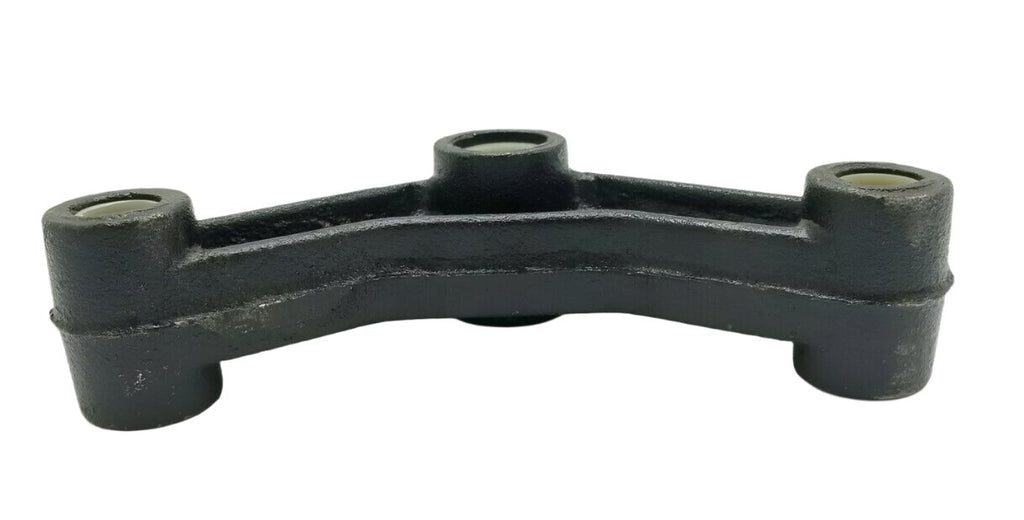

EQ-458 Equalizers for Double-Eye Leaf Spring Suspension (Pair)
Part Number: EQ-458X2
Pair of center spring pivot equalizers intended for use with double-eye leaf spring trailer suspension systems. Designed for applications using 9/16" spring eyes with a 3/4" top mounting hole.
Features
- Center spring pivot equalizer design
- For double-eye leaf spring suspension systems
- 3/4" top mounting hole
- 9/16" side mounting holes
- Kit includes two equalizers
Specifications

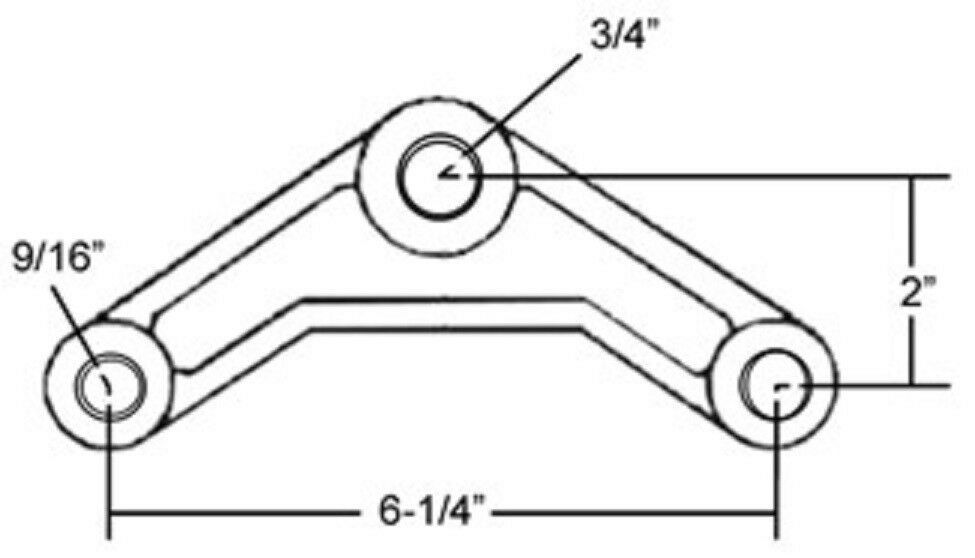

| Equalizer Type | Double-eye leaf spring |
|---|---|
| Overall Dimensions | 6-1/2" x 2" |
| Top Hole Diameter | 3/4" |
| Side Hole Diameter | 9/16" |
| Top to Side Hole Spacing | 4" center to center |
| Side Hole Spacing | 6.25" center to center |
| Quantity | 2 equalizers |
Verify specifications before installation.
