Two 7" x 1-1/4" Electric Brake Assemblies – One Left & One Right – 2,000–2,200 lb Axles
Part Numbers: 023-047-00 + 023-048-00

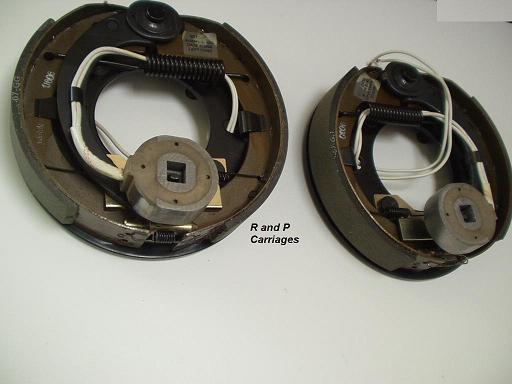

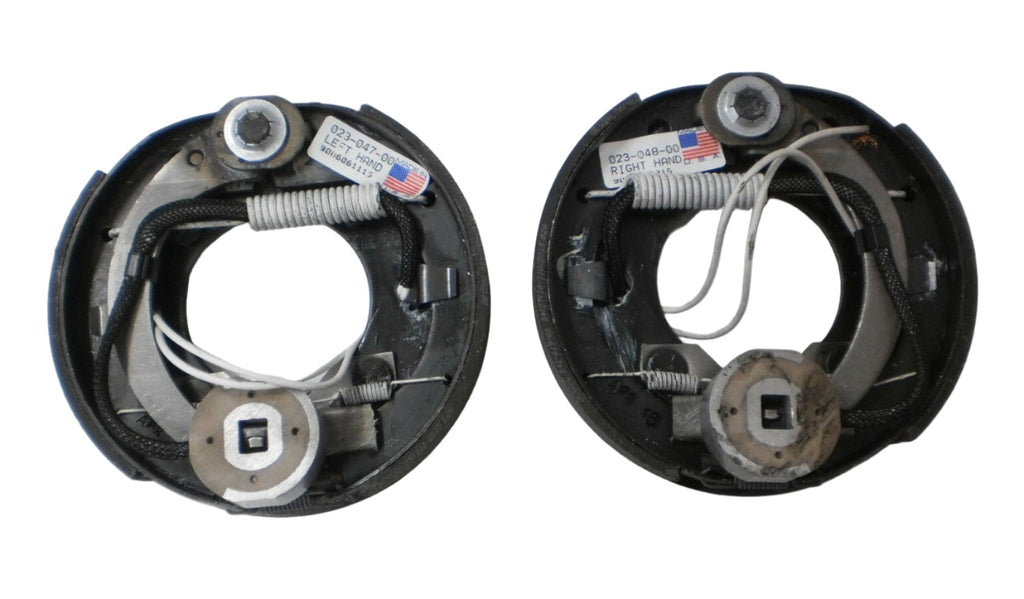

Complete axle brake set including one left (driver side) and one right (passenger side) 7" x 1-1/4" electric brake assembly. Designed for most 2,000 lb and 2,200 lb trailer axles using a standard 4-bolt mounting flange. Compatible with 4-lug and 5-lug hub configurations and both leaf spring and torsion axles.
R&P Knowledge Hub
This configuration services one complete axle. Brake orientation is determined by standing behind the trailer facing forward. Confirm brake size (7" x 1-1/4") and mounting flange spacing (2-7/8" center-to-center) before ordering.
Features

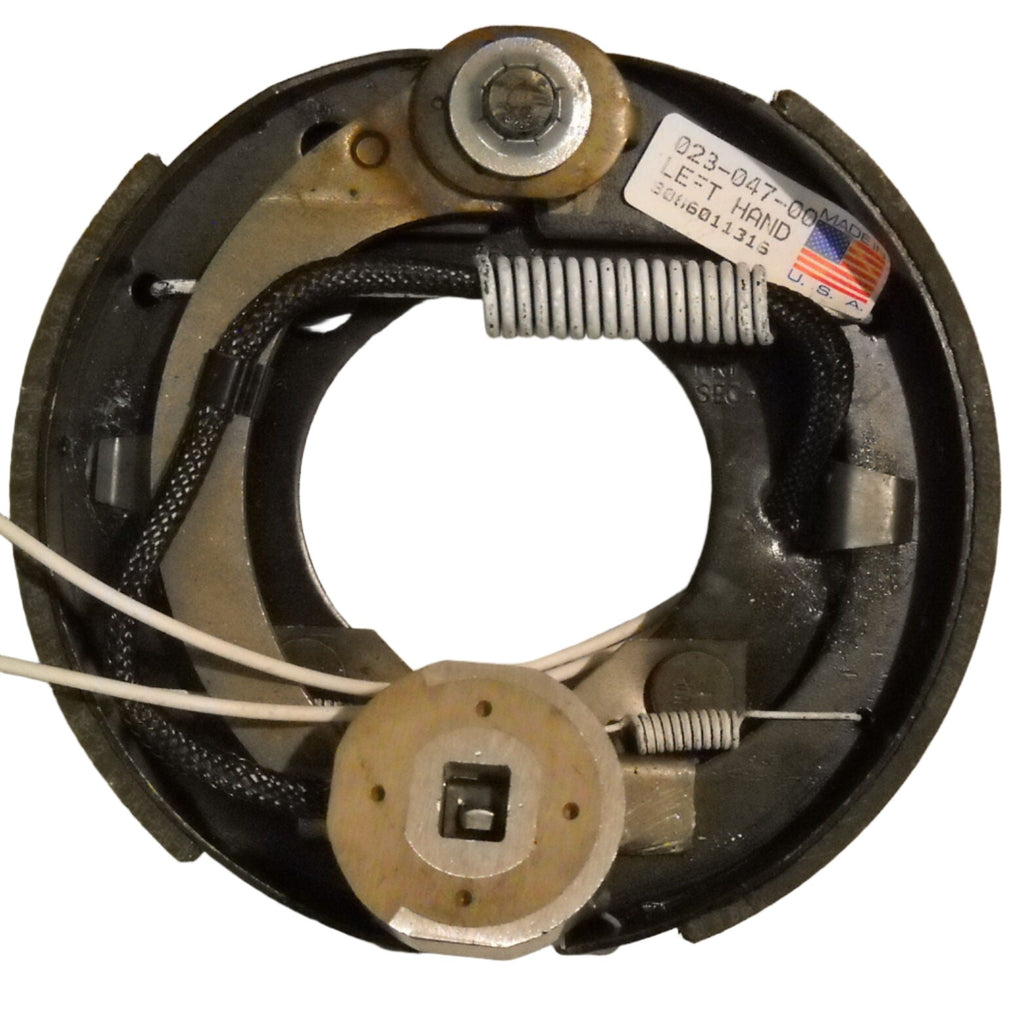

- One Left (023-047-00)

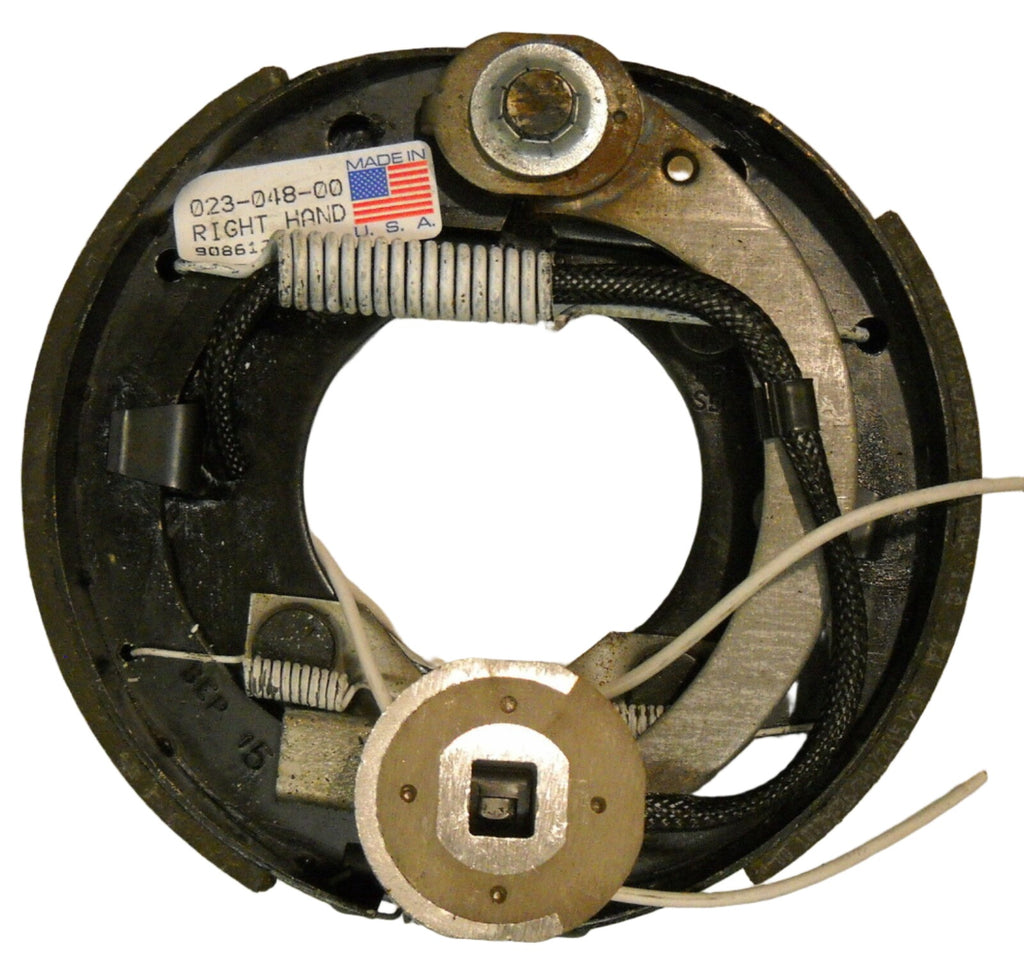

- One Right (023-048-00)
- 7" x 1-1/4" brake assemblies
- Pre-installed brake shoes and magnets
- All springs and hardware pre-assembled
- Fits standard 4-bolt brake flange
Specifications
| Specification | Detail |
| Brake Size | 7" x 1-1/4" |
| Axle Capacity | 2,000 lb – 2,200 lb |
| Mounting Flange | 4 Bolt |
| Bolt Spacing | 2-7/8" Center to Center |
| Quantity | Two Assemblies (One Axle) |
Verify axle rating, flange spacing, and brake size before installation.
