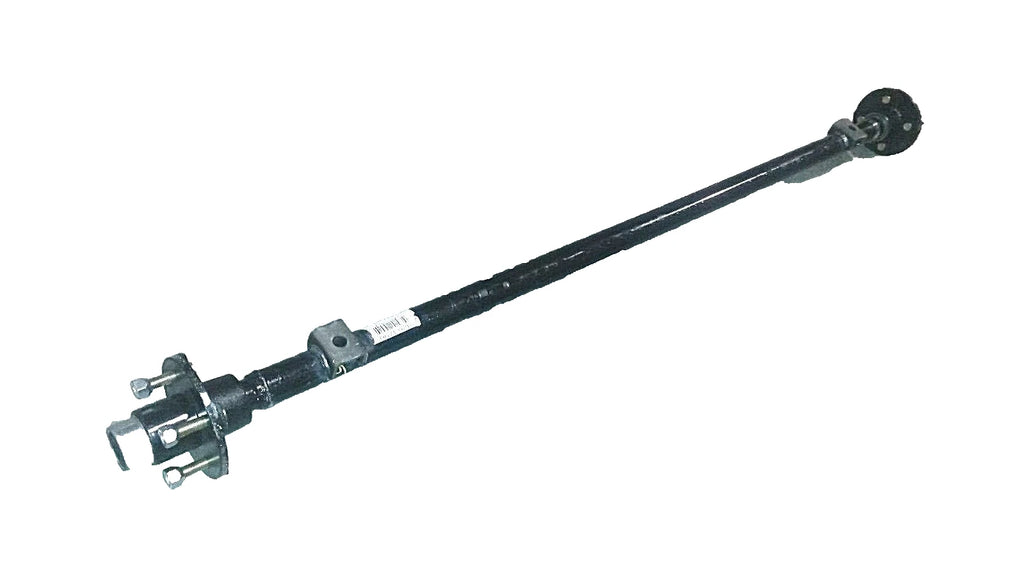

2000 lb Trailer Axle Kit – 57" Hub Face – 5 on 4.5 Idler – Utility Trailer Axle
Part Number: 2000-57-5LUG
2000 lb trailer axle kit with 57" hub face and 5 on 4.5 idler hubs. Includes hubs, bearings, seals, and mounting hardware for utility trailer builds and replacements.
R&P Knowledge Hub

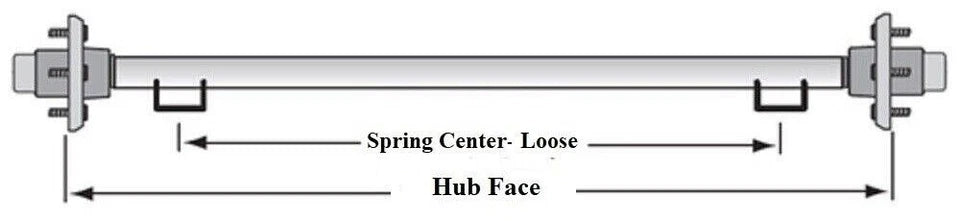

This is an idler axle (no brakes). Hub face controls wheel placement, while spring perches must be welded to match your trailer’s spring center spacing.
Commonly used on small utility trailers such as 4x6, 5x8, and other narrow-frame builds. Always verify measurements before installation.
Features
- 2000 lb capacity straight trailer axle
- 57" hub face measurement
- 5 on 4.5 bolt pattern idler hubs
- Includes bearings, seals, caps, and mounting hardware
Specifications
| Specification | Detail |
| Axle Capacity | 2000 lb |
| Hub Face | 57" |

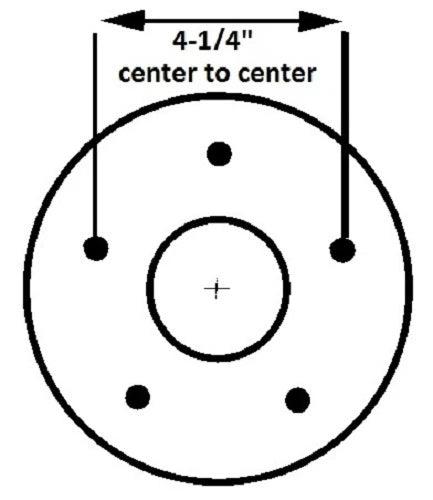

| Bolt Pattern | 5 on 4.5" |

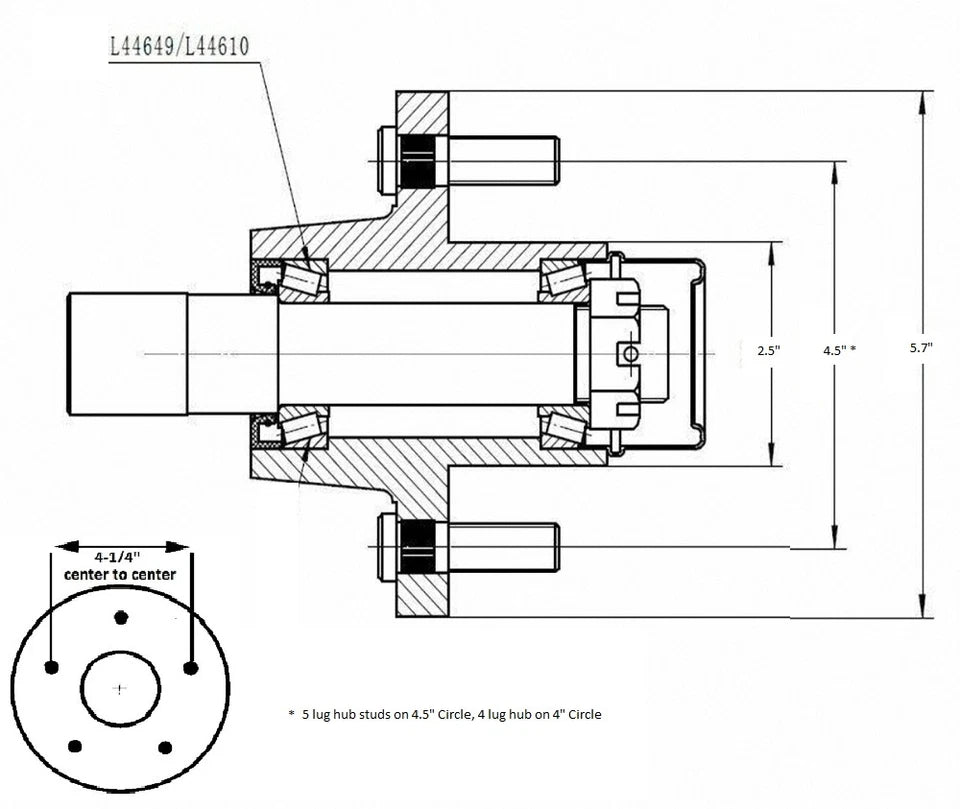

| Bearing Type | L44649 |
| Seal Size | 1.5" (#10-60) |
| Brake Type | Idler (No Brakes) |
Confirm measurements and fitment before installation.
Included Components
| Quantity | Item |
| 1 | 57" Axle Beam (2000 lb) |
| 2 | Idler Hubs with Bearings |
| 2 | Grease Seals (#10-60) |
| 2 | Grease Caps |
| Included | Lug Nuts and Mounting Hardware |
| 2 | Spring Perches (Loose – Weld-On) |
Shipping: Calculated at checkout.
