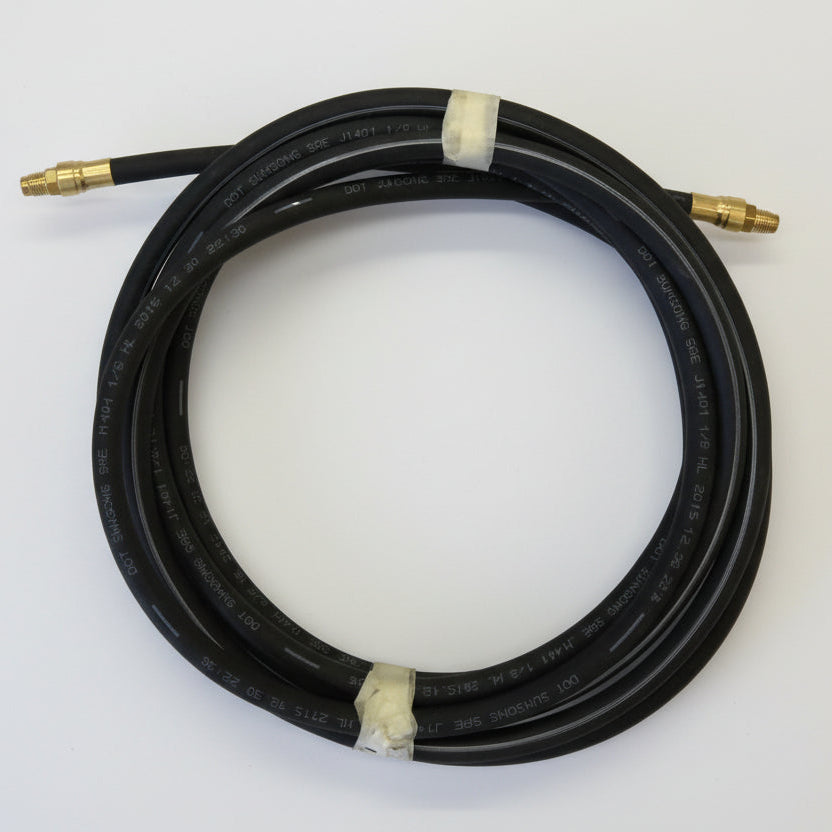

204" Hydraulic Brake Hose — 1/8" ID — 3/16" Male Inverted Flare — DOT Trailer Brake Line
Part Number: BH-3MFS-204
204" (17 ft) DOT-approved hydraulic brake hose with 1/8" inner diameter and 3/16" male inverted flare fittings on both ends. Designed for flexible routing between rigid lines and moving components in trailer disc brake systems.
Features
- 204" (17 ft) flexible hydraulic brake hose
- 1/8" inner diameter (DOT / SAE J1401 compliant)
- 3/16" male inverted flare fittings on both ends
- Stainless flared ends for corrosion resistance
- Ideal for swing tongue and long-run brake line routing
R&P Knowledge Hub
Hydraulic brake hoses are used between rigid brake lines and moving components such as axles or swing tongues to prevent stress and line fatigue.
Longer hoses are commonly used in extended tongue setups or trailers requiring additional routing length. Always verify fitting size (3/16") and required length before installation.
Specifications
| Specification | Detail |
| Type | Hydraulic Brake Hose |
| Application | Trailer Disc Brake Systems |
| Length | 204" (17 ft, tip-to-tip) |
| Inner Diameter | 1/8" |
| Fitting Type | 3/16" Male Inverted Flare (Both Ends) |
| Standard | SAE J1401 (DOT Compliant) |
| Construction | Rubberized Hose with Brass Fittings and Stainless Flares |
| Part Number | BH-3MFS-204 |
Verify hose length and fitting size before installation.
