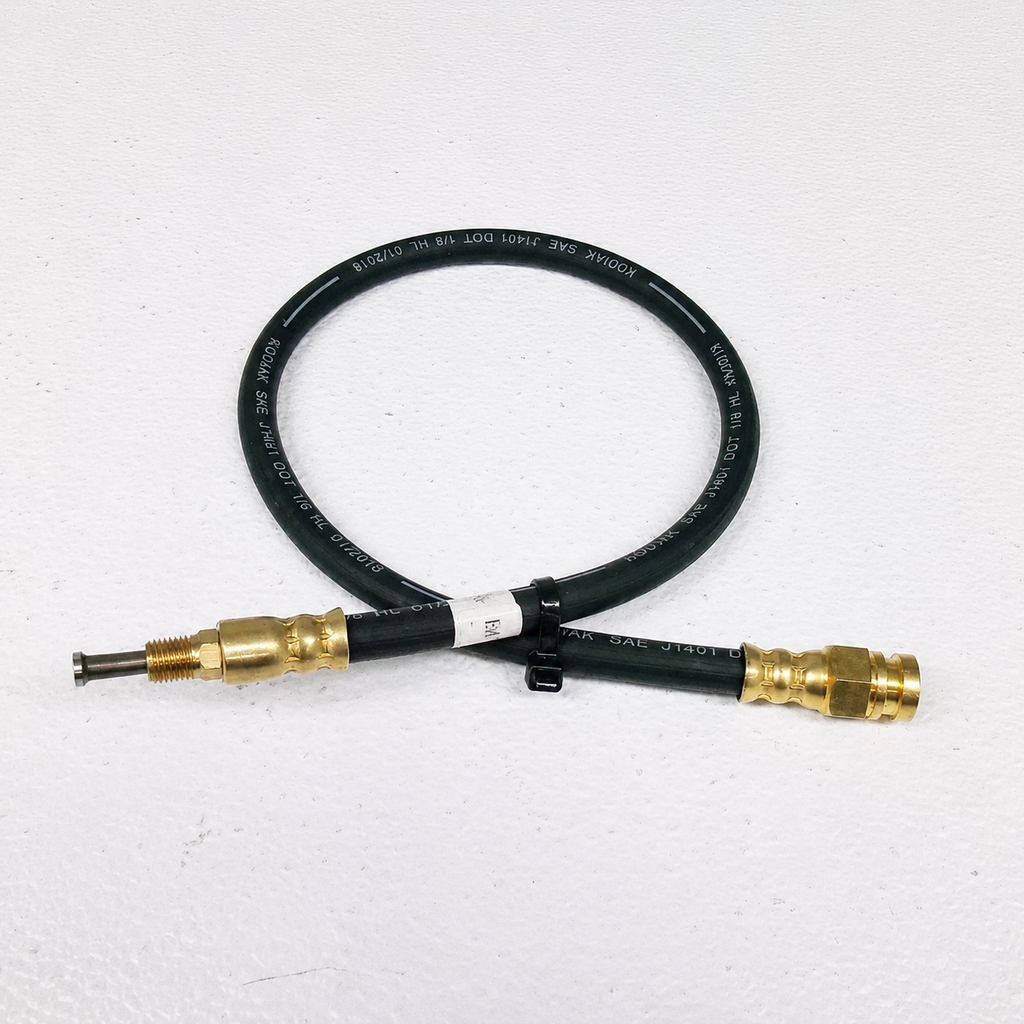

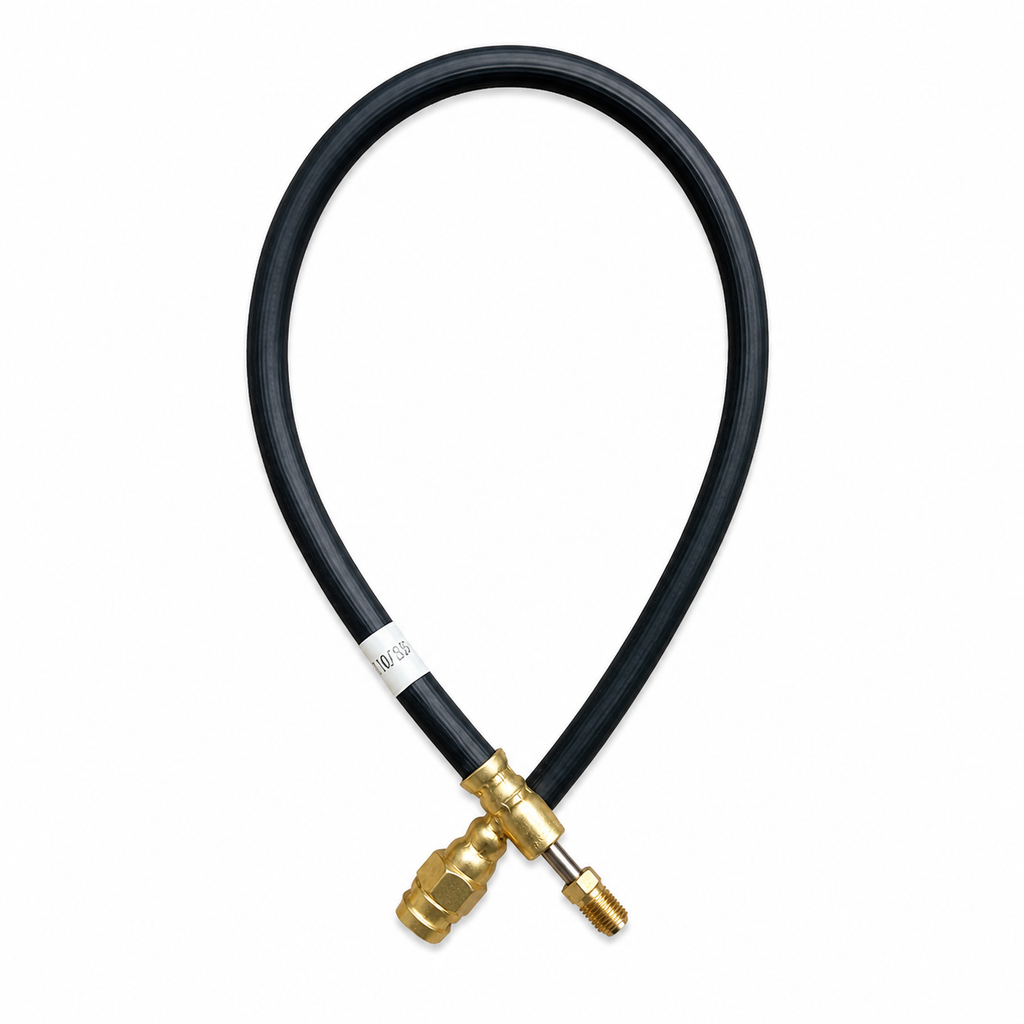

24" Hydraulic Brake Hose, 1/8" ID, 3/16" Male Inverted Flare, DOT Trailer Brake Line
Flexible 24" hydraulic brake hose for trailer disc brake systems using 3/16" male inverted flare connections with 3/8"-24 thread.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | BH-3MSFF-024 |
| Product Type | Flexible Hydraulic Brake Hose |
| Length | 24" / 2 ft, tip-to-tip |
| Inner Diameter | 1/8" |
| Fitting Type | 3/16" male inverted flare on both ends |
| Thread Size | 3/8"-24 |
| Quantity Included | 1 hydraulic brake hose |
Fitment / Application
| Category | Details |
|---|---|
| System | Trailer hydraulic disc brake systems |
| Primary Fit | Flexible connection between rigid brake lines and moving trailer brake components where length and fittings match |
| Fitment Method | Verify 24" hose length, 3/16" inverted flare fitting style, and 3/8"-24 thread before ordering |
| Important Note | Brake hose fitment is measurement and fitting-style specific. Confirm your existing line before installation. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| 24" Flexible Hose | Useful for routing between rigid lines and moving brake components |
| 3/16" Male Inverted Flare Ends | Matches common hydraulic trailer brake line fittings where 3/8"-24 threads are used |
| Swivel Ends | Helps reduce hose twist during installation |

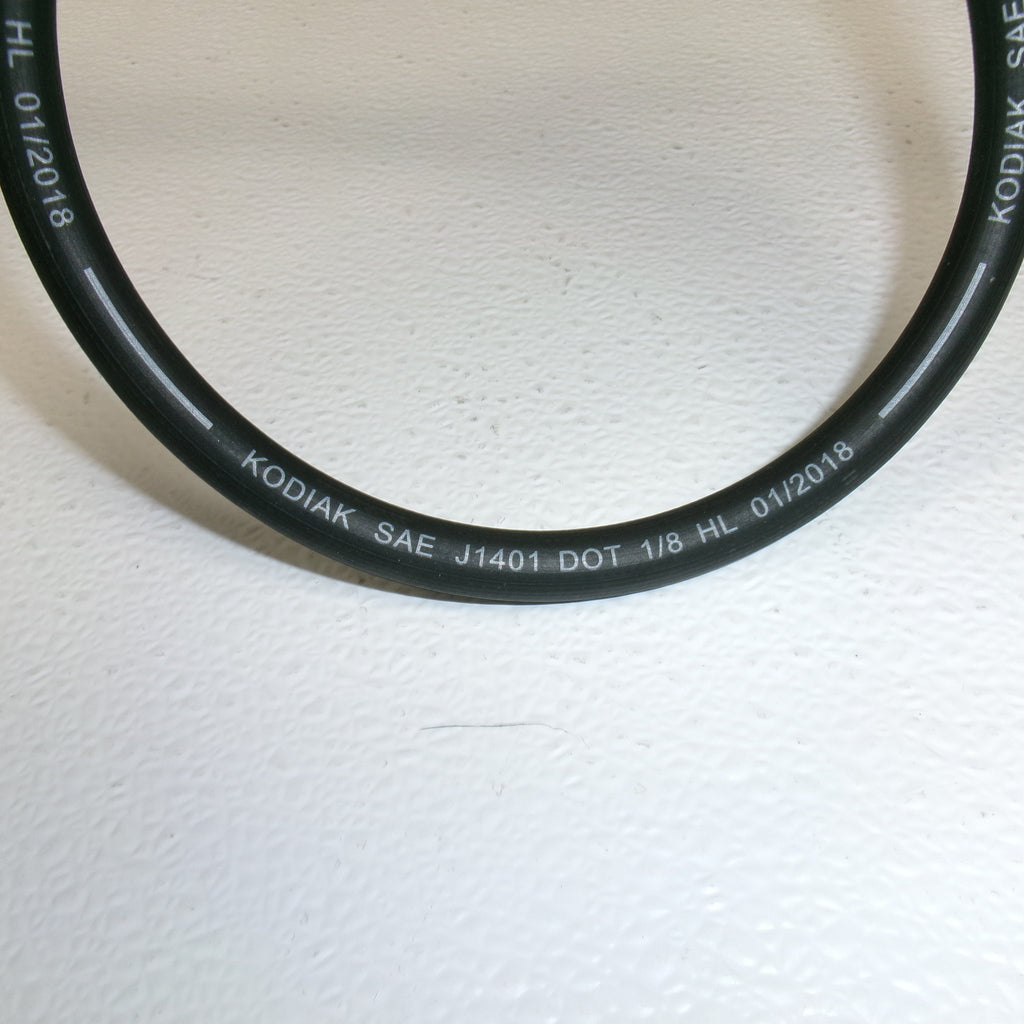

| DOT / SAE J1401 Style Brake Hose | Built for hydraulic brake line service applications |
Overview
This 24" hydraulic brake hose is used in trailer brake systems where a flexible line is needed between rigid hydraulic brake tubing and moving components such as axles, calipers, swing tongues, or suspension areas. The hose uses 3/16" male inverted flare fittings on both ends with 3/8"-24 thread.
R&P Service Insight
Flexible brake hoses should be matched by length, fitting type, and thread size. A hose that is too short can become stressed during suspension movement, while a hose that is too long may route poorly or contact moving parts.
- Length Check: Confirm the 24" tip-to-tip length before ordering.
- Fitting Check: Match the 3/16" male inverted flare ends and 3/8"-24 thread.
- Routing Check: Make sure the hose has clearance through the full range of trailer movement.
R&P Knowledge Hub
Compatibility: Fits hydraulic trailer brake applications where a 24" hose with 3/16" male inverted flare fittings and 3/8"-24 thread is required.
System Fit: Commonly used in trailer disc brake plumbing between hard lines and flexible movement points.
Installation Notes: Avoid kinks, twists, rubbing points, sharp bends, and over-stretched routing. Bleed the hydraulic brake system after line replacement.
Performance Insight: Swivel-style hose ends help reduce installation twist, which can improve routing and reduce stress on the hose body.
Brand & Fitment Note
Selling Brand: R&P Carriages
Application Reference: Trailer hydraulic brake hose for compatible disc brake plumbing applications where the listed measurements and fittings match.
What This Means: This listing is for one 24" hydraulic brake hose, not a complete brake line kit.
Before Ordering: Verify length, fitting style, thread size, and installation route before purchase.
R&P Repair Insight
When replacing a trailer brake hose, compare the removed hose directly against the replacement before installation. Hydraulic brake line systems are sensitive to thread mismatch, poor routing, and fitting damage.
- Do Not Force Threads: If the fitting does not start cleanly by hand, stop and verify the thread size.
- Check for Wear: Replace hoses showing cracking, abrasion, swelling, or damaged flares.
- Bleed After Service: Hydraulic brake systems must be properly bled after hose or line replacement.
Features
24" Flexible Brake Hose
Provides a flexible hydraulic connection where rigid brake tubing cannot safely handle movement.

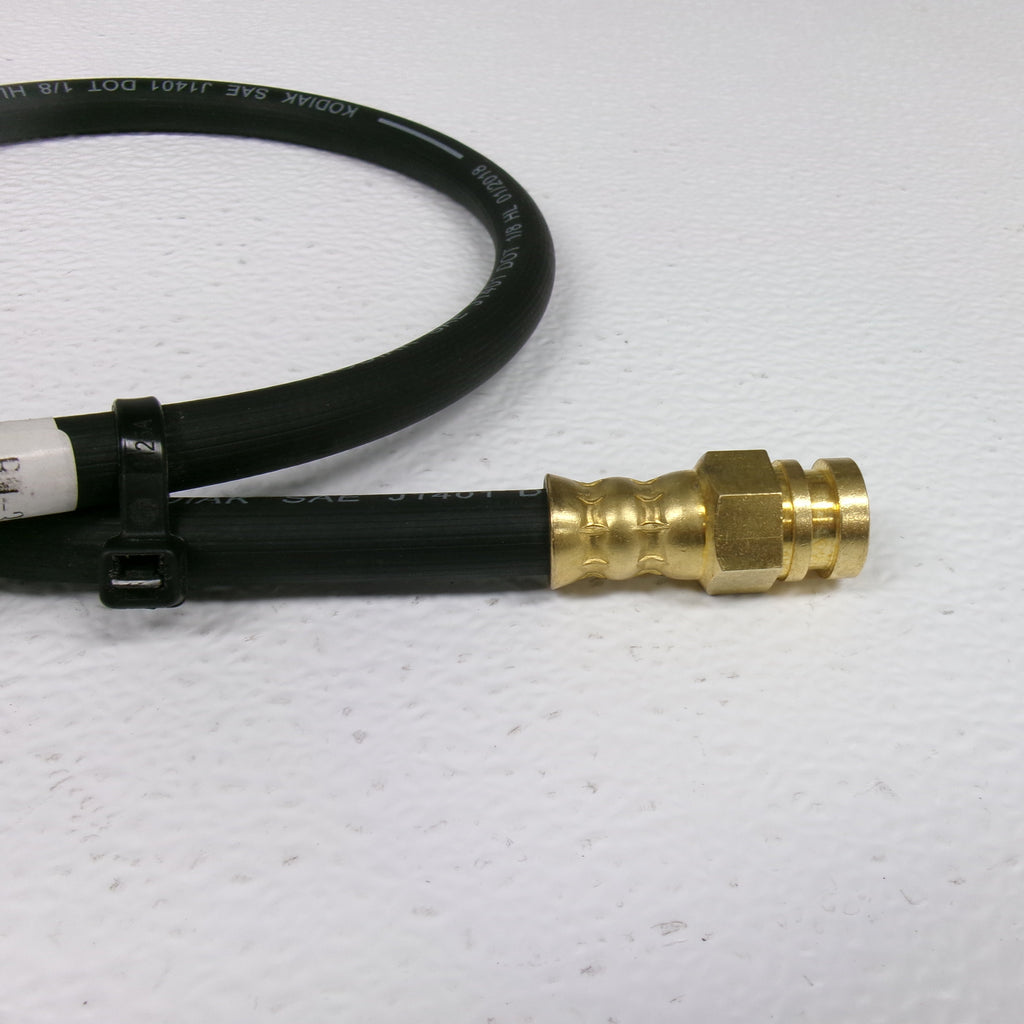

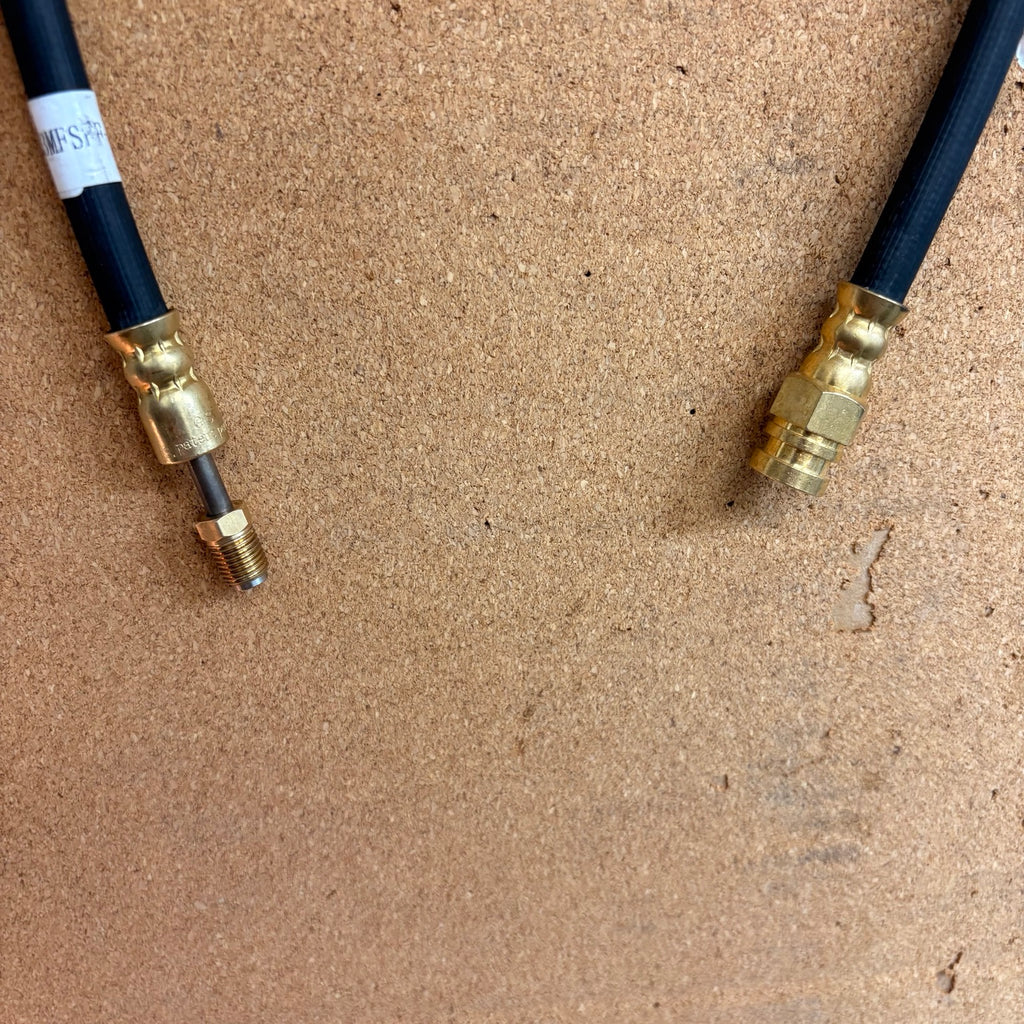

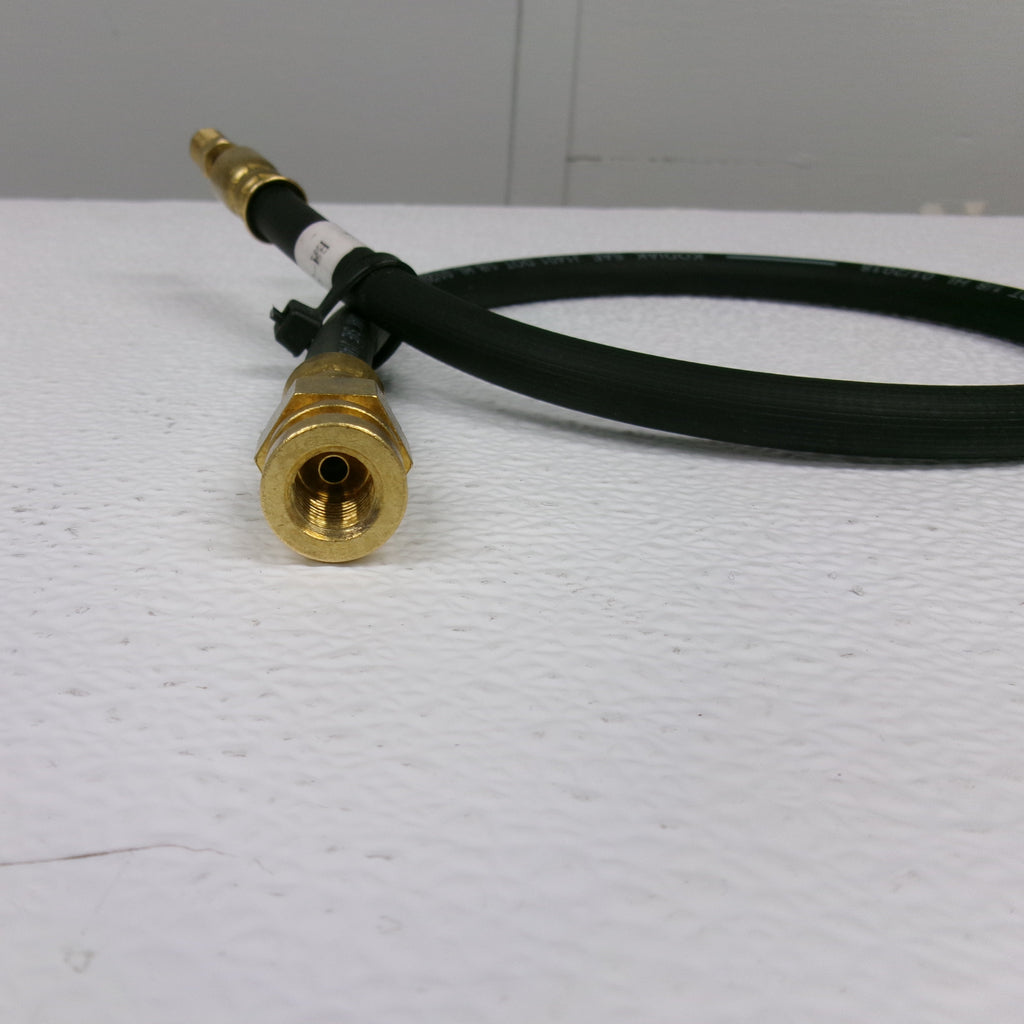

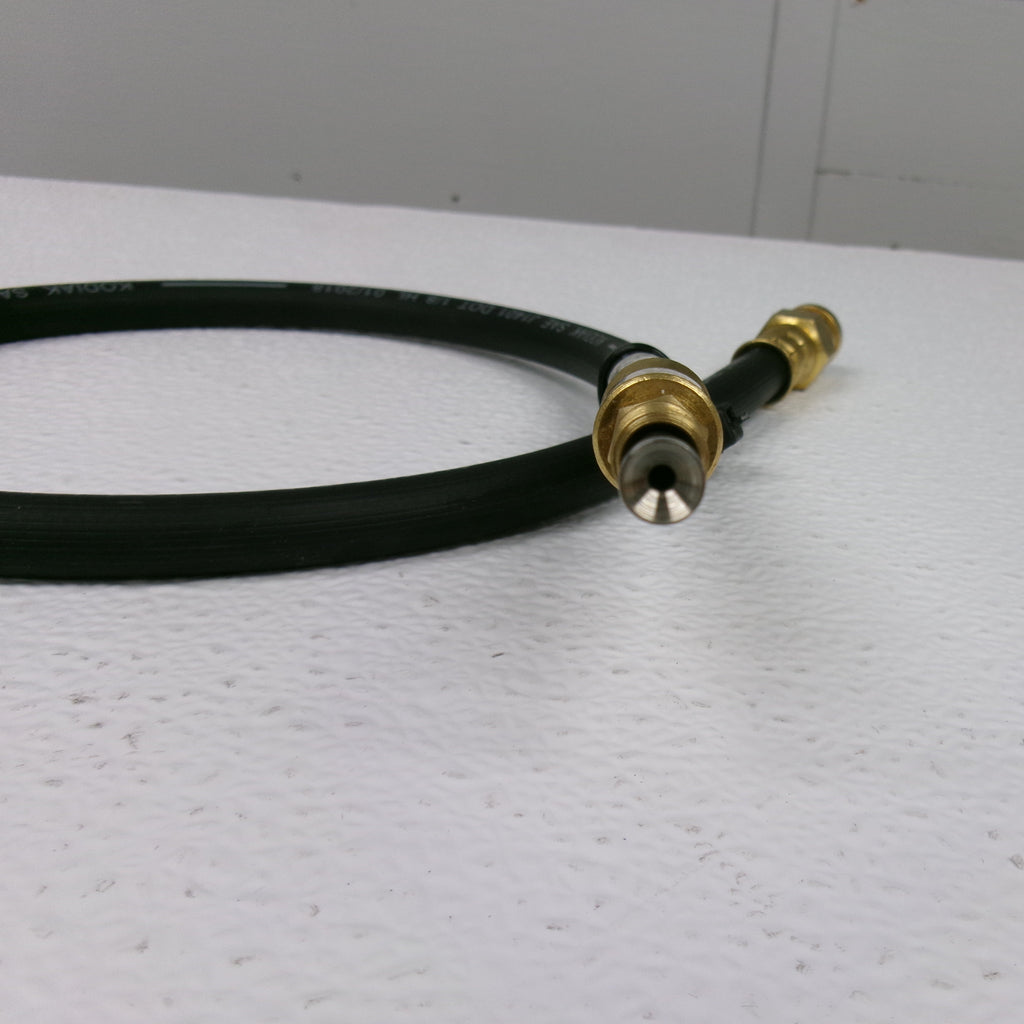

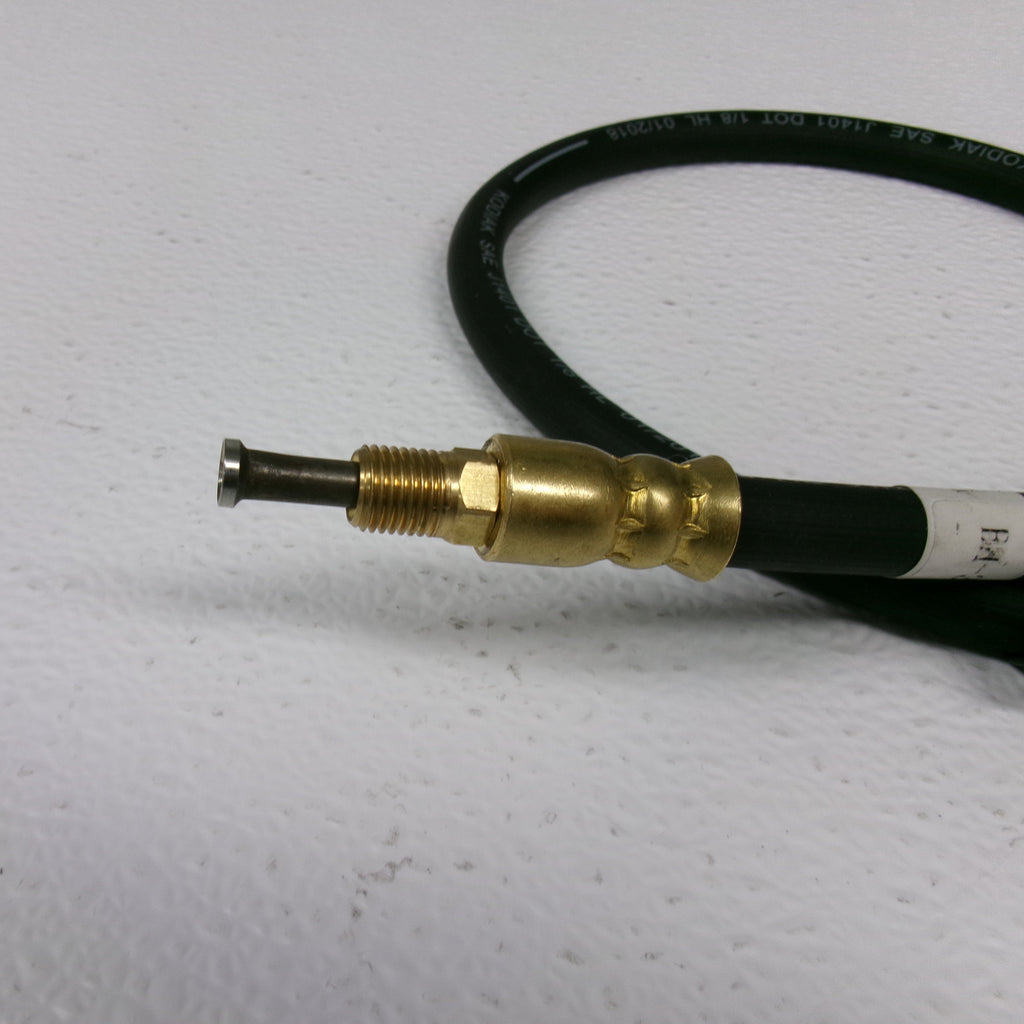

3/16" Male Inverted Flare Ends
Both ends use 3/16" male inverted flare fittings with 3/8"-24 thread.
Swivel End Design
Helps reduce hose twisting during installation and routing.
Trailer Brake System Use
Designed for compatible hydraulic trailer disc brake line applications.
Included Components
| Quantity | Item |
|---|---|
| 1 | 24" hydraulic brake hose with 3/16" male inverted flare fittings on both ends |
| Not Included | Brake fluid, hard line, fittings, brackets, clips, calipers, actuator, or installation hardware unless shown separately |
