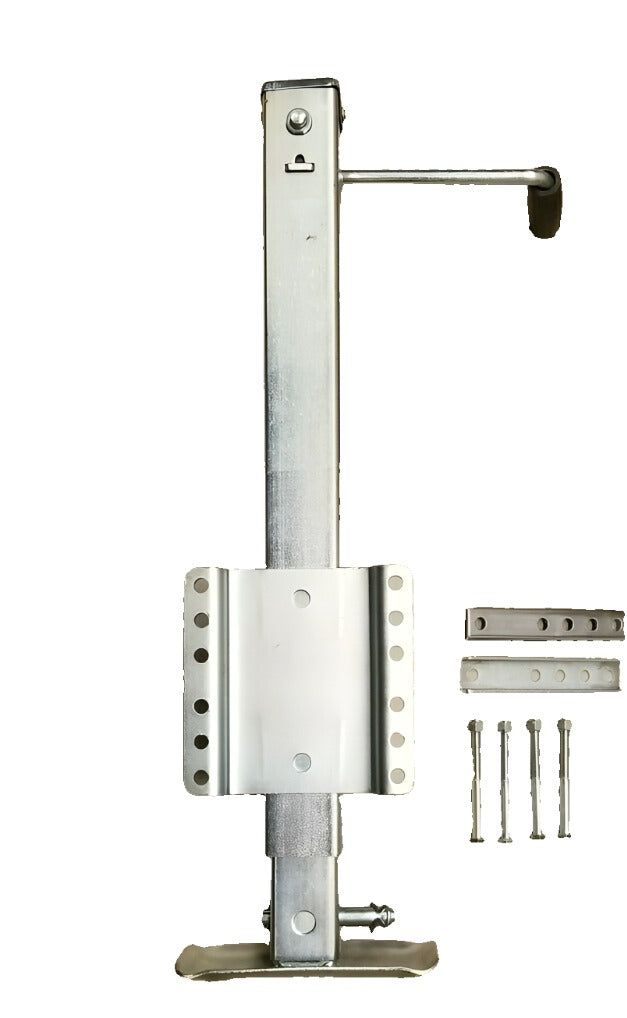

2500# RAM Bolt on Heavy Duty Drop Leg Marine Trailer Jack with Foot (MJSQ-2500B)

RAM

Regular price $99.99


2500# RAM Bolt on Heavy Duty Drop Leg Trailer Jack with Foot
Part Number: MJSQ-2500B

Features:
- 2500# Rating
- Fix Mounted Jack
- Includes Mounting Hardware
- Fits up to a 3" x 5" Trailer Frame

Specifications:
- Total Lift: 29-1/8"
- Bracket Height Retracted: 7-1/4"
- Bracket Height Extended: 22-5/8"

- Clearance: 17-1/2" from center of bracket to top of Jack
- Outer Tube Width: 2-1/4"
- Inner Tube Width: 2"

- Mounting Bracket Dimensions: 6-1/2" x 6-1/2"

- Adjustment Hole Spacing On Drop Leg: 3-3/8" center of hole to center of hole
- 3-1/2" from center of hole on bottom and center of nearest hole
