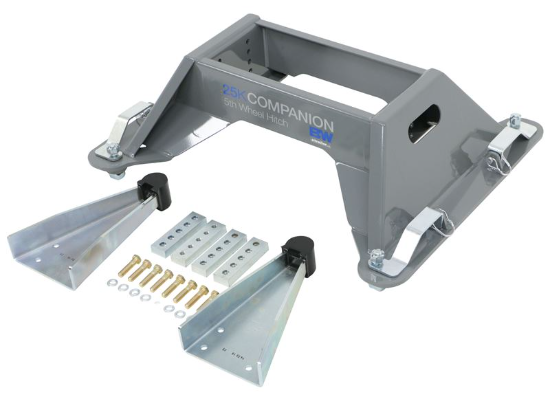

25K GM OEM RV Base – RVB3705 (RVB3705)
Product Info
B&W Companion OEM 25K Fifth Wheel Hitch Replacement Base – GM RVB3705
The B&W Companion OEM RVB3705 is a replacement fifth-wheel hitch base engineered for compatible Chevrolet Silverado and GMC Sierra HD pickups equipped with the factory-installed four-puck towing preparation system.
This base is the lower mounting assembly used with the B&W Companion 25,000-lb fifth-wheel hitch, RVK3705. It secures directly into the factory underbed puck receivers and accepts a compatible Companion hitch head assembly.
Key Features
| OEM Puck Mounting | Connects to the four factory-installed fifth-wheel receiver pucks in compatible GM truck beds. |
| Adjustable Pivot Arms | Three height settings and two fore/aft positions allow hitch-head positioning for the application. |
| Removable Design | Cam-actuated mounting feet and locking handles allow installation and removal from the factory puck system. |
| Steel Construction | Gray powder-coated steel frame with polyurethane pivot-arm bushings. |
Technical Specifications
| Manufacturer | B&W Trailer Hitches |
| Manufacturer Part Number | RVB3705 |
| Retailer Reference Number | BWRVB3705 |
| Product Type | Replacement fifth-wheel hitch base |
| Series | Companion OEM |
| Gross Trailer Weight Rating | 25,000 lbs |
| Vertical Load Rating | 6,250 lbs |
| Hitch Height Adjustments | 16-3/4", 17-3/4", 18-3/4" |
| Fore/Aft Adjustment | 2" between pivot-arm mounting positions |
| Mounting System | GM factory OEM four-puck system |
| Construction | Powder-coated steel |
| Finish | Gray powder coat |
| Compatible Complete Hitch | B&W RVK3705 |
| Companion Coupler / Head | RVC3006 – sold separately |
| Country of Manufacture | USA |
| Warranty | Manufacturer limited lifetime warranty; terms apply |
Vehicle Fitment
Designed for the following trucks equipped with the factory-installed GM fifth-wheel towing preparation package:
| Vehicle | Model Years |
|---|---|
| Chevrolet Silverado 2500HD | 2016–2019 |
| Chevrolet Silverado 3500HD | 2016–2019 |
| GMC Sierra 2500HD | 2016–2019 |
| GMC Sierra 3500HD | 2016–2019 |
Fitment distinction: The RVB3705 is designed for the earlier GM factory puck pattern. It is not the correct base for the redesigned 2020-and-newer GM puck system. Verify the installed towing preparation package rather than relying on vehicle model year alone.
Short-bed applications: This is a stationary base, not a sliding hitch. Short-bed trucks may require additional turning clearance or a suitable slider hitch. Verify cab-to-trailer clearance, pin-box compatibility, and the truck manufacturer's towing requirements.
Included Components
| Component | Quantity |
|---|---|
| B&W Companion OEM replacement base assembly, RVB3705 | 1 |
Not included: Fifth-wheel hitch head / coupler (RVC3006), complete hitch assembly, and truck-side OEM towing preparation hardware. Verify supplied base mounting components and hardware against the manufacturer's package contents.
Knowledge Hub | Base Compatibility and Installation
Factory puck mounting: The base connects directly to the four receiver points in the GM factory-installed underbed fifth-wheel mounting system. Locking handles secure the base to the vehicle's puck receivers.
Hitch head positioning: Adjustable pivot arms provide three vertical mounting positions and two fore/aft configurations. Proper positioning helps achieve suitable trailer clearance and towing geometry when used with the compatible hitch head.
Replacement versus conversion: RVB3705 can replace a damaged or incompatible Companion base while retaining a compatible existing Companion coupler/head assembly. Confirm the head assembly part number and B&W compatibility requirements before attempting a conversion.
Rating limitations: The 25,000-lb gross trailer weight and 6,250-lb vertical load figures are hitch ratings, not an increase to the truck's towing or payload capacities. The permissible combination is limited by the lowest-rated applicable component and the vehicle manufacturer's ratings.
Before replacing a Companion base, identify the existing hitch head and confirm the truck's actual puck arrangement. GM changed its factory mounting pattern for the 2020 model year. A base intended for the earlier puck system should not be ordered solely because the truck has a factory fifth-wheel preparation package.
Installation and Safety
Install and adjust this base according to the current B&W instructions for RVB3705. Check the seating of all four mounting feet, secure the locking mechanisms, and verify proper hitch head attachment before towing.
Confirm bed-rail clearance, cab clearance, trailer attitude, loaded pin weight, and the combined ratings of the tow vehicle, fifth-wheel hitch, and trailer. Do not exceed any applicable manufacturer rating.
