At a Glance
- SKU: APS1025HD
PRODUCT INFORMATION
Product Details
Heavy Duty 10K-16K Slipper Spring Hanger Kit for 2.5" Springs
Part Number: APS1025HD
Heavy-duty slipper spring hanger hardware kit for trailer suspension systems using 2.5" wide springs in 10K–16K applications. Built around 3000HD front hangers, 4000HD rear hangers, 34412 bolts, and matching hardware for repair, replacement, or fresh suspension setup work.
R&P Knowledge Hub
Compatibility: Designed around 2.5" wide slipper spring suspension hardware using 3000HD front hangers, 4000HD rear hangers, and 34412 spring-retainer bolts.
Vehicle / System Fit: Commonly used in heavy-duty trailer suspension setups in the 10K–16K range where hanger style, spring width, and bolt sizing match the existing suspension design.
Installation Notes: Verify spring width, hanger geometry, bolt diameter, bolt length, and frame layout before welding or final assembly. Match replacement hardware to your original suspension configuration.
Performance Insight: On slipper spring systems, hanger height and bolt fit directly affect spring travel, axle alignment, and load distribution. Matching the correct front and rear hanger style matters just as much as spring capacity.
Hanger Measurement Reference
Use this chart to compare top-to-bolt-centerline hanger dimensions, spring width, and general application range. The APS1025HD row is highlighted for quick reference and the full table has hover interaction for easier visual comparison.
| Part # | Front Hanger Top to Bolt C/L | Rear Hanger Top to Bolt C/L | Spring Width | Application |
|---|---|---|---|---|
| 4105 | 1.50" | n/a | 1.75" - .5" Eye | 2-3.5K |
| 4104 | 1.75" | n/a | 1.75" | 2-3.5K |
| 4104-L | 3.25" | n/a | 1.75" | 2-3.5K |
| 4115-H | 3.50" | 5.00" | 2.00" | 3.5-7K HD |
| 4118-H | 5.00" | 6.38" | 2.00" | 8K |
| APS1025GD | 5.00" | 5.00" | 2.50" | 10K GD |
| APS1025HD | 8.33" | 8.33" | 2.50" | 10-12K HD |
| APS1025HH | 5.25" | 7.00" | 2.5" | 10K |
| APS1030HH | 6.25" | 7.80" | 3" | 10-16K |
Why this matters: Hanger height affects spring position, ride height, load transfer, and axle alignment. When replacing hangers or mixing suspension parts, match both spring width and centerline height instead of relying on capacity range alone.
R&P Service Insight
Suspension hanger hardware is commonly replaced during rebuilds, frame repairs, or spring service when wear, elongation, corrosion, or repeated heavy-load cycling affects the original setup.
- Wear: Spring bolts and hanger contact points can loosen or wear over time under repeated load and articulation
- Exposure: Road spray, corrosion, and debris can accelerate deterioration of hangers, bolts, and locknuts
- Load Stress: Heavy braking, rough surfaces, and overloaded conditions can distort hanger alignment and stress suspension hardware
Features
- Built for 2.5" wide slipper spring trailer suspension applications
- Uses 3000HD front hangers and 4000HD rear hangers for heavy-duty setups
- Includes matching 34412 bolt and related hardware callouts for suspension assembly
- Ideal for 10K–16K trailer suspension repair, rebuild, or new-install work
Specifications
| Specification | Detail |
|---|---|
| Type | Heavy-duty trailer slipper spring hanger hardware kit |
| Application | Trailer suspension for 2.5" slipper springs |
| Fitment | 10K–16K trailer suspension applications using 3000HD / 4000HD-style hangers |
| Material / Finish | Steel suspension components; finish may vary by piece |
| Key Measurement | For 2.5" springs; 3000HD front hanger 8.33"; 4000HD rear hanger 8.33"; 34412 bolt 3/4"-16 x 4.5" |
| Part Number | APS1025HD |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Heavy-duty trailer slipper spring suspension system |
| Axle / Capacity | 10K–16K class trailer suspension applications |
| Notes | Confirm spring width, hanger dimensions, bolt specs, and suspension layout before purchase. Match all hardware to your existing system or planned build. |

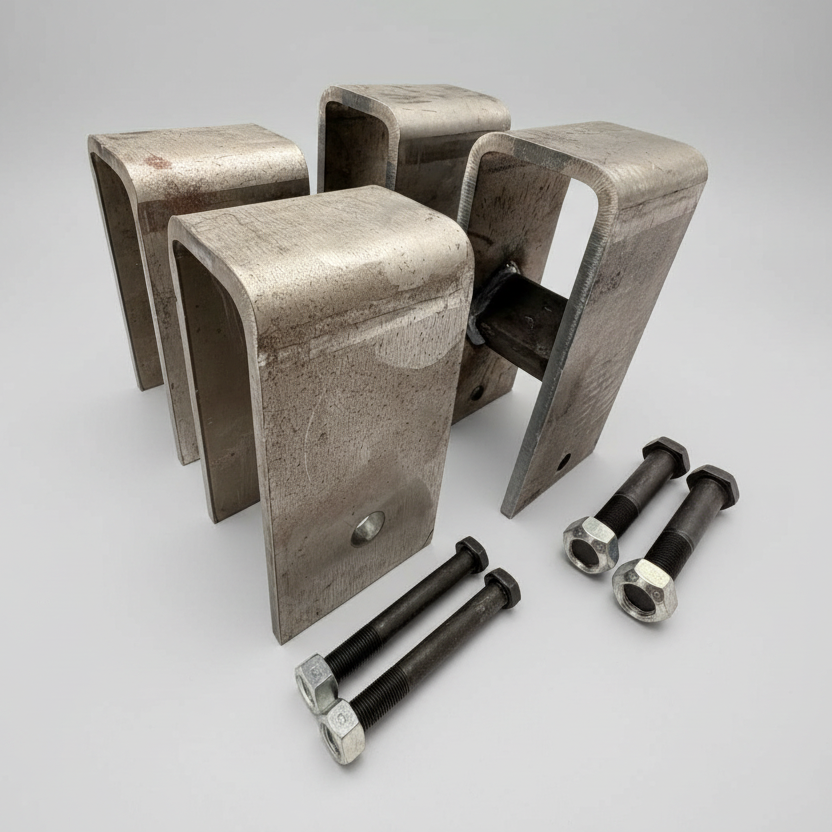

Included Components
| Quantity | Item |
|---|---|

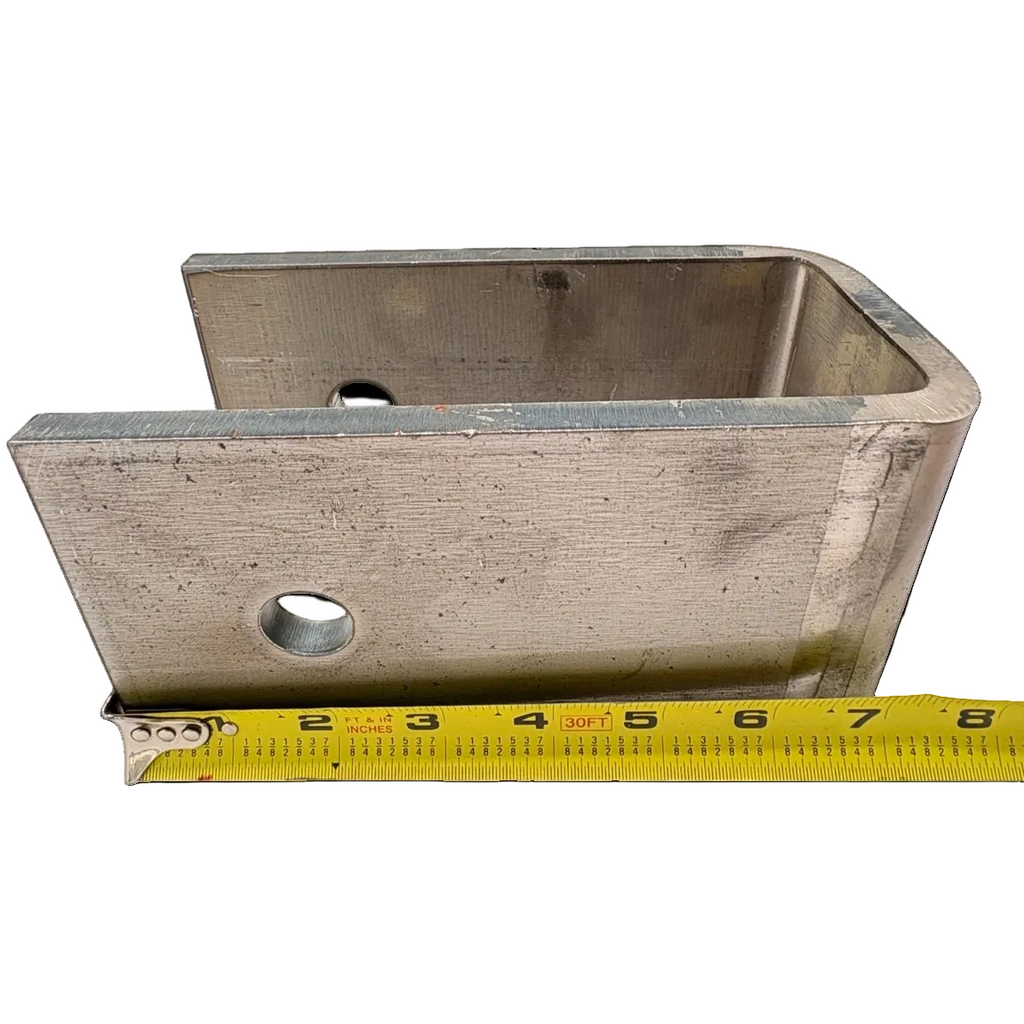

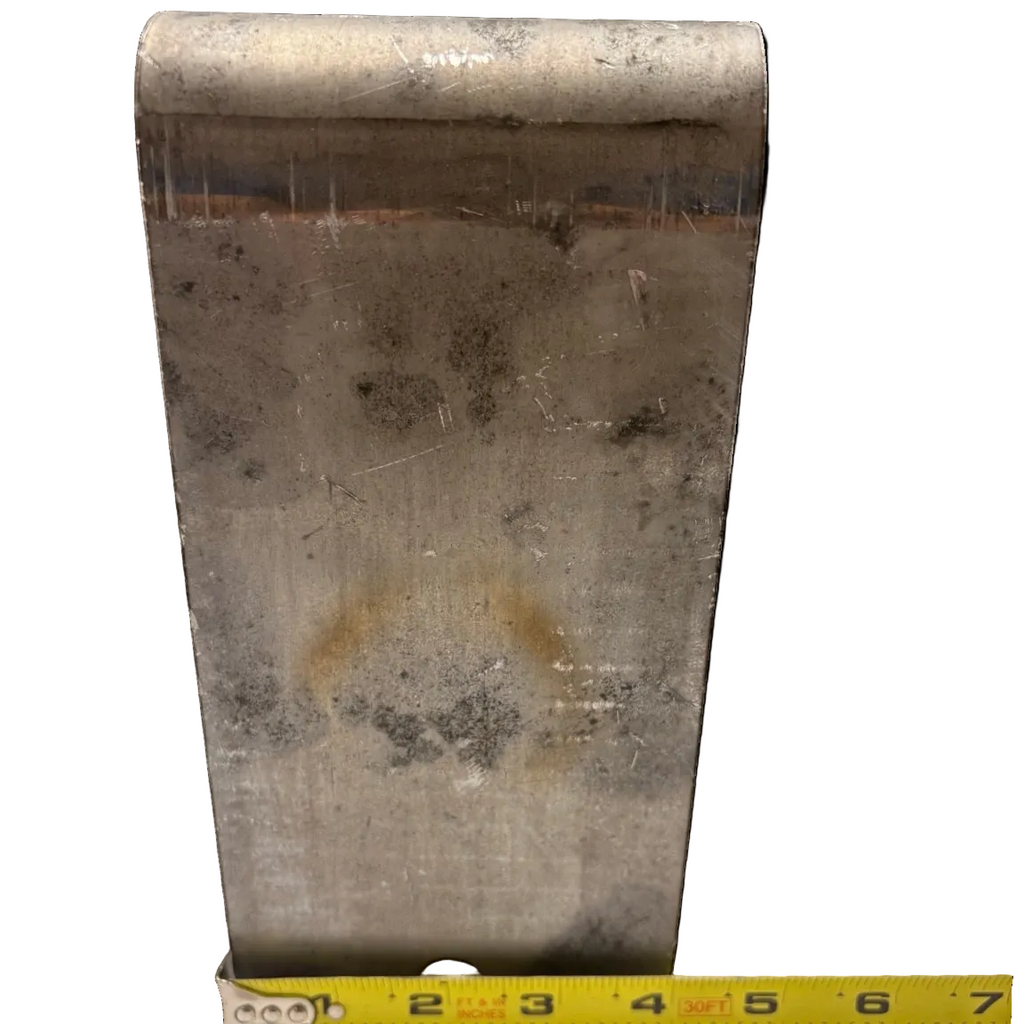

| Included | 3000HD Front Hanger |

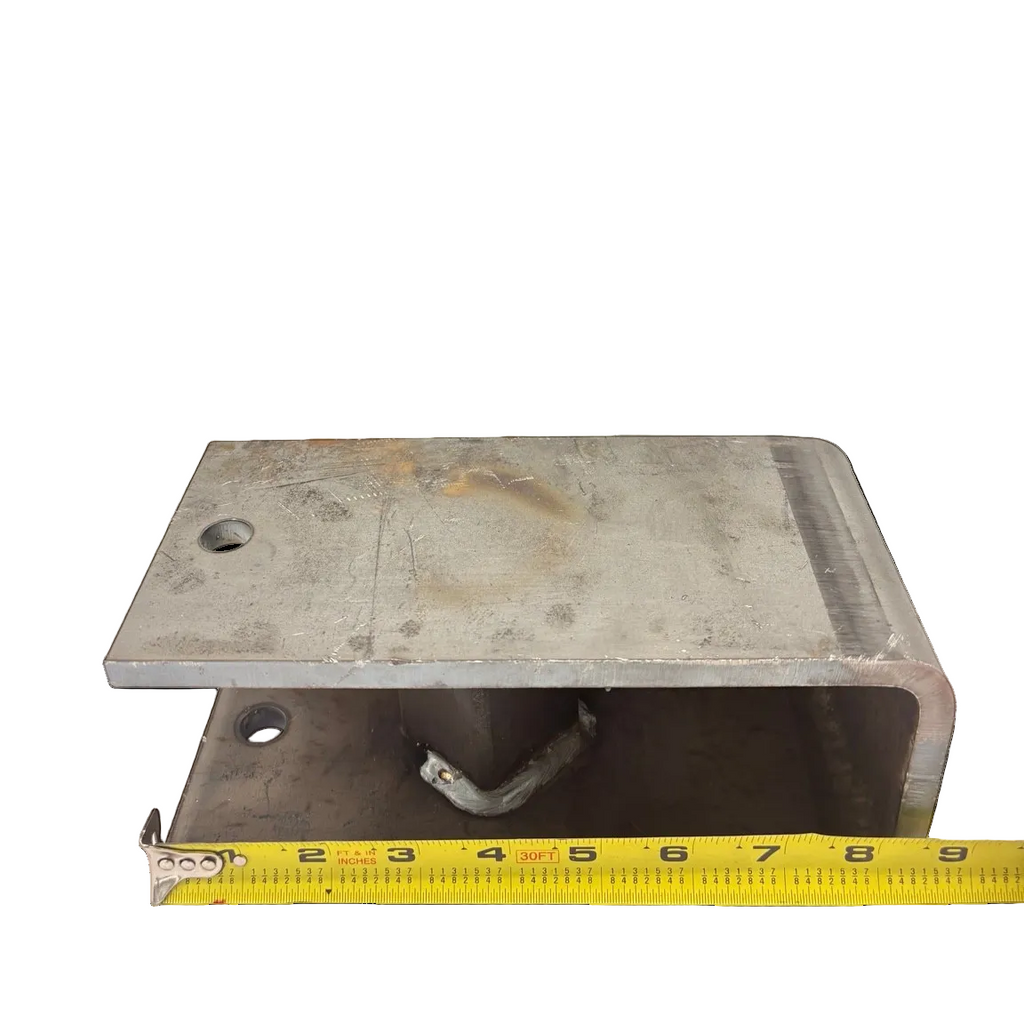

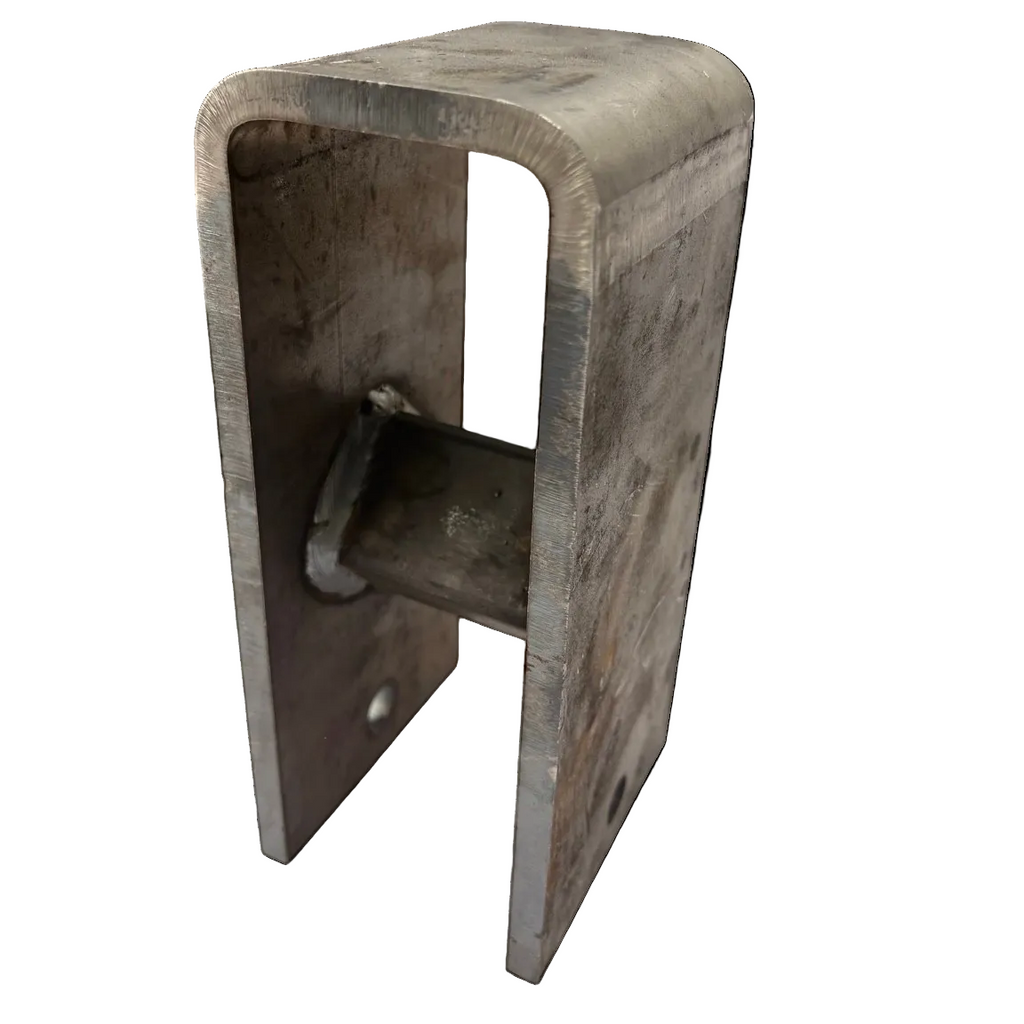

| Included | 4000HD Rear Hanger |

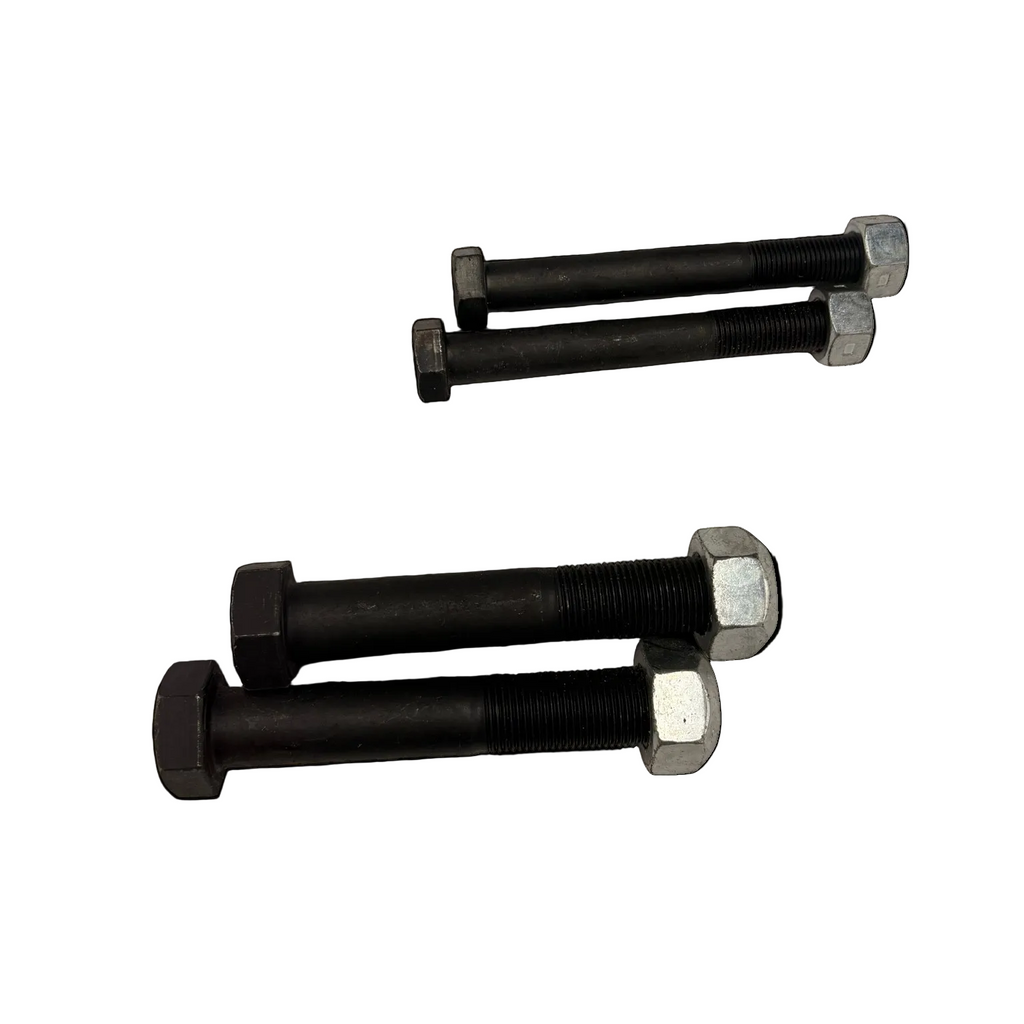

| Included | 34412 Shackle / Spring Bolt |
| Included | 34LN Nut |
| Included | CS-12400 Bolt |
| Included | 12LN Nut |
Verify all specifications, measurements, and compatibility before installation.
