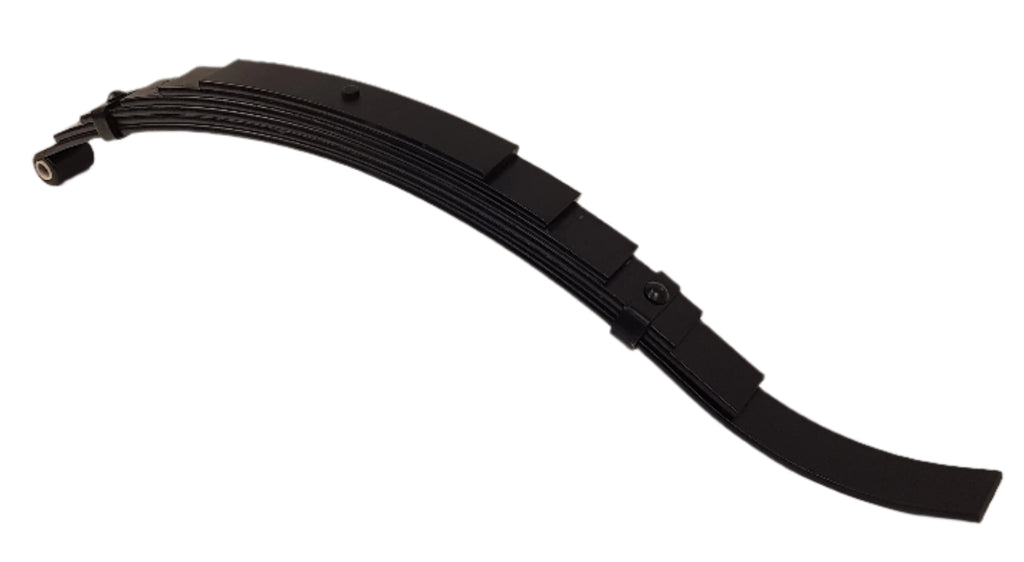

Replacement 32" Slipper Spring Radius End 6 Leaf for 1400 LB Utility Trailer Axle Eye to Slipper (UNA-029N)

$79.40

Most items ship free — select items ship for $6.39

Only 1 left

Replacement Utility Trailer 6 Leaf Spring-Radius End Slipper

Cross Reference: URB32006, US-3081

Alternate SKU: US-3081, US3081, URB32006, LR32006H, UNA029N

Leaf Width:1.75"

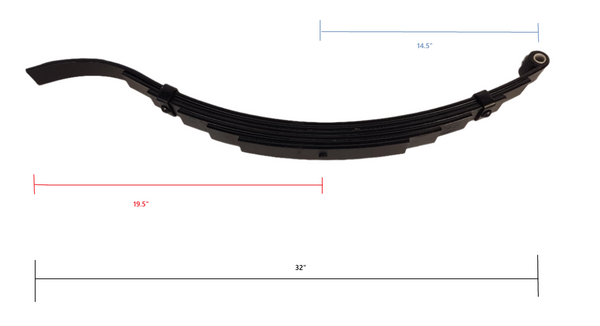

Center Bolt to End: 19.5"

Center Eye to Center Bolt: 14.5"

Nylon Bushing: 0.5" Inner Diameter

Free Arch Length: (Curve of Spring): 4.25"

Free Length: 32"

Leaves: 6

Load Rate: 1400 LBS

Weight: 18.13 LBS

Important considerations when measuring slipper spring length:

Unloaded condition: Always measure the spring when the trailer is lifted by the frame, relieving pressure on the springs.
Accuracy: Ensure you measure accurately from the center of the eye to the specified endpoint on the slipper end.
Old springs may be longer: Worn or flattened springs may measure longer than their original or "stock" size.

By measuring the slipper spring length along the designated axis, you can determine the correct replacement spring needed for your trailer axle
