3.5K Drop Axle 94.5" HF x 73.5" SC — 5 on 4.5 Electric Brakes
Product Info
Specs

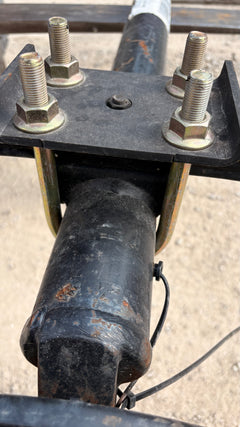

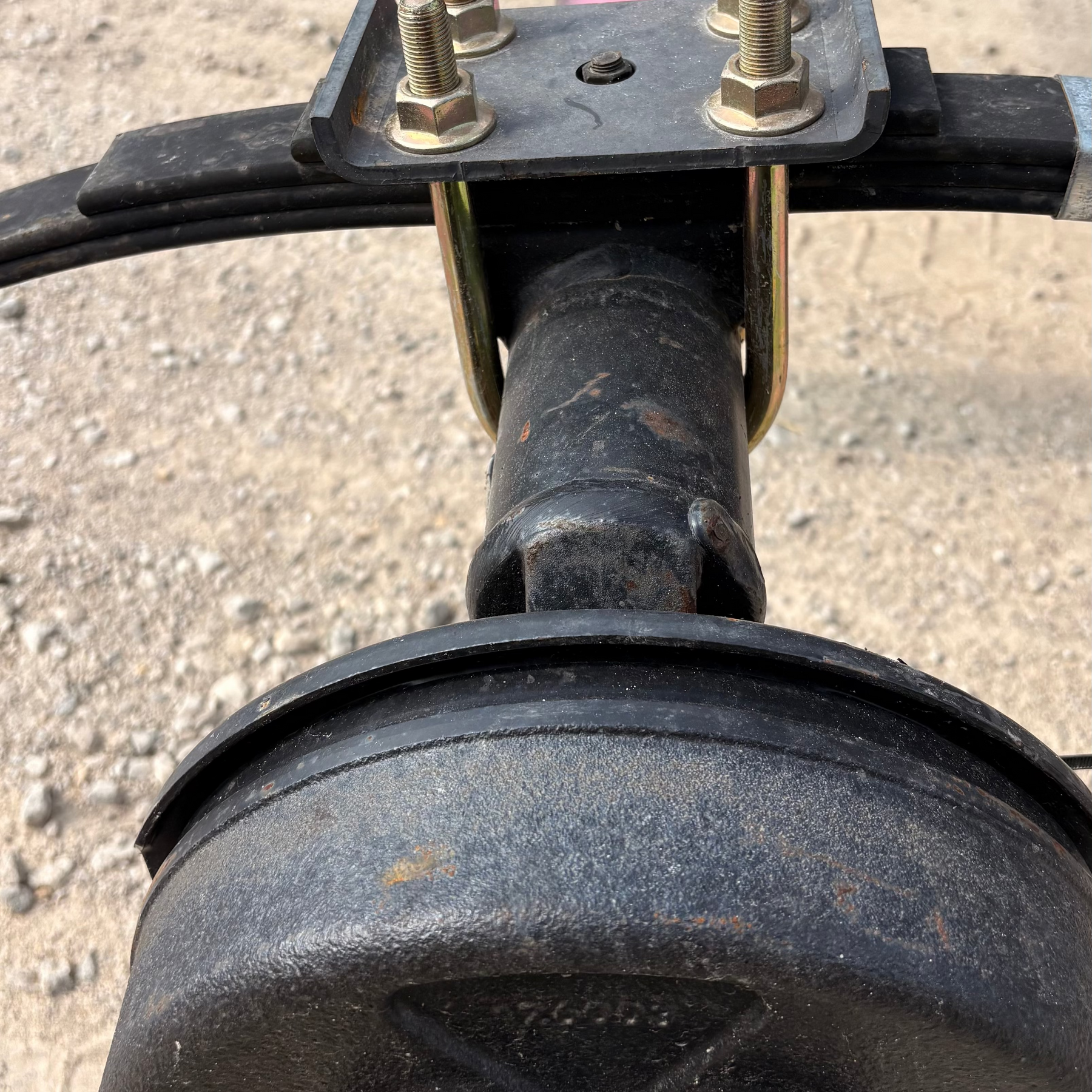

3,500 lb drop trailer axle with electric brakes.
| Capacity | 3,500 lb |
|---|---|
| Axle Type | Drop Beam |
| Brakes | Electric |
| Bolt Pattern | 5 on 4.5 |
| Mount Style | Underslung |
| Lubrication | EZ-Lube |
| Wheel Studs | 1/2" |
| Configuration | Flanged, Complete Axle |
SKU: 3500-945-735U-3-D-COMPLETE
Measurements
| Hub Face | 94.5" |
|---|---|
| Spring Center | 73.5" |
| Start Angle | 735° Up |
| Axle Tube | 3" |
| Leaf Spring Length | 25.25" |
Confirm measurements before ordering. Match this axle by the exact dimensions and configuration shown. Trailer year or model alone does not establish fitment.
Ask R&P About This Item
Send us the measurements from the axle under your trailer. We would rather compare the numbers before you buy.
Help Me Confirm This Axle
Send us the measurements from the axle under your trailer. We would rather compare the numbers before you buy.
Need the axle installed?
R&P Carriages also handles trailer service and axle-related repair work.
How to Get It
This exact item is available from our Seneca location. Review the product information first, then confirm measurements and availability before making the trip.
Pick Up at R&P Carriages
This exact item is available from our Seneca, Illinois location and is not set up for standard shipping.
Seneca, IL 61360 R&P Carriages
Please confirm measurements and availability before making the trip. We want to make sure the item waiting here is the one you need.
