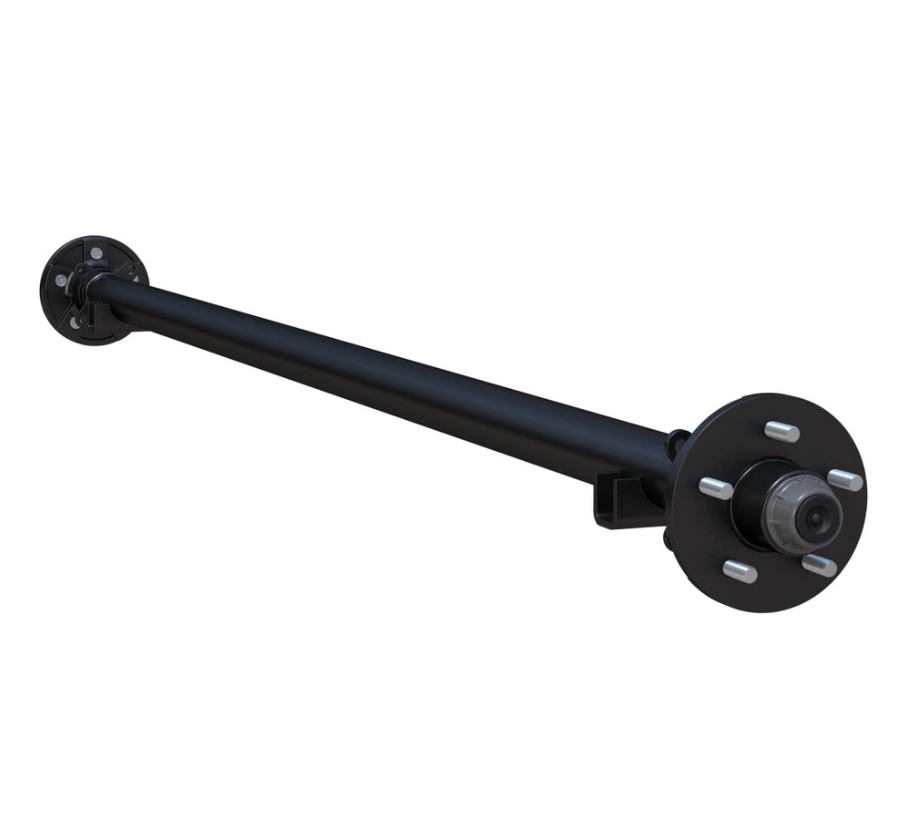

Lippert 3500 lb Trailer Idler Axle – 95" Hub Face – Straight – 5 on 4.5 Hubs – EZ Lube
Part Number: 3500-95-24-H545
Complete Lippert 3500 lb idler axle with 95" hub face, straight cambered beam, and 5 on 4.5 idler hubs. Built with a standard 2.4" axle tube and EZ Lube spindles for common utility and camper trailers.
R&P Knowledge Hub
When replacing a complete axle, verify hub face width, brake flange spacing, and bolt pattern match your trailer. Correct measurements ensure proper wheel alignment and suspension geometry.
Features
- Common replacement axle for trailers or campers with 77" to 83" floor deck width
- Standard 2.4" axle tube (heavy duty 3" tube version also available)
- Straight cambered axle beam for proper load distribution
- Uses L44649 and L68149 bearings with 10-19 grease seals
Specifications
| Brake Flange to Flange | 88.66" |
| Bearing Shoulder to Shoulder | 91.19" |
| Spindle End to End | 99.38" |
Included Components
| Part Number | Quantity | Description |
|---|---|---|
| 3500-95-24-H545 | 1 | Lippert Trailer Axle 3500# Idler – 95" Hub Face – 2.4" Tube – Straight – 5 x 4.5 Hubs – EZ Lube – USA Made |
| SP-2375 | 2 | Spring Perch for 2.4" Axle Beam |
