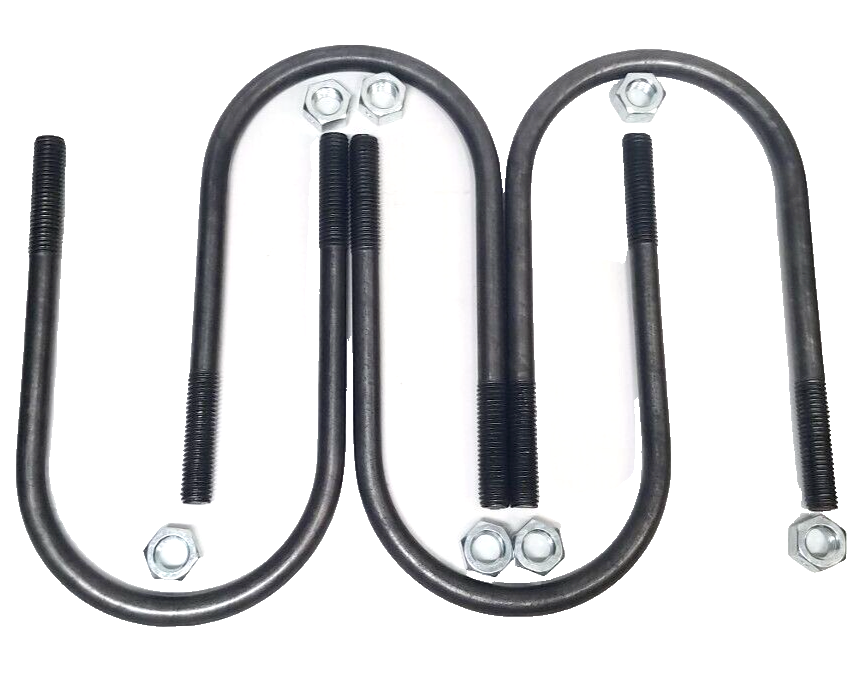

(4) 5/8" × 5" × 8-7/8" U-Bolt Kits – Fits 10K GD Dexter Axles
Part Number: 11-77-KITX4
Four complete U-bolt kits designed for select 10,000 lb General Duty (GD) Dexter trailer axles. Each kit includes one U-bolt and two matching coned top nuts.
Commonly used to secure the axle tube to the leaf spring pack and spring seat assembly. This quantity is typically required for one axle (two per side).
R&P Knowledge Hub
U-bolts clamp the axle tube to the suspension system and maintain proper axle alignment under load. Most 10K axles require four U-bolts per axle (two per side).
Correct inside width, overall length, and thread size are critical. Always verify axle tube diameter and thread specification before installation.
Kit Includes
- (4) U-Bolts
- (8) UBN-10C Coned Top Nuts
Specifications
| Specification | Detail |
| Axle Application | 10,000 lb GD Dexter |
| Diameter | 5/8" |
| Inside Width | 5" |
| Overall Length | 8-7/8" |
| Thread Size | 5/8"-11 |
| Threaded Length | 2-1/2" |
| Nut Type | Coned Top (UBN-10C) |
Verify axle tube diameter and thread specification before installation.
