4" Drop Extra Long Ball Mount Hitch 20" Long Receiver Trailer Truck (80233)

Waymire

Regular price $105.35

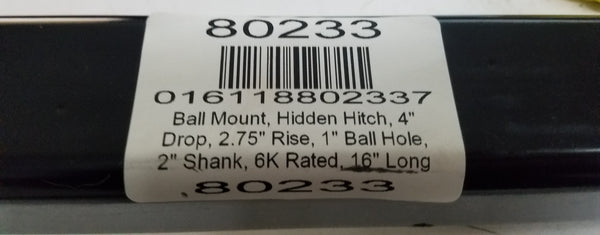

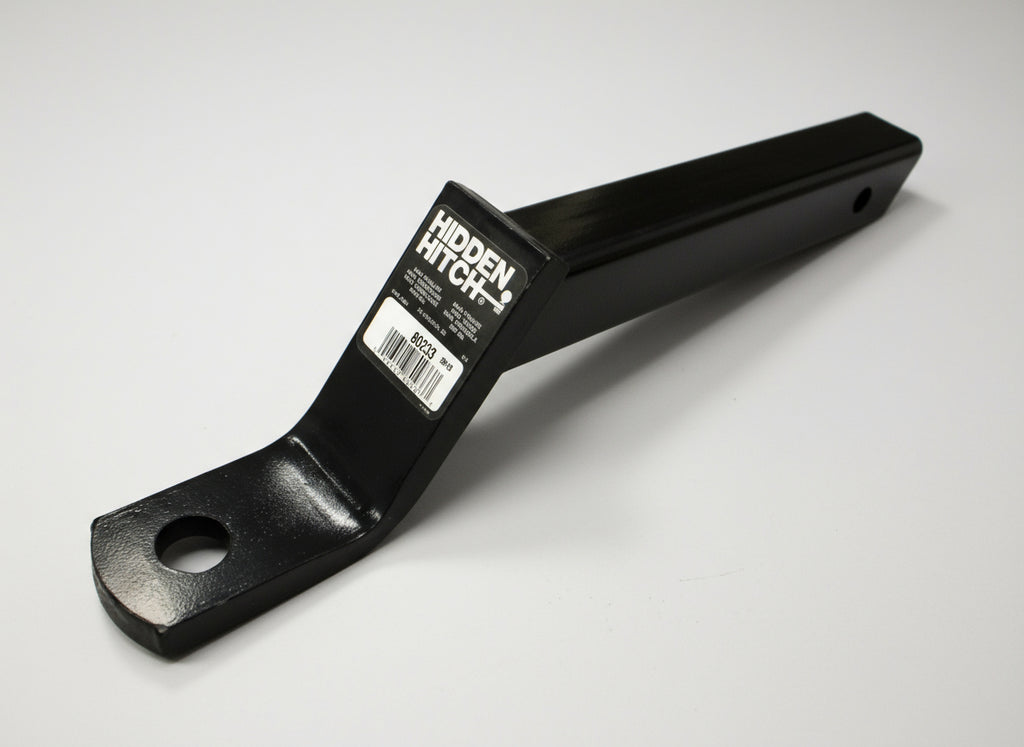

4" Drop Extra Long Ball Mount With 1.00" Hole
Part#: 80233

Features:

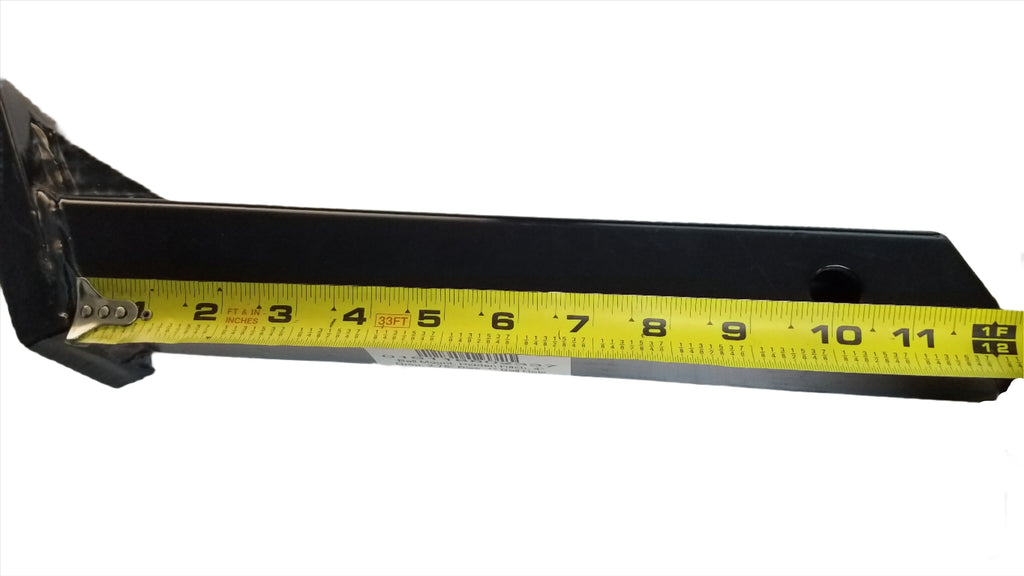

Measures 20" from end to end
From Center of ball to 5/8" hitch pin center measures 16"

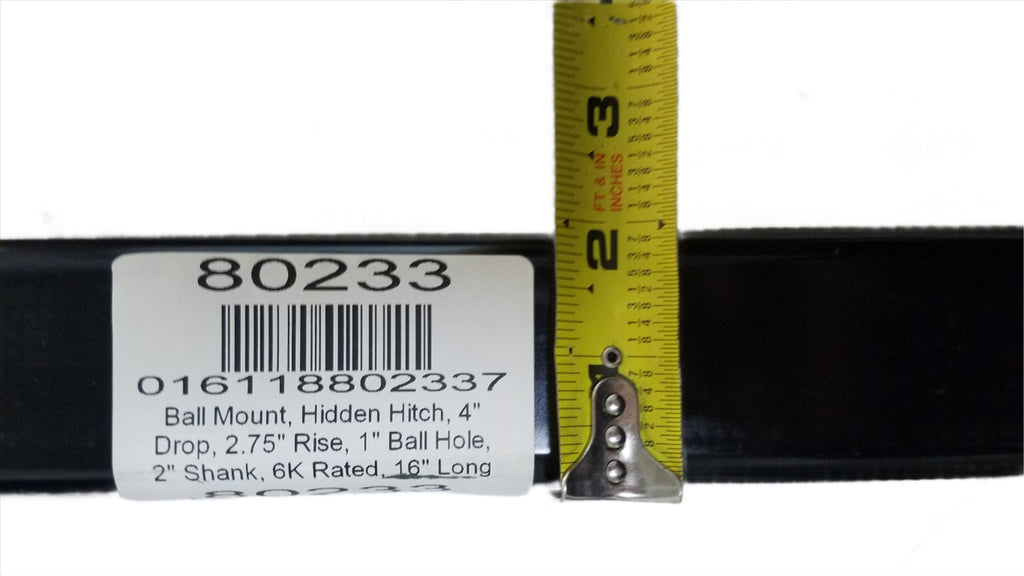

Shank tube Measures 2"x 2"x 13"
About 10" from center of 5/8" pin hole to the back side of the bar welded to the tube.

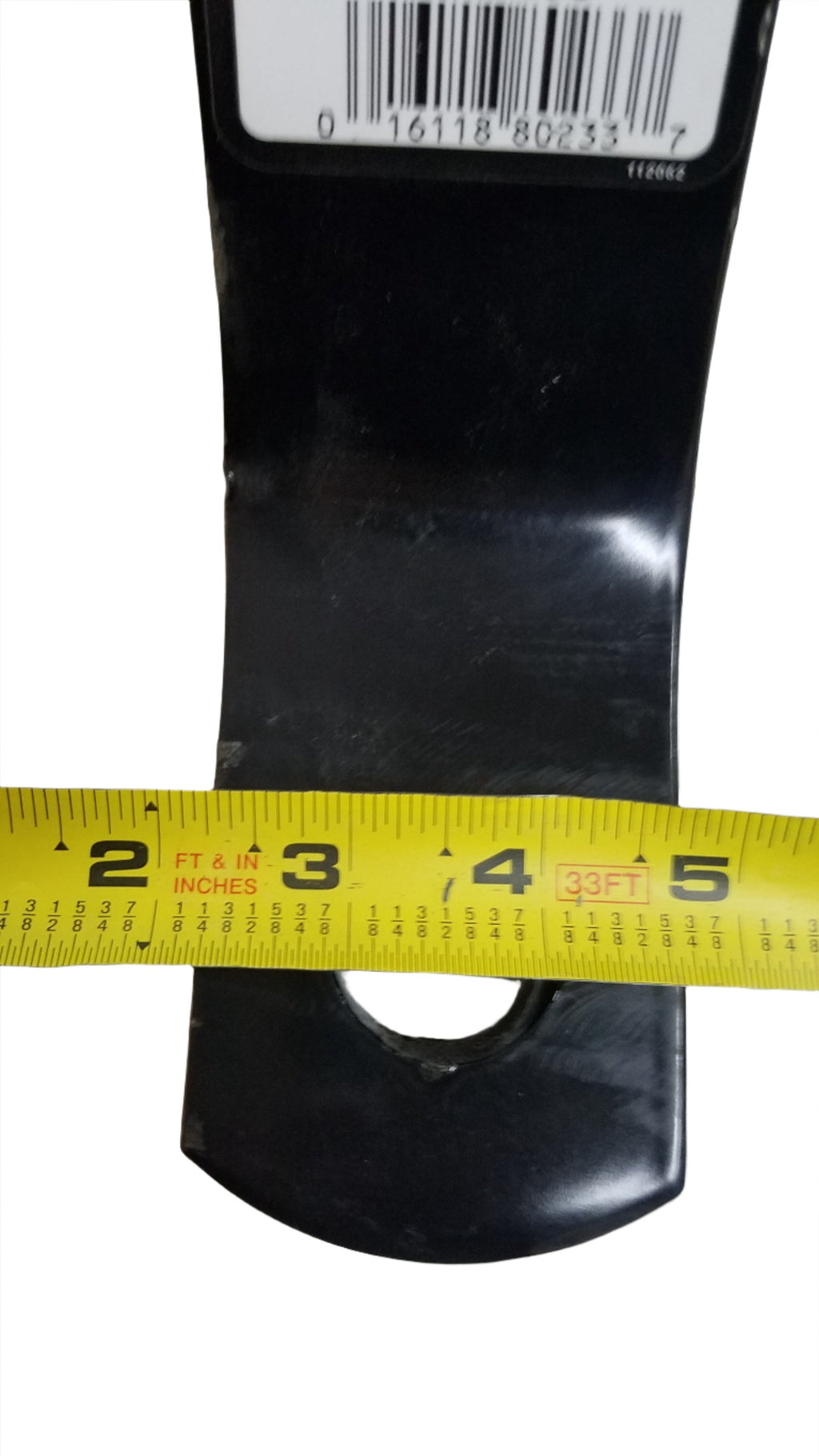

Ball Hole Measures 1.00"

6000 pound Capacity

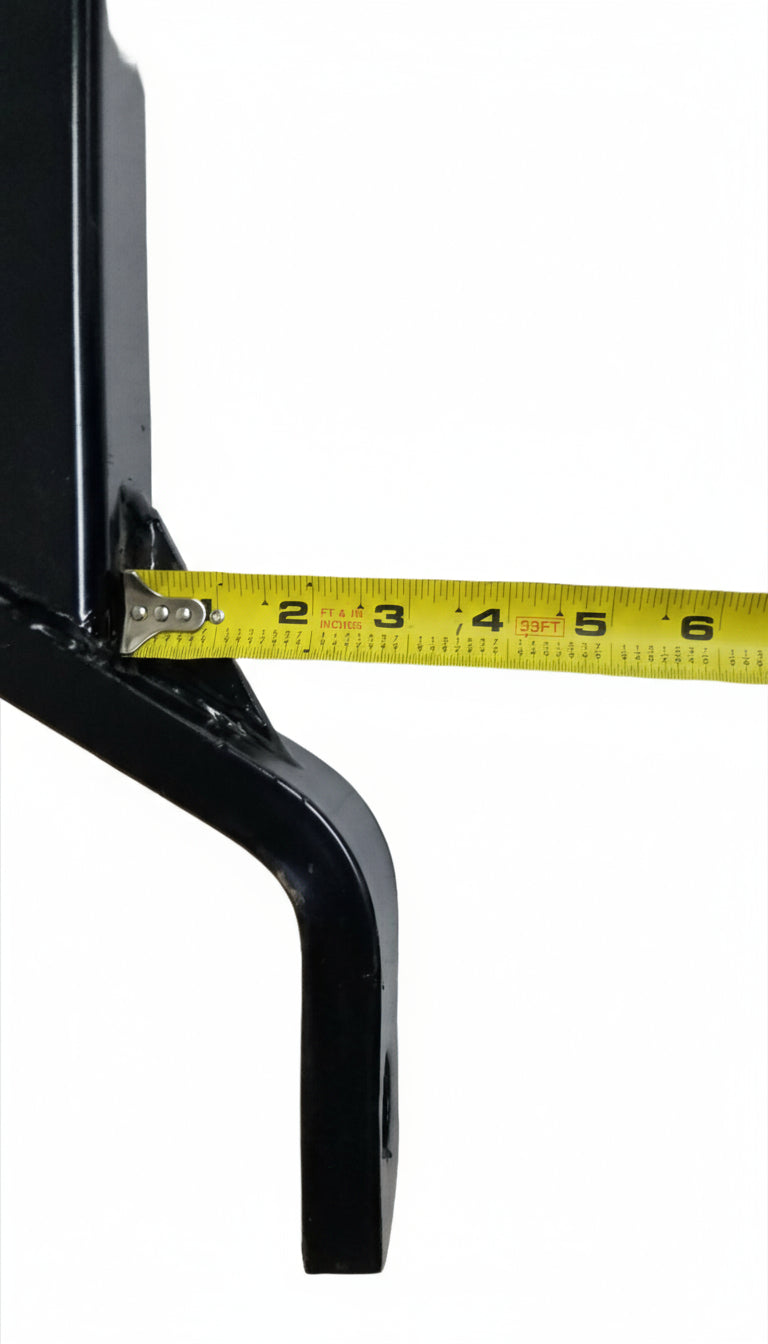

4" drop, 2 3/4" rise

A= 16"

B = 4"

C = 2.7"

(TWO INCH DROP SHOWN BELOW, 4" DROP IS SIMILAR:)
