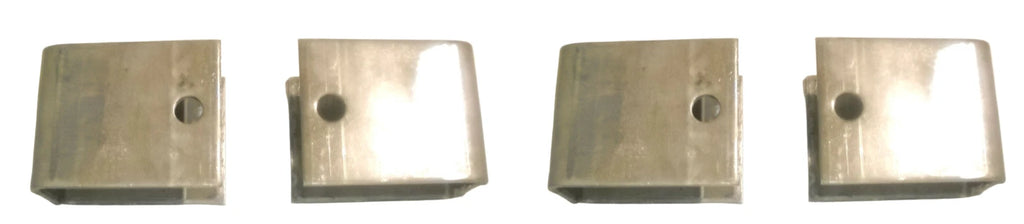

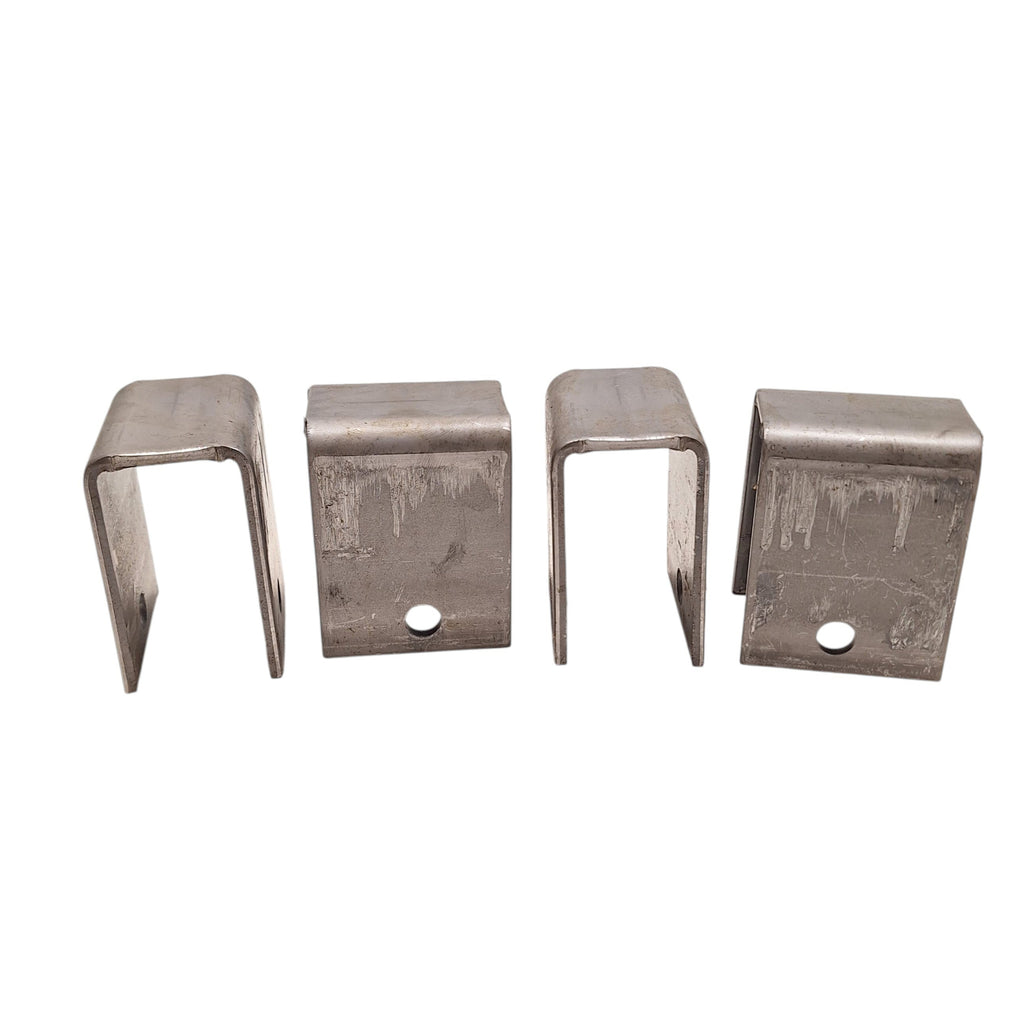

Set of Four (4) Leaf Spring Hangers – 1 3/4" Spring – Weld-On
Part Number: H-3.875-LOTOF4
This listing is for a set of four (4) weld-on leaf spring hangers designed for trailers using 1 3/4" wide leaf springs. These hangers are commonly used when installing or replacing spring suspension components on utility, cargo, and equipment trailers.
The hangers are manufactured from raw steel and are intended to be welded directly to the trailer frame.
Features
- Set of four (4) leaf spring hangers
- Designed for 1 3/4" wide leaf springs
- Raw steel construction
- Weld-on installation
- Common replacement or fabrication component
- Suitable for single or tandem axle trailer suspensions
Specifications
| Spring Width | 1 3/4" |
|---|---|
| Inner Width of Bracket | 2" |
| Spring Mounting Hole Size | 9/16" |
| Overall Height | 4" |
| Center of Hole to Top of Bracket | 3 1/4" |
| Material | Raw steel |
| Installation | Weld-on |
| Quantity | 4 hangers |
Fitment Notes
- Commonly used on trailers with leaf spring suspension
- Verify spring width and hanger dimensions before installation
- Professional welding recommended
