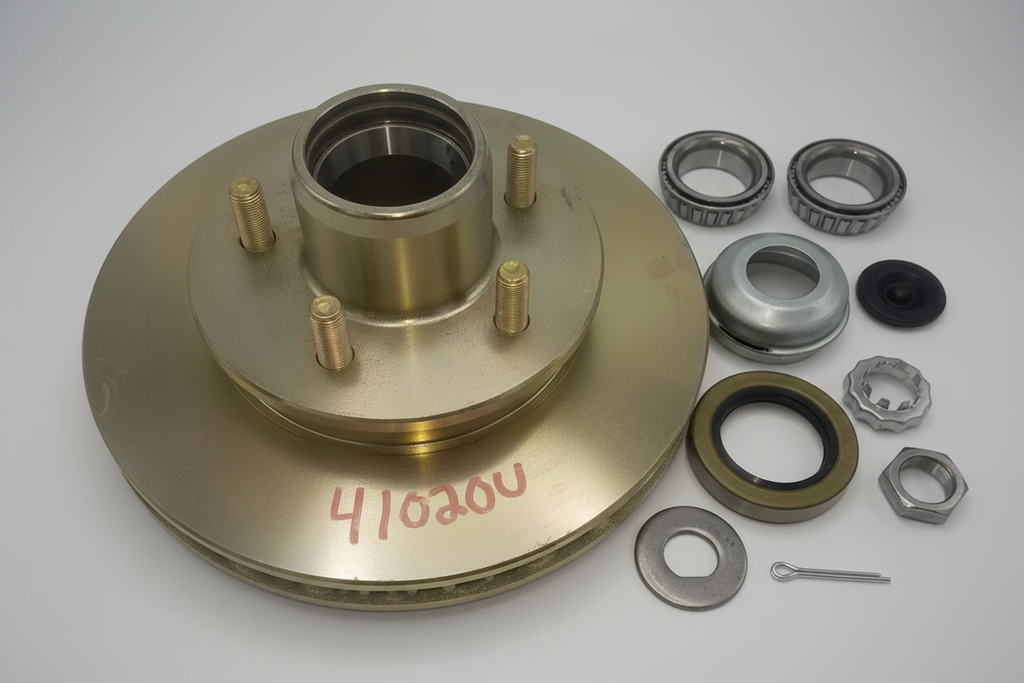

10.25" Disc Brake Rotor Kit – 5 on 4.5 – Straight Spindle – 3,500 lb
Part Number: 41020-KIT
Complete 10.25" rotor hub kit designed for 3,500 lb axles using a straight spindle configuration. Features a 5 on 4.5" bolt pattern and is commonly used in UFP and DB42 marine disc brake systems. This kit includes rotor hub, bearings, marine seal, dust cap, and spindle hardware for one hub position.
Kit Includes
- (1) 41020U Rotor Hub – 10.25" OD
- (2) L68149 Bearings – 1.378" Inner Diameter (Straight Spindle)
- (1) 32373 Marine Seal – 1.68" x 2.56"
- (1) 36189U Plated Dust Cap
- (1) DC-RP Rubber Plug/Insert
- (1) SN-813 Spindle Nut
- (1) LS-813 Spindle Nut Cage
- (1) 34456U D Washer – 13/16" ID, Large OD
Specifications
| Specification | Detail |
|---|---|
| Axle Rating | 3,500 lb |
| Rotor Outside Diameter | 10.25" |
| Bolt Pattern | 5 on 4.5" |
| Spindle Type | Straight Spindle (L68149 / L68149) |
| Bearing ID | 1.378" |
| Seal Size | 1.68" x 2.56" |
| Common Application | UFP Post-2003 Marine Disc Brake Systems |
R&P Knowledge Hub
Straight spindles use the same inner and outer bearing size (L68149 / L68149). This differs from standard #84 trailer spindles, which use two different bearing sizes.
Always verify your existing bearing numbers before ordering. Marine applications require proper seal installation and corrosion-resistant components.
Important: Confirm spindle type (straight vs. step spindle) before installation.
