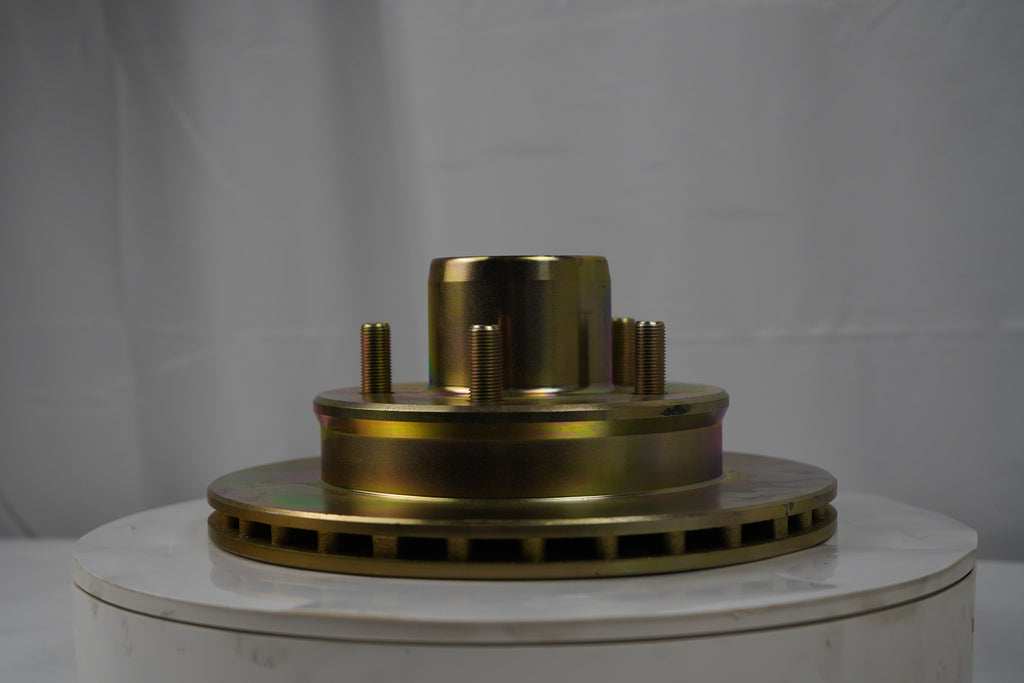

DB-35 UFP Vented 10" Disc Rotor/Hub
Part Number: 42082U
The DB35 disc brake rotor is vented to help dissipate heat and can be used with trailer axles that have up to a 4,200LB capacity. They accept 13" to 15" wheels.

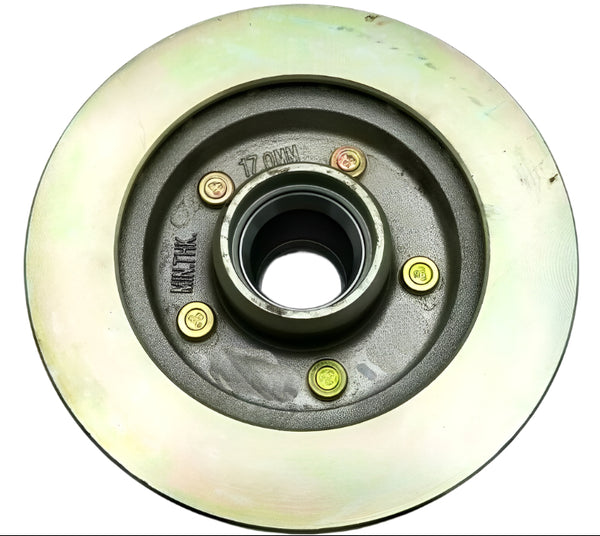

17MM Thickness
1.68" ID X 2.56" OD Seal (NOT INCLUDED)
L68110 Outer Race (PRESSED IN)
L68149 Outer Bearing 1-3/8" (NOT INCLUDED)
L68110 Inner Race (PRESSED IN)
L68149 Inner Bearing 1-3/8" (NOT INCLUDED)

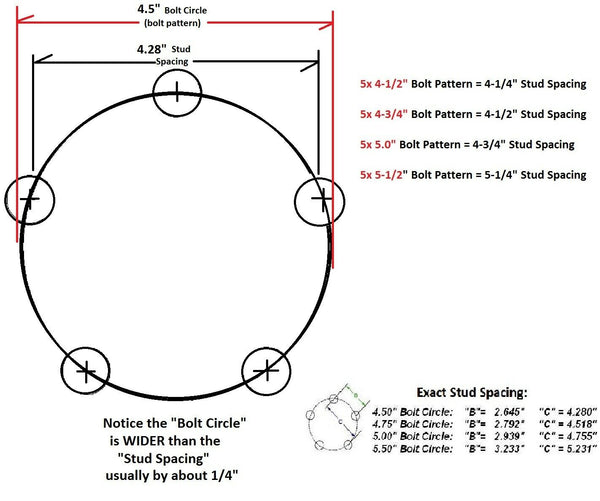

Bolt Circle is 5 X 4-1/2"
9-3/4" Diameter
Straight Spindle 1-3/8" X 1-3/8"
Seals, Bearings, and Lug Nuts are Sold Separately

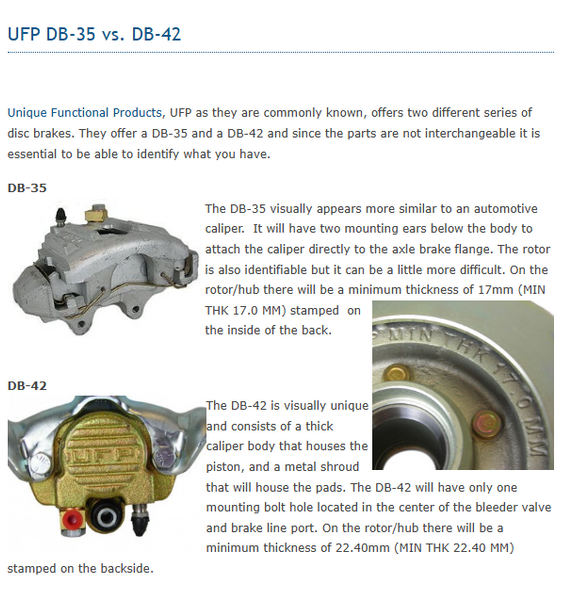

UFP offers two different types of disc brakes. The DB-35 and the DB-42 which are NOT interchangeable please verify which caliper you have before ordering. (See Pictures for Difference)
If you are still uncertain, feel free to contact us, we have a great team with an abundance of knowledge!
