5,000 lb Stainless Steel D-Ring Tie Down Kit
Part Number: SS15K

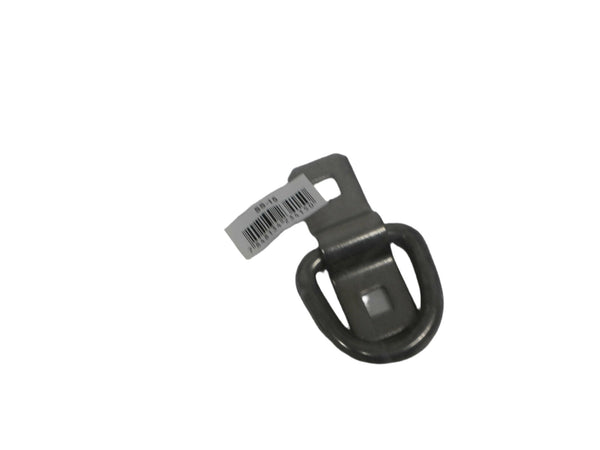

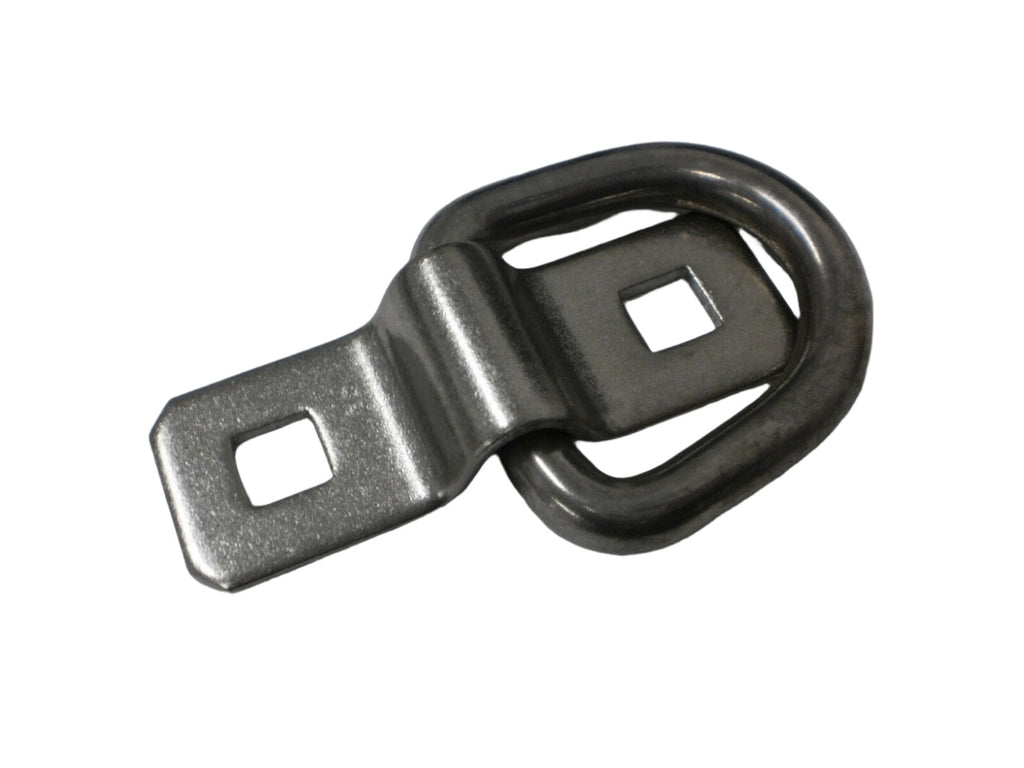

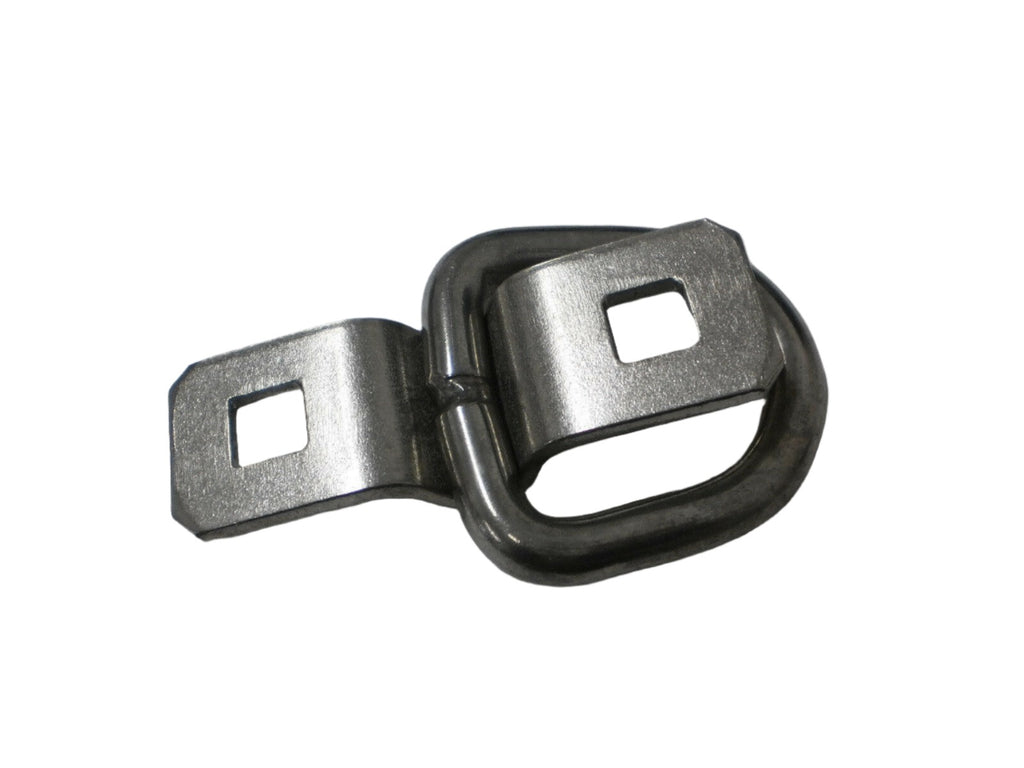

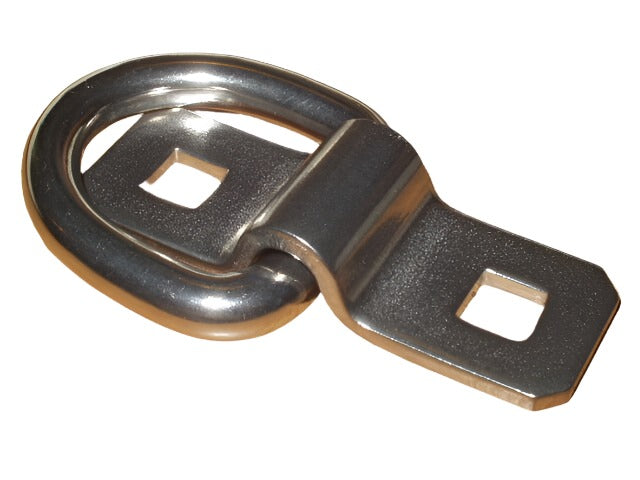

This listing is for a single heavy-duty stainless steel D-ring tie down supplied as a complete installation kit. The D-ring and mounting bracket are manufactured from stainless steel to provide long-term corrosion resistance for trailer, truck, marine, and utility applications.
Features

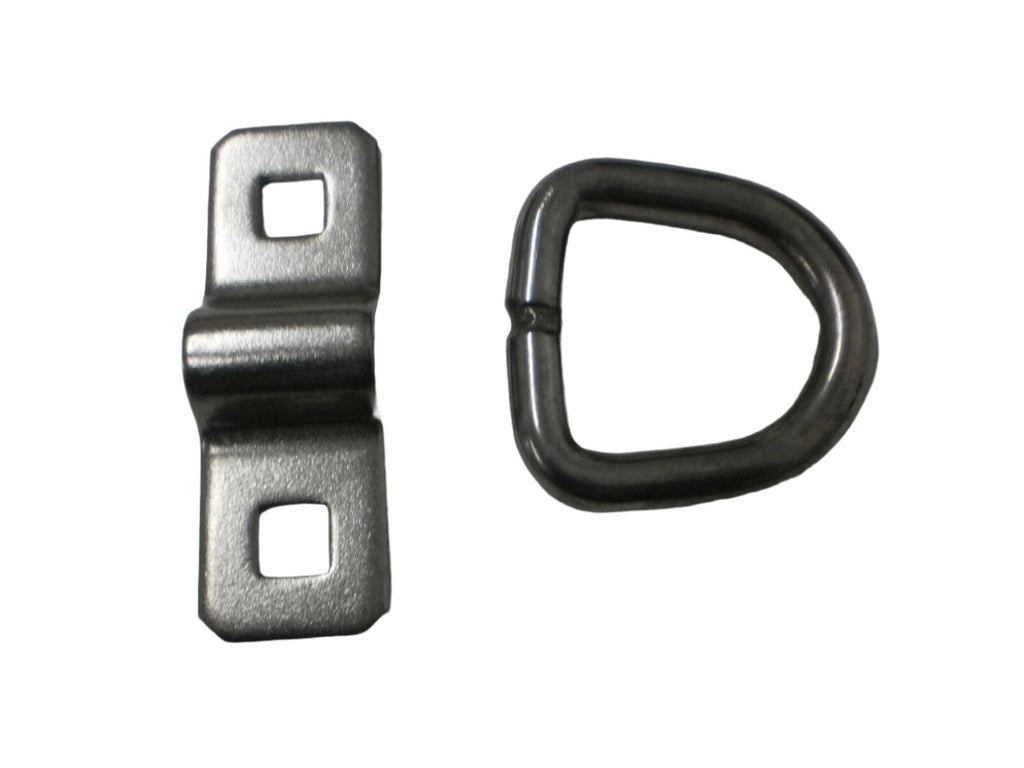

- Stainless steel D-ring and mounting bracket
- Rated at 5,000 lb minimum breaking strength
- 3/8" thick D-ring loop
- Bracket and hardware constructed from stainless steel

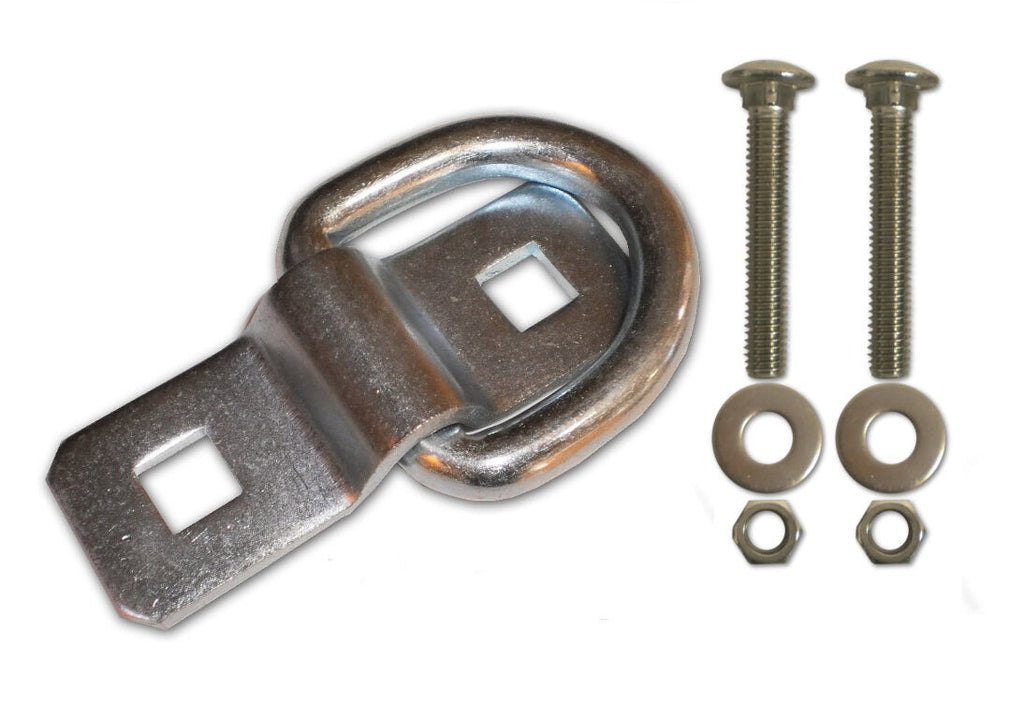

- Includes carriage bolts, nuts, and washers for installation
- Sold individually
Specifications
| Material | Stainless steel |
|---|---|
| Rated Capacity | 5,000 lb minimum breaking strength |
| D-Ring Thickness | 3/8" |

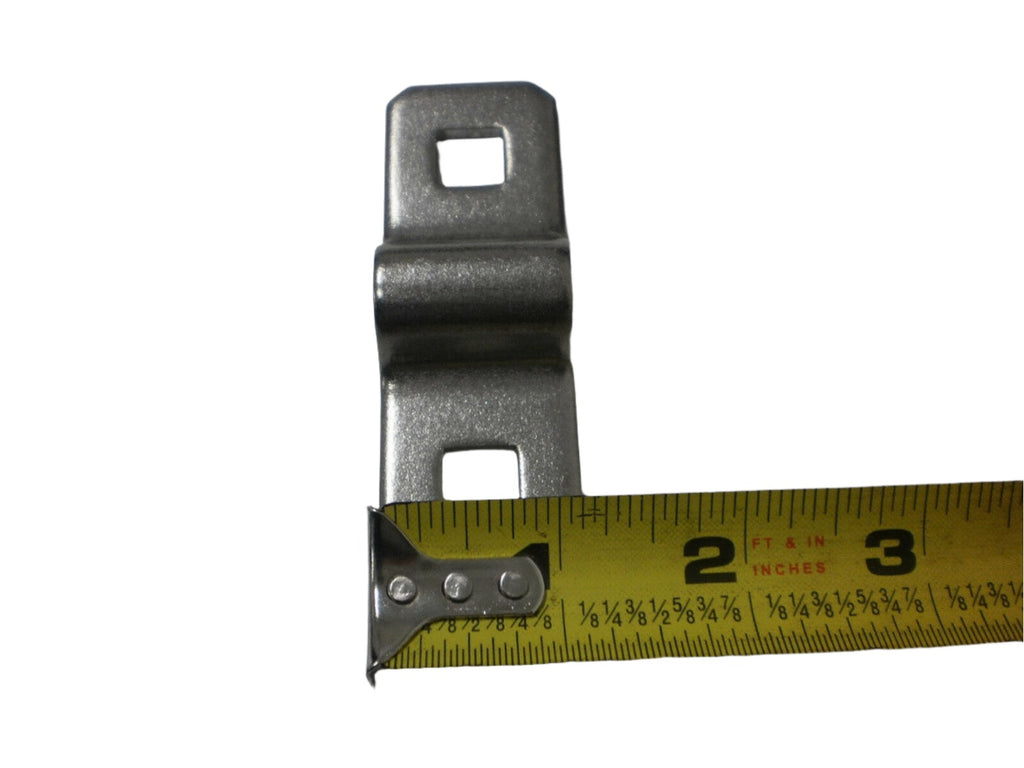

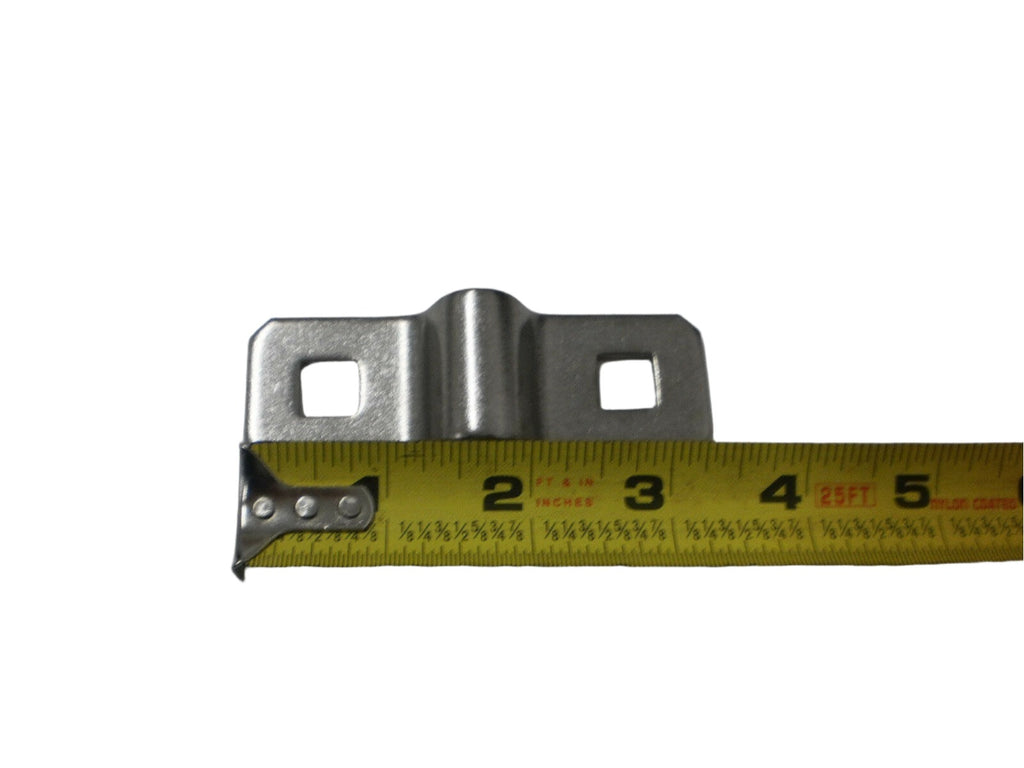

| Bracket Dimensions | 1-3/16" wide × 3-1/2" long × 1/8" thick |
| Mounting Holes | Square holes, 7/16" |

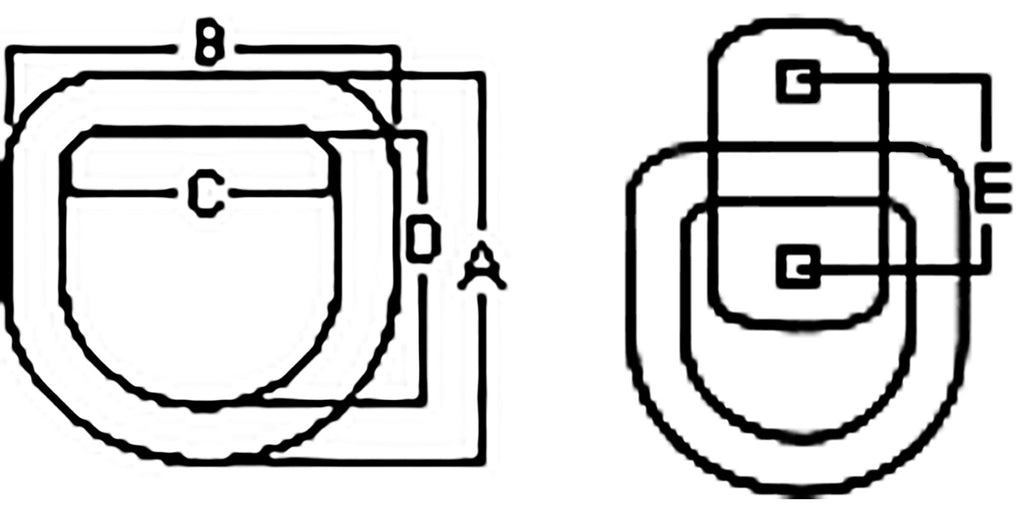

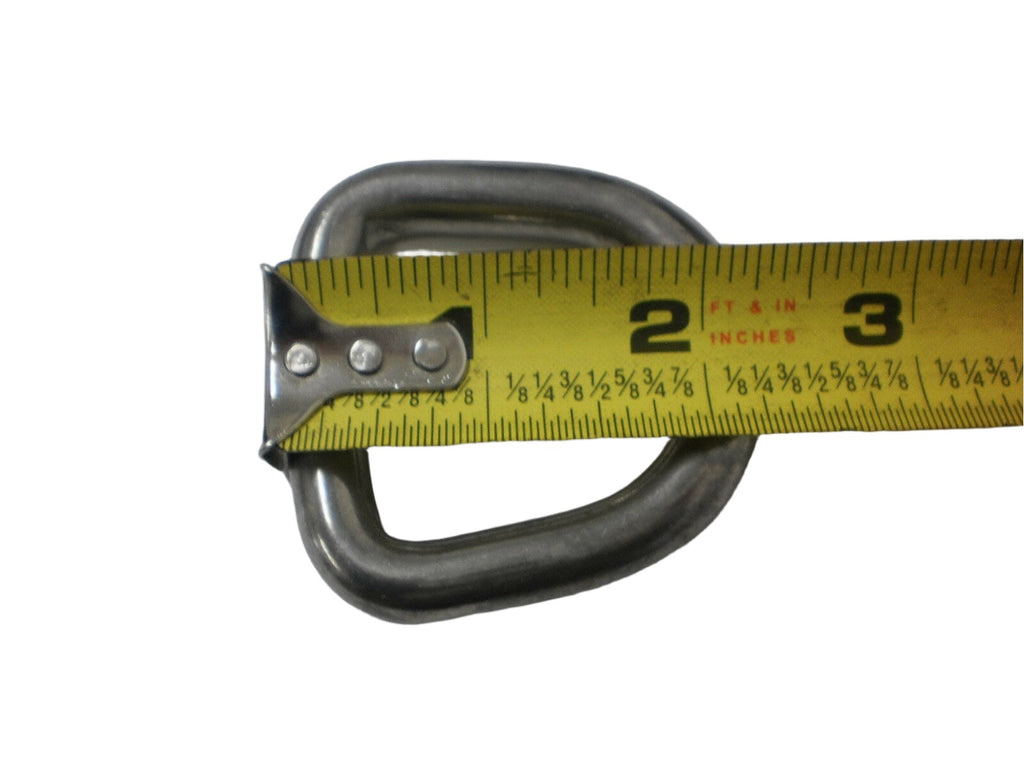

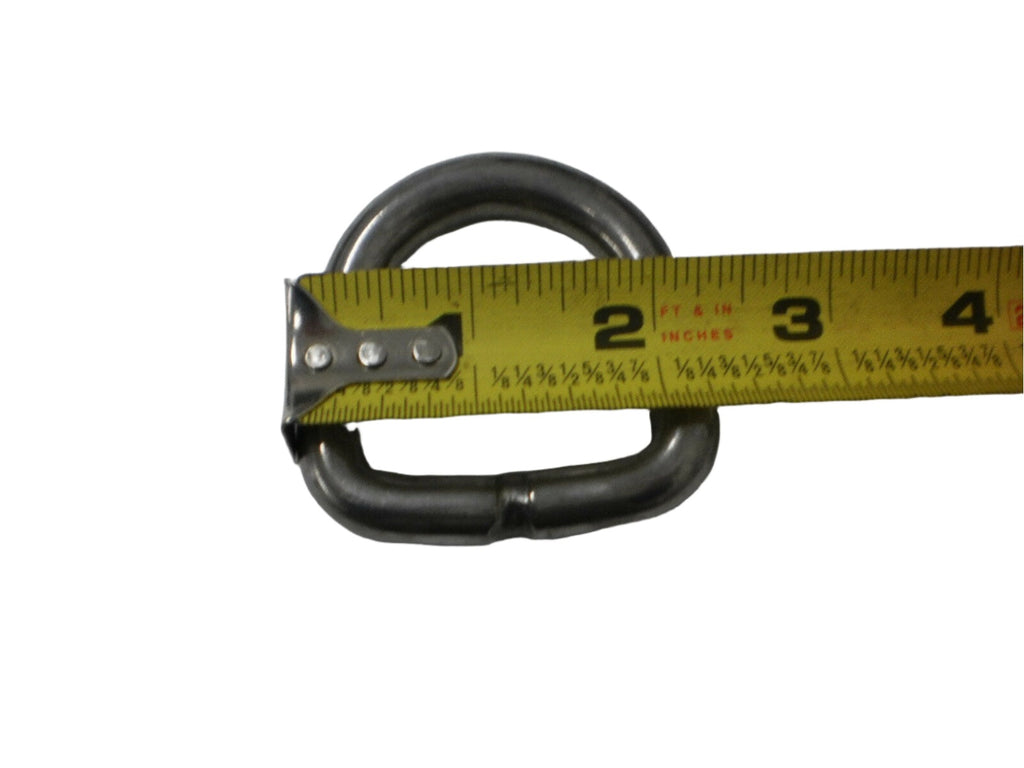

| Overall Dimensions | A: 2-1/4" B: 2-1/4" C: 1-1/2" D: 1-1/2" E: 2-5/16" |
| Included Hardware | 3/8" × 2" stainless steel carriage bolts, nuts, and washers |
Sold as one complete D-ring kit. Verify mounting surface strength and application requirements before installation.
