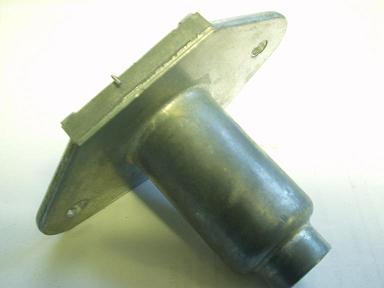

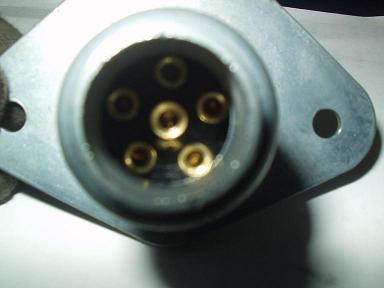

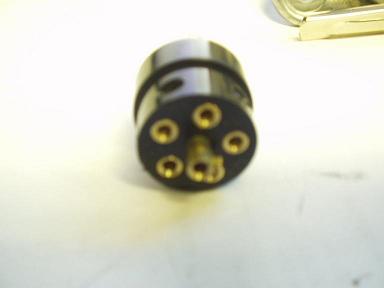

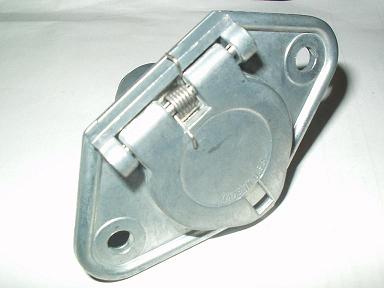

6 Way Round Pin Female Truck Plug, Metal Casing (R6CD)

brophy

Regular price $9.99

6-Way Round Pin, Female Side, Truck Plug
Part Number: R6CD

This auction contains: 1 x 6-Way Connector that has Female End

Features:
  • Fits 6-way Round Male Trailer Receiver Plug
  • 12-24v Capacity
  • Fits up to 1-5/8" Wire
  • Has Markings of Where Each Cable Goes for Easy Assembly
  • Fits with Standard Bracket
  • Made of Steel
Specifications:
  • Mounting Holes for Bracket - 2-7/8" Center to Center
  • 3-3/4"L x 2-3/8"W x 2-1/2"D
  • 12-24V Capacity

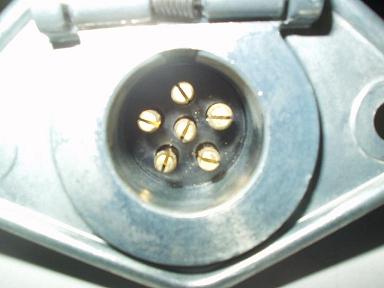

This 6-way metal cased connector is made for a male 6-way receiver plug. The connector comes with the screws for the wire leads. The mounting hardware is NOT included, but only takes 2 (1/4" hole) bolts. The installation is easy as hook it up (according to your color coded wire for you trailer) and go! Need help hooking up your connector? Send us a message and we'd be glad to help.
