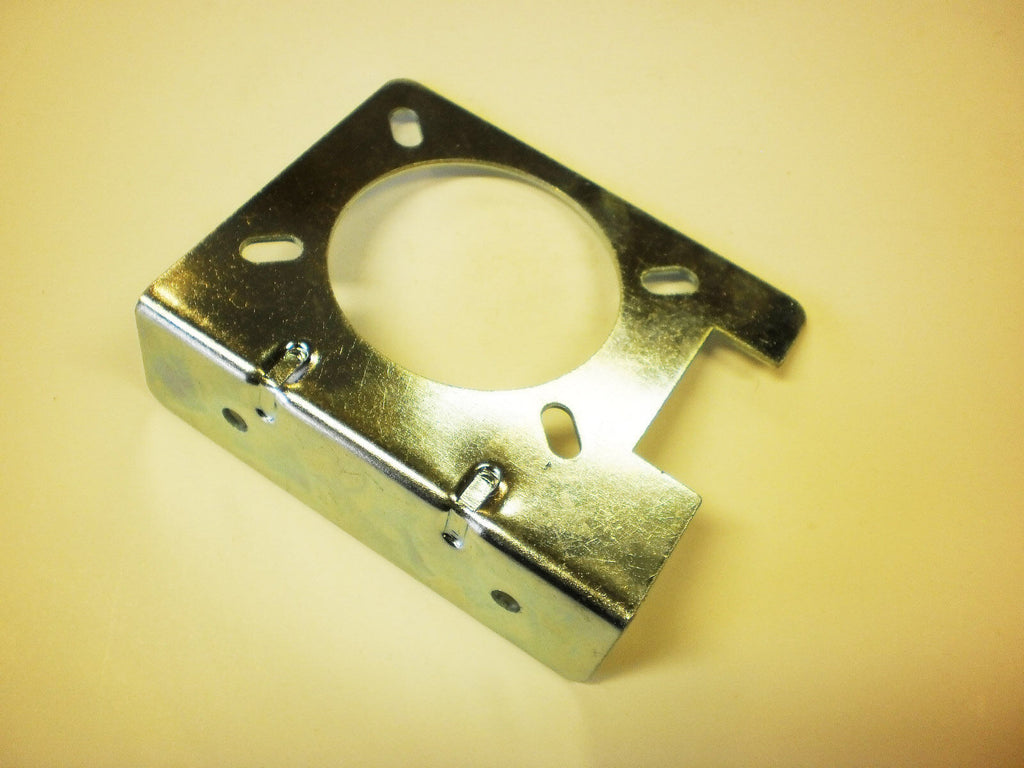

Bracket and Screws Included

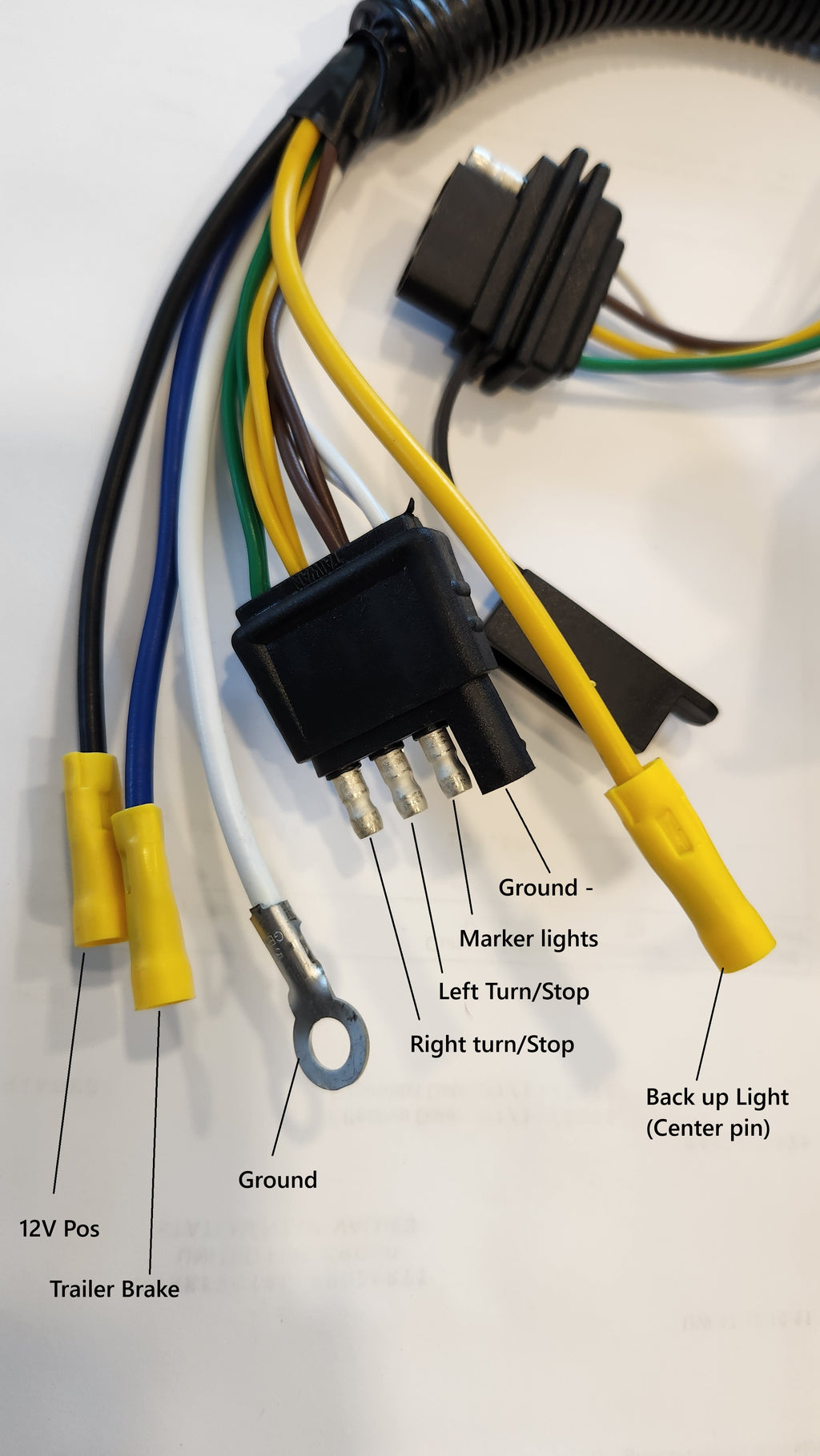

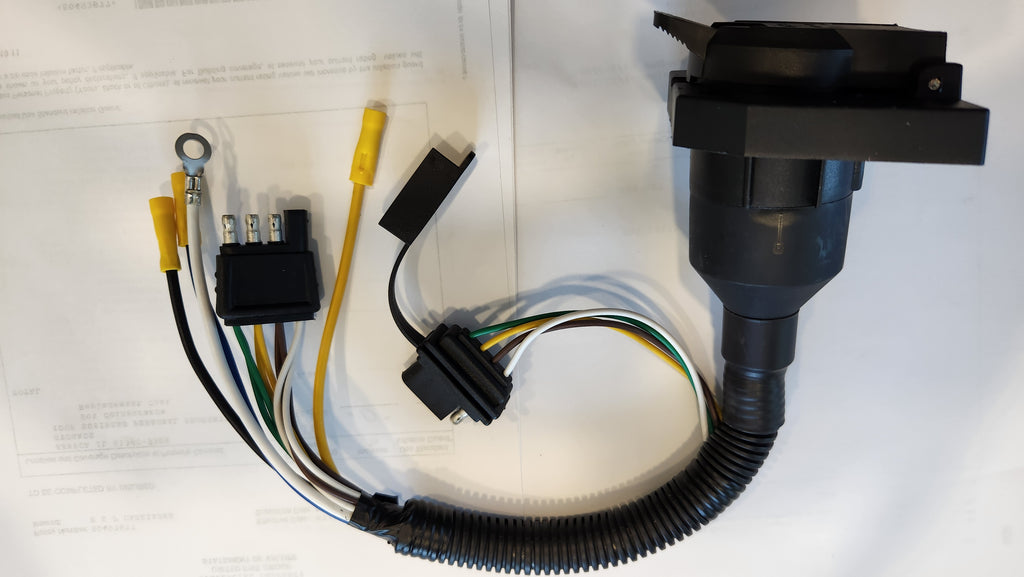

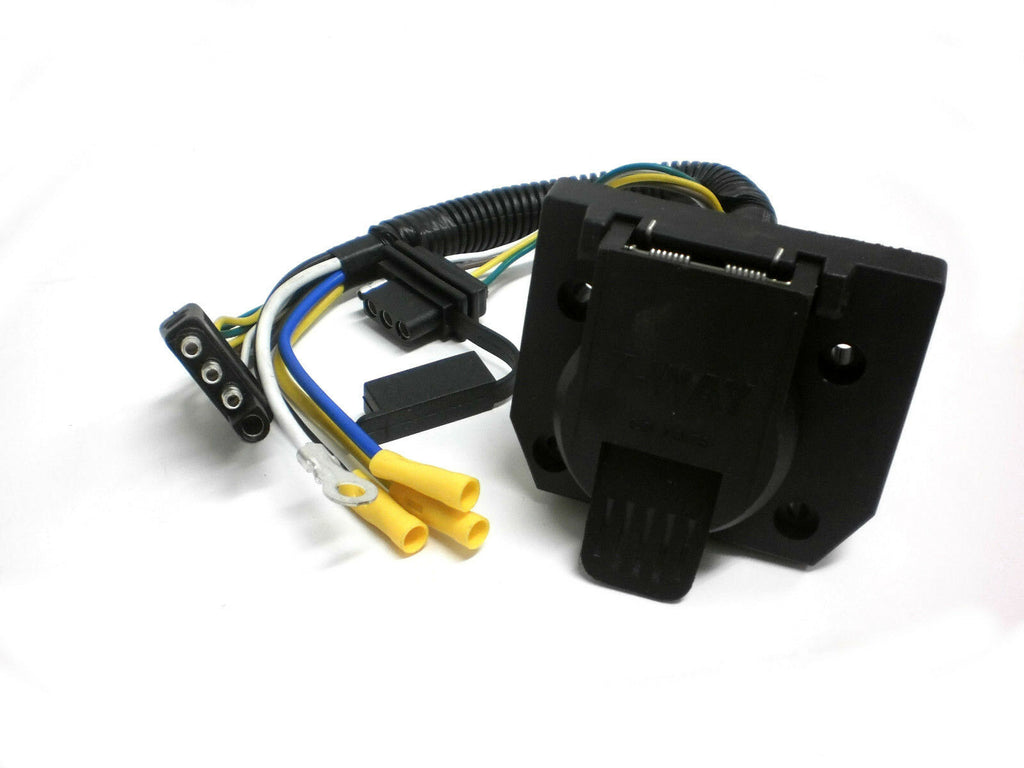

This 7 way truck plug is easy to install when you want to add a 7 way to an existing 4 way plug. Plugs right into existing 4 way wiring and has the extra wires to connect to the brake controller wire and 12 volt from battery. Includes the mounting accessories for your truck!
Kit Contains:
[1] 7 Blade and 4 Flat Plug with Covers
[1] 7 Blade and 4 Flat Plug with Covers

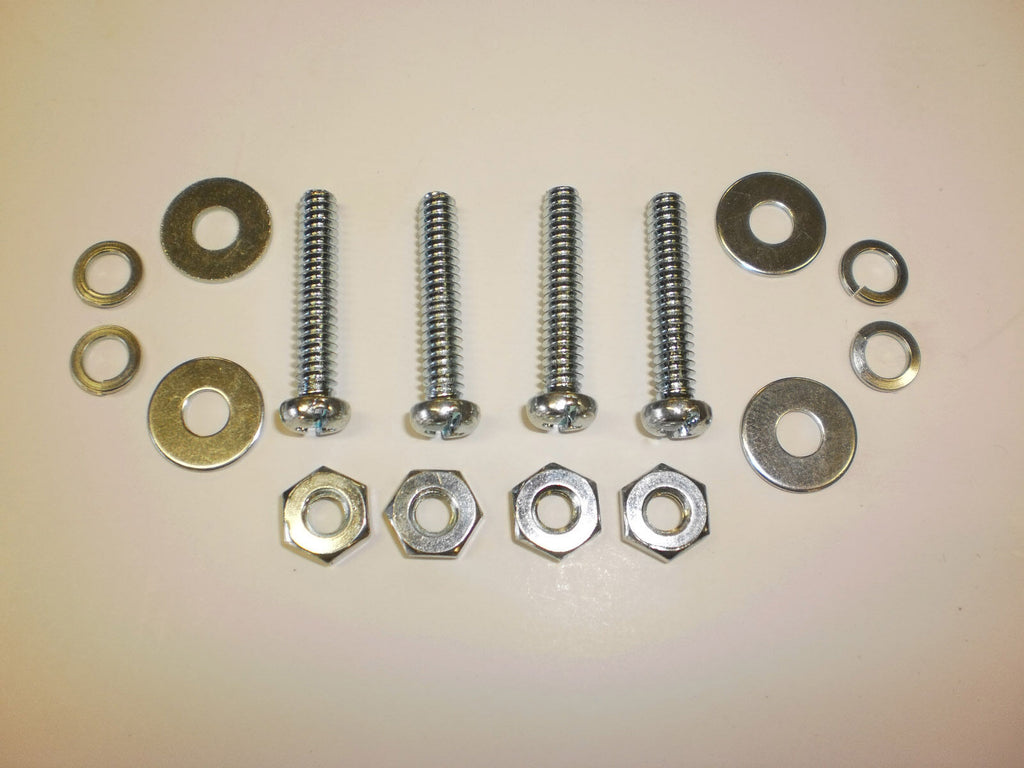

[4] Screws, Nuts, Washers, and Locking Washers
I also have these trailer cords in other lengths and styles, CLICK HERE to see them
Please contact us if you have wire questions, we run a full service trailer repair shop, so we re-wire trailers daily! And remember, you can not depend on wire colors alone, you should test your particular trailer wire system. we offer phone assistance, but can not be responsible for improper wiring done by the customer..
Trailer Connector RV Style 7-Way Blade with molded lead.
- Pre-wired 7-Way Trailer Connector
- length is including connector
- Wire gauges:
- 14 gauge - red, brown, green, and yellow
- 12 gauge - Blue
- 10 gauge - White and Black

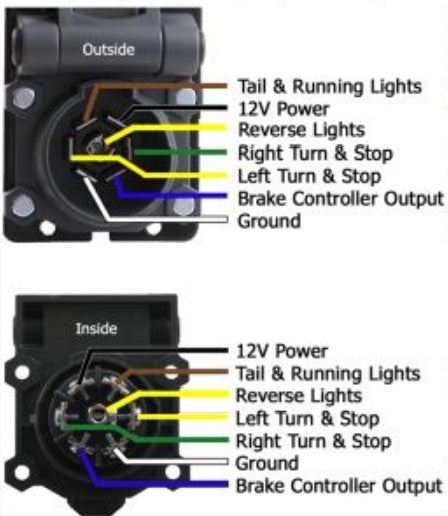

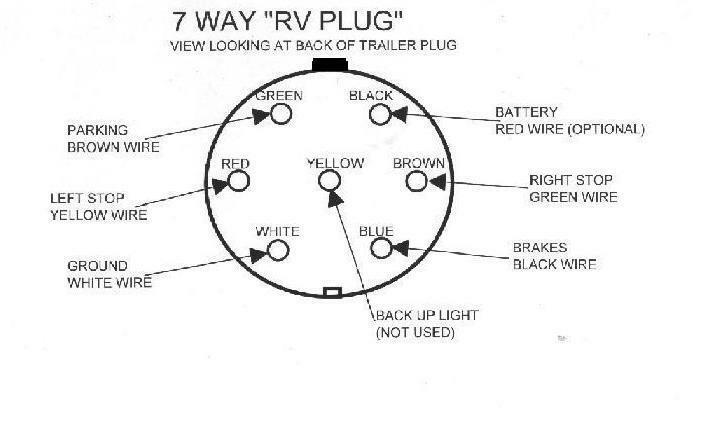

| Wiring Code | ||
|---|---|---|
|
Molded Connector |
Function |
Usual Trailer Wire |
| White Wire | Ground | White Wire |
| Red Wire | Left Turn and Brake | Yellow Wire |
| Brown Wire | Right Turn and Brake | Green Wire |
| Green Wire | Tail Lights | Brown Wire |
| Blue Wire | Brake Power | Blue Wire |
| Black Wire | 12 volt (hot lead) | Black Wire |
| Yellow Wire | Aux. | - |
