7 Way Molded 6 foot Trailer Wire Light Plug Cord Connector RV Flat Blade Camper
Part Number - LPC7WY-6

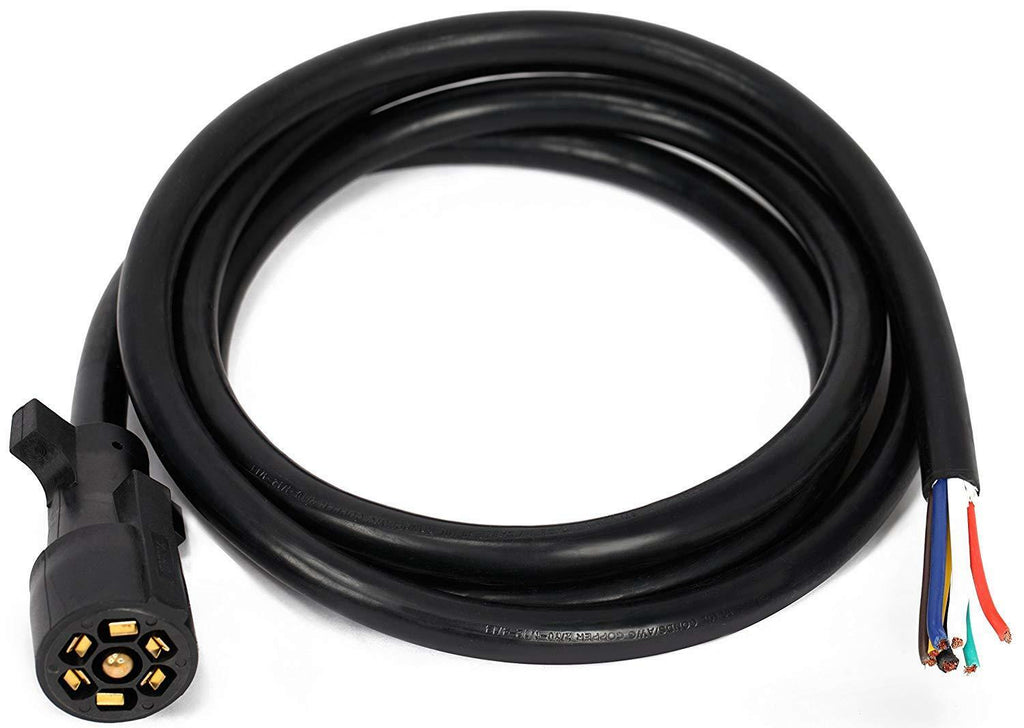

This is an 6 Foot long Cord
This cord is conveniently featured with double heavy duty gauge wires and double contact copper contacts. This will ensure that this cord will work even in the cold winter weather!
Features:
Double Contact Self cleaning 7 way plug

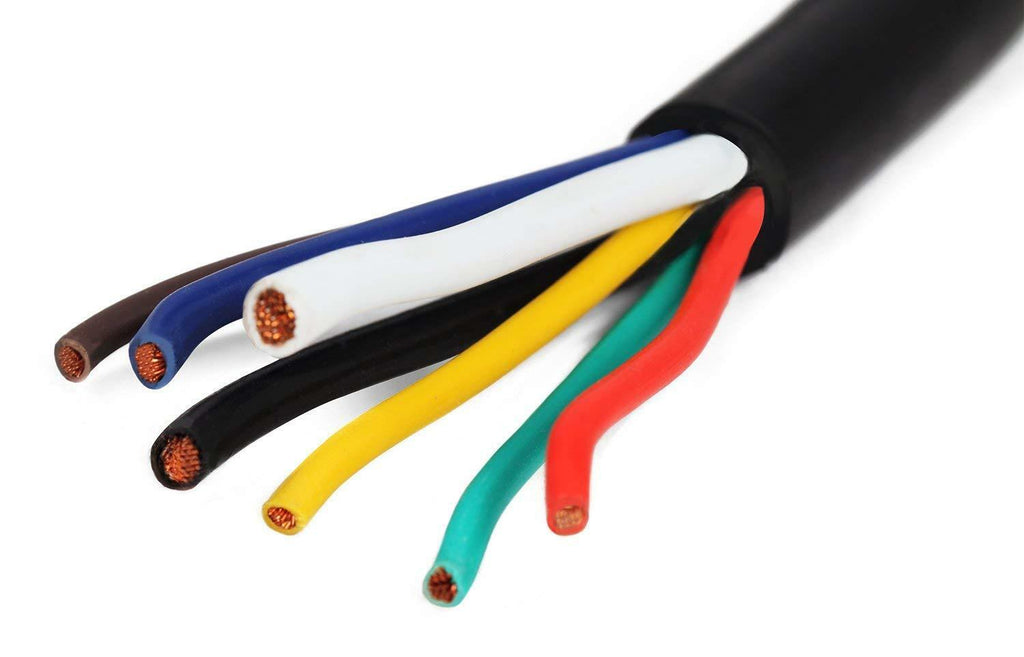

Heavy Duty Gauge Wires:
- 2x 10 AWG (White (ground) and Black( 12V POS),
- 1x 12 AWG (Blue), (Electric Brake)
- 4x 14 AWG -Red (left stop), Green (Marker light), Brown (right Stop), Yellow, (Back up)
Please contact us if you have wire questions, we are a full service trailer repair shop, so we re-wire trailers daily! And remember, you can not depend on wire colors alone, you should test your particular trailer wire system. we offer phone assistance, but can not be responsible for improper wiring done by the customer..

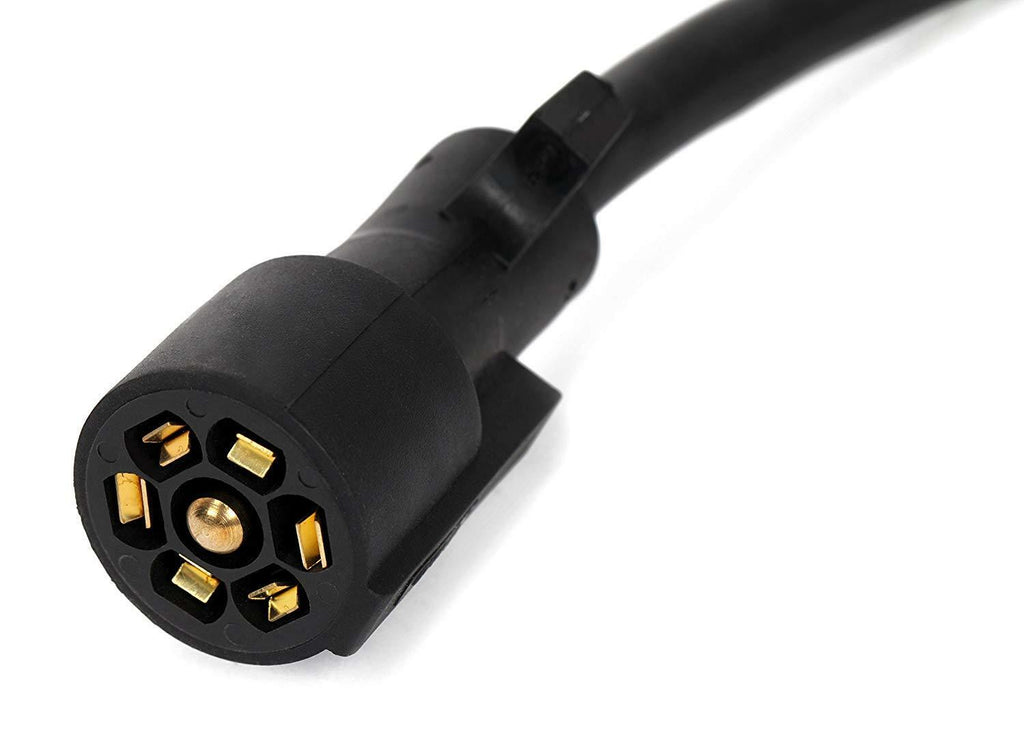

Trailer Connector RV Style 7-Way Blade with molded lead.
- Pre-wired 7-Way Trailer Connector
- length is including connector
-

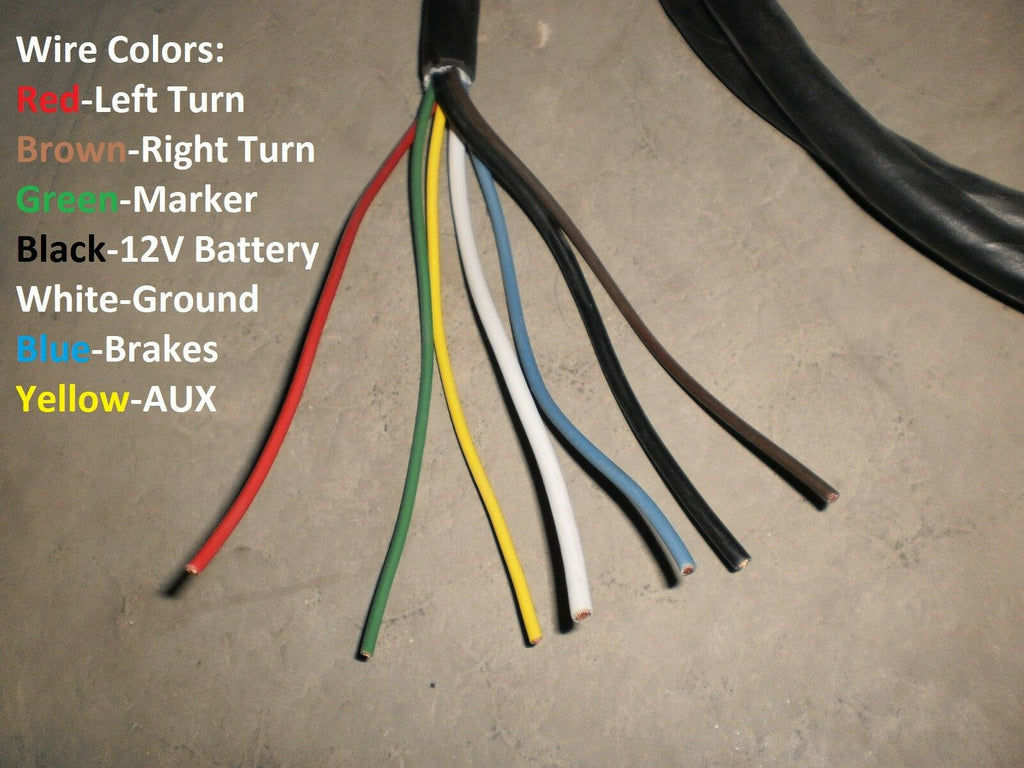

- Wire gauges:
- 14 gauge - red, brown, green, and yellow
- 12 gauge - Blue
- 10 gauge - White and Black

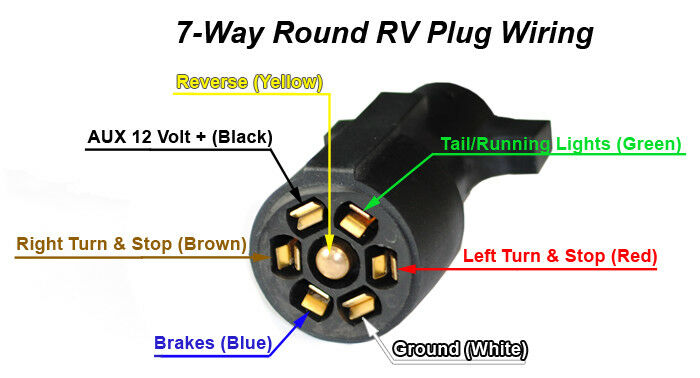

| Wiring Code | ||
|---|---|---|
|
Molded Connector |
Function |
Usual Trailer Wire |
| White Wire | Ground | White Wire |
| Red Wire | Left Turn and Brake | Yellow Wire |
| Brown Wire | Right Turn and Brake | Green Wire |
| Green Wire | Tail Lights | Brown Wire |
| Blue Wire | Brake Power | Blue Wire |
| Black Wire | 12 volt (hot lead) | Black Wire |
| Yellow Wire | Aux. | - |
