7 Way Round to 4 Pin Flat Trailer Plug Light Adapter RV Connector Boat RV (12716)

LaVanture

Regular price $9.99

R and P Carriages 270 E Jackson St Seneca IL 61360

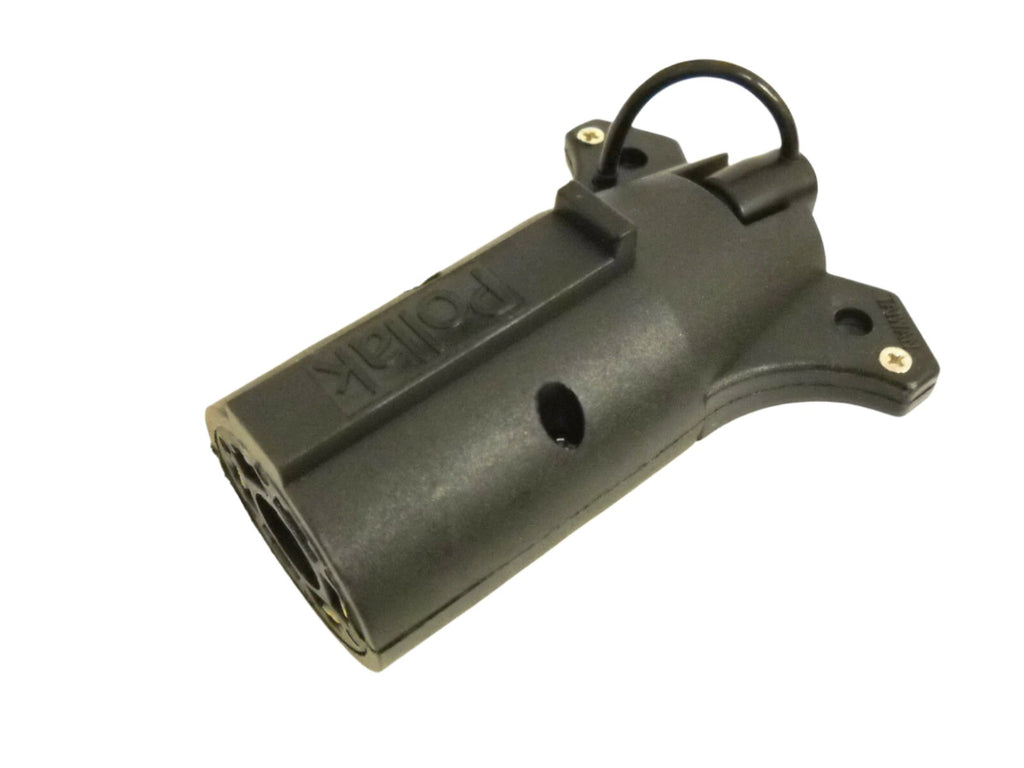

7 Way Blade Truck End to 4 Way Flat Trailer End Adapter


You are looking at a special trailer plug adapter I sell which will allow you to pull a trailer with the 4 way flat plug, even though your truck has the 7 way round plug commonly found on many tow vehicles

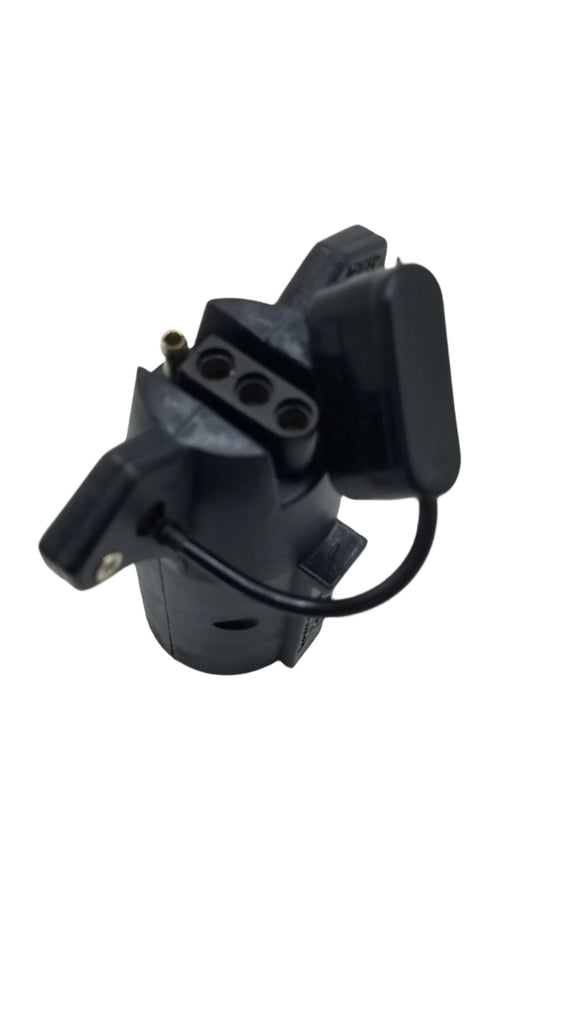

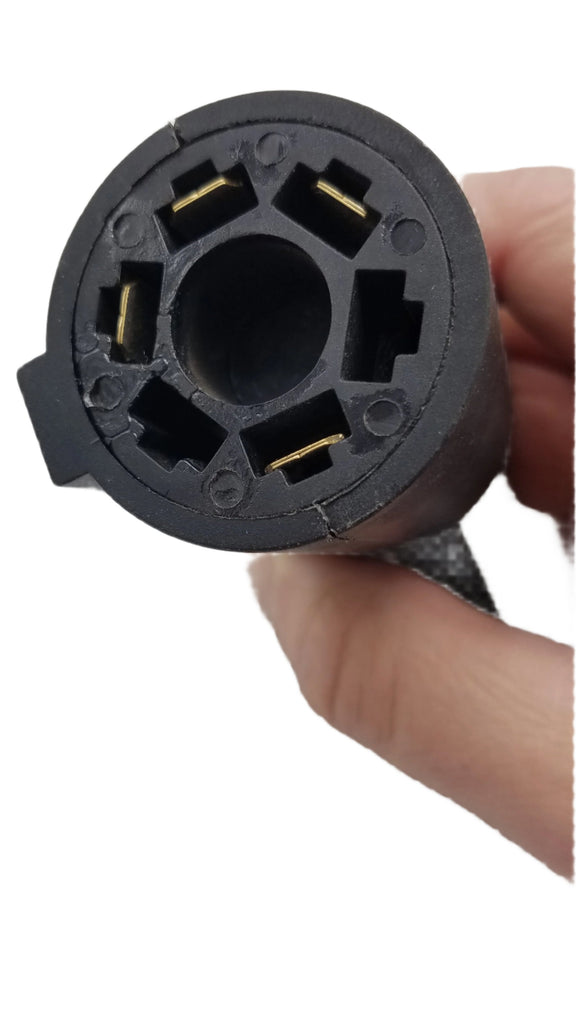

This plug consist of a female 4 way connector that the trailer plug can plug into, and 7 way blade plug to plug into the back of your tow vehicle.

Again, the 7 way end fits your truck, and the 4 way end fits the trailer.


This Adapter Should Work for You IF:

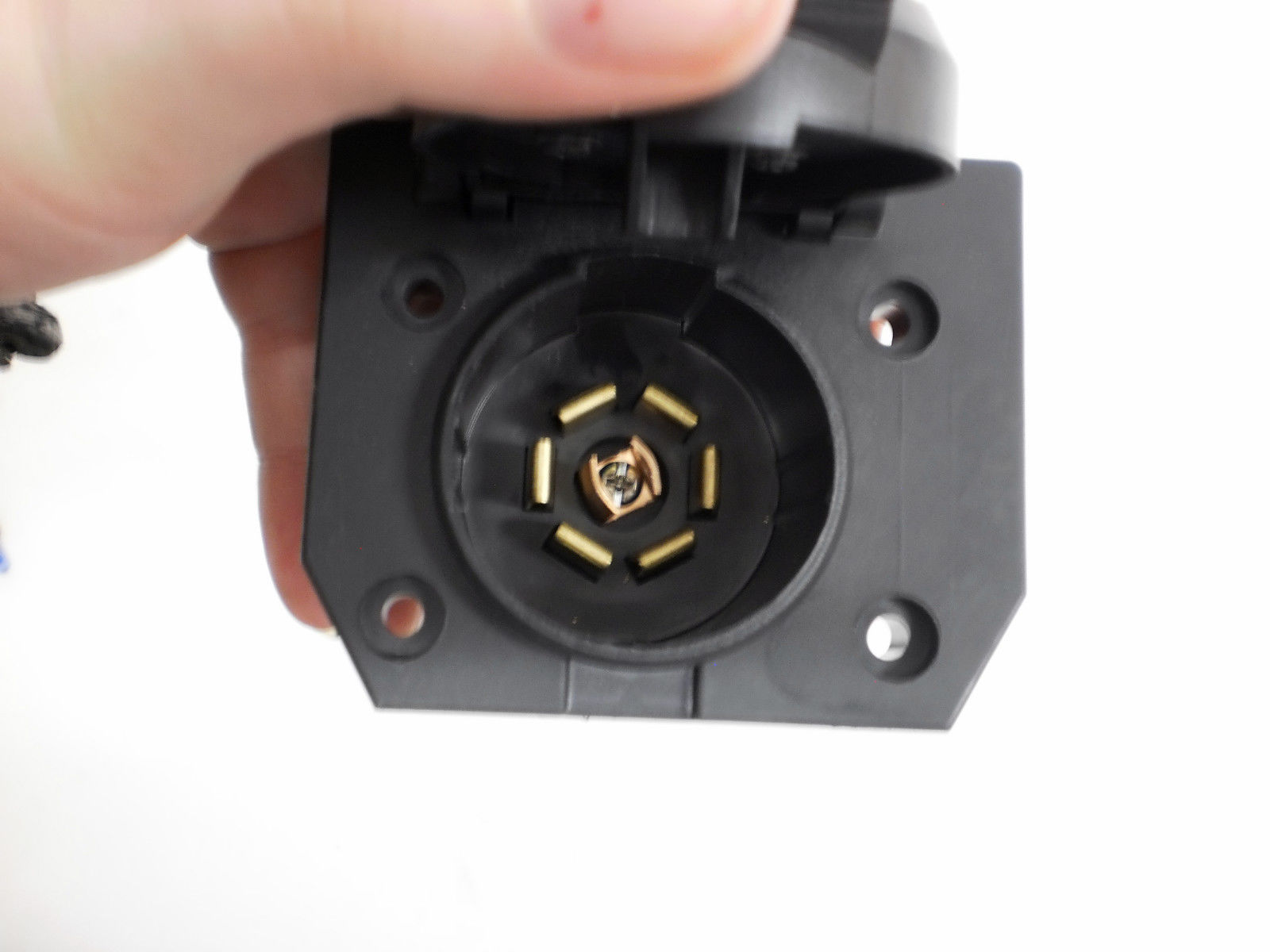

Your Towing Vehicle Plug Looks Like This

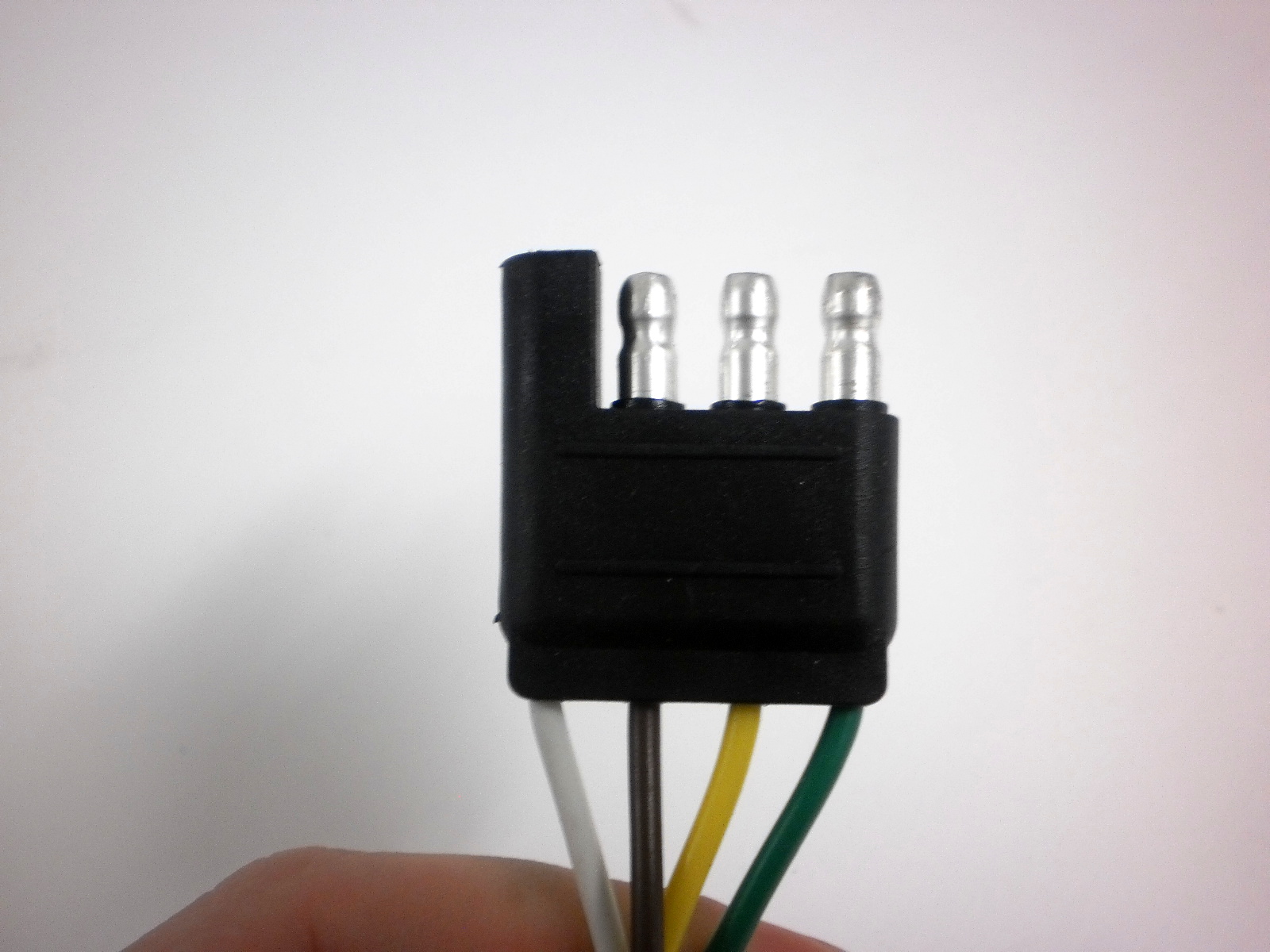

Your Trailer Plug Looks Like This









Please contact us if you have wire questions, we run a full service trailer repair shop, so we re-wire trailers daily! And remember, you can not depend on wire colors alone, you should test your particular trailer wire system. we offer phone assistance, but can not be responsible for improper wiring done by the customer..

Trailer Connector RV Style 7-Way Blade with molded lead.

  • Pre-wired 7-Way Trailer Connector
  • length is including connector
  • Wire gauges:
    • 14 gauge - red, brown, green, and yellow
    • 12 gauge - Blue
    • 10 gauge - White and Black

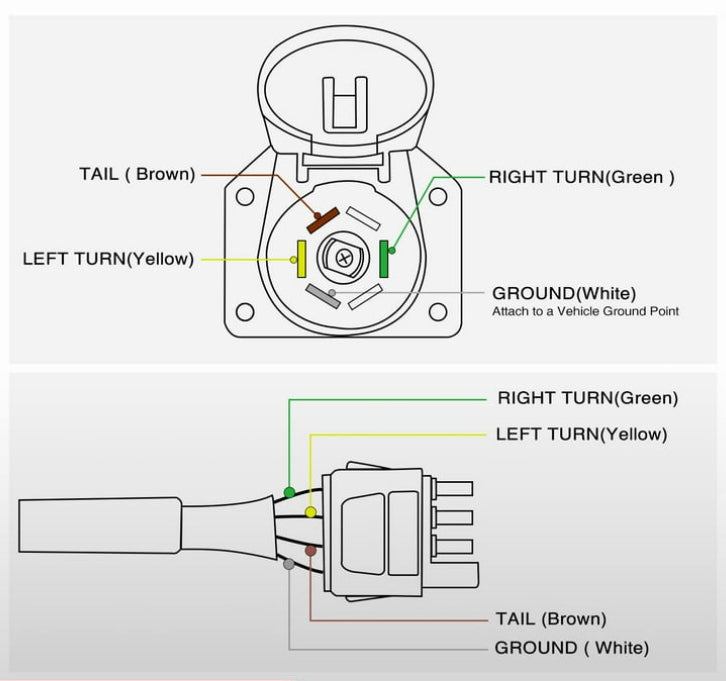

Wiring Code
Molded Connector
Function
Usual Trailer Wire
White Wire Ground White Wire
Red Wire Left Turn and Brake Yellow Wire
Brown Wire Right Turn and Brake Green Wire
Green Wire Tail Lights Brown Wire
Blue Wire Brake Power Blue Wire
Black Wire 12 volt (hot lead) Black Wire
Yellow Wire Aux. -
